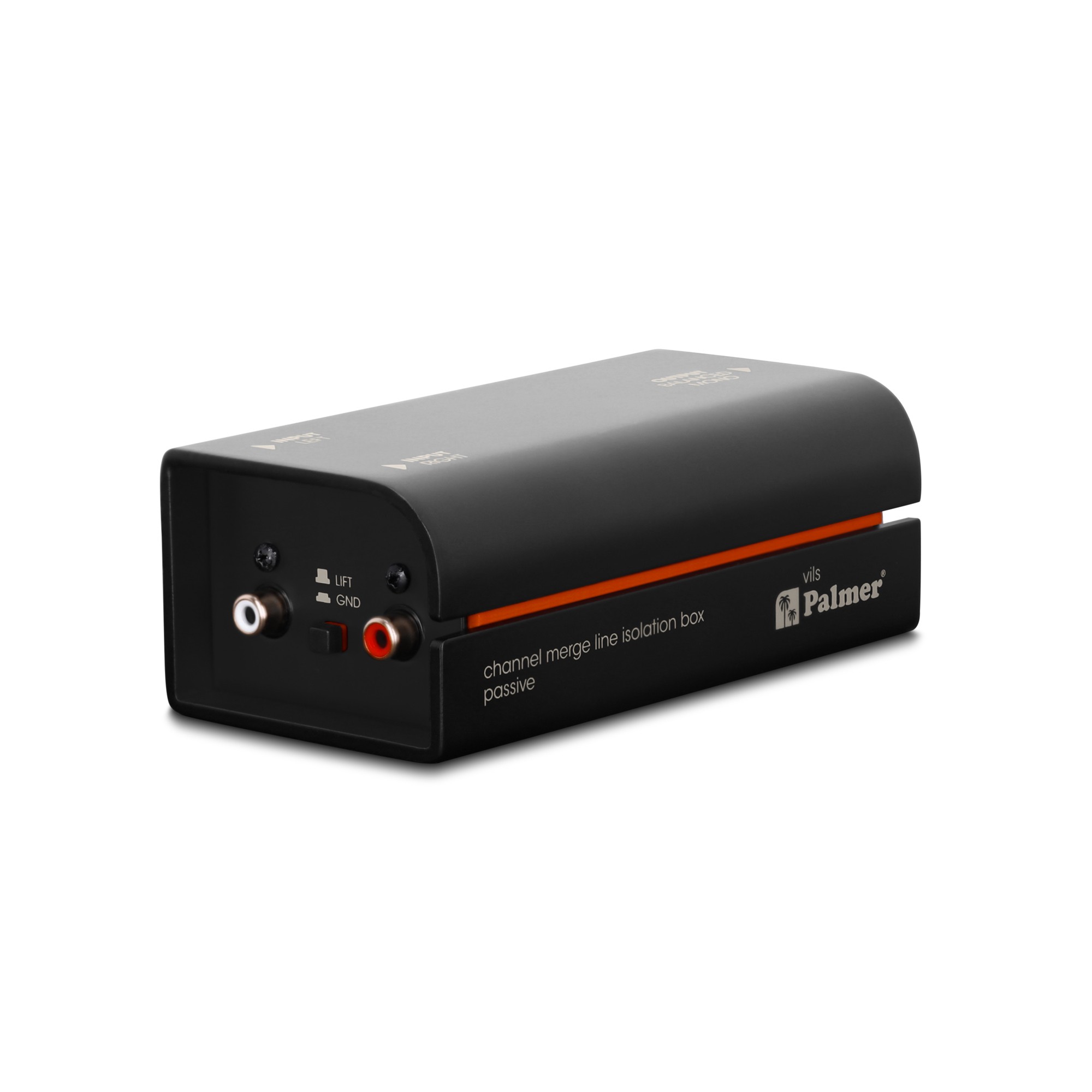

Palmer RIVER vils Passive Mono Merge Line Isolation Box

About: Palmer RIVER vils Passive Mono Merge Line Isolation Box

Finally, presentations without background noise! ​​Who hasn't experienced this? At home the sound was clear and crisp, but now in the lecture hall there's a humming and chirping noise coming from the speakers. There's no time to troubleshoot. The Palmer vils, a line isolator box that separates the ground potentials of laptops or media devices from the sound system, provides a reliable solution.

• Uninterrupted sound for presentations
• For connecting a laptop or consumer audio device to a professional microphone input
• Mixes two input channels (e.g., laptop headphone output) to mono.
• Galvanic isolation via transformers ensures interference-free sound.
• Passive operation, no power supply required
• Optimal matching of level and impedance
• Symmetrical output allows for longer cable runs without interference.
• Attractive and innovative design
• Robust housing made of aluminum and steel
• Includes writable tour label for attachment to the back of the vils.
• Engineered in Germany

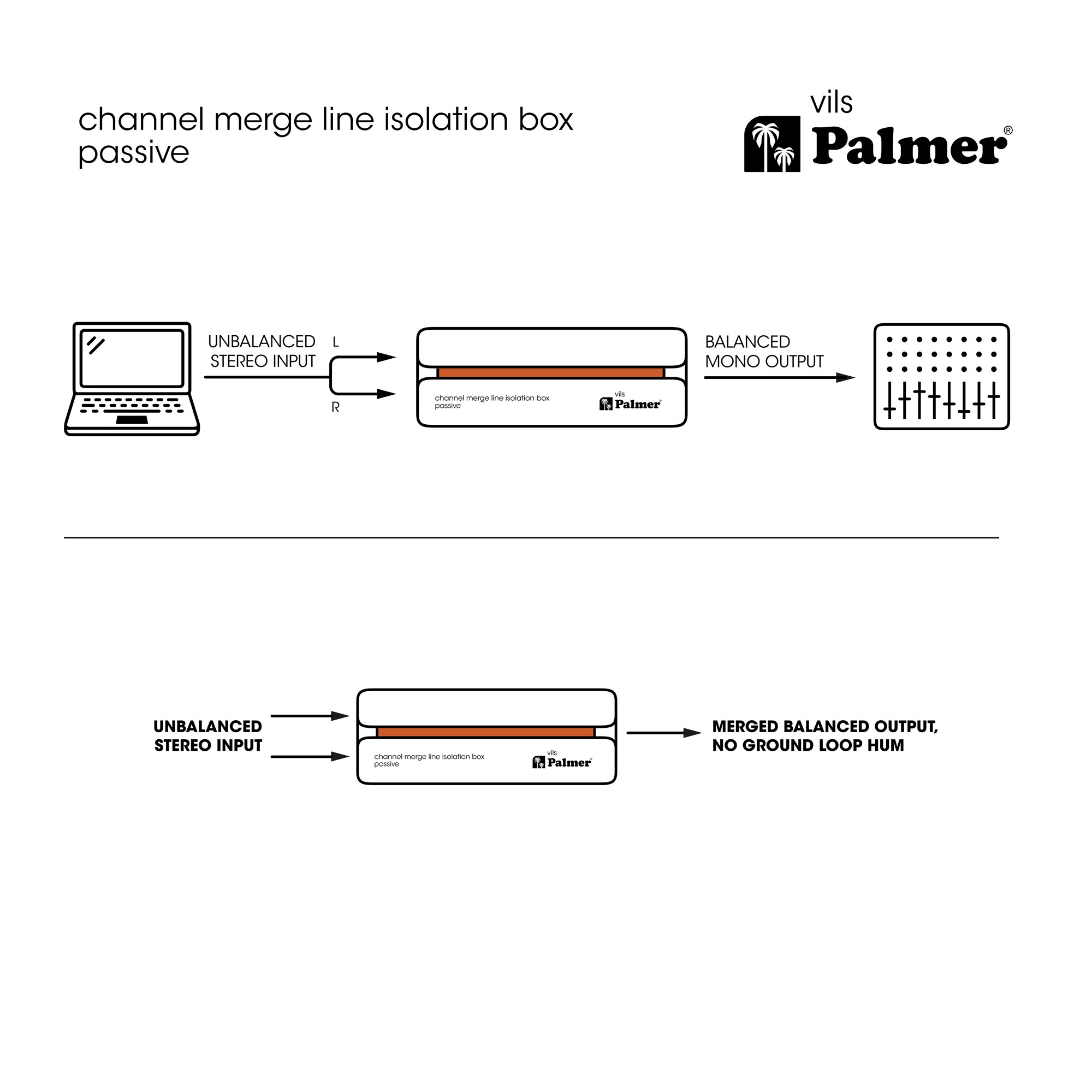

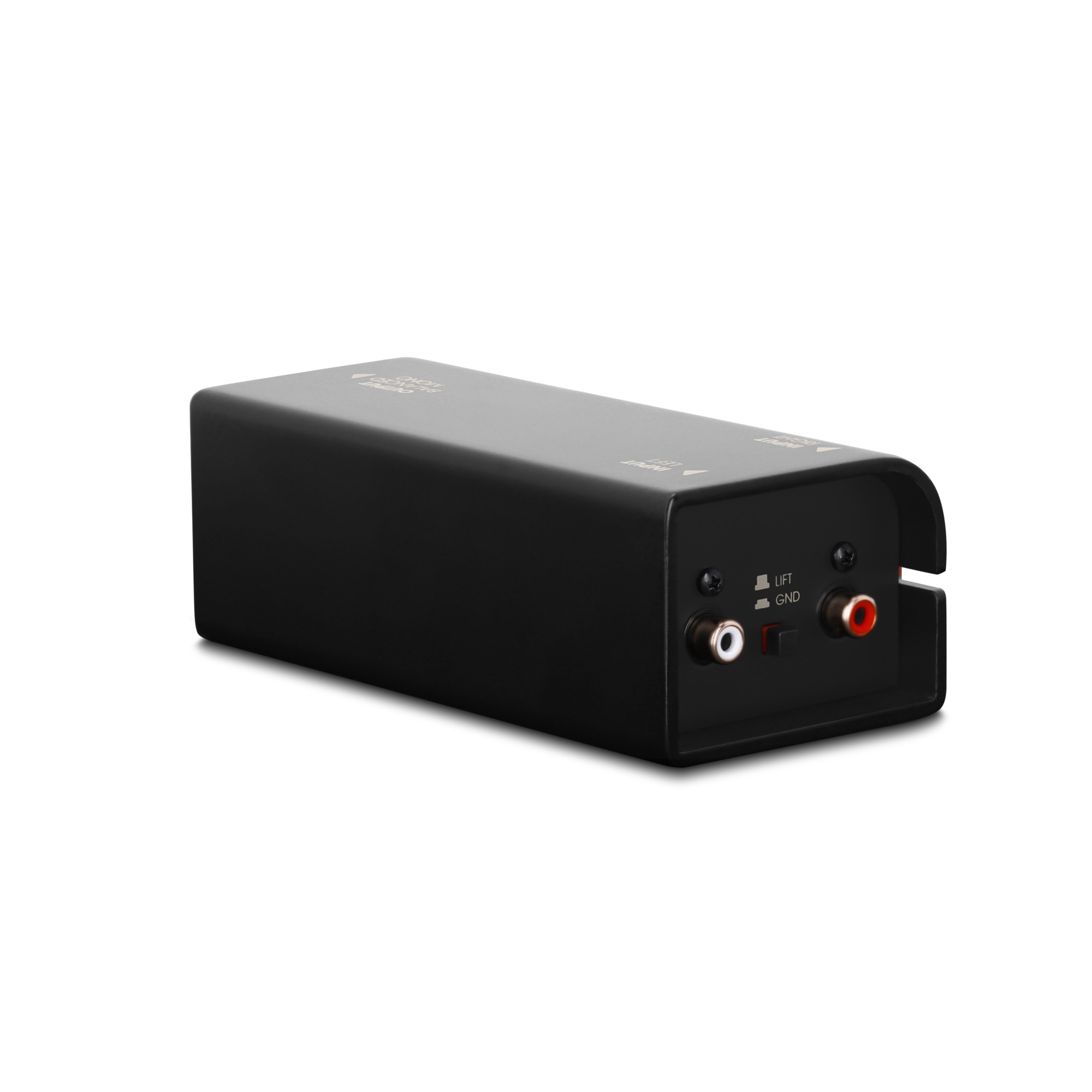

The Palmer vils has two unbalanced RCA inputs. To connect it to your laptop's headphone output, you can use a standard Y-cable with a 3.5 mm jack plug. The vils sums both stereo channels to mono, so you only need one free microphone input to connect it to your sound system.

The Palmer vils is extremely simple to use. Due to its passive operation, it requires no power supply; a resistor network and a transformer, which simultaneously balances the signal, ensure optimal level and impedance matching. This prevents interference even over long cable runs.

With the Palmer vils, you can finally be sure that your presentations in the lecture hall will sound just as clear and clean as at home.

Tough and Durable New Design

We know that the demands of stage and studio require equipment that is not only high performing, but also rugged and durable. The River Series represents a new design philosophy that combines form and function to create audio tools that are as rugged as they are stunning. These units are built to last, with rugged metal chassis and reinforced connectors. We've tested them in the harshest conditions, so you can count on the River Series to deliver, gig after gig, session after session, year after year.

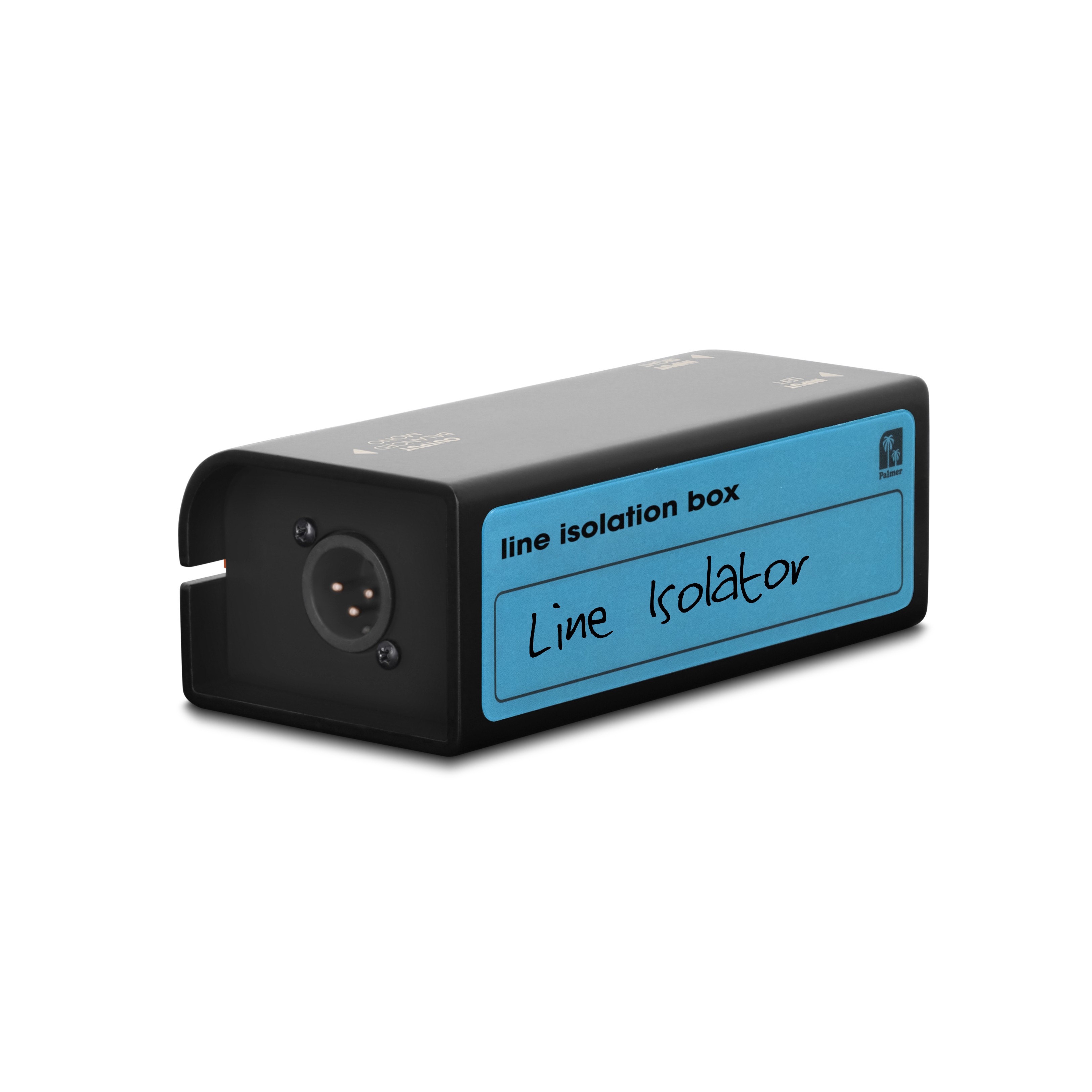

Rewritable Tour Labels

In the world of professional audio, organisation is king. Misplaced or incorrectly connected equipment can turn a flawless performance into an unforgettable disaster. That's why the River Series introduces an innovative feature: rewritable tour labels. These color coded handy labels let you customize your di-boxes, line isolators splitters & mergers, ensuring each piece is in the right place, every time whether in the busy backstage area of a rock concert or the tangled web of cables in a recording studio.

Specifications

• Audio
  • ​Max. input level (< 1% THD, 20 Hz): +12 dBu
  • Max. input level (< 1% THD, 1 kHz): +32 dBu
  • Frequency response (±0.2dB, relative 1kHz): 20 Hz - 30 kHz
  • Input impedance (1 kHz, Setting: 0 dB Pad, THRU): 2.7 kOhm
  • Output impedance (1 kHz, Setting:0 dB Pad, THRU): 600 ohms
  • THD (30 Hz, +4 dBu, unity, unweighted): <0.08%
  • THD (1 kHz, +4 dBu, unity, unweighted): <0.003%
  • IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0.002%
  • Transformer ratio: 1 : 1
• General
  • Product type: Line Isolator
  • Type: passive
  • Number of channels: 1
  • Transformer isolated: Yes
  • Number of inputs: 2
  • Input type: asymmetrical
  • Input connections: RCA
  • Number of outputs: 1
  • Output type: symmetrical

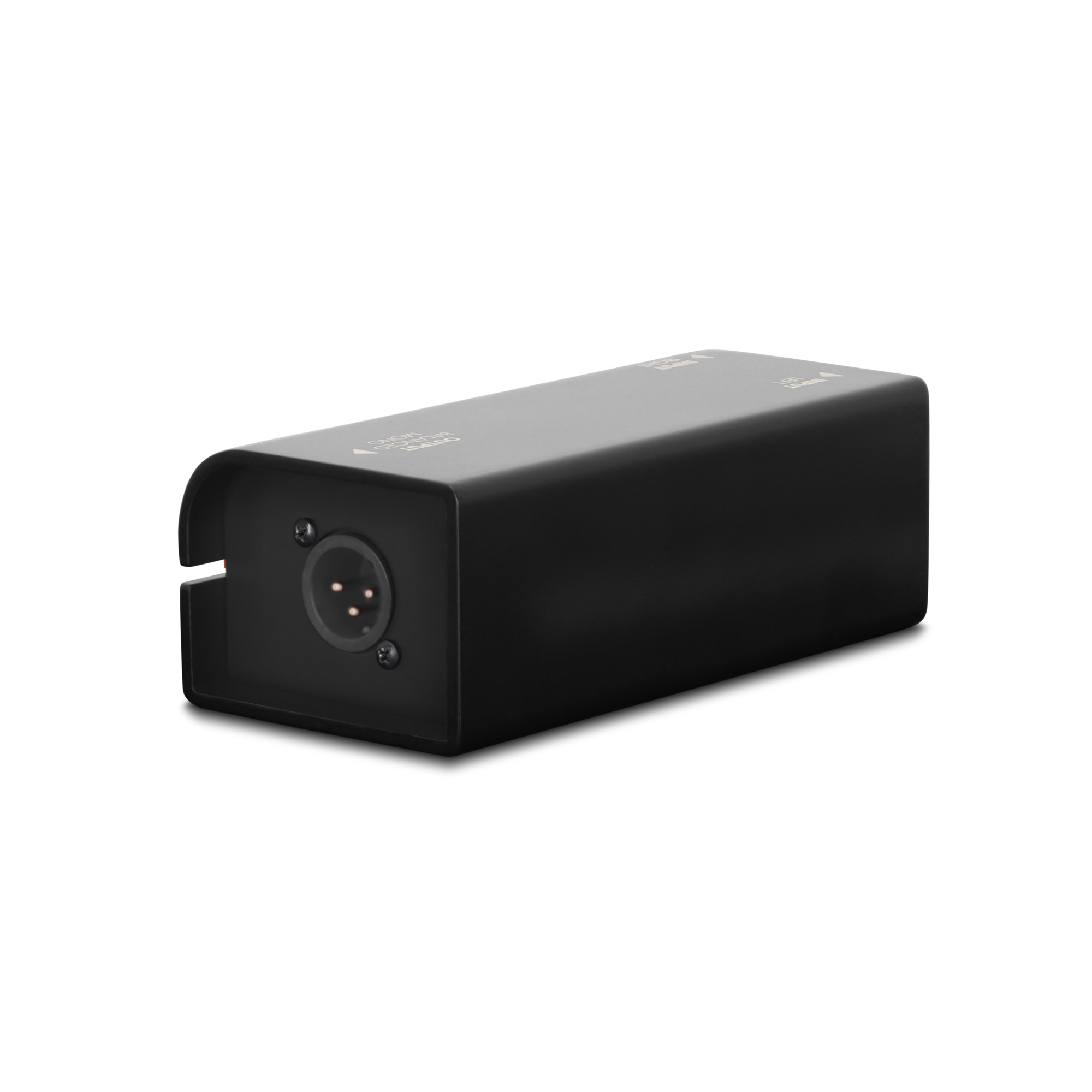

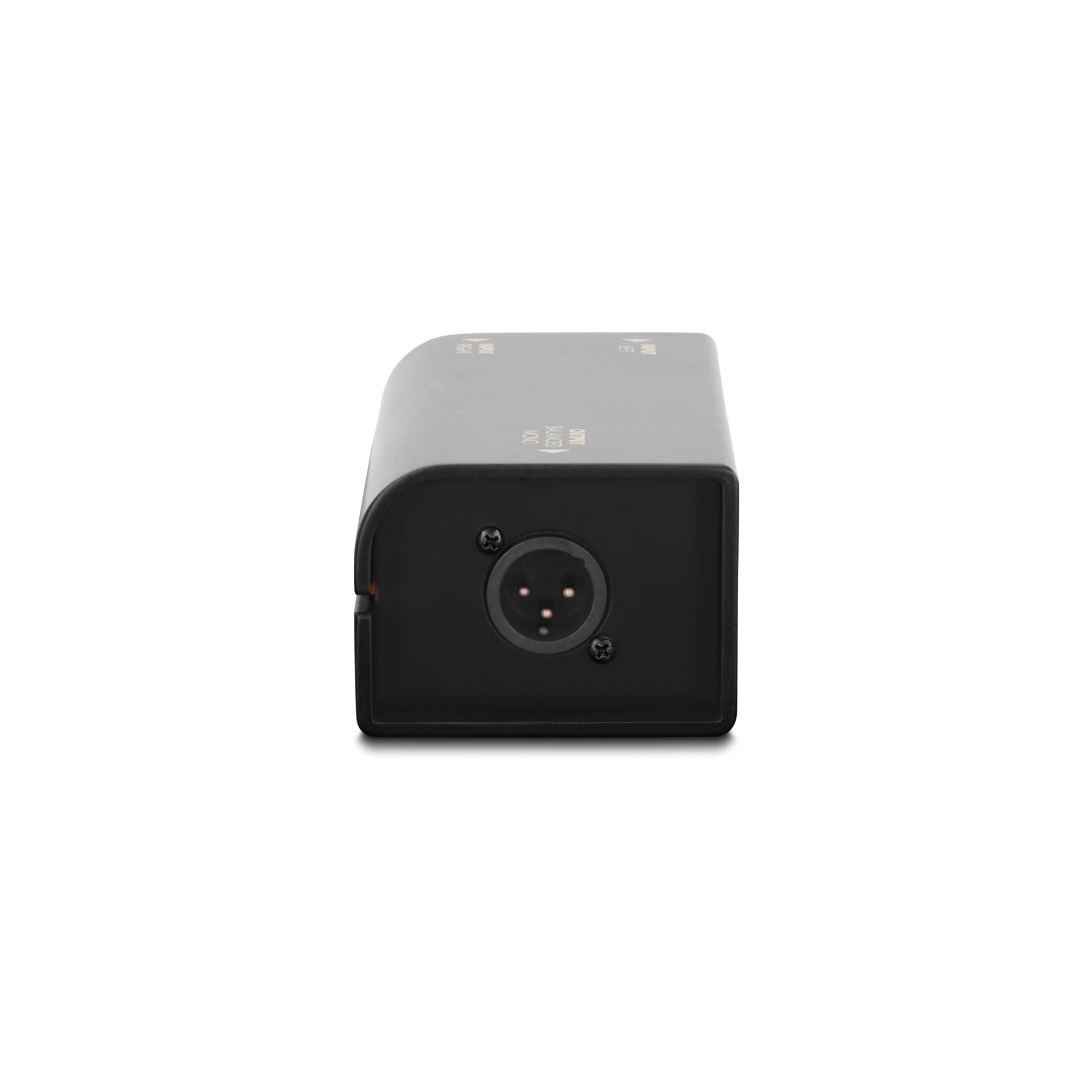

  • Output connections: XLR
  • Ground lift switch: Yes
  • Housing: Aluminum continuous casting
  • Ambient temperature during operation: -20 - 70 °C
  • Relative humidity: < 80%, non-condensing
  • Dimensions (HxWxD): 1.97 x 5.51 x 1.97 in (50 x 140 x 50 mm)
  • Weight: 0.85 lbs (0.385 kg)
  • Accessories (included in delivery): Labeling plate (tour label), rubber feet
