Glensound GS-MM83 Audio Monitor With Eight Mono Inputs & Three Stereo Inputs in
Model: GS-MM83
About: Glensound GS-MM83 Audio Monitor With Eight Mono Inputs & Three Stereo Inputs in

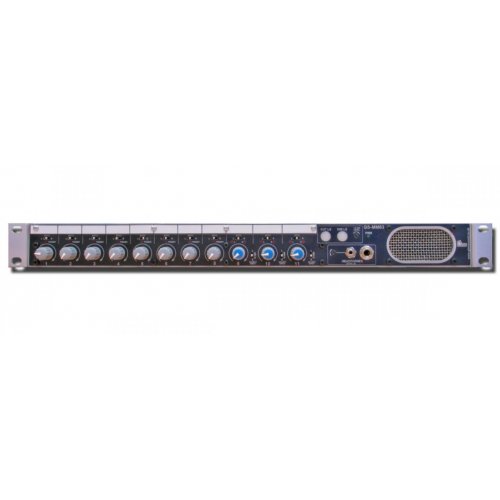

Glensound GS-MM83 is a professional 1U audio monitor mixer featuring eight mono and three stereo inputs, designed for confidence and pre-hear monitoring in broadcast and production environments. With DSP-based signal processing, flexible routing, and both headphone and loudspeaker outputs, the GS-MM83 delivers high-performance monitoring for voice or music applications.
Features
- Eight mono and three stereo inputs with independent mix level controls
- Signal presence indicators and routing switches for each input

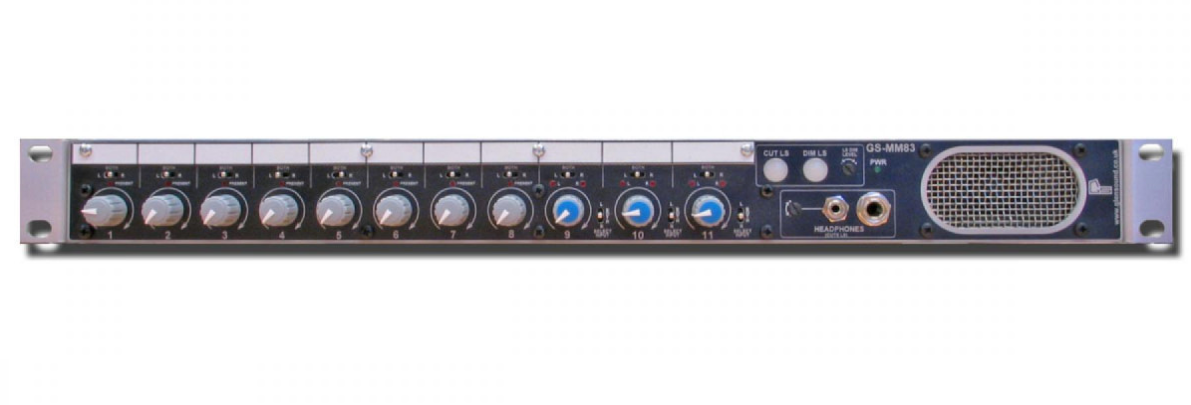

- Front panel loudspeaker with DSP control, volume, cut, dim, and dim-level adjustment
- 3.5mm and 6.35mm headphone outputs with dedicated volume control (auto-speaker cut)

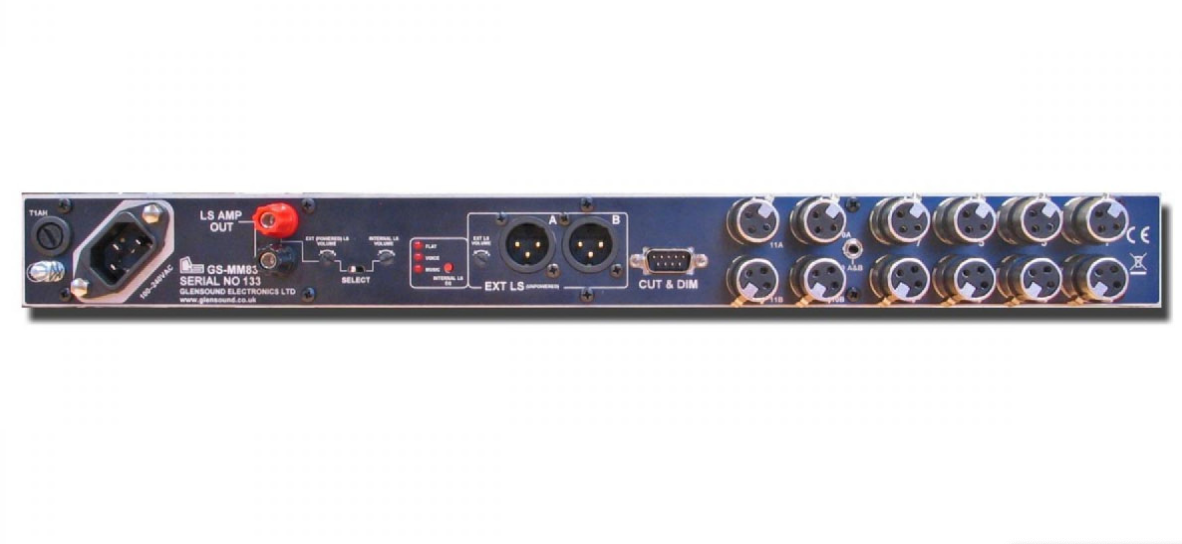

- Rear panel balanced XLR inputs (input 9 is 3.5mm stereo jack)
- Balanced stereo XLR outputs for passive monitor speakers
- Terminals for powering external speakers; rear panel switch selects speaker output
- DSP with EQ presets optimized for voice, music, or flat response
- Rear panel switch and indicators select DSP EQ mode
- 9-pin D-sub for remote cut and dim control
- External AC power (100–240V, 50/60Hz) via internal switch-mode PSU
Specifications
| Inputs | 8 x mono (XLR), 3 x stereo (XLR), Input 9 via 3.5mm stereo jack |
|---|---|
| Headphone Outputs | 6.35mm and 3.5mm jacks; front panel level control |
| Loudspeaker Outputs | Front panel speaker, rear stereo XLR for passive speakers, rear terminals for powered speakers |
| DSP EQ Modes | Voice, Music, Flat (selectable via rear panel) |
| Remote Control | 9-pin D-sub: Cut and Dim via external loop |
| Power Supply | Internal switch-mode PSU, 100–240V AC, 50/60Hz |
| Form Factor | 1U 19-inch rackmount |
