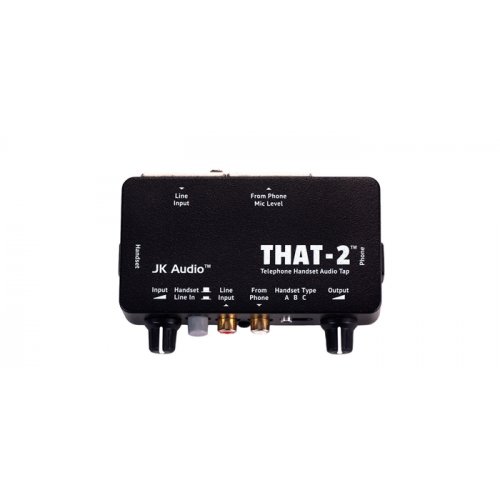

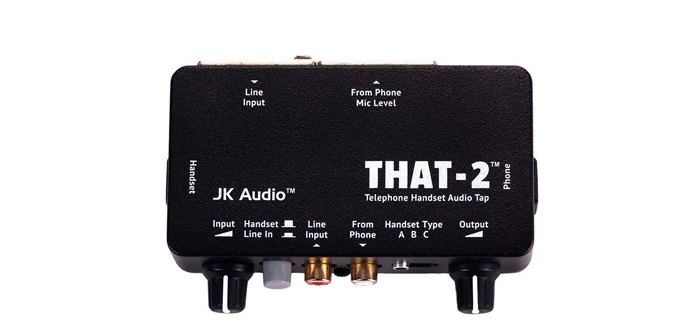

JK Audio THAT-2 Telephone Handset Audio Tap

Model: THAT-2

JK Audio THAT-2 Telephone Handset Audio Tap
  • Free Shipping!
  • Not in-Stock: Estimated Lead Time 7-10 Days
  • Not yet reviewed




About: JK Audio THAT-2 Telephone Handset Audio Tap

Connect THAT-2 between your telephone and handset for quick access to audio in and out of the telephone. The THAT-2 is used by radio stations to record and play sound bytes, and by TV and film sound crews to get IFB dialog over phone lines.

Record and Play Audio Clips

Simply unplug the handset coily cord form the base of your telephone and plug it directly into the THAT-2. Then, using the supplied cable, connect the THAT-2 back to the telephone. Now connect your audio equipment or powered speaker to the RCA or XLR jacks. The grey pushbutton selects which audio will be sent into the telephone (Out = talking on the handset, In = sending audio in through the RCA jack). The output jacks contains a nice mix of the audio from both sides of the conversation, as well as the tones being pressed on the keypad.

Phone Compatibility

The THAT-2 has a three-position switch which accommodates electret, dynamic and carbon telephone handset microphone types. The THAT-2 will emulate the type of microphone that is in the handset and allow you to send audio into many different types of analog and digital PBX sets, as well as ISDN telephones. THAT-2 does not work with cordless or cell phones, or any telephone with a keypad in the handset.

Features

  • Works with Analog, Digital, PBX, or VoIP Telephones
  • RCA Input & Output
  • XLR Input & Output
  • Input Level Control
  • Output Level Control
  • Switch Selects Between Carbon, Dynamic or Electret Handset Types
  • Passive Design. No Battery or AC Required
  • Made in America

Specifications

  • Line Input: RCA
    • Impedance: 600-9000 ohms
    • Level: 250 mV RMS (+12 dBu nom)
  • Line Input: Female XLR
    • Impedance: 600-9000 ohms
    • Level: 250 mV RMS (+12 dBu nom)
  • Output: RCA
    • Impedance: 0-2500 ohms
    • Level: 100 mV RMS (-18 dBu nom)
  • Output: Male XLR
    • Impedance: 0-2500 ohms
    • Level: 100 mV RMS (-18 dBu nom)
  • Handset Type: Electret, Dynamic, Carbon
  • Handset and Telephone Connectors: RJ22
  • Size: 4.5" x 3.2" x 1.3" (11.4 x 8.2 x 3.3 cm)
  • Weight: 9 oz
