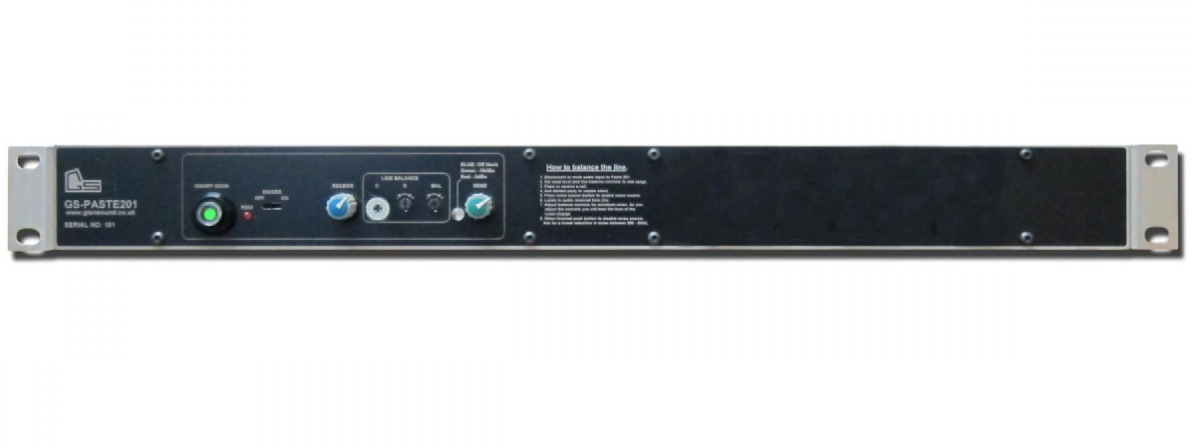

Glensound GS-PASTE201/R1 Rack Mount Line Powered Telephone Balancing Unit
Model: GS-PASTE201/R1
About: Glensound GS-PASTE201/R1 Rack Mount Line Powered Telephone Balancing Unit
Glensound GS-PASTE201/R1 is a rugged, line-powered telephone balancing unit (TBU) designed to connect professional broadcast equipment to standard analogue telephone lines (POTS). Housed in a 1U 19" rackmount chassis, it provides transformer-balanced audio I/O, level control, and tone generation for easy line setup without requiring mains or battery power.
Features
- Balanced audio input/output for analogue telephone line interfacing
- Line powered—no mains or batteries required
- Internal compressor/limiter to control send levels
- Integrated tone generator for R/C balance adjustment
- Multi-colour LED level indication on the front panel
- RJ11 connector for external handset (for call dialling)
- RJ11 line connection with switchable pinout for global compatibility
- Front panel On/Off Hook switch with indicator
- Audible and visual ring indicators for incoming calls
- ETSI ES203021# compliant
Specifications
| Audio Input | Transformer balanced on Neutrik XLR Impedance: >10kΩ Nominal Level: 0 dBu Max Level: +18 dBu Gain Control: ±10 dB |
|---|---|
| Audio Output | Transformer balanced on Neutrik XLR Impedance: 50Ω Nominal Level: 0 dBu Max Output: +6 dBu (line limited) Gain Control: ±10 dB |
| Level Indicator | Tri-colour LED: Blue: < -10 dBu Green: -10 to -3 dBu Red: > -3 dBu |
| Telephone Line Interface | Type: Direct Exchange Line (DEL, standard POTS) Connector: RJ14 (6P6C, RJ11 6P2C compatible) Pinout: Switchable (2/5 or 3/4) for global use |
| Dimensions | 153 mm x 103 mm x 45 mm |
| Weight | 415 g |
