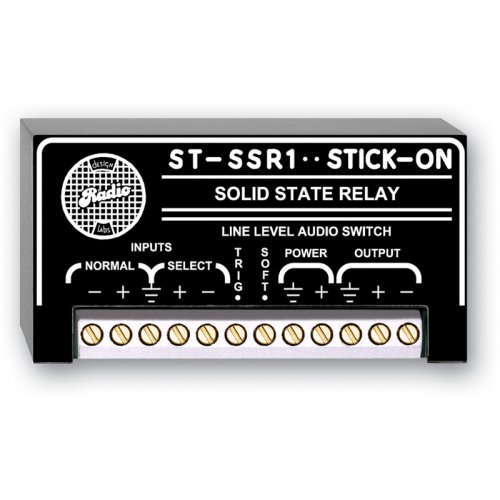

RDL ST-SSR1 Line-Level Audio Switch - 2x1
Model: RDL ST-SSR1
About: RDL ST-SSR1 Line-Level Audio Switch - 2x1
The ST-SSR1 was designed for absolute silent switching of audio signals. It supports two balanced line-level inputs and one balanced output. Each can be used unbalanced as well. The ST-SSR1 is perfect for switching between two input signals or as a silent On/Off switch for a single channel. Performance is in keeping with the technical standards for which RDL® has become known. The user can program the module for either fast or soft switching.
The SELECT input feeds the OUTPUT when the TRIG terminal is grounded, otherwise the OUTPUT is fed by the NORMAL input.
The control current required at the TRIG terminal is so minimal (< 0.5 mA) that the ST-SSR1 can be controlled from nearly any source from switches to logic circuits.
The ST-SSR1 may be controlled using the RDL D-RC2ST or the D-RT2 remote controls.
Features:
- Switch Line Level Sources
- Select Between Two Balanced Lines
- Silent Audio Switching
- Switching Without Hard Relay Contacts
- Fast Switching for Audio Muting
- Selection by Open-Collector Logic
UPC: 813721011190
Reviews: RDL ST-SSR1 Line-Level Audio Switch - 2x1
Warranty: RDL ST-SSR1 Line-Level Audio Switch - 2x1
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
