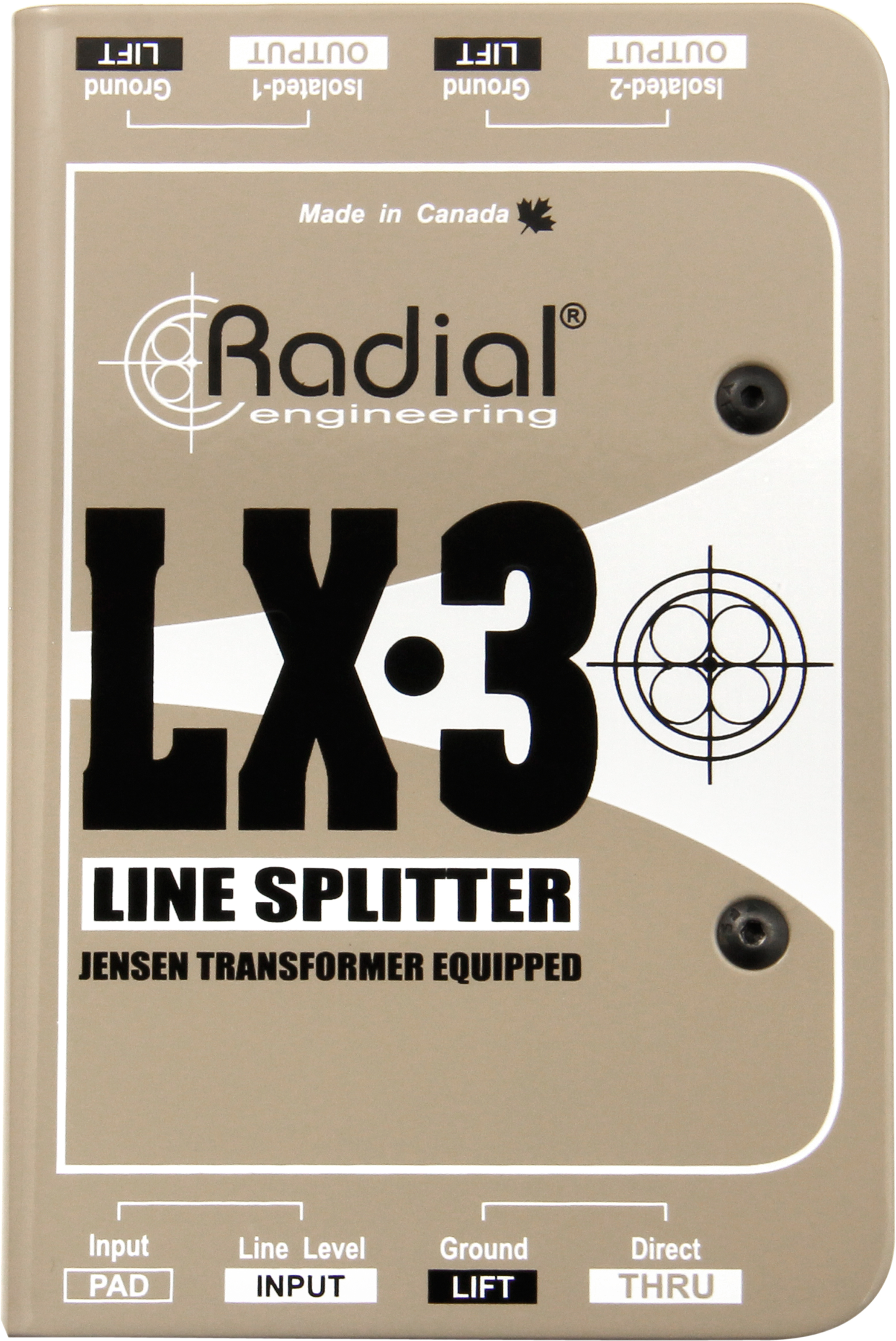

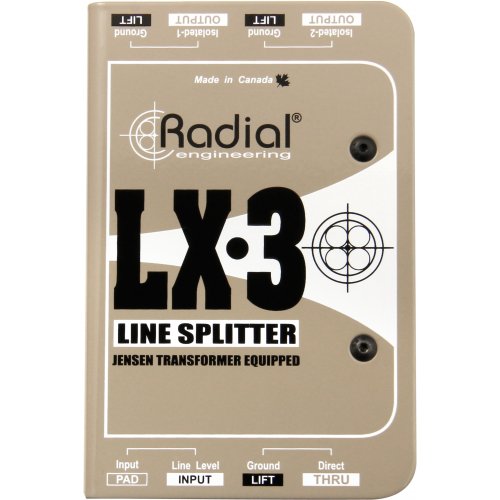

Radial LX-3 Passive Line Splitter

Model: LX-3

Radial LX-3 Passive Line Splitter
Radial LX-3 Passive Line Splitter
Radial LX-3 Passive Line Splitter
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: Radial LX-3 Passive Line Splitter

The Radial LX-3 is a high-performance balanced line-level splitter designed to send one audio signal to as many as three destinations at once. Completely passive with no need for power, you simply plug in and the LX-3 goes to work delivering your audio wherever it needs to go.

The heart of the LX-3 is a premium Jensen® JT-123-FLPCH transformer. This has the industry's best combination of frequency response, signal level handling, and low distortion, providing the highest possible signal quality. It features two isolated outputs to eliminate hum and buzz from ground loops, along with a third direct output. All three XLR outputs have ground lift switches for additional noise suppression, and a switchable -12dB input pad allows you to connect even the hottest line outputs without fear of overloading or distortion. The input of the LX-3 is accessed with an XLR/TRS combo jack, which allows you to connect via balanced or unbalanced cables; the LX-3 will automatically balance the signal at the isolated outputs, preventing interference and signal degradation over long cable runs.

Like all Radial products, the LX-3 is built rugged to handle years of abuse on the road, with heavy-duty 14-gauge steel construction. A book-end design creates a protective housing around the connectors and switches to prevent damage even in a harsh concert touring environment, and an internal I-beam frame makes it almost impossible to torque the circuit board and damage connections. The LX-3 can be mounted in a Radial J-Rak™, allowing up to 8 units to be rack-mounted together or combined with other compatible Radial DI boxes for a for a streamlined and mess-free setup. Typical applications include splitting a signal in the studio to send to multiple effects, feeding a console output to a number of recording devices, or even splitting a signal on a live stage to multiple monitors or headphone mixers.

The Radial LX-3 delivers pristine audio and ultra-quiet performance that allows you to confidently and professionally split your signal to any destination.

  • Send one audio signal to three destinations simultaneously
  • Jensen® transformer equipped for exceptional audio quality
  • Eliminates hum and buzz caused by ground loops
  • 14-gauge steel construction and military-grade circuit board for incredible durability

UPC: 676101044535

Reviews: Radial LX-3 Passive Line Splitter

There are currently no product reviews.


Warranty: Radial LX-3 Passive Line Splitter

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

All products sold by Radial come with a 1-year limited warranty that is detailed in the product's specific owner's manual. This limited warranty protects you against defects in workmanship. The warranty does not cover any consequential or inconsequential damage or any losses.

Some Radial products come with a 3-Year Transferable Warranty. This means that if you buy the product and decide to sell it, the warranty can be transferred to the person that buys it from you, thus providing continuous warranty support and added value. This Transferable Warranty follows the same procedures and limitations outlined in the Standard Warranty. This means that if you sell the product, you must provide the buyer with a copy of your original invoice so that he, in turn, may be able to submit this should a warranty claim be required.
