RDL ST-LCR1H High Power Logic Controlled Relay

Model: RDL ST-LCR1H

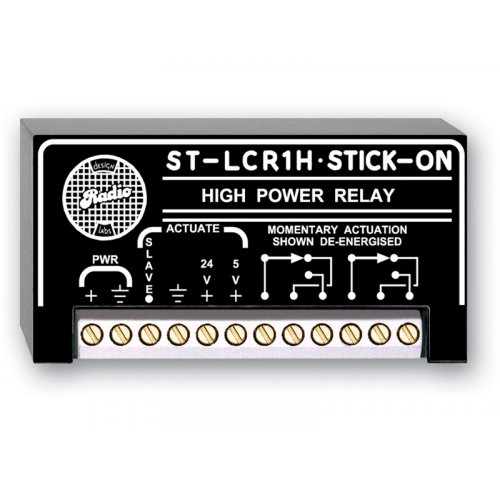

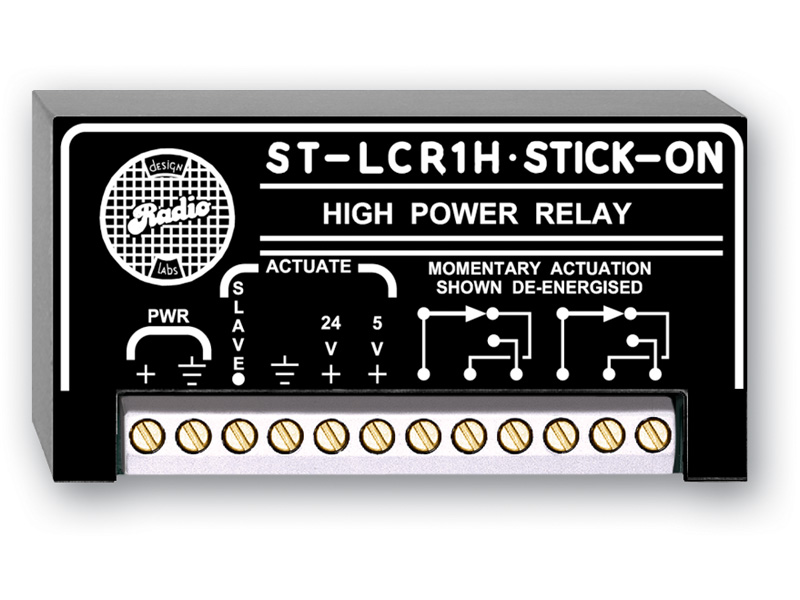

RDL ST-LCR1H High Power Logic Controlled Relay
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: RDL ST-LCR1H High Power Logic Controlled Relay

The ST-LCR1H provides dry-switching contacts for high power switching, an LED indicator showing relay activation, and input connections. Switching contacts are suited to switching many 8 Ω, 70.7 V or 100 V speaker lines.

The relay closes when an input signal is applied. The relay releases when the input signal is removed. The ST-LCR1H is ideally suited to applications where high power switching contacts need to be added to nearly any type of control signal. The relay may be activated from any of 3 input signals: 5 Vdc, 24 Vdc, or open-collector.

Use the ST-LCR1H individually, or combine it with other RDL® products as part of a complete audio/video system.

Features:

  • Switching of Speaker Lines
  • Control from Switch or Logic Circuits
  • DPDT Switching Contacts
  • Open-Collector Switching
  • 8 Amp Relay Contacts
