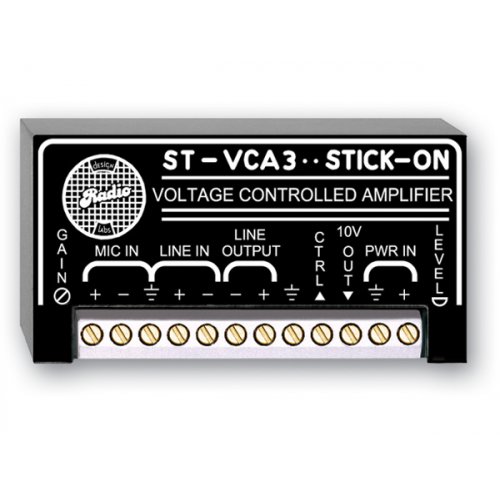

RDL ST-VCA3 Voltage Controlled Amplifier

Model: RDL ST-VCA3

RDL ST-VCA3 Voltage Controlled Amplifier
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: RDL ST-VCA3 Voltage Controlled Amplifier

The ST-VCA3 is used in applications requiring smooth audio level control from a remote control panel, potentiometer or dc voltage (0 to 10 V). Installation in series with the audio input of a power amplifier allows remote control of that amplifier's level. For installations where it is preferred to keep the audio localized in the rack, audio controls are extended outside the rack from the ST-VCA3. Many installations benefit from avoiding long-term potentiometer wear from audio running through the potentiometer. An ST-VCA3 with external dc control provides virtual immunity from scratchy audio. Audio/video system control units often provide 0 to 10 Vdc control outputs that can directly control audio levels using an ST-VCA3. The ST-VCA3 is primarily intended for line-level attenuation; a high quality utility microphone preamplifier is included in the module. If remote control of a microphone preamplifier is desired, such as a wall mounted level control for a microphone jack, the ST-VCA3 may serve as a remote controlled microphone preamplifier.

Features:

  • Audio Level Control from a DC Voltage
  • Audio Level Remote Control
  • Two Wire with Shield or Three Wire Control
  • VCA with Microphone or Line Level Input
  • VCA with Line-Level Output
  • VCA with LED Metering of Operating Level

Reviews: RDL ST-VCA3 Voltage Controlled Amplifier

There are currently no product reviews.


Warranty: RDL ST-VCA3 Voltage Controlled Amplifier

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
