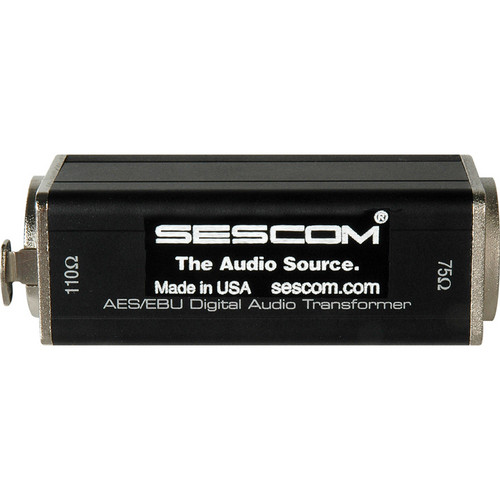

Sescom SES-AES-EBU-1 XLRF to BNC Female AES/EBU Impedance Transformer
Model: SES-AES-EBU-1
About: Sescom SES-AES-EBU-1 XLRF to BNC Female AES/EBU Impedance Transformer
Sescom SES-AES-EBU-1 110 Ohm Female XLR In to 75 Ohm BNC Female Out AES/EBU Impedance Transformer.
Features:
- 110 Ohm Female XLR to 75 Ohm AES-EBU in-line transformers
- BNC to 3-Pin XLR Receptacle (male & female versions)
- Provides an excellent impedance transformer at a reasonable cost for meeting the needs between analog to digital conversion
- Perfect for medium haul cable runs
- Also allows for longer cable runs via unbalanced coaxial lines rather than twisted pair cables that have greater attenuation at relevant frequencies
Specifications:
- Max Voltage / Max Run: 5VPP / 250MW
- 0.1 MHZ TO 6 MHZ
- Insertion Loss: < 0.3DB @ 0.1 MHZ TO 10 MHZ
- VSWR / Return Loss = < 1.1 / > 24.6 DB
Reviews: Sescom SES-AES-EBU-1 XLRF to BNC Female AES/EBU Impedance Transformer
There are currently no product reviews.
Warranty: Sescom SES-AES-EBU-1 XLRF to BNC Female AES/EBU Impedance Transformer
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
90 Day Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
