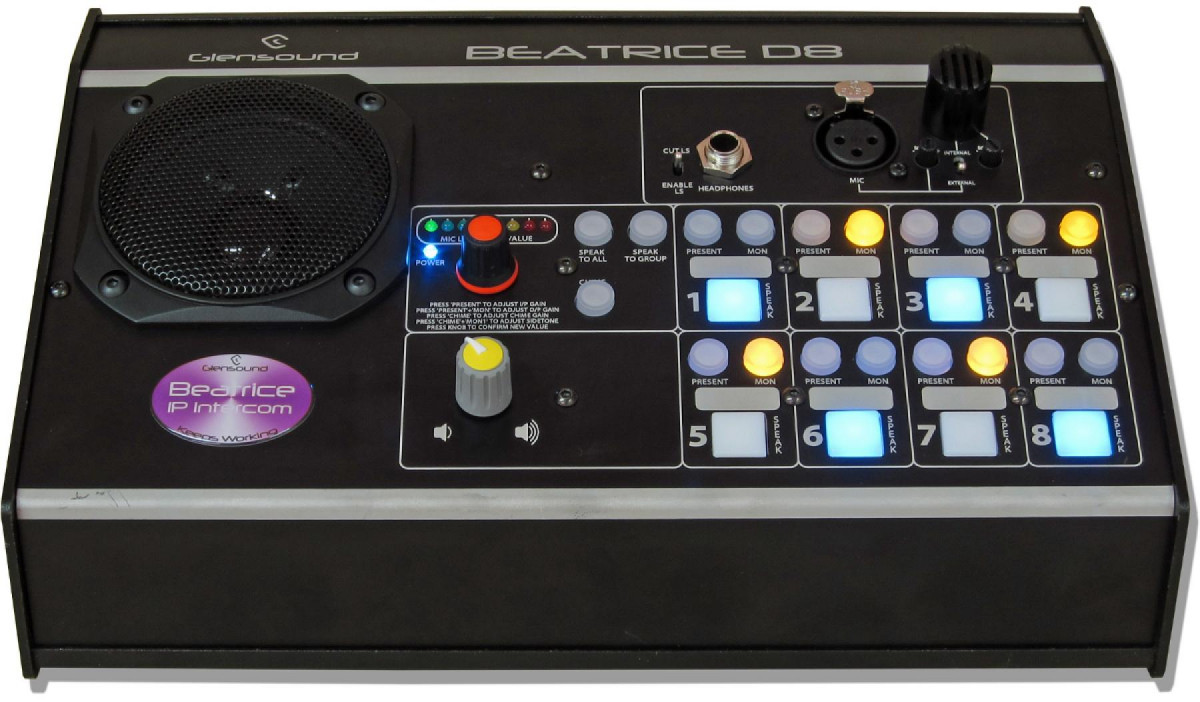

Glensound Beatrice D8 8 Channel Network Audio Desktop Intercom

About: Glensound Beatrice D8 8 Channel Network Audio Desktop Intercom

Beatrice D8 Overview:

The Glensound BEATRICE D8 is a versatile and fully featured 8 channel desktop intercom with crystal clear audio designed for broadcast, theatre and professional audio applications.

It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks. It is also AES67 compliant. As such the BEATRICE D8 is fully compatible with other manufacturers’ equipment using the Dante and/ or AES67 protocols.

This desktop intercom was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.

Also Available In AE67/ Ravenna Version

AUDIO:

Mic Gain Range: +61 to +21dB
Phantom Power: 12 Volts (set by internal link)
Equivalent Input Noise: -126dB (20Hz to 20kHz A weighted 150 Ohms)
Headphone Impedance: 32 - 1000 Ohms
Max Headphone Output Level: +14dB into 600 Ohms
Headphone Connector: 6.35mm (1/4") TRS socket
Band Pass Filter: 50Hz to 15kHz

CALL CIRCUIT:

Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 seconds
Compatibility: All Glensound Beatrice units and Studio Technologies

POWER:

Mains Voltage: 100 to 240 VAC +/-10%
Mains Frequency: 50 to 60Hz
Power Over Ethernet (PoE): 48 Volts
Consumption: 15 Watts
Redundancy: Mains and PoE are dioded together for glitch free redundancy

PHYSICAL:

Mechanics: All aluminium with laser etched anodised panels and light textured black powder coated sides, base and lid
Size: 269x172x100mm
Weight: 1.6Kg (3.5lb)
Shipping Weight: 3.1Kg
Shipping Size: 620x410x210mm
Shipping Carton: Rugged export quality cardboard carton

ENVIRONMENTAL:

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS:

Handbook: By download
Network Cable: 2 meter RJ45 to RJ45 cable

DANTE/AES67 VERSION:

Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67

RAVENNA/AES67 VERSION:
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
AES67: Yes
High Sample Rates: 44.1kHz - 192kHz
PTPv2: Master or Slave, IEEE-1588-2008 standard
SMPTE ST 2110-30: Yes. Including level C and CX
SMPTE ST2022-7: Yes. Seamless data switching
NMOS IS-04 (Disovery): Yes
NMOS IS-05 Routing): Yes
Remote Control: Web browser or Anem
