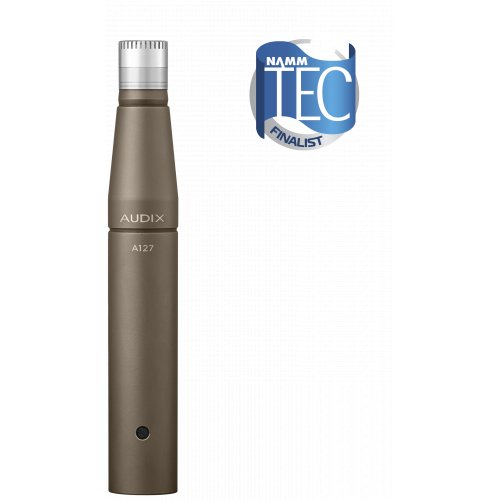

Audix A127 Omni Metal Film Condenser Microphone

About: Audix A127 Omni Metal Film Condenser Microphone

The A127 is an onmnidirectional metal film condenser microphone, designed to capture the most accurate and purest form of acoustic instruments and sound sources. The A127 delivers unmatched performance for recording, broadcast, film, and sound design.

With a frequency response of 10 Hz – 20 kHz and a wide dynamic range of 133 dB, the A127 excels in the most demanding applications. Capsule design features a precision-tuned 3-micron metal diaphragm, resulting in an exceptionally accurate and stable response with ultra-low self-noise of 7 dBA. The A127 circuit is designed and built to exacting specifications and is coupled to the capsule by a series of driven shields to protect the microphone from external interference and capacitance coupling. The mechanical components of the gold-plated shield and the corrosion-resistant housing are precision-machined by Audix in Wilsonville, Oregon.

• Pre-polarized half-inch Type 1 metal film capsule (IEC 61094-4 compliant)
• Omnidirectional polar pattern
• Excellent clarity, detail, and transient response
• Transformerless, low-noise circuitry
• Active driven shield

Specifications:

• Transducer Type: 1/2″ Type 1 metal film capsule (IEC 61094-4 compliant)
• Frequency Response: 10 Hz – 20 kHz
• Polar Pattern: Omnidirectional
• Output Impedance: 150 Ohms
• Sensitivity: 28 mV / Pa @ 1 kHz
• Signal to Noise Ratio: 88 dBA
• Maximum SPL: 140 dB SPL
• THD + N: .004% @ 94 dB SPL | 1.0% @ 140 dB SPL
• Equivalent Noise Level: 7 dBA
• Dynamic Range: 133 dB
• Connector: 3-pin XLR m
• Power Requirements: 48 V +/- 4 V Phantom
• Power Consumption: 3 mA
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish: Brass / Nickel
• Dimensions: 19 mm x 122 mm
• Weight: 123 g

Includes:

• DCLIP – Heavy-duty nylon molded snap-on clip
• POUCHAXSM – Protective zippered carrying case
• WSA127 – Acoustical windscreen
