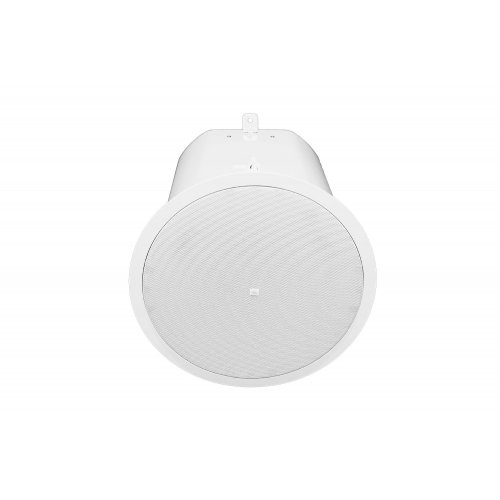

JBL Control 47HC High Ceiling Loudspeaker (Pair)

About: JBL Control 47HC High Ceiling Loudspeaker (Pair)

The Control 47HC is a premium in-ceiling professional loudspeaker designed for applications that require a focused beam width pattern along with very consistent coverage.

Featuring JBL’s conical Radiation Boundary Integrator® (RBITM), the RBI provides a large waveguide for the tweeter while low-frequency sound projects through specially-designed apertures in the RBI, allowing for a seamless integration of coverage between the two coaxially- mounted drivers. The result is extremely consistent sound character with very little variation throughout the listening space. The Control 47HC’s narrow coverage pattern makes the system ideal for high ceiling applications where the focused pattern
helps minimized time arrival anomalies from adjacent loudspeakers, resulting in improved speech intelligibility.

The large backcan on the Control 47HC along with the LF driver design, provides extended bass response for a warm full- bodied tone. The system’s 165 mm (6.5 in) woofer features a polypropylene cone and pure butyl-rubber surround for long life. The copper-clad aluminum voice coil wound on a vented aluminum former provides low distortion and high sensitivity. The coaxially mounted 25 mm (1 in) soft dome features internal damping for smooth extended response and ferrofluid cooling for enhanced power handling and reduced power compression. The result is crisp, clear highs.

Ideal for small and large projects alike, the Control 47HC is switchable for use as either an 8-ohm low-impedance speaker, or as part of a 70V/100V distributed loudspeaker system.

Key Features:

• Focused 75° narrow pattern featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBITM) technology.
  • Provides consistent coverage within the listening area.
  • Narrow coverage makes the system ideal for high-ceiling applications, minimizing time arrival anomalies and improving speech intelligibility.
• Coaxial design featuring:
  • 165 mm (6.5 in) woofer with butyl rubber surround.
  • 25 mm (1 in) soft-dome tweeter on 280 mm (11 in) diameter wave guide.
• 8 ohm and 70V/100V operation.
• Integrated backcan for easy “blind-mount” install. Packaged with grille and tile rails for easy installation.

Specifications

• Frequency Range 55 Hz - 17 kHz
• Power Rating
  • IEC System Long-Term Ratings (low-Z direct):
  • 150 Watts Continuous Program Power
  • 75 Watts Continuous Pink Noise (300W peak), 100 hrs
• Sensitivity 93 dB (1kHz - 16 kHz)
• Transformer Taps 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
• Coverage Angle 75° conical, constant directivity
• Impedance 8 ohms (in bypass mode)
• Drivers
  • LF Driver: 165 mm (6.5 in)
  • HF Driver: 25 mm (1 in)
• Input Connectors Two removeable locking 2-pin connectors with screwdown terminals.
• Suspension Tabs Three, on top panel
• Dimensions (Diameter x Depth) 332mm Diameter x 351mm Diameter Depth (13.1 in x 13.8 in)
• Maximum SPL (1m) 112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap)
• Color White
• Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan formed steel (included "blind-mount")
• Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.
• Ceiling Cutout Size 307 mm Diameter (12.1 in) diameter (cardboard cutout template included)
• Plenum Usage Yes, backcan included
• Included Accessories
  • C-ring support backing plate
  • 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
  • knockout strain relief
  • cutout template
  • paint shield
  • 2 removable locking multi- pin connectors
