JBL IRX One Column PA with Built-In Mixer and Bluetooth

About: JBL IRX One Column PA with Built-In Mixer and Bluetooth

The JBL IRX ONE All-in-One Column PA features an advanced acoustic package, 3-channel mixer and Bluetooth 5.0 audio streaming – all packed into an incredibly easy-to-use system that can be carried with one hand.

Boasting legendary JBL fidelity and performance, IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2” high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8” woofer features a bass-reflex design that ensures low-frequency response down to 40 Hz.

Designed to support a range of different users, IRX ONE features a 3-channel mixer that supports the most popular connections, including 1⁄4” and XLR inputs with included 48V phantom power and 1⁄4” balanced mix-out. dbx automatic feedback suppression (AFS), 5 EQ presets, Soundcraft audio ducking, and Bluetooth 5.0 audio streaming ensure a professional experience from start to finish.

IRX ONE was created to be so simple-to-use that anyone from educators and presenters to hospitality or house of worship users can feel comfortable and confident using the system. Musicians, buskers and singer/songwriters also appreciate the plug-and-play design that gets them up and running and sounding great, right away.

Features

• C-shaped array of six 2” tweeters delivers superior clarity and rich sound
• 8” woofer with bass-reflex design generates natural, smooth low end, down to 40 Hz
• Frequency response: 40 Hz - 20 kHz
• Built-in 3-channel mixer
• Fixed bass and treble control, Automatic Feedback Suppression (AFS), phantom power, and system tuning presets
• Soundcraft Easy Ducking automatically turns down music when speech is detected
• I/O includes 1⁄4” and XLR inputs with included 48V phantom power and 1⁄4” balanced mix-out
• Bluetooth 5.0 audio streaming

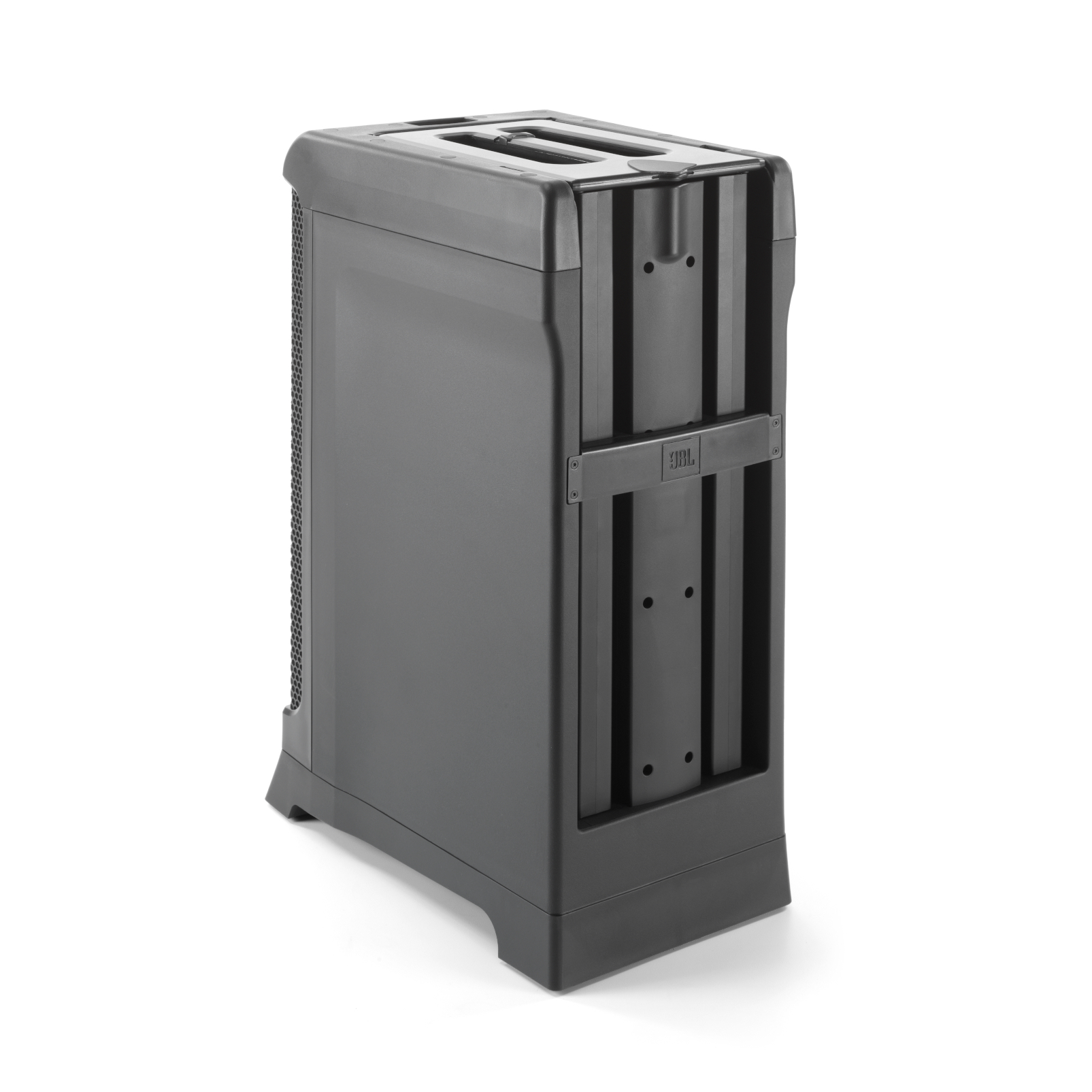

• Column spacers and array cabinet conveniently fit into back of base unit
• Speaker automatically adjusts tuning depending on how many spacers are used for optimum sound performance
• Easy to carry with one hand; sets up and tears down in seconds
• Ergonomically-optimized carry handle minimizes wrist strain
• Road-tough, lightweight cabinet
• Complete three-year warranty

ADVANCED ACOUSTIC TECHNOLOGY AND SEAMLESS COVERAGE

IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2” high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8” woofer features a bass-reflex design to ensure low-frequency response down to 40 Hz.

ERGONOMICALLY-OPTIMIZED DESIGN

IRX ONE is easy to carry with one hand; sets up and tears

down in seconds; and the ergonomically-optimized carry handle minimizes wrist strain. Additionally, column spacers and the array cabinet conveniently fit into the back of the base unit.

SIMPLE-TO-MANAGE 3-CHANNEL MIXER

IRX ONE features a 3-channel mixer that supports the most popular connections, including 1⁄4” and XLR inputs with included 48V phantom power and 1⁄4” balanced mix-out. dbx automatic feedback suppression (AFS), 5 EQ presets and Soundcraft audio ducking ensure a professional experience from start to finish.

Specifications

• System Type - Powered Column PA Speaker
• Woofer Size - 8 Inch
• Tweeter Size - 2 Inch
• Tweeter Count - 6
• Max SPL - 118dB (peak)
• Freq. Range (-10) - 40Hz ~ 20KHz @ 4pi
• Freq. Range (-3) - 50Hz ~ 18KHz @ 4pi
• Hor. Dispersion - 160°
• Vert. Dispersion - 80°
• Power Rating - 1300W Peak
• AC Power Input - 100V - 120V or 220 - 240V
• Input Impedance
  • 4.4kΩ Input Mic
  • 1MΩ balanced Hi-Z Jack
• Input Gain Mic - 55dB
• Input Gain Hi Z - 48dB
• Crossover Freq. - 260Hz
• I/O
  • 2 - Mic/line XLR Combo
  • 1 - HiZ In - 6.3mm jack
  • 1 - Mix Out - 6.3mm jack
  • 1 - Bluetooth SBC
• Cabinet - PP
• Dimension (LxWxH) - 10.5 x 15.73 x 23.5 inch (267 x 400 x 597 mm)
• Weight
  • Gross - 40.5 lbs (18.39kg)
  • Net - 34.1 lbs (15.5 kg)
