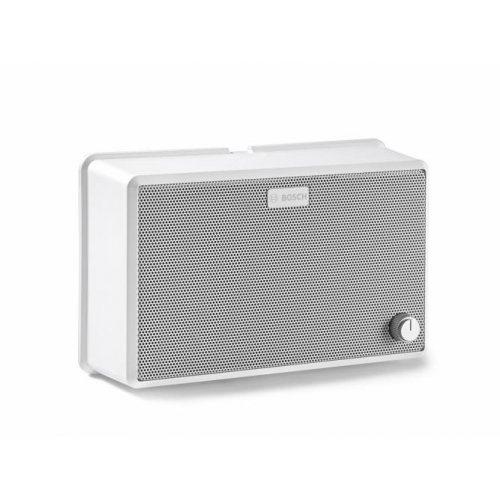

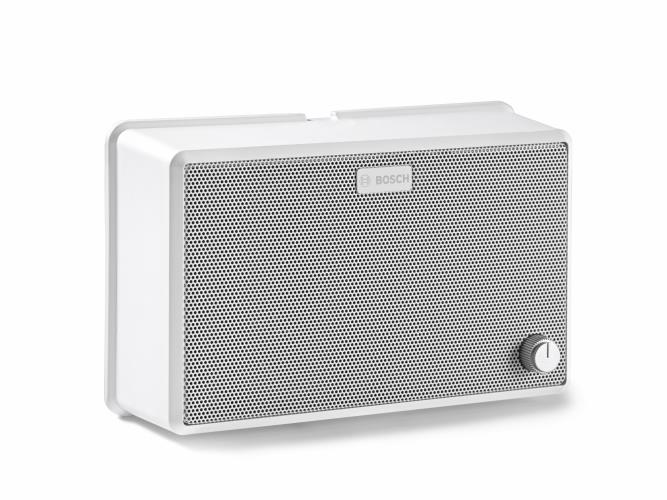

Bosch ABS 6 Watt Surface Mount Speaker with Volume Control
Model: LB7-UC06V
About: Bosch ABS 6 Watt Surface Mount Speaker with Volume Control
The ABS Cabinet loudspeaker 6 W is suitable for speech and music reproduction and is applicable for use in voice alarm systems. The ABS rectangular cabinet is made from ABS with a metal grille front and provided with a volume control to adjust the requested volume locally.
- Suitable for speech and music reproduction
- Compact size
- Integrated volume control
- Knock-out ports for conduit - or cable entries
Specifications
- Colour - White
- Coverage angle HxV (-6 dB, 1 kHz) (°) - 180 x 180 °
- Coverage angle HxV (-6 dB, 4 kHz) (°) - 85 x 98 °
- Dimension (H x W x D) (cm) - 14.60 x 23.40 x 8.20 cm
- Dimension (H x W x D) (mm) - 146 x 234 x 82 mm
- Frequency range (-10 dB) (Hz) - 160 – 20000 Hz
- Operating temperature (°C) - -10 – 55 °C
- Operating temperature (°F) - 14 – 131 °F
- Power consumption (W) - 6 W
- Rated input voltage (V) - 70 V
- Storage temperature (°C) - -40 – 70 °C
- Storage temperature (°F) - -40 – 158 °F
- Weight (g) - 1100 g
Includes
- 1x Cabinet loudspeaker
- 1x Installation instruction
- 2x Mounting screws (4 x 38 mm)
- 2x Rubber grommets
UPC: 800549835916
