Bosch LC2 4" Coaxial Premium Ceiling Loudspeaker, 30 Watt

About: Bosch LC2 4" Coaxial Premium Ceiling Loudspeaker, 30 Watt

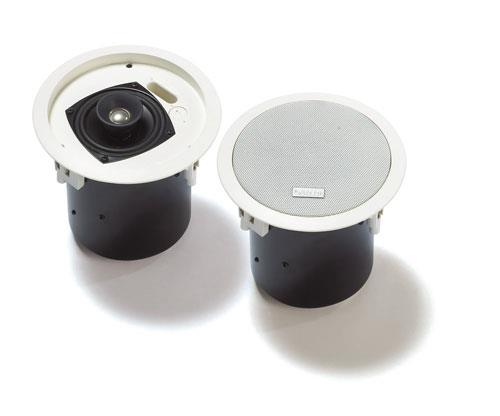

The LC2‑PC30G6‑4 is a 4‑inch two‑way Premium-sound Ceiling Loudspeaker which provides; wide dispersion, high efficiency, high maximum output, ease‑of‑installation, and wide‑range reproduction of music and voice. It consists of a baffle assembly, grille, back‑can enclosure, 4‑inch coax two‑way loudspeaker and internal output‑power matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The rear enclosure provides an optimum internal volume for extended low frequency performance. The loudspeaker utilizes a second order crossover network at 3.3 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The loudspeaker can be installed optionally with the LC2‑PC60G6‑10 ceiling subwoofer to enhance the low frequency reproduction down to 45 Hz.

• 4‑inch coaxial two‑way
• Waveguide coupled Ti tweeter
• Full bandwidth overload protection
• Front baffle wattage tap adjustment
• BS 5839‑8 and EN 60849 compliant

Dynamic and vivid sound

• Equipped with a waveguide-coupled, titanium coated dome tweeter and housed in an integrated, fully-ported enclosure, these ceiling loudspeakers reproduce high and low tones with amazing quality. Installed in a health club or a dance club, they’re sure to get people moving.

Overload protection

• Premium-sound Ceiling Loudspeakers are powerful enough to handle heavy signal loads, but to protect against abnormal high input signals, they’re all equipped with an overload protection.

Specifications

• Colour -  White
• Frequency range (-10 dB) (Hz) -  65 – 20000 Hz
• Material -  Steel
• Maximum power (W) -  50 W
• Operating relative humidity, non-condensing (%) -  0 – 95 %
• Operating temperature (°C) -  -25 – 55 °C
• Operating temperature (°F) -  -13 – 131 °F
• Rated input voltage (V) -  70 V
• Storage temperature (°C) -  -40 – 70 °C
• Storage temperature (°F) -  -40 – 158 °F
• Weight (g) -  2700 g
• Weight (kg) -  2.70 kg
• Weight (lb) -  6 lb

Includes

• 2x  LC2‑PC30G6‑4 Premium‑sound Ceiling Loudspeaker
• 1x  183 mm (7.188 in.) circular cut‑out template
• 2x  Tile bridge / C‑ring
• 1x  Paint shield
• 1x  Installation instruction
