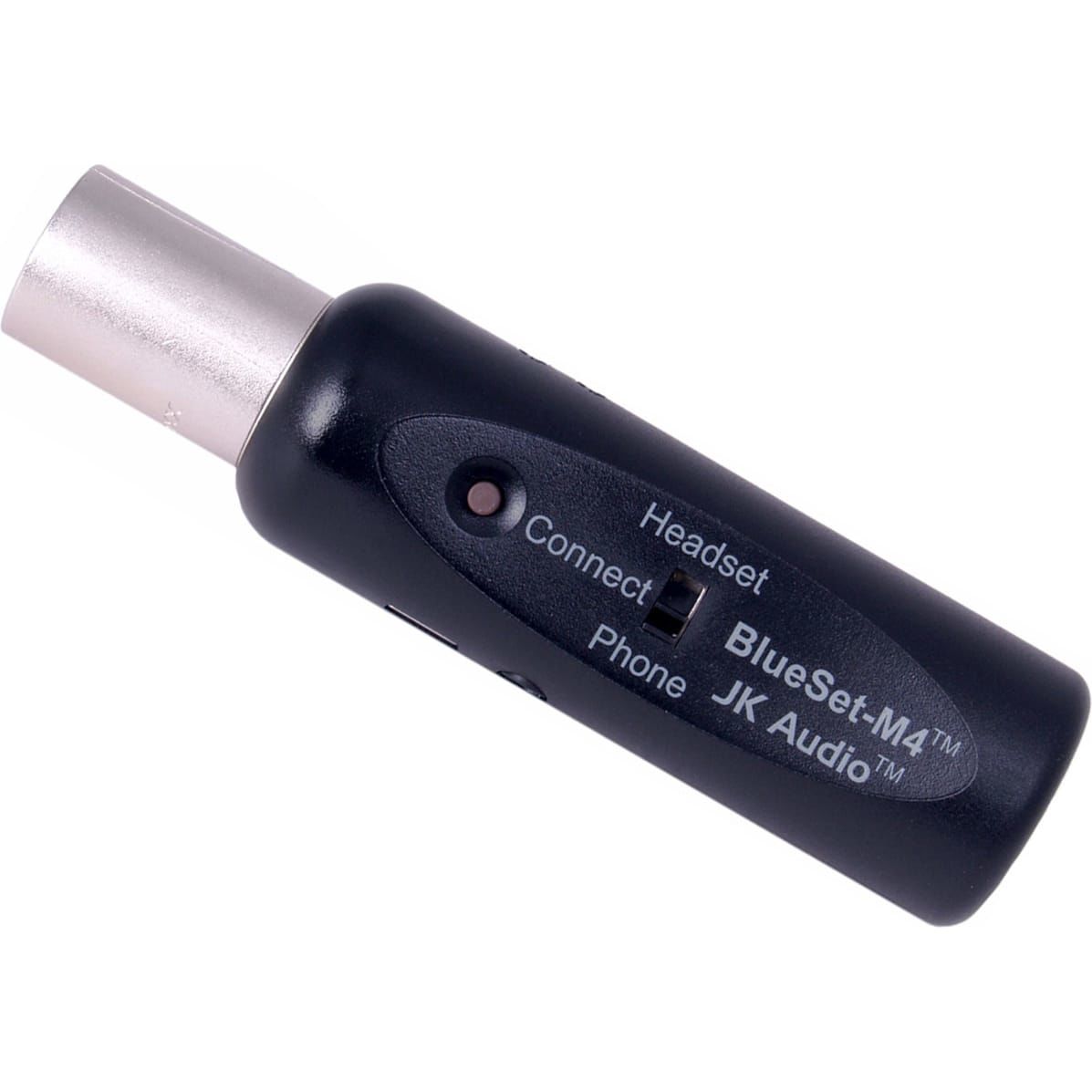

JK Audio BlueSet M4 Bluetooth Headset Interface (4-Pin XLRm)
Model: BSET-M4
About: JK Audio BlueSet M4 Bluetooth Headset Interface (4-Pin XLRm)
These headset interfaces plug directly into most Party- Line (PL) belt packs, replacing the wired headset. A 3.5 mm stereo headset jack contains a mic level output signal suitable for recording, with the beltpack headphone signal on the left channel, and the Bluetooth return signal on the right. A switch selects between connection to a 3rd party Bluetooth headset or a cell phone.
Headset Connect
Pair BlueSet to your Bluetooth headset. Leave your belt pack on the desk as you walk around the room.
Phone Connect
Pair BlueSet to your cell phone to extend your system around the world. The belt pack Mic/Talk button controls audio from the cell phone into the intercom system.
HD Voice
BluePack now features HD Voice technology, allowing 7 kHz Wide Band Speech when used with compatible phones on compatible networks. Read our HD Voice primer for more details.
Intercom Headset Compatibility
Female and Male XLR four and five pin versions available:
BlueSet-F4, BlueSet-F5, BlueSet-M4, BlueSet-M5
Features
- Electret / Dynamic Headset Compatibility
- HD Voice Compatible (Wide-Band Speech)
- Bluetooth Wireless Technology
- Mini USB power jack
- >6 hours on Internal Li-Ion Battery
- Trim pot adjusts Bluetooth Return
- Made in America
Specifications
- Output 1/8" (3.5 mm) stereo
- Impedance 1000 ohms
- Level 15 mV RMS (-34 dBu nom)
Bluetooth Wireless Technology
- Standard Bluetooth 3.0
- Distance 66 ft (20 m)
- Frequency Response Hands-Free (Full Duplex): 300 Hz– 3.4 kHz
- Hands-Free (Full Duplex HD): 50 Hz– 7 kHz
Misc
- Connector XLR 4-Pin Female
- Connector Mini-USB Series B
- Battery Internal Lithium-Ion Polymer rechargeable
- Size 1.1” x 4.4” (2.8 cm x 11.2 cm)
- Weight 2.1 oz (60 g)
UPC: 814170010567
