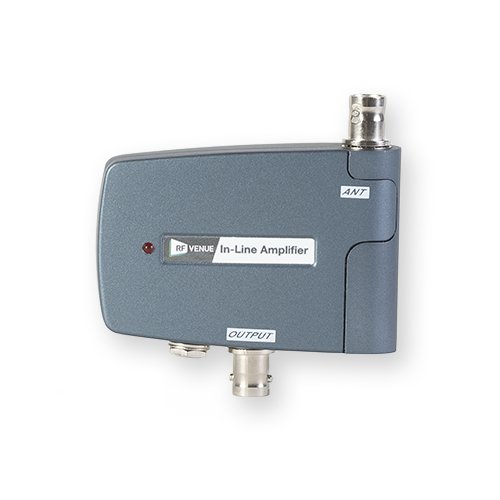

RF Venue In-Line Amplifier
Model: ILAMP-ACT
About: RF Venue In-Line Amplifier
This in-line amplifier is designed to compensate for signal loss on long coax runs. One in-line amplifier can compensate 10dB of cable attenuation which is about 20 meters of RG-58 cable. Can be powered by power output from an antenna distributor/receiver or DC adapter (+12V/0.5A). The red light indicates the unit is getting power. Up to two can be cascaded.
- A BNC female to BNC female adapter or coax jumper is required for cascade (not included).
- Two are required for diversity applications.
- A Wall mount adapter is included.
Electrical
- Frequency range: 470~960 MHz
- Gain (nominal): 10 dB
- Operation voltage: D C +12 V
- Power Levels: -60 to -20 dBm
- RF Input/Output: BNC Female
Physical
- Dimensions: 75mm x 18.2mm x 77mm
- Weight: 140g
UPC: 718122341511
