RF Venue Architectural Antenna

About: RF Venue Architectural Antenna

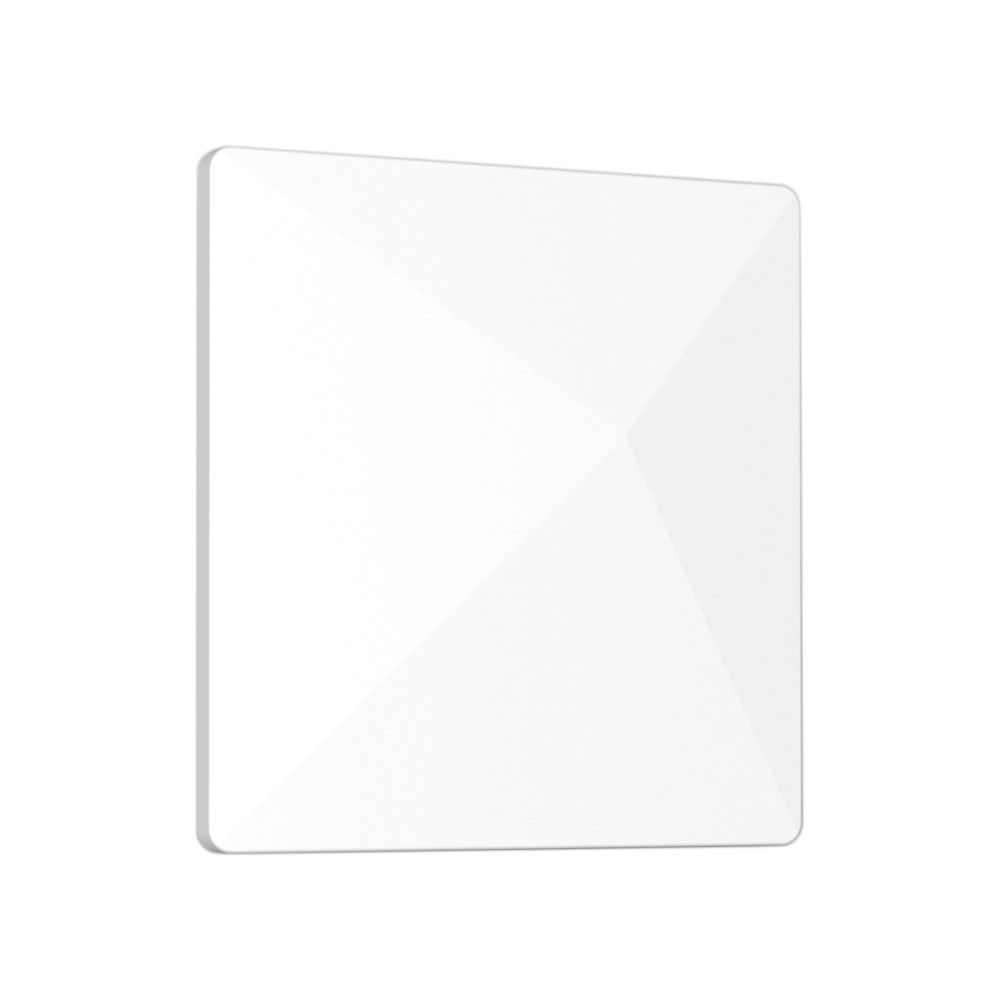

The Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior.  Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there’s no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.

• Slim Profile: Nearly invisible in any background
• Two Antennas in One: One Diversity Architectural Antenna replaces two traditional LPDA paddle antennas
• Avoid Dropouts: Eliminates the most common interference problems, thus reducing dropouts

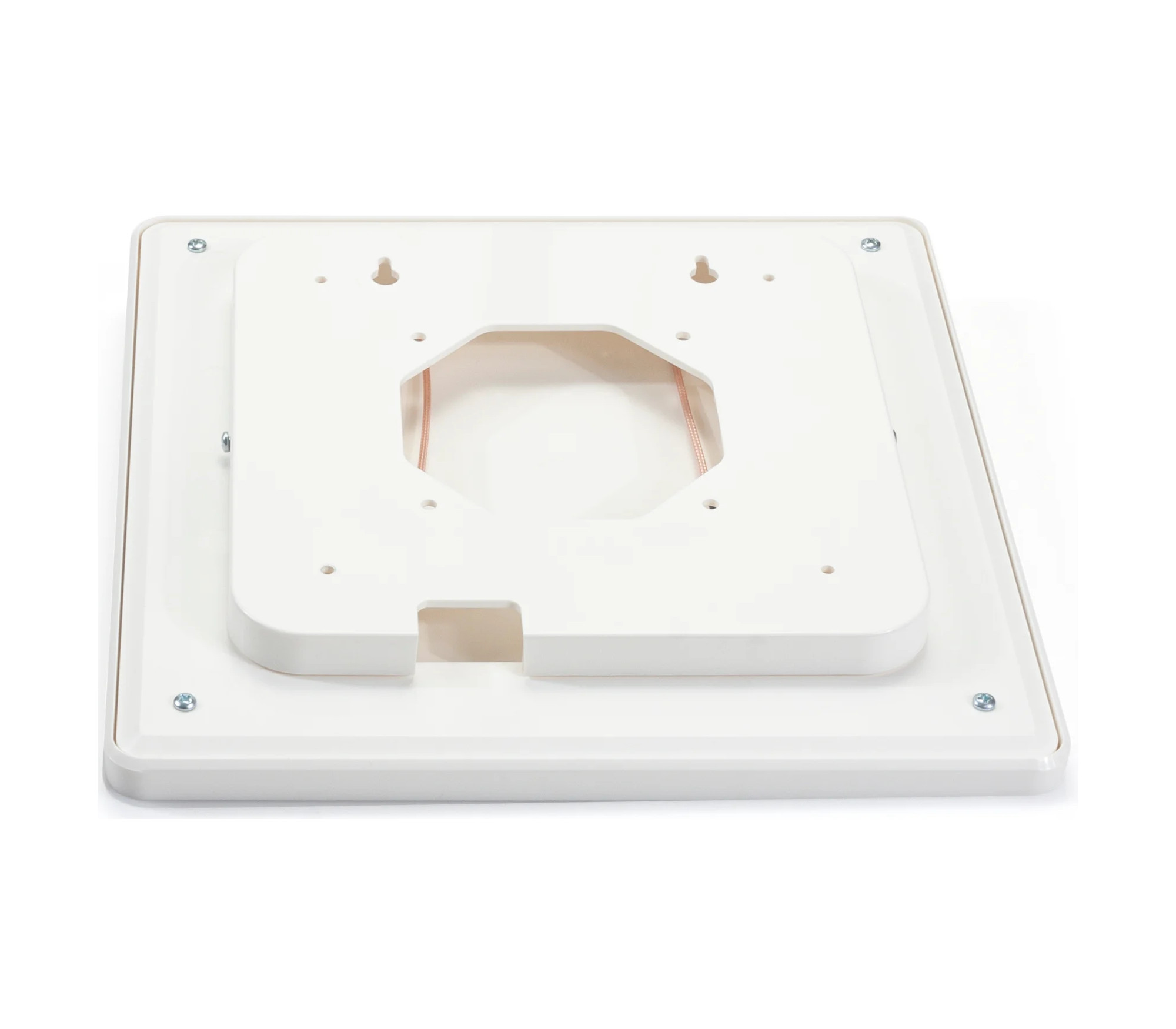

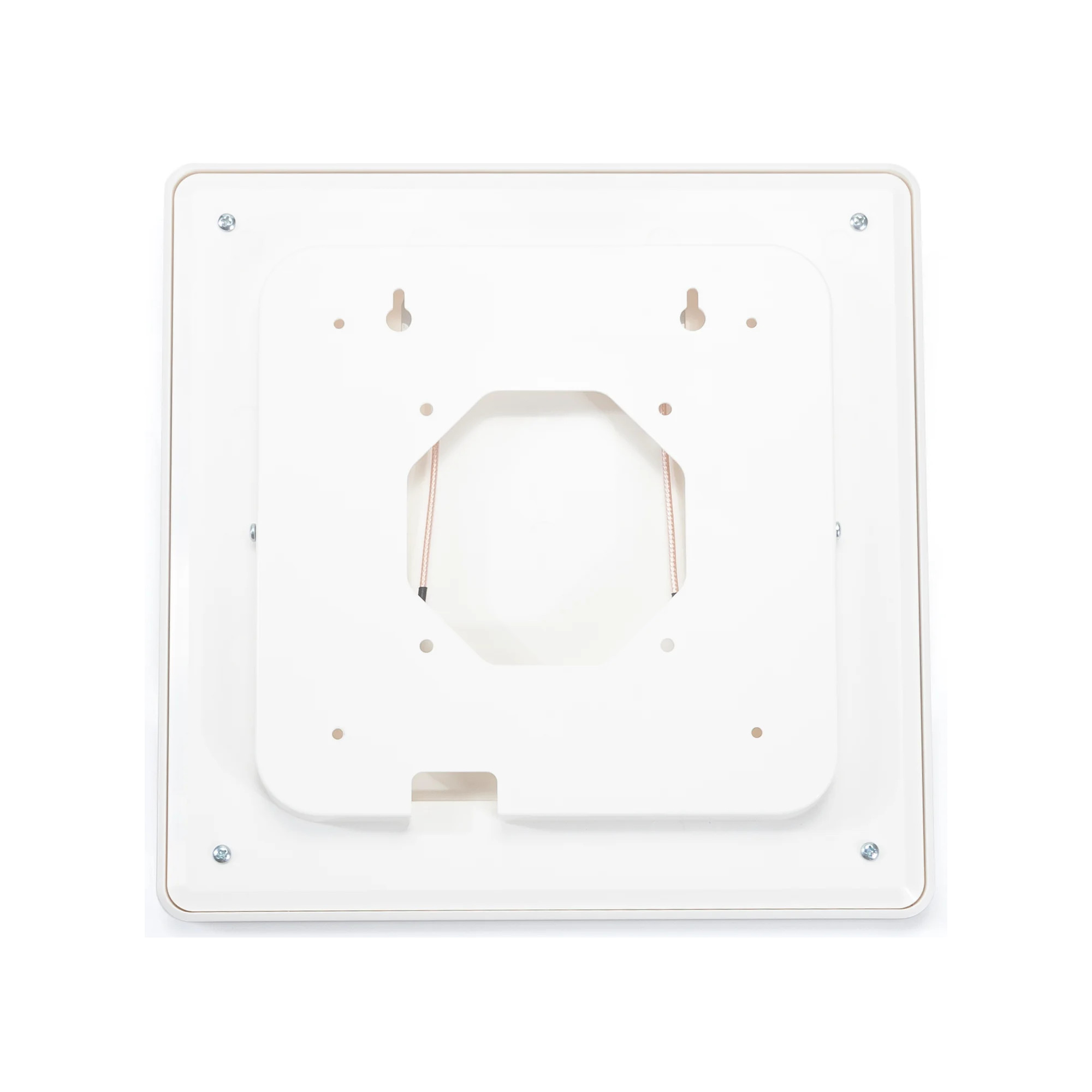

The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options.  The rear plate then simply connects to the front plate, secured with the included mounting screws.  Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.

The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal.  Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek industrially designed enclosure.

Product Setup

The Diversity Architectural Antenna takes minutes to install, with its rear-mounted plate that comes pre-drilled with multiple options for a mounting hole. The rear plate easily connects to the front plate and is secured with screws. Then, all you need to do to finish installing this antenna system for wireless microphones is connect the two rear-mounted BNC-terminated coaxial cables to your coaxial cable run and the Diversity Architectural Antenna.

Specifications

• Electrical
  • Operating frequency: 470-698 MHz
  • Bandwidth: 146 MHz
  • Impedance: 50Ω
  • Average return loss: -6.4 dB
  • Pattern type: Diversity Flood
  • Gain: 3 dBd
  • F/B ratio: N/A
  • F/S ratio: N/A
  • Polarization: Linear
• Physical
  • Connector(s): BNC femaleColor: White
  • Mount location: wall or ceiling
  • Connector(s): BNC female
  • Operating temperature: -10–40°C / 14–104°F
  • Dimensions: 11 x 11 x 2 inch (280 x 280 x 50mm)
  • Weight: 2 lbs (0.9 kg)

What's in the Box

• 1x Diversity Architectural Antenna, White
