RF Venue 4 Zone-Network Active Antenna Combiner w/ LAN Connectivity

About: RF Venue 4 Zone-Network Active Antenna Combiner w/ LAN Connectivity

The 4 Zone-Network combiner takes the complexity out of multi-zone wireless microphone projects. 4 Zone-Network combines together up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor/outdoor configurations, or main stages with secondary breakout rooms.

• Single Rack Space: A unique one rack space design allows microphones to operate in up to four separate coverage areas.
• Keeps you Covered: Seamlessly cover wireless microphones between building locations or indoor and outdoor areas. User configurable to allow which zones are active.
• Configured as needed: 4 Zone-Network adds: LAN-based control to remotely check zone status, toggle zones on/off individually, and adjust settings without needing physical access to the unit.

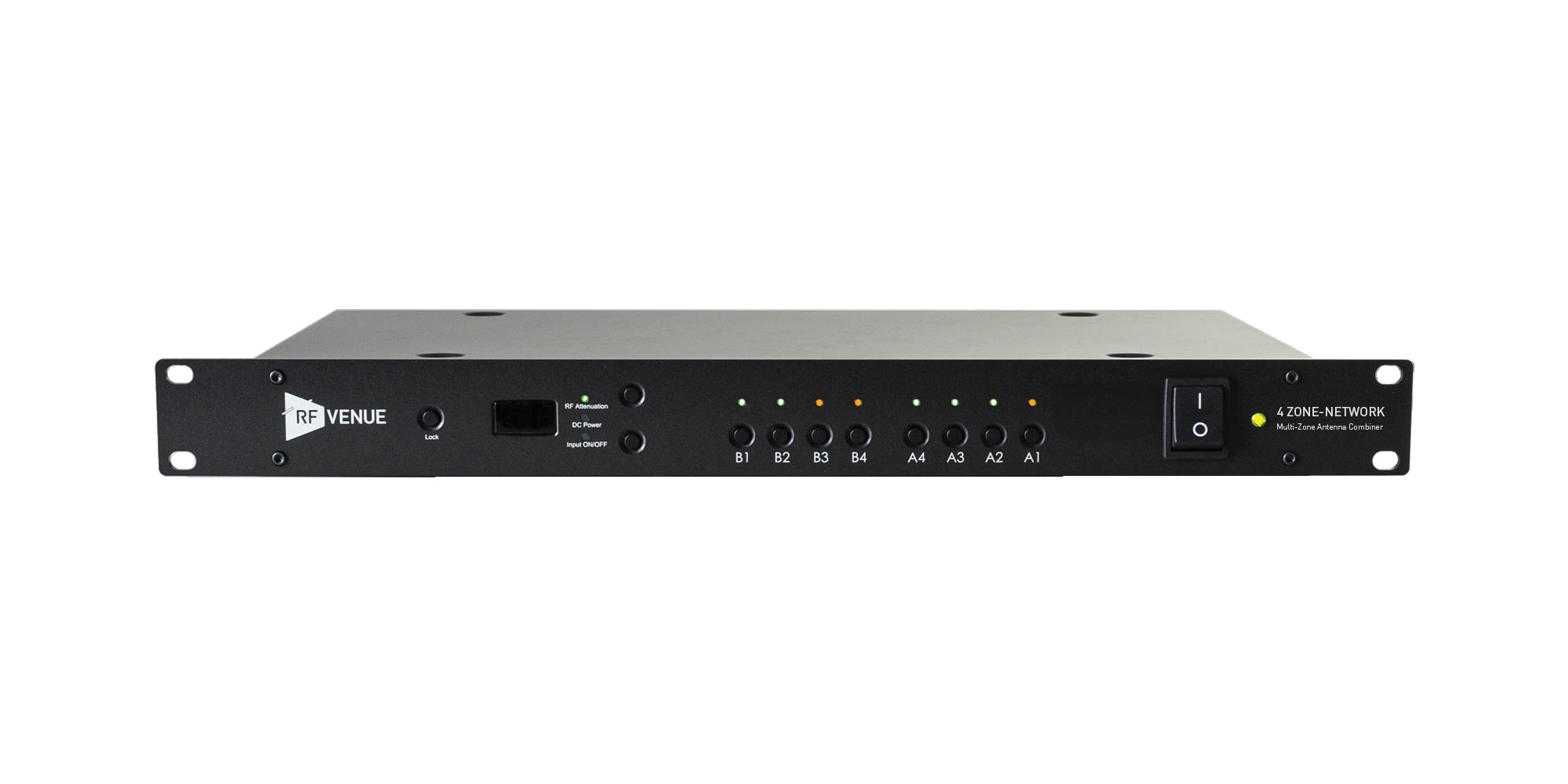

Users are able to adjust the parameters (Input ON/OFF, DC Power, RF Attenuation) using the interface on the front of the unit or by connecting the device to a network and remotely accessing the user interface on a computer or tablet.

For fine tuning RF levels in each coverage area, 4 Zone-Network provides individual channel RF signal attenuation control down to -31dB in 1 dB steps. And for active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs.

With selectable ON/OFF inputs, 4 Zone-Network also allows for quick control of coverage zones for roaming microphone transmitters, so you can choose which zones are active as a live event or location sound project progresses, saving setup and breakdown time on site.

Product Setup

Use in conjunction with up to four Diversity Series Antennas (or any four diversity antenna pairs) and one or more antenna distributors (such as our DISTRO5 HDR) to get a complete turnkey package for any multi-zone wireless microphone project across any brand wireless audio system.  For larger coverage areas with long cabling requirements, add OPTIX2-S3 RF over Fiber systems for each antenna zone required.

Specifications

• Carrier Frequency Range: 470-960MHz
• Full System Gain: 3dB(±3dB)
• Input/Output Impedance: 50 Ω
• A/B Antenna Input: 4+4
• OIP3: -35dBm(typ.) @ 2-tone; Pi=-15dBm/tone
• RF Input Attenuation: -31~0dB (Step:1dB)

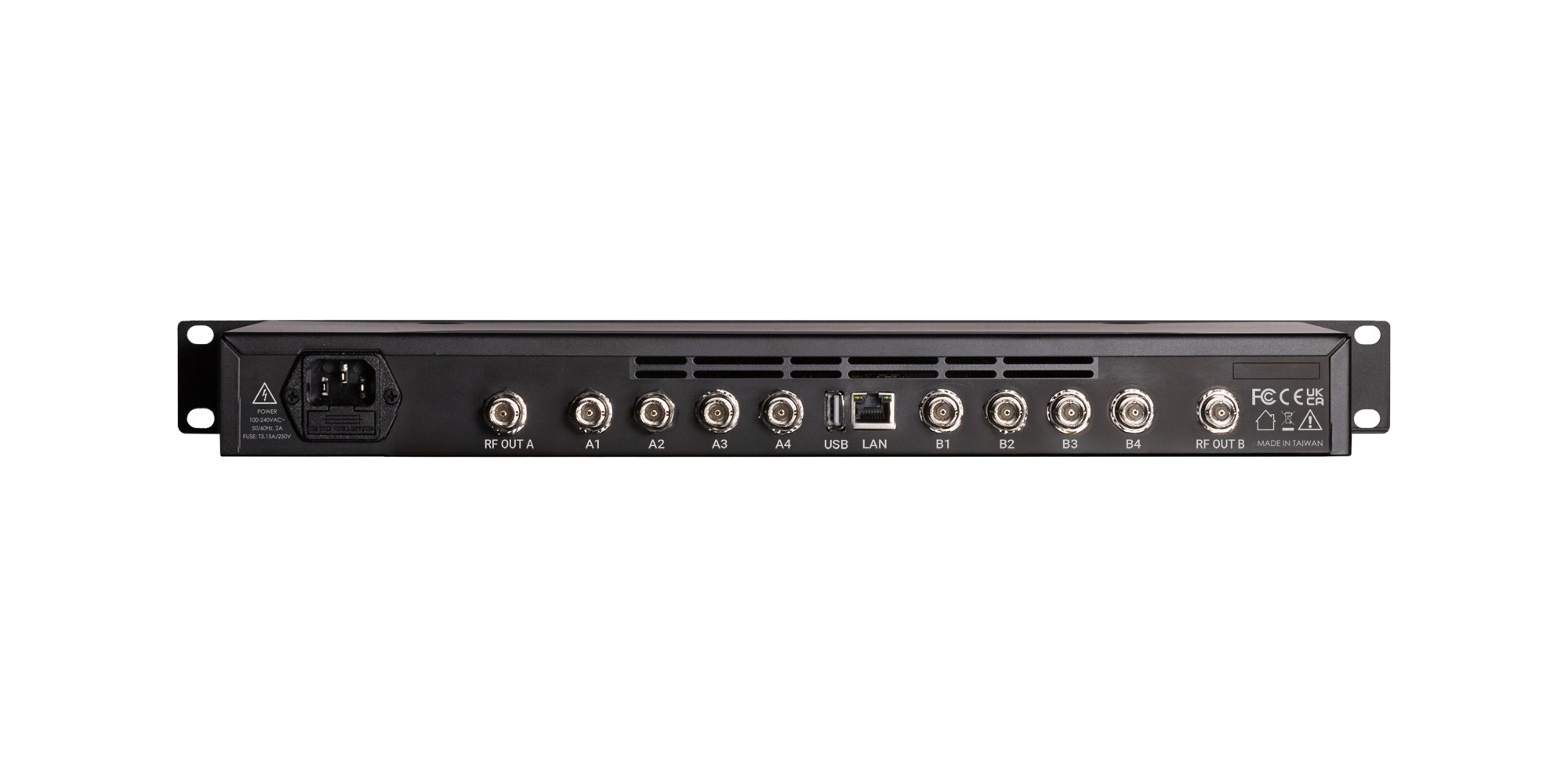

• Input/Output Connectors: BNC(F)
  • Input: x8
  • Output: x2
  • Network Connector: RJ45
• Functions
  1. DC Power (for In-Line Amplier) ON/OFF Control
  2. RF Input Attenuation Control
  3. RF Input Signal ON/OFF Control
• DC Over Coax (to external antennas)​: 12V/200mA*8
• Power Supply: 100~240VAC; MAX 2A 50/60Hz
• Dimension (WxHxD): 18.9 x 1.77 x 9.84 inch (480 x 45 x 250mm)
• Weight: 5.51 lbs (2.5kg)

What's in the Box

• 1x 4 Zone-Network Antenna Combiner
• 2x BNC jumpers
• 1x AC power cord
