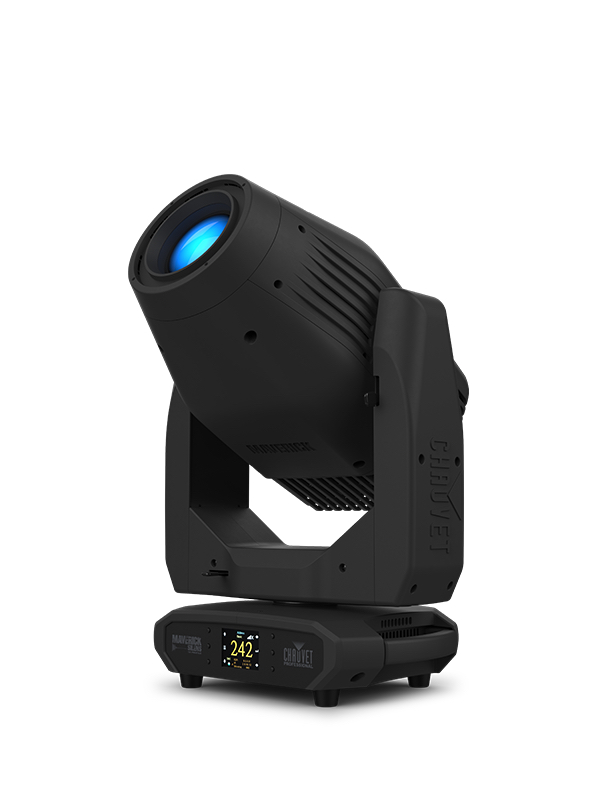

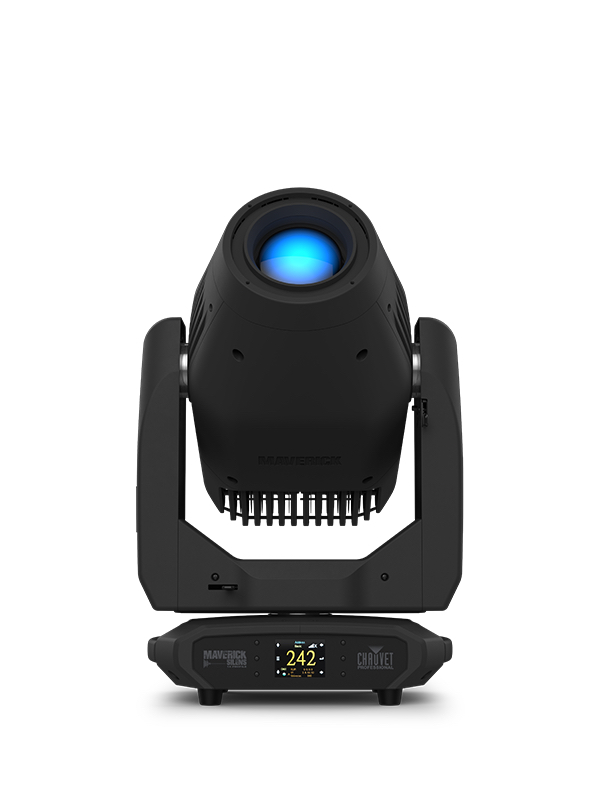

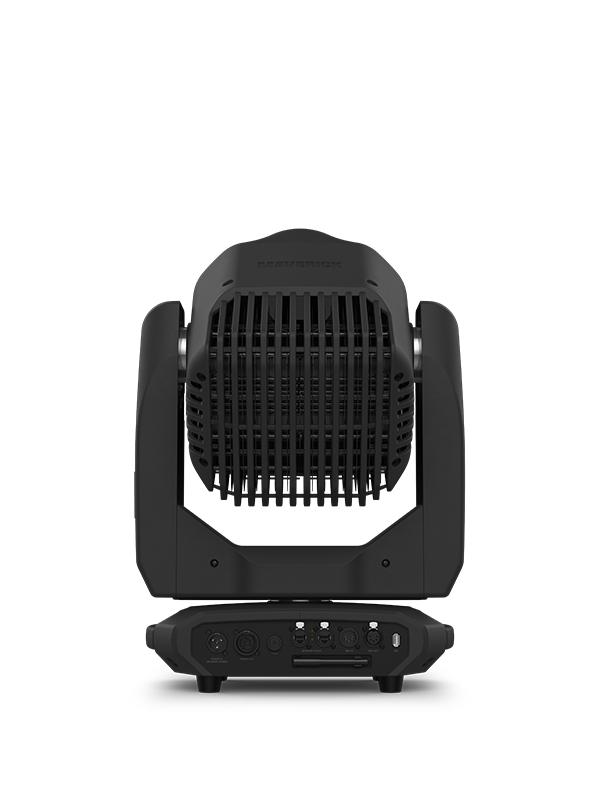

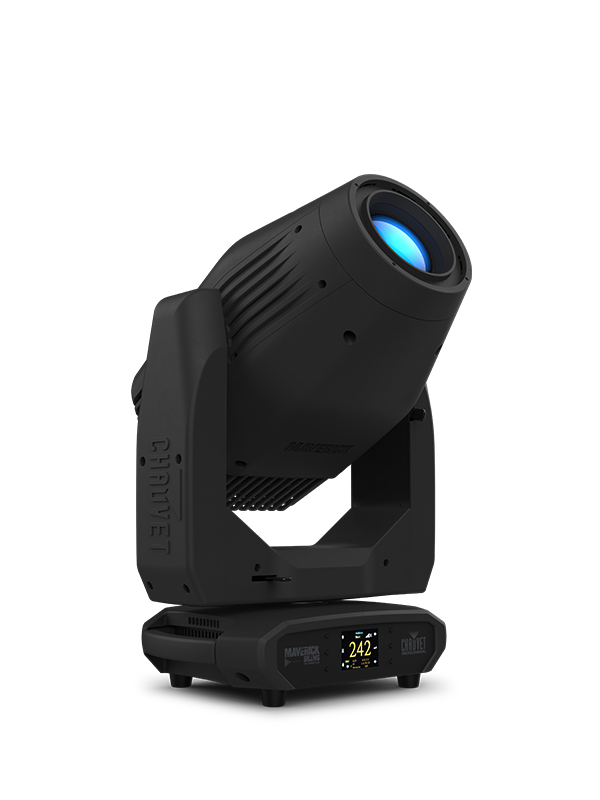

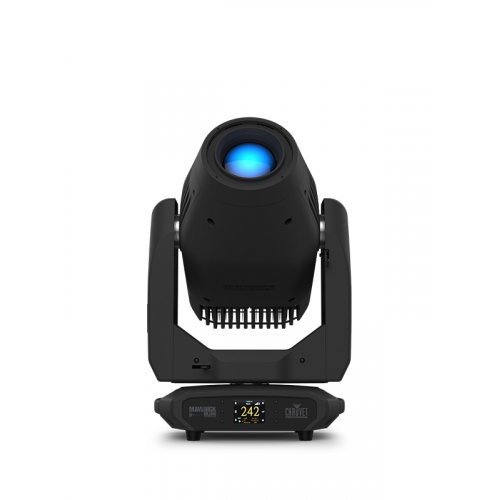

Chauvet Pro Maverick Silens 1X Profile

About: Chauvet Pro Maverick Silens 1X Profile

Compact member of our award-winning Silens range. 430W 96+ CRI LED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring a single rotating gobo wheel, variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

• Completely silent, fully featured 430 W 96+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and a rotating gobo wheel.
• 100% convection cooled for zero fan noise along with silent motion and effects
• 16-bit dimming with selectable red shift of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• One rotating gobo wheel with unique, theatrical based designs
• Variable frost system
• + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• RDM control over DMX for fixture reporting
• 6° to 57°zoom angle for variable beam sizes
• True 1 compatible power input and throughput
• Battery backup display with auto-rotate depending on fixture orientation

Specifications

• OPTICAL
  • Light Source: 1 LEDs (CW) 420 W, (12A), 50,000 hours life expectancy
  • Light Source: 1 LEDs (RGB) 13 W, (2.091A), 50,000 hours life expectancy
  • Color Temperature (range): 2569 to 6126 K
  • Color Temperature (at full): 6126 K
  • Front lens diameters: 106 mm
  • CRI: 97.1
  • Beam Angle: 6° to 49.1°
  • Field Angle: 7° to 55.1°
  • Cutoff Angle: 7.5° to 57°
  • Zoom Range: 6° to 55.1°
  • Lumens – Output: 6081
  • Illuminance (6°): 18,525 lux @ 5 m
  • Illuminance (49.1°): 379 lux @ 5 m
  • Selectable PWM: 20,000, 40,000
• DYNAMIC EFFECTS
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180°, 90° pan/270°, 180°, 90° tilt
  • Colors: CMY flags, CTO flag, color correction
  • Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 22.9 mm (outside), 15.5 mm (image), 1.1 mm (max. thickness)
  • Effect Wheel: 1 effect
  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, round, motorized, rotating
  • Strobe Rate: 0 to 28.8 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4
• CONSTRUCTION / PHYSICAL
  • Dimensions: 15.75 x 9.68 x 24.25 in (400 x 246 x 616 mm)
  • Weight: 56.2 lb (25.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer
• CONNECTIONS
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
  • Cable Length (power): 5 ft (1.5 m)
• CONTROL
  • Control Protocol: Art-Net, DMX, CRMX, RDM
  • DMX Channels: 29 or 37
  • Art-Net Channels: 29 or 37
  • Modes/Personalities: 2 personalities (29, 37)
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
  • Power and Current: 441 W, 3.31 A @ 120 V, 60 Hz
  • Power and Current: 425 W, 1.91 A @ 208 V, 60 Hz
  • Power and Current: 422 W, 1.70 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Maverick Silens 1X Profile
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware
• Gel Frame Holder and Gel Frame
