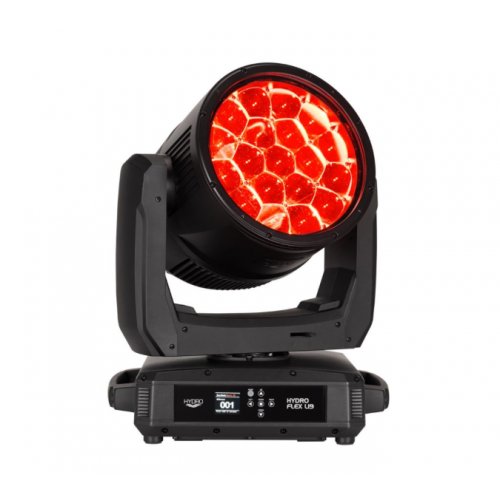

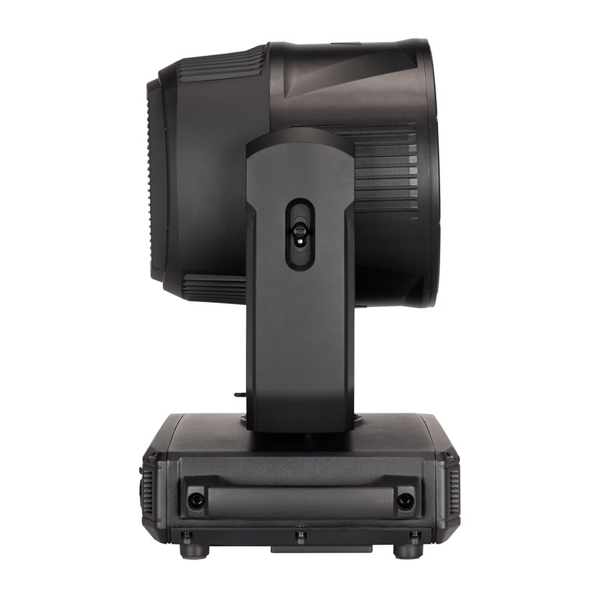

ADJ Hydro Flex L19 IP65 1140W Moving Head Wash
Model: HYDRO-FLEX-L19
About: ADJ Hydro Flex L19 IP65 1140W Moving Head Wash
The ADJ Hydro Flex L19 is a professional-grade, IP65-rated moving head wash fixture designed for both indoor and outdoor applications. Featuring nineteen 60W RGBL LEDs with individual pixel control, this fixture offers vibrant color mixing, tunable white color temperature control, and a motorized zoom, making it ideal for touring, rental, and event productions.
Features
- Nineteen 60W RGBL (Red, Green, Blue, Lime) LEDs with a lifespan of 50,000 hours
- Adjustable color temperature from 2,700K to 10,000K with presets
- Motorized zoom with a beam angle range of 5° to 38° and a field angle of 8° to 56°
- Individual pixel control with built-in pixel effect programs
- Virtual CMY DMX control modes
- Virtual foreground and background color wheel control
- Selectable LED refresh rates (900 Hz to 25K Hz)
- Selectable dimming modes: Standard, Stage, TV, Architectural, Theatre, Stage 2, and user-settable dim speed (0.1s to 10s)
- Four dimming curves: Square, Linear, Inverse Square, and S-Curve
- 0-100% smooth dimming
- Electronic strobe/dimmer
- Pan movement: 540° or 630°; Tilt movement: 243° with 16-bit fine control and lock mechanisms
- Aria X2 wireless management system for over-the-air firmware/software updates
- Fan-cooled, durable housing with IP65 rating for protection against dust and moisture
- IP65-rated locking in/out XLR sockets for DMX connections and RJ45 network sockets
Specifications
| Light Source | Nineteen 60W RGBL LEDs |
|---|---|
| Beam Angle | 5° to 38° (motorized zoom) |
| Field Angle | 8° to 56° |
| Color Temperature | 2,700K to 10,000K (adjustable) |
| CRI | 84.2 |
| TM30 Rf | 84.7 |
| TM30 Rg | 99.8 |
| Lumens | 17,000 (zoomed out, full on) |
| Lux @ 16' | 54,400 lux / 4.3° beam; 2,090 lux / 28.3° beam |
| DMX Channels | 22, 31, 40, 104, Standard CMY 31, Extended CMY 34 |
| Control Modes | DMX512, ArtNet, sACN, KlingNet, Aria X2 Wireless Management System |
| Display | Color LCD with 6-button function menu |
| Pan/Tilt Range | 540° or 630° pan / 243° tilt |
| Dimmer | 0-100% electronic dimming with selectable curves |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption | 1,400W max (11.85 Amps @ 120V); 1,350W (6.38 Amps @ 220V) |
| Data Connection | IP65-rated locking in/out XLR sockets, RJ45 network sockets |
| Cooling | Fan-cooled |
| IP Rating | IP65 (weatherproof for outdoor use) |
| Dimensions (L x W x H) | 12.5" x 17.04" x 20.36" (318 x 433 x 517 mm) |
| Weight | 60.8 lbs (27.6 kg) |
| Mounting | Two 180mm Omega brackets included |
Included Accessories
- Two 180mm Omega brackets
- 1.83-meter IP65-rated locking power cable
- Safety cable
