Chauvet Pro Maverick Storm 4 SoloWash

About: Chauvet Pro Maverick Storm 4 SoloWash

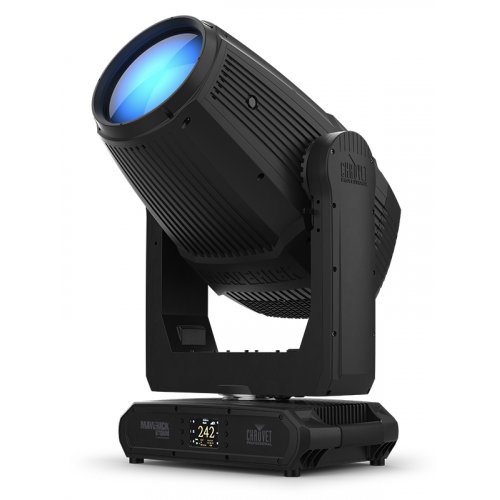

The Maverick Storm 4 SoloWash is an outdoor-ready IP65-rated single source 1250W LED wash engineered to meet demand for classic wash looks with the modern features LDs expect and bright enough for stadium level long throws: CMY + CTO color mixing system offering a wide color palette, independent color wheel with CRI and CTB filters, expansive 9.5:1 zoom, rotating gobo wheel with interchangeable geometric gobos, framing shutters, animation wheel, frost and iris.  Built with the durability and versatility to perform in any venue, indoors or out, and calibrated to match the colors of other Storm fixtures in the rig. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

• Fully featured, IP65 1,250 W LED yoke single source wash fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 9.5:1 zoom, 1 rotating gobo wheel, 1 animation wheel, frost, and iris
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• 1 rotating, indexing and interchangeable slot and lock gobo wheel with geometric shapes
• An animation wheel for kinetic textured effects
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 7.1° to 74.1 zoom range for variable beam sizes
• Iris, Animation wheel, and frost for beam shaping effects
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB-C slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost

Specifications

• OPTICAL
  • Light Source: 1 LEDs (CW) 1250 W, (35.84A), 7464 K, 50,000 hours life expectancy.
  • Color Temperature (at full): 7252K
  • Front lens diameters: 225 mm
  • Cutoff Angle: 15.7° to 74.1°
  • Zoom Range 7.1° to 74.1°
  • Lumens: 78,300
  • Illuminance (6.8°): 162,410 lux @ 5 m
  • Illuminance (71.6°): 4,798 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
• DYNAMIC EFFECTS
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: Colors: 5 (including CRI) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag, color correction
  • Gobos (1):6 + open (6 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 26 mm (image), 0.6 mm (max. thickness)
  • Effect Wheel: 1 effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Frost: Motorized
  • Strobe Rate: 0 to 25.6Hz
  • Move-in-Black: Yes
  • Dim Curves: 5
• CONNECTIONS
  • Power Connection: Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)
  • Software Update: USB-C
• CONTROL
  • Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
  • DMX Channels: 31 or 46
  • Art-Net Channels: 31 or 46
  • Modes/Personalities: 2 personalities (31ch, 46ch)
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 1720 W, 14.67 A @ 120 V, 60 Hz
  • Power and Current: 1690 W, 8.35 A @ 208 V, 60 Hz
  • Power and Current: 1680 W, 7.48 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
• CONSTRUCTION / PHYSICAL
  • Dimensions: 18.46 x 12.04 x 32.16 in (469 x 306 x 817 mm)
  • Weight: 100.2 lb (45.5 kg)
  • Exterior Color: Black
  • Housing Material: Magnesium Aluminum die-cast, High-impact flame-retardant polymer, Steel

WHAT'S INCLUDED

• Maverick Storm 4 Solo Wash
• Seetronic Powercon IP65
• 2x 140-D Omega bracket with mounting hardware
• 2x Handles
• 8x Screws
