Chauvet Pro COLORado PXL Curve 1 RGBW LED Beam & Wash PTZ Fixture

About: Chauvet Pro COLORado PXL Curve 1 RGBW LED Beam & Wash PTZ Fixture

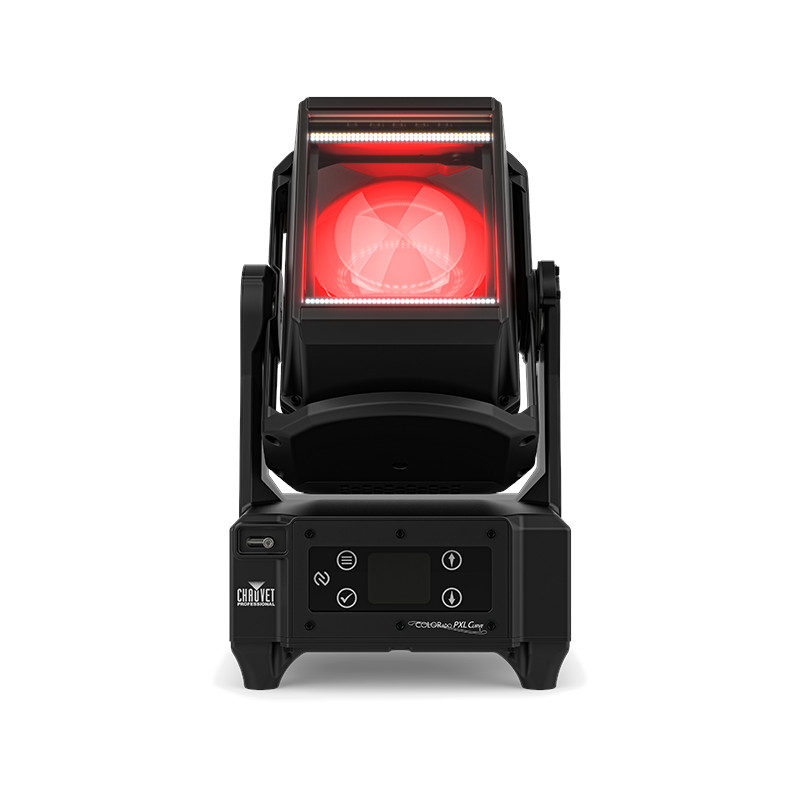

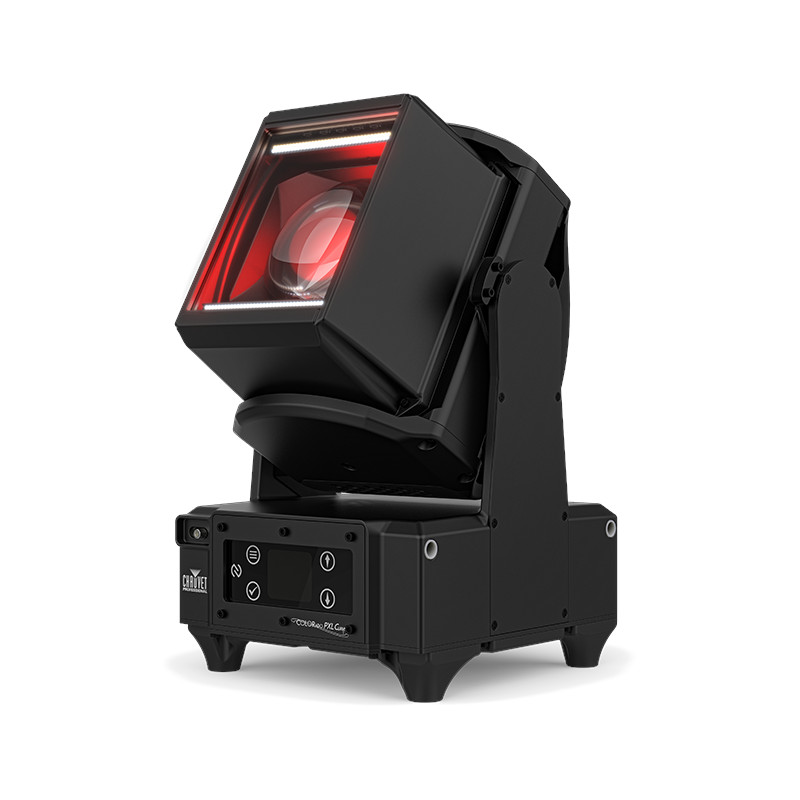

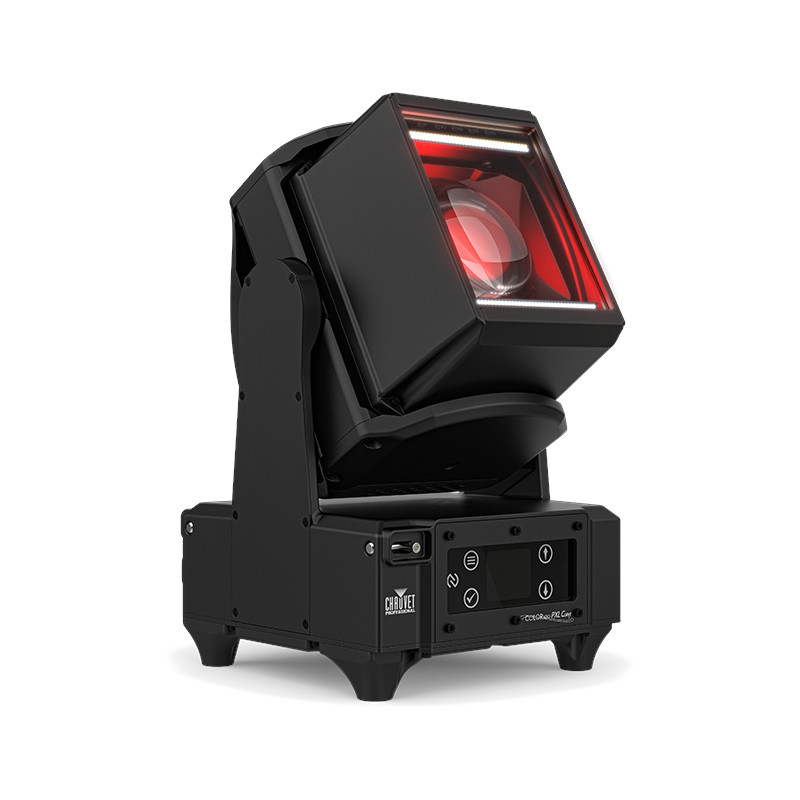

COLORado PXL Curve 1 features motorized pan, tilt and zoom in a compact IP65-rated RGBW LED beam and wash fixture that brings the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with multiple fixtures, alignment pins maintain pixel pitch while its color blending and rectangular head perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.

• Fully featured IP65 rated with single (120W) RGBW LED and two linear four cell CW and WW Strobe LEDs wash and beam fixture with pan and tilt functionality with the ability to maintain pixel pitch when using multiple fixtures together
• Quick and quiet operation of 200° of tilt and 60° of pan
• 8 section control of Warm White and Cool White strobe cells.
• Lightweight and compact makes fixtures easily rigged together in any environment
• DMX, SACN, and Art-Net, control for full flexibility
• RDM and NFC Enabled for remote addressing and trouble shooting

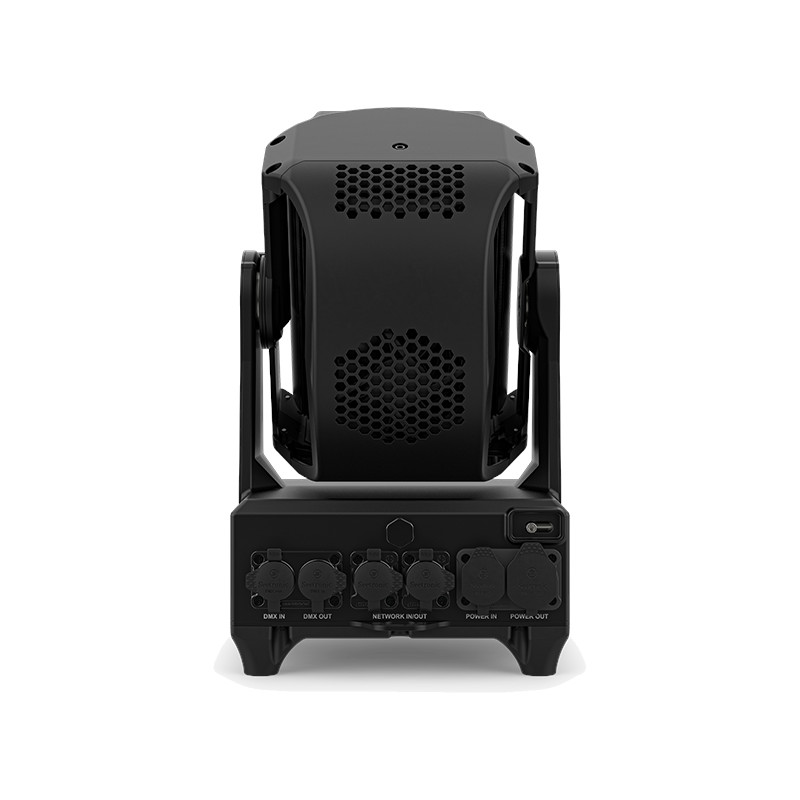

• IP65-rated 5 pin DMX and TCP/IP input/output ports
• IP65-rated USBc software upload port
• Slotted Omega bracket for easy hanging on truss

Specifications

• Optical
  • Light Source: 1 LEDs (quad-color RGBW) 120 W, (5 A), 50,000 hours life expectancy
  • Light Source: 160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy
  • Color Temperature (at full): 22,089 K
  • Beam Angle (without strobe): 3.4 - 30.2°
  • Beam Angle (with strobe): 3.4 - 32.1°
  • Field Angle (without strobe): 4.4 - 38.7°
  • Field Angle (with strobe): 4.3 - 66.3°
  • Cutoff Angle (without strobe): 4.7 - 40.8°
  • Cutoff Angle (with strobe): 4.6 - 144.3°
  • Zoom Range (without strobe): 3.4 - 40.8°
  • Zoom Range (with strobe): 3.4 - 144.3°
  • Lumens (without strobe): 1,558
  • Lumens (with strobe): 4,630
  • Illuminance without strobe (3.4°): 14,009 lux @ 5 m
• Dynamic Effects
  • Pan and Tilt: 60°/200°
  • Pan and Tilt Ranges: 60°, 40°, 20° pan/ 200°, 180°, 60° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized/Manual
  • Strobe Rate: 0 to 25 Hz
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Modes: 2
  • Dim Curves: 4
• Connections
  • Power Input: Seetronic Powerkon
  • Power Output: Seetronic Powerkon
  • Data Connectors: 5-pin IP65 XLR, etherCON
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Control Protocol: [Art-Net, sACN, DMX, RDM, NFC]
  • DMX Channels: 24 or 45
  • Art-Net Channels: 24 or 45
  • Modes/Personalities: 2 personalities (24, 45)
• Construction / Physical
  • Dimensions: 7.83 x 8.46 x 12.99 in (199 x 215 x 330 mm)
  • Weight: 15 lb (6.8 kg)

What's in the Box

• COLORado PXL Curve 1
• Seetronic Powerkon IP65 power cable
• Omega bracket with mounting hardware
• Quick Reference Guide
