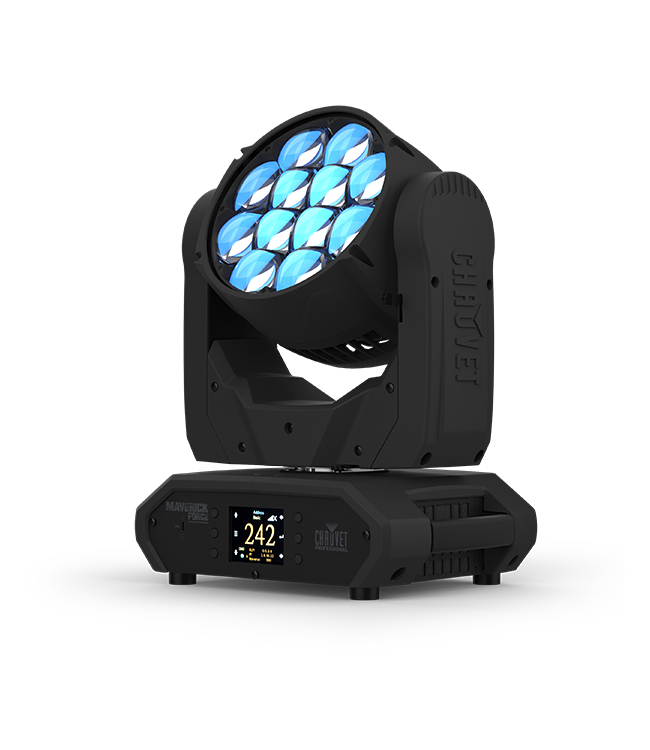

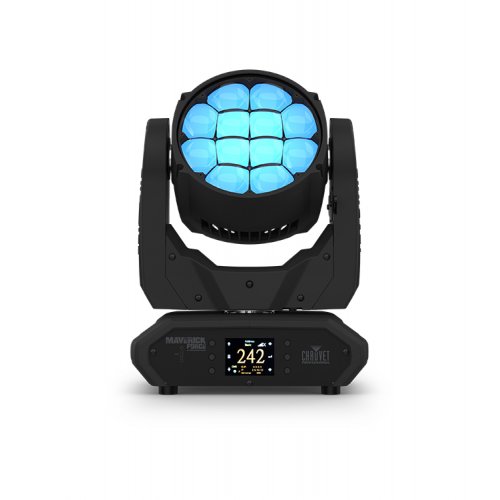

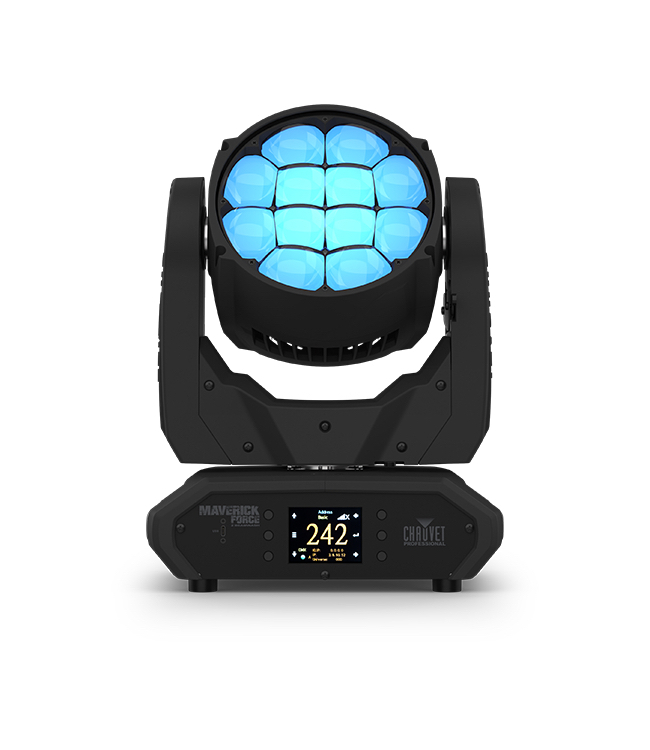

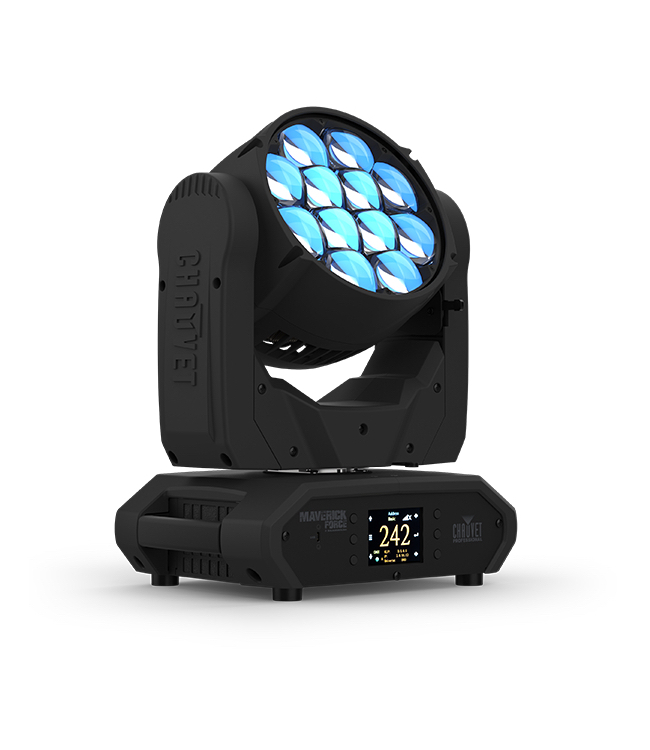

Chauvet Pro Maverick Force 2 BeamWash

About: Chauvet Pro Maverick Force 2 BeamWash

A lighter, brighter, tighter, faster RGBW LED yoke wash fixture with pixel mapping and zoom. Maverick Force 2 BeamWash incorporates the latest LED and optical technologies to project the narrowest beams and deliver the deepest aerial washes. Foreground and background colors combine for sizzling atmospheric effects instantly with its built-in virtual gobo wheel. Flawlessly even output, full pixel mapping, and smooth 16-bit fades make this fixture a force to be reckoned with, live or on camera. Take control with DMX, RDM, sACN, Art-Net, Kling-Net or W-DMX.

Features

• Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• Virtual Color wheel with instantaneous access to a wide array of options
• Built in virtual gobo wheel with background colors for impressive atmospheric effects
• Fast movement of pan, tilt, and zoom
• Quiet operation for a wide range of installation situations
• DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 3.7° to 44.1 zoom range for variable beam sizes
• User selectable calibrated white for 7500 K at full output
• True 1 compatible power input
• USB-C software update port
• Battery backup display with auto rotate depending on fixture orientation
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

Specifications

• Optical
  • Light Source - 12 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours life expectancy
  • Color Temperature (range) - 2700 to 8000 K
  • Beam Angle - 3.7° to 33.6°
  • Field Angle - 5.8° to 44.1°
  • Cutoff Angle - 6.5° to 48.6°
  • Zoom Range - 3.7° to 44.1°
  • Lumens – Source - 10,800
  • Lumens – Output - 9,183
  • Illuminance (3.7°) - 41,355 lux @ 5 m
  • Illuminance (45.1°) - 1,267 lux @ 5 m
  • Selectable PWM - 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
• Dynamic Effects
  • Pan and Tilt - 540°/270°
  • Pan and Tilt Ranges - 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Dimmer - Electronic
  • Shutter/Strobe - Electronic
  • Zoom - Motorized
  • Strobe Rate - 0 to 20 Hz
  • Standalone Color Mixing - No
  • Color Temperature Presets - Yes
  • Move-in-Black - Yes
  • Dim Curves - 4
• Construction / Physical
  • Dimensions - 12.91 x 12.60 x 17.09 in (328 x 230 x 434 mm)
  • Weight - 29.6 lb (13.5 kg)
  • Exterior Color - Black
  • Housing Material - High-impact flame-retardant polymer

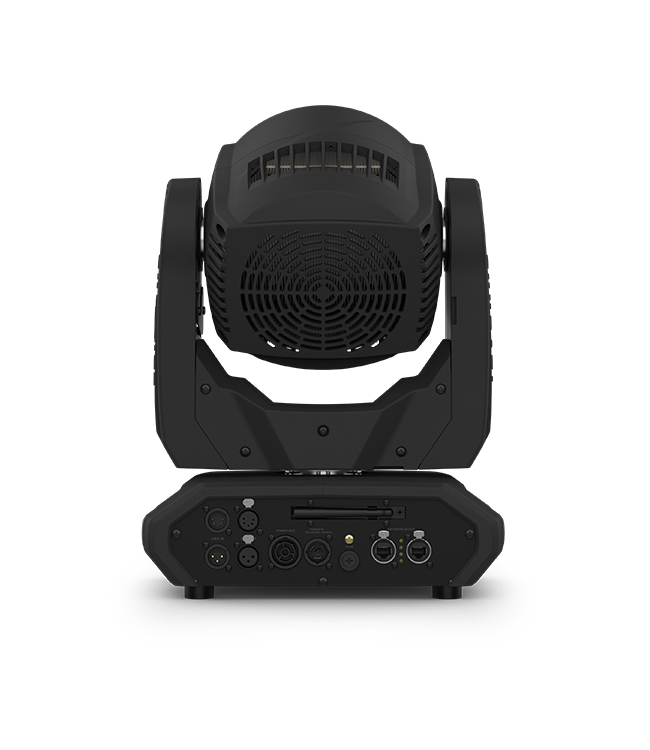

• Connections
  • Power Connection - Seetronic Powerkon IP65
  • Power Input/Output - Seetronic Powerkon IP65
  • Data Connectors - 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
  • Cable Length (power) - 5 ft (1.5 m)
• Control
  • Control Protocol - Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX
  • DMX Channels (Single Mode) - 20ch, 25ch, 68ch, 122ch or 146ch
  • Art-Net/sACN Channels (Single Mode) - 20ch, 25ch, 68ch, 122ch or 146ch
  • DMX Channels (Dual Mode) (Movement) - 8ch, 20ch, 26ch
  • DMX Channels (Dual Mode) (Pixel) - 36ch, 48ch, 96ch
  • Art-Net/sACN Channels (Dual Mode) (Movement) - 8ch, 20ch, 26ch
  • Art-Net/sACN/Kling-Net Channels (Dual Mode) (Pixel) - 36ch, 48ch, 96ch
  • Modes/Personalities - 8 personalities (20ch, 25ch, 68ch, 122ch or 146ch 8ch-36ch, 20ch-48ch, 26ch-96ch)
• Electrical
  • Input Voltage - 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current - 620 W, 5.23 A @ 120 V, 60 Hz
  • Power and Current - 603 W, 2.96 A @ 208 V, 60 Hz
  • Power and Current - 600 W, 2.68 A @ 230 V, 50 Hz
  • Breaker Size - F10 A, 250 V
• Certifications / Qualifications
  • CE, MET, FCC, CB, UKCA
  • Temperature (Ambient) - 4 °F to 113 °F (-20 °C to 45 °C)

What's in the Box

• Maverick Force 2 BeamWash
• Seetronic Powerkon IP65 power cord
• 2 140Dmm Omega brackets with mounting hardware
