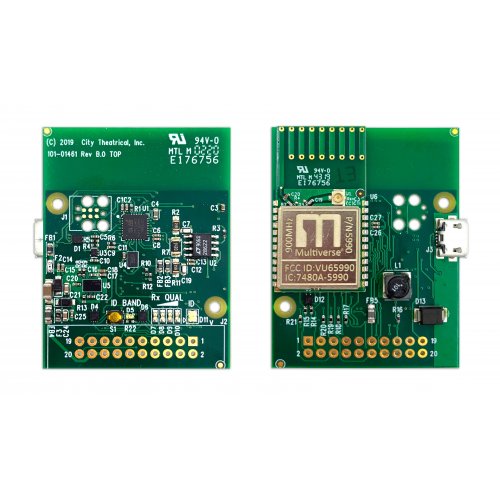

City Theatrical Multiverse Receiver Card - 900MHz

About: City Theatrical Multiverse Receiver Card - 900MHz

The Multiverse Receiver Card, 900MHz (P/N 5907) can be used by any lighting user to implement wireless DMX/RDM into entertainment projects or lighting equipment in a simple way. Multiverse Receiver Cards are full Multiverse wireless DMX/RDM receivers without the housing, XLR connectors, and user interface as used in wireless DMX receiving products like the Multiverse Node and Multiverse SHoW Baby. Multiverse Receiver Cards include an internal antenna and a connection to an optional external antenna. In addition to receiving wireless DMX and outputting wired DMX, the Multiverse Receiver Card can output 0-10V, and has four PWM control outputs.

Multiverse Receiver Cards are full Multiverse wireless DMX/RDM receivers without the housing, XLR connectors, and user interface as used in wireless DMX receiving products like the Multiverse Node and Multiverse SHoW Baby. Multiverse Receiver Cards include an internal antenna and a connection to an optional external antenna. Configuration for Multiverse Receiver Cards is done via RDM with DMXcat® Multi Function Test Tool, or with City Theatrical’s USB Configuration Program for PC/Mac.

In addition to receiving wireless DMX and outputting wired DMX, the Multiverse Receiver Card can output 0-10V, and has four PWM control outputs.

While Multiverse Modules require a full circuit board level implementation by professional lighting manufacturers, Multiverse Receiver Cards can be used by any lighting user to implement wireless DMX/RDM into their lighting equipment, whether props, costumes, or lighting fixtures. Multiverse Receiver Cards can be used as part of a full Multiverse wireless DMX/RDM system to connect up to 10 universes of wireless DMX/RDM to a single Multiverse Transmitter. Lighting manufacturers can use the 0-10V and PWM output capabilities to quickly add wireless DMX control to their products.

Features

• Supports ANSI E1.11 DMX512-A and E1.20 RDM
• DMX RS-485 driver on board with ±60V protection
• Signal Quality LEDs on board and external connections
• SHoW ID RGB LED on board and external connections
• Multiverse Band LED on board and external connections
• Wide input voltage range, 5V to 30Vdc
• Footprint 50mm(2”) x 38mm(1.5”)
• +3.3Vdc output to power low current hosts
• Configurable over USB micro B connector
• Firmware updatable over USB micro B connector
• Advanced Mode features:
  1. 0-10V output
  2. Four PWM control outputs
