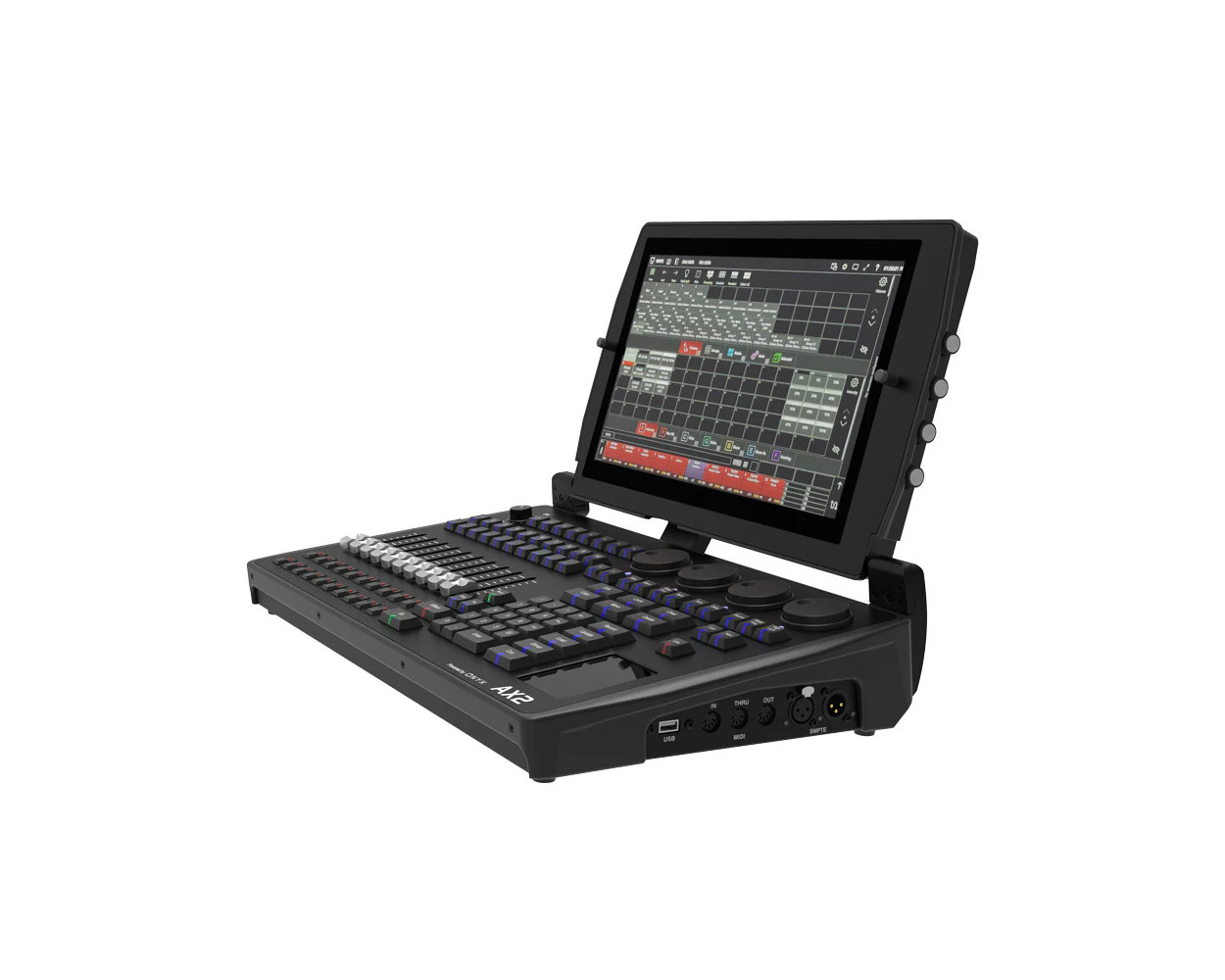

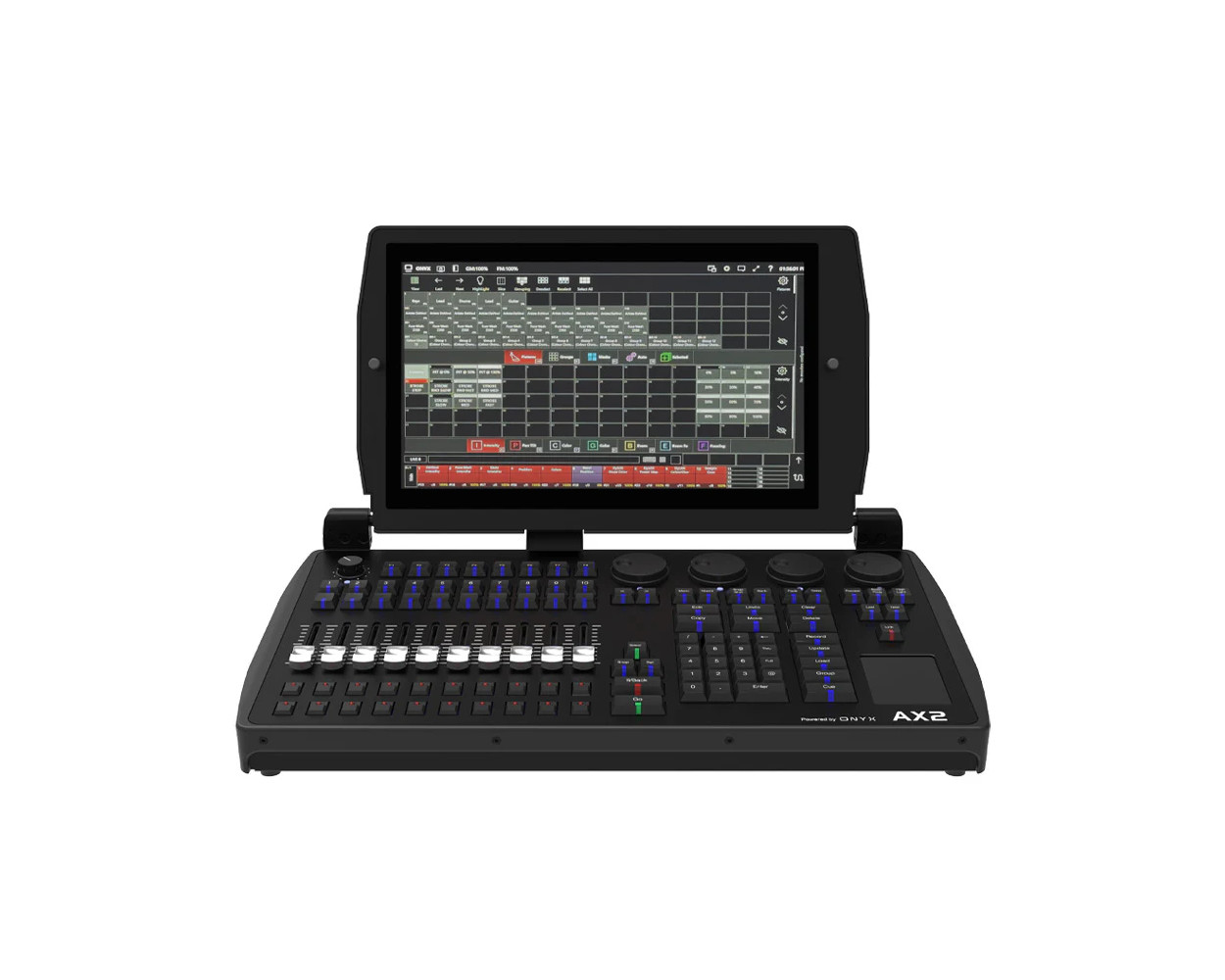

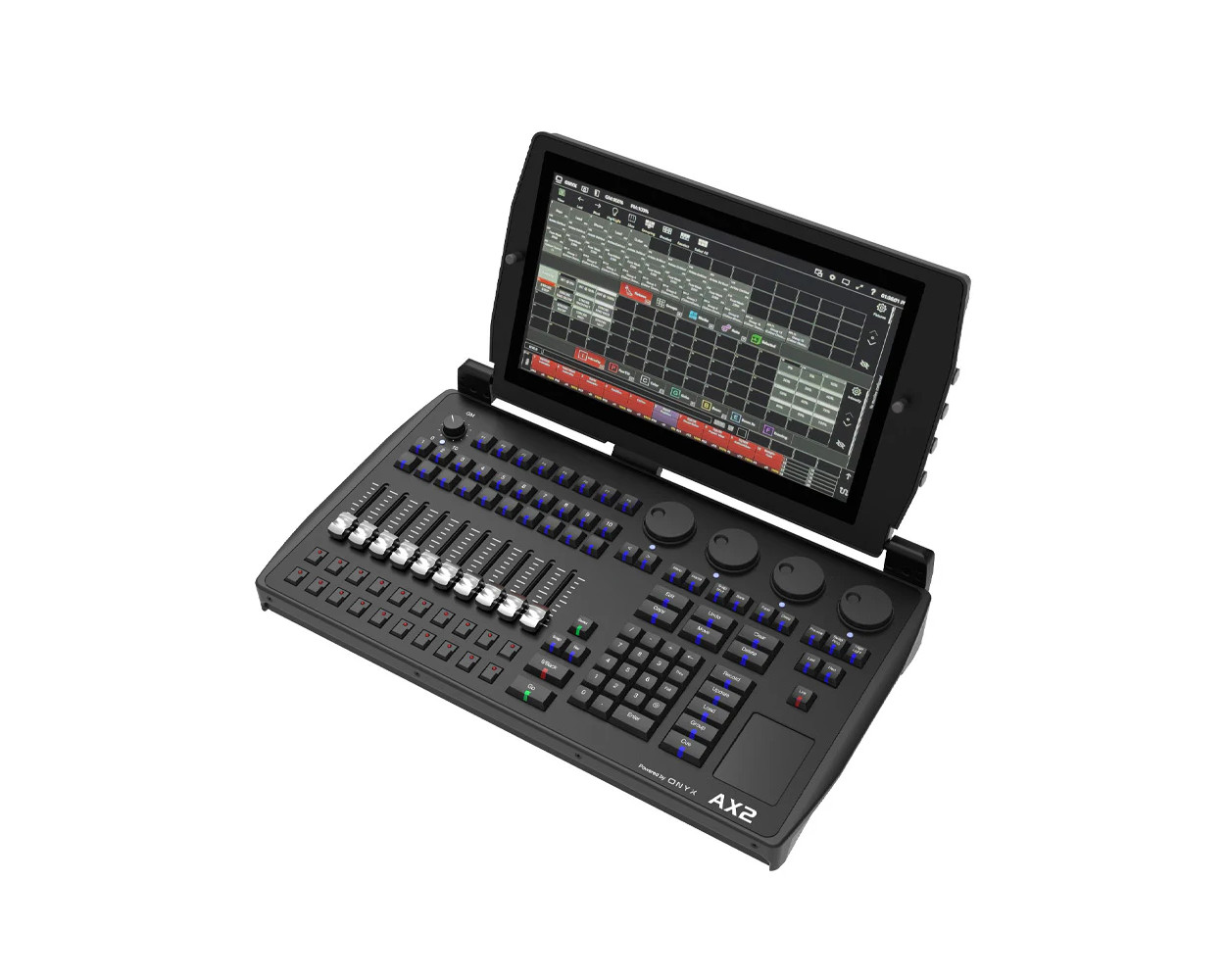

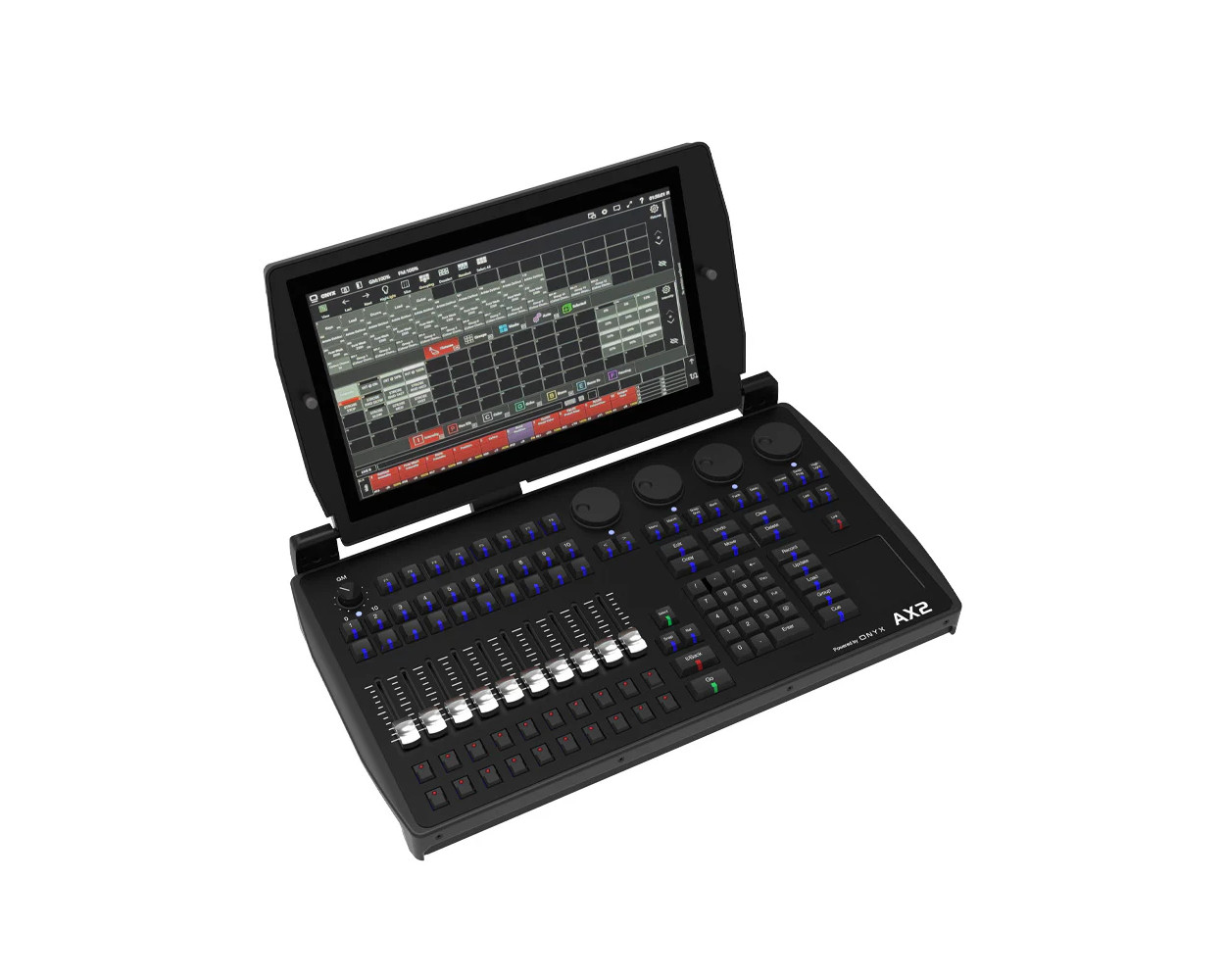

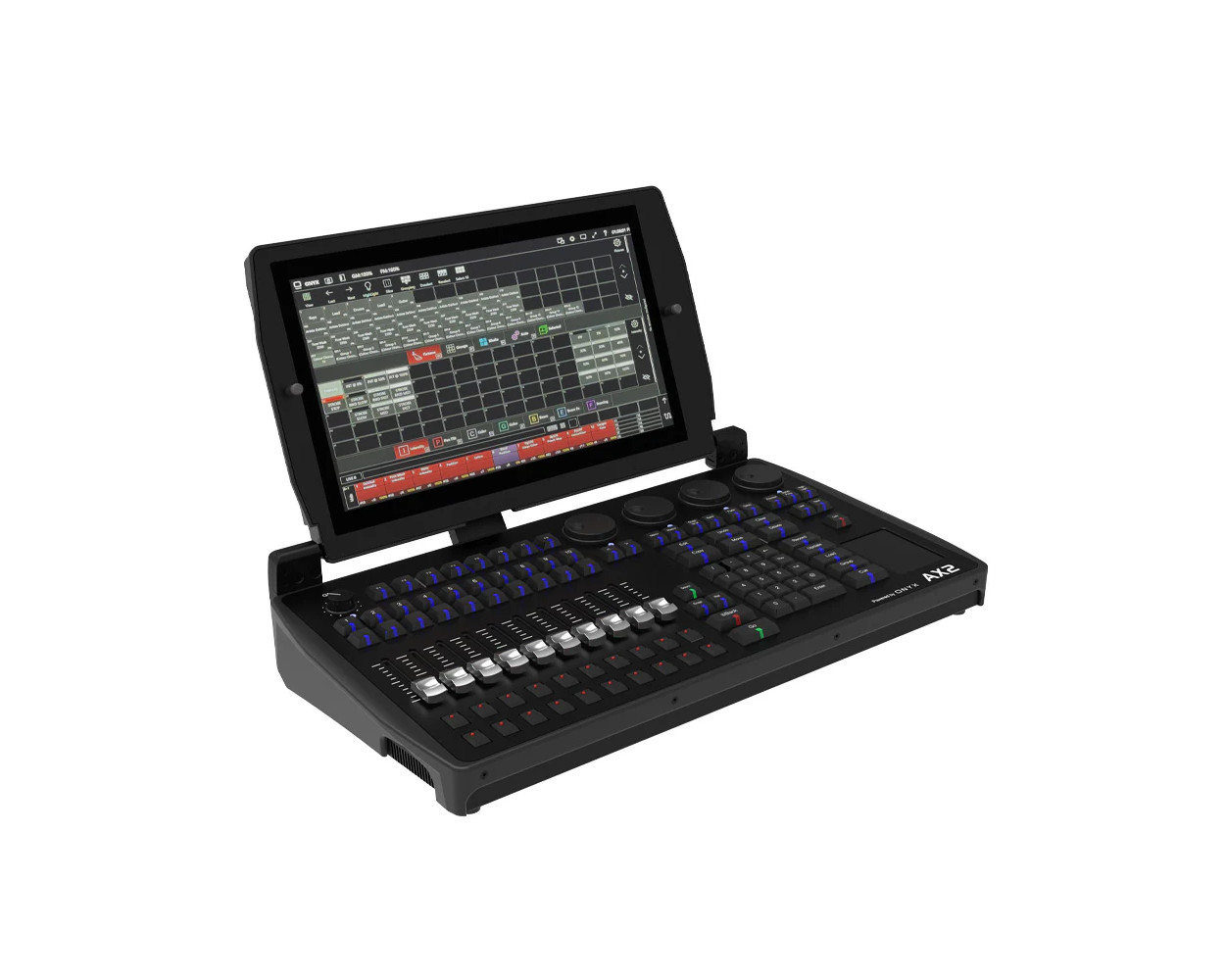

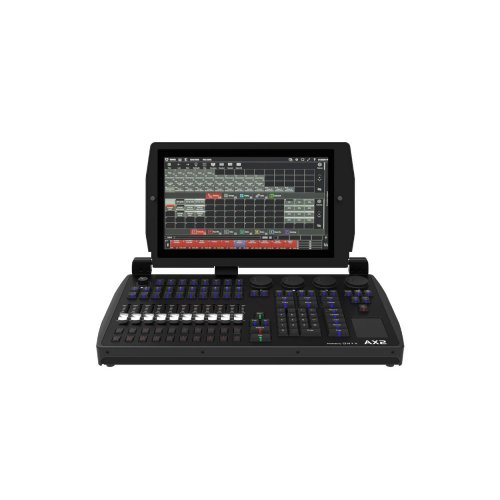

ADJ AX2 32-Universe Lighting Controller Powered by ONYX

About: ADJ AX2 32-Universe Lighting Controller Powered by ONYX

The ADJ AX2 is the ultimate compact yet powerful fully integrated lighting controller powered by Obsidian Control Systems’ ONYX platform. This is the first console in the ADJ portfolio which derives from the innovative ONYX platform.

• Powered by ONYX from Obsidian Control Systems
• DYLOS Media Engine with 5 Zones of Pixel Control
• Adjustable 15.6” Full HD multi touch screen
• 2x external 4K Touch Displays
• 32 Universe integrated processing
• 10 Playbacks
• 8 Encoders
• SMPTE/MIDI
• Keypad and internal 3.5” touchscreen
• Network, DMX, Timecode and Midi Connectivity

The AX2 includes a high brightness 15.6” full HD multi-touch screen, 8 assignable parameter encoders, an assistive mini touch screen, full keypad and command section, a dedicated grand master and 10 full playbacks with four freely assignable buttons.

Utilizing the latest in industrial components the AX2 contains a powerful Intel Hexa-Core processor, high speed NVMe SSD drive and 16GB of DDR4 RAM. Fast boot times, instant operation and the ability to process 32-universes right inside the console without the need for costly external processing networks result in unprecedented power in this form factor. The AX2 is ergonomic with its compact footprint, full ONYX command and keypad section and the bright adjustable HD touch screen. It is always ready to run the largest shows and events at a moments notice. With four DMX ports, Timecode, Midi and dual Gigabit ports for up to 32 Universes of Art-Net, sACN plus the ONYX X-Net protocol the AX2 has all the connectivity and power the ever-increasing sizes of shows demand. Two additional 4K touch monitors are supported for even more direct access at any time

Specifications

• Control Surface
  • 10 x 60 mm playback faders, each with 4 x function- assignable buttons
  • 8x customizable multi-function keys
  • Playback Select button
  • Master Go section with Go, Pause, Snap and Release
  • 4x digital rotary encoders with push function and status LED for fixture parameter control
  • 4x screen mounted digital rotary encoders with push
  • 3.5” RGB touchscreen for parameter groups, effect parameters, fanning and global timings
  • Grand master rotary fader and button Blind/HighLight/Last/Next buttons
  • Full numerical keypad and command keys
  • ‘Powered by Onyx’ text on front panel
• Hardware
  • Industrial 15.6” TFT 16:9 touchscreen (1920x1080px)
  • 500 GB NVMe M.2 storage drive
  • Industrial motherboard with Intel i5 Hexa-Core CPU
  • Quiet thermal design using advanced copper heat pipe coolers
  • 16 GB DDR4 RAM
  • Integrated graphics processor
  • Windows 11 IoT Embedded Operating System
  • OS installation by USB 3.0 storage device
  • Supports Windows USB touchscreens
• Connections
  • 4x DMX / RDM Universe In/Out: 5-pin locking XLR
  • External Display: 2x DisplayPort (up to 4k)
  • Network: 2x Gigabit for Art-Net, sACN and ONYX X-Net
  • Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
  • Audio Out, Mic In: 2x 3.5mm Jack
  • MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5pin DIN
  • SMPTE Timecode In/Out: 3-pin XLR
  • 12 VDC power supply input: 4-pin XLR
  • Desk lamp: XLR 12V
• Electrical (Power Supply)
  • AC mains power to 12 VDC external PSU (included): 100-240 V nominal, 50/60 Hz
  • Maximum input current: 3 A
  • 12 VDC output: 11 A, 132 W max
• Physical
  • Dimensions (LxWxH): 11.9 x 21.3 x 4.8 inch (300 x 540 x 121mm)
  • Weight: 10.2 lbs (4.6 kg)

What's Included

• RGB LED desk lamp, angular XLR connector, 13"

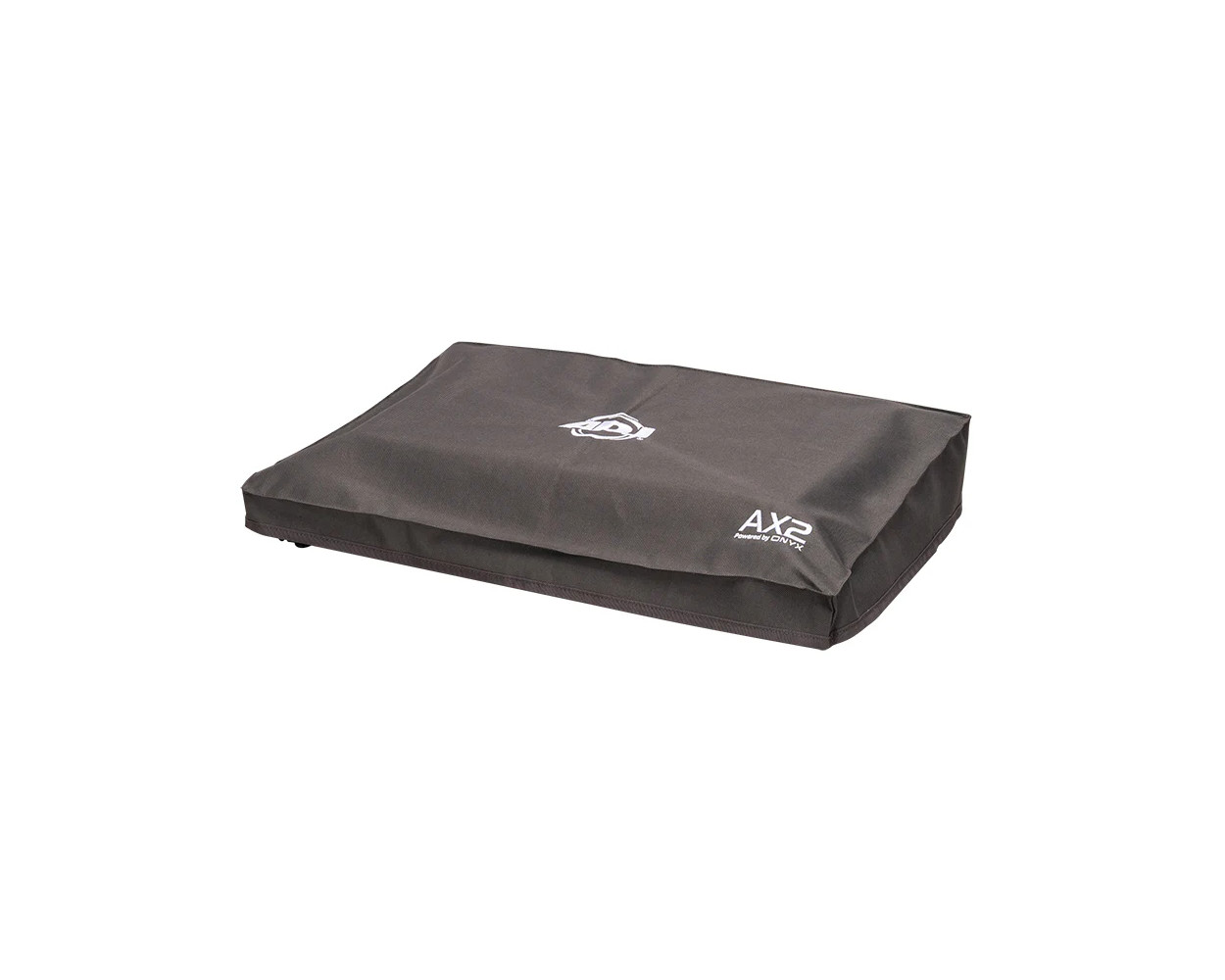

• Dust Cover
• USB Cable
• External PSU (12V 11A)
• 1.5 m power cable, 3-pin IEC (EU or US version)
• USB Recovery Flash drive Installation Manual
