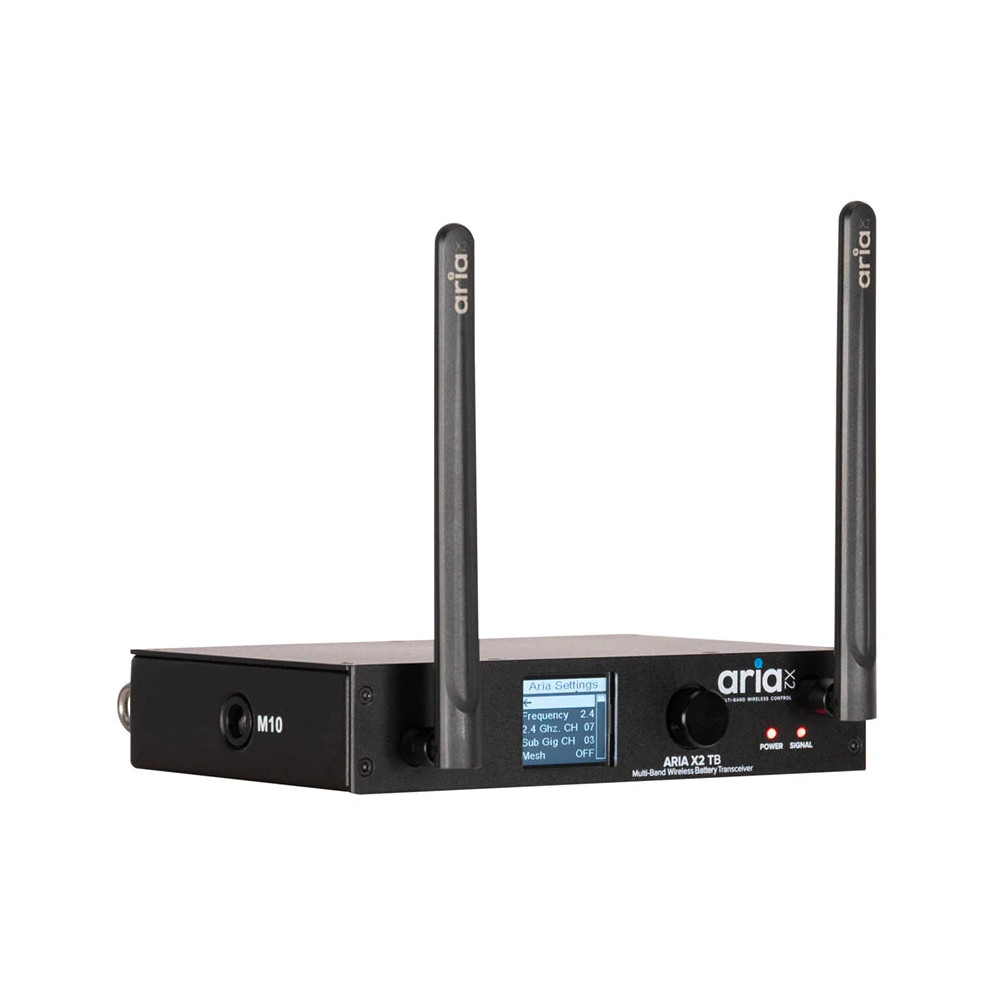

ADJ Aria X2 TB Single Universe Wireless Transceiver (Battery Powered)

About: ADJ Aria X2 TB Single Universe Wireless Transceiver (Battery Powered)

The Aria X2 TB  is a versatile and reliable, wireless DMX Transceiver designed for seamless operation in various environments. With dual power capabilities, it can be powered via AC for continuous use or an internal Lithium battery for enhanced mobility and flexibility.

• Single DMX Universe
• Sub-GHz, 2.4 GHz and Bluetooth
• Configuration via Aria X2 BLE app or front panel
• AC / Battery Powered
• Wireless to DMX or DMX to Wireless

Engineered for high-performance DMX signal transmission and reception, the Aria X2 TB ensures stable and clear connectivity, making it ideal for professional, industrial, and field applications. Whether in a fixed installation or on the go, its rugged build and efficient power management provide dependable operation without compromise.

The built-in rechargeable battery provides extended operating time, making it ideal for use in locations where AC power isn’t available. A full charge takes just 4 hours and delivers up to 20 hours of continuous operation. With its intuitive interface and advanced features, this wireless DMX transceiver offers a seamless, reliable, and versatile solution for users who demand performance and flexibility.

With the Aria X2 TB, you can count on exceptional performance, flexibility, and reliability- delivering stable communication wherever your setup requires it.

Specifications

• Supported Protocols
  • DMX
  • RDM (Planned for future software release)
  • Proprietary 802.15.4
  • Aria X2 Mesh Protocol (Planned for future software release)
  • Bluetooth 4.2 (BLE)
  • Aria X2 Serial Protocol
  • This is our proprietary serial protocol for communicating with a variety of fixtures.
• RF Characteristics
  • Frequency range
  • Bluetooth: 2402-2480 MHz
  • Zigbee: 2405-2480 MHz (EU)
  • Sub-GHz: 906-924 MHz (US)
  • Radio module: Aria X2
  • Interference mitigation
  • CSMA
  • Adaptive frequency hopping (on the roadmap)
  • OTA updates
• Standards
  • Health
    • EN IEC 62311:2020
    • EN50665:2017
    • BS EN IEC 62311:2020
    • BS EN 50665:2017
  • Safety
    • EN IEC 62368-1: 2020+A11:2020
    • BS EN IEC 62368-1: 2020+A11:2020
  • EMC
    • ETSI EN 301 489-1 V2.2.3 (2019-11)
    • ETSI EN 301 489-3 V2.3.2 (2023-01)
    • ETSI EN 301 489-17 V3.2.4 (2020-09)
    • EN 55032:2015/A1:2020
    • EN 55035:2017/A11:2020
    • EN 61000-3-3:2013/A2:2021
    • EN IEC 61000-3-2:2019/A1:2021
    • BS EN 55032:2015/A1:2020
    • BS EN 55035:2017/A11:2020
    • BS EN 61000-3-3:2013/A2:2021
    • BS EN IEC 61000-3-2:2019/A1:2021
  • Radio
    • EN 300 220-1 V 3.1.1 (2017-02)
    • EN 300 220-2 V 3.2.1 (2018-06)
    • ETSI EN 300 328 V2.2.2 (2019-07)

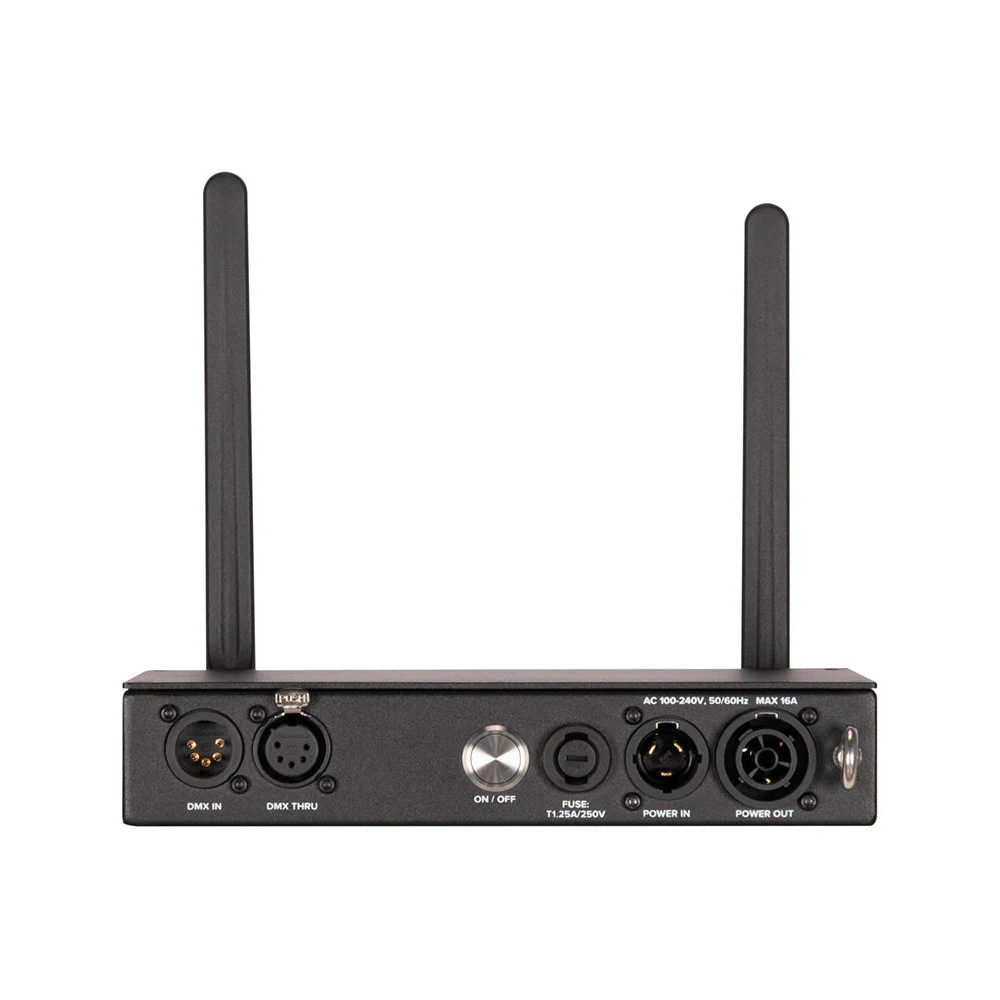

• Connectors
  • Antenna: 5G JT SMA
  • DMX: 5-pin XLR Input and Output
  • IP65 Locking Power Input and Output
• Power
  • AC100-240V 50/60Hz
  • 2x 18650 Lithium Battery Power (3.6V., 2600mAh, 9.36Wh)
  • Power Consumption: 2W
  • Power Fuse: T1.25A/250V. (5 x 20mm)
• Physical
  • IP20 Aluminum / Metal enclosure

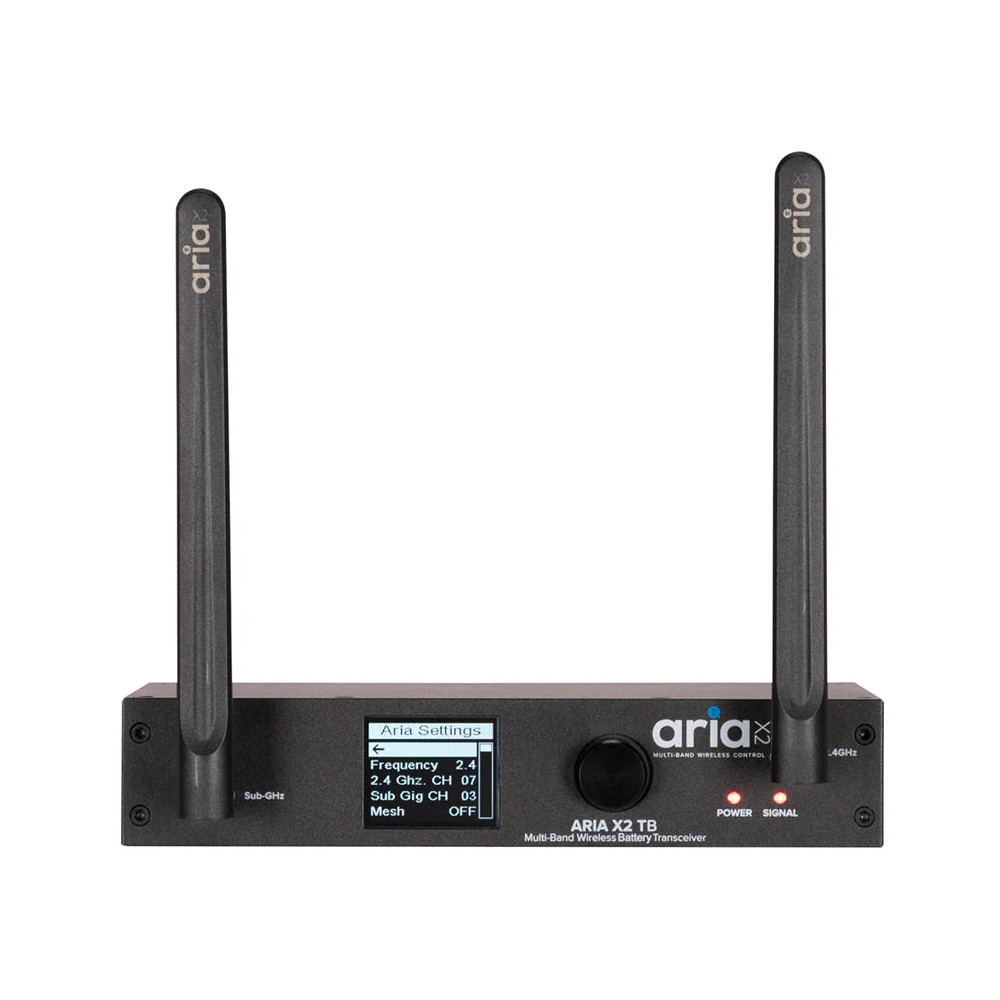

  • Front panel digital screen and rotary knob

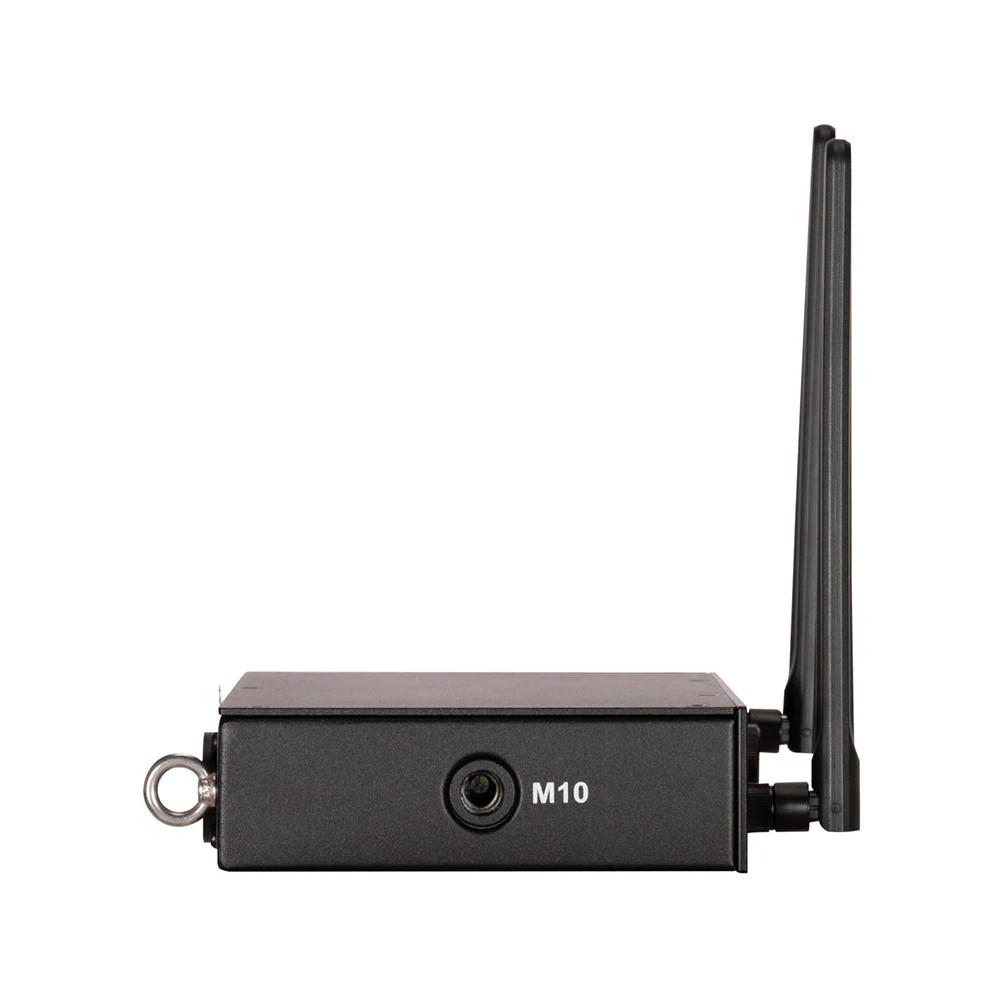

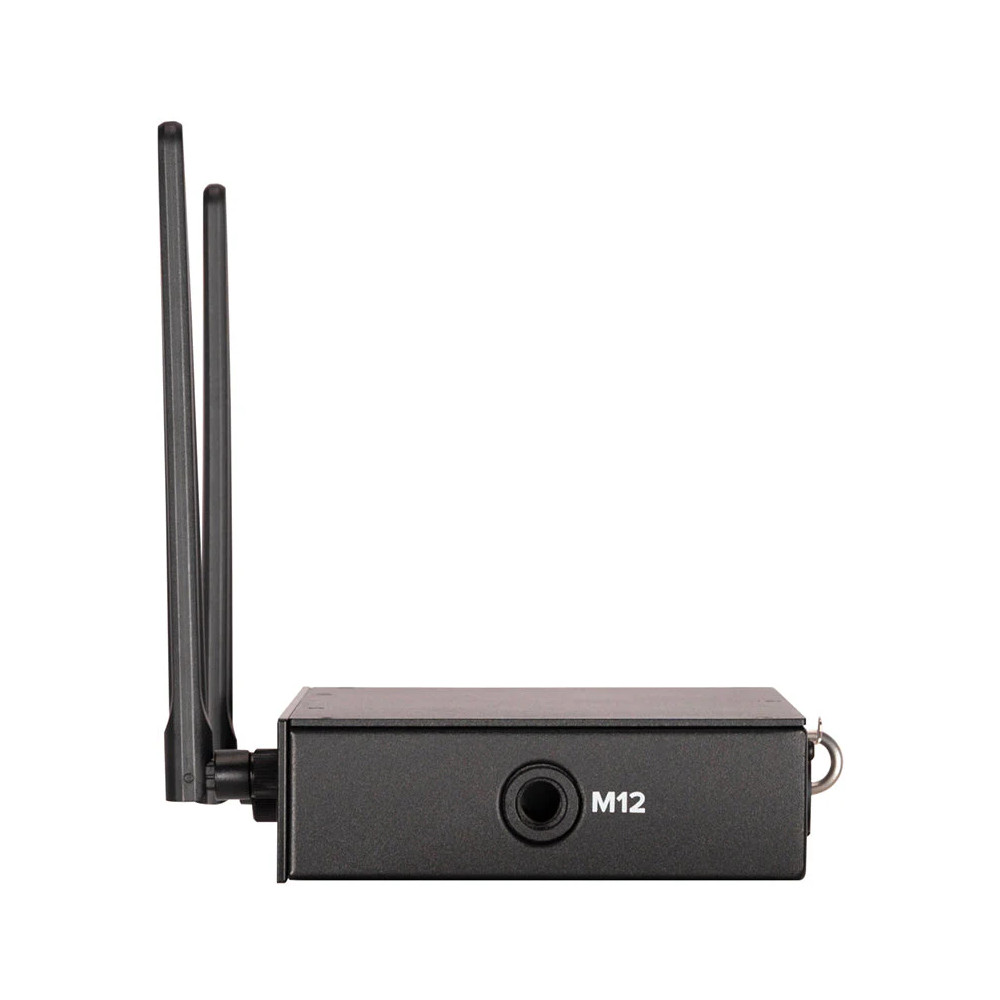

  • M10 and M12 Threads
  • Safety Eyelet
  • Max ambient operating temp: 113°F (45°C)
  • Max operating humidity: <75%
  • Storage temperature: 77°F (25°C)

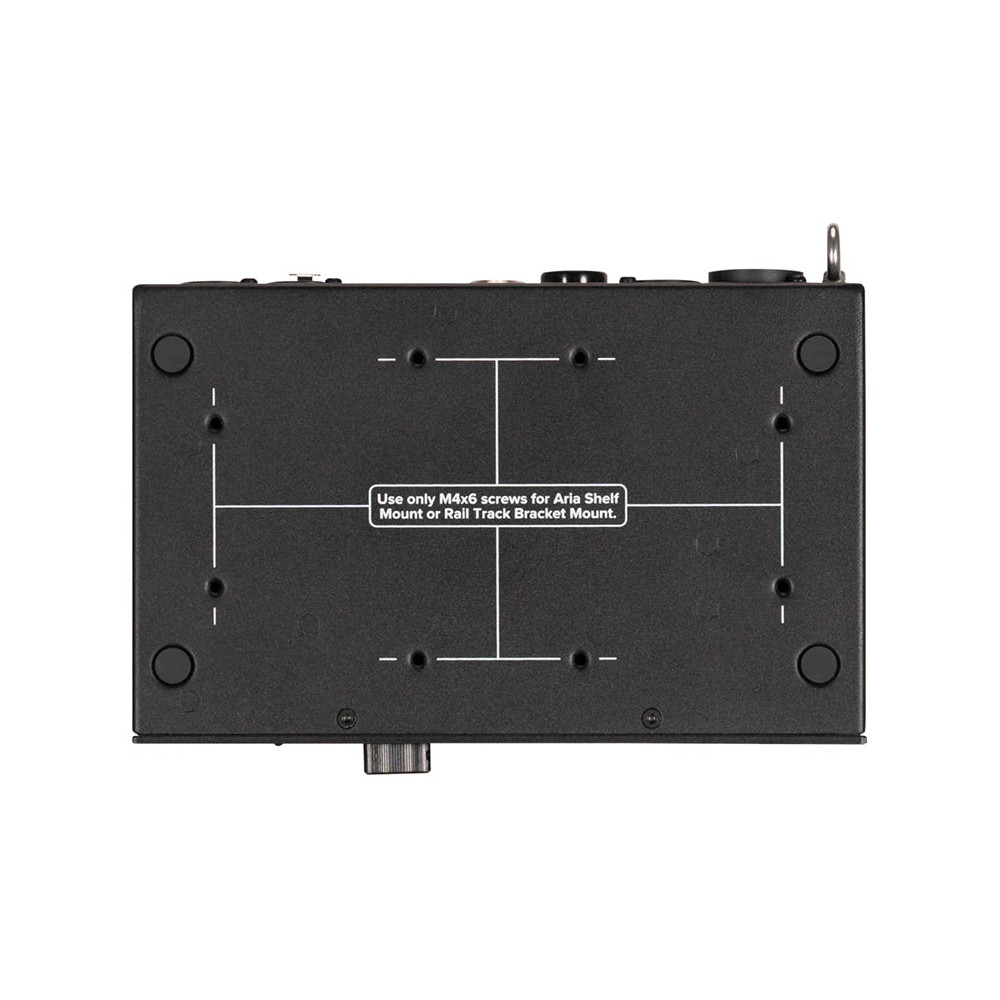

  • Rack and wall mount accessories
  • ​Dimensions (LxWxH): 6.1 x 8.5 x 1.7 inch (155 x 215 x 42 mm)
  • Weight: 2.7 lbs. (1.23kg)
