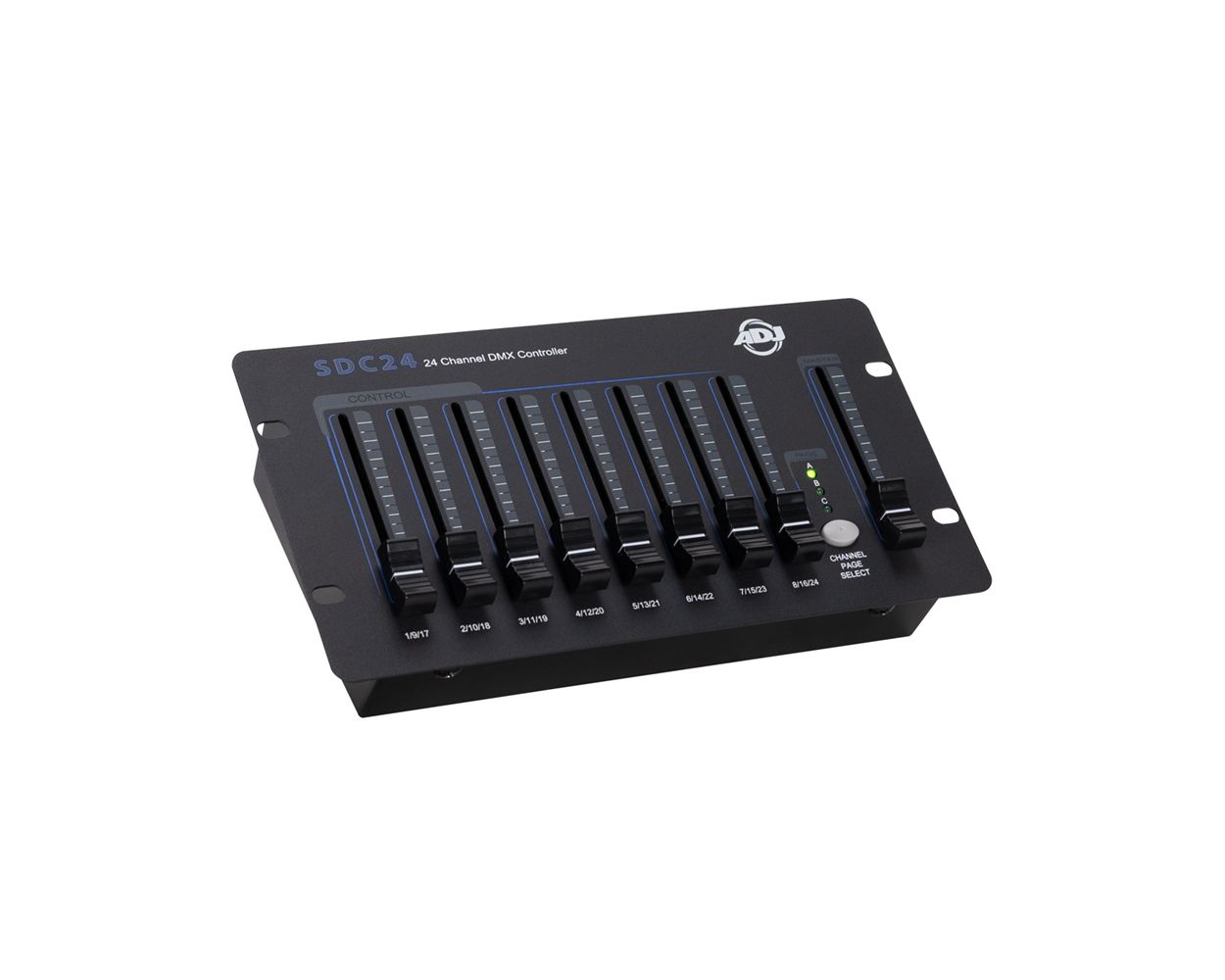

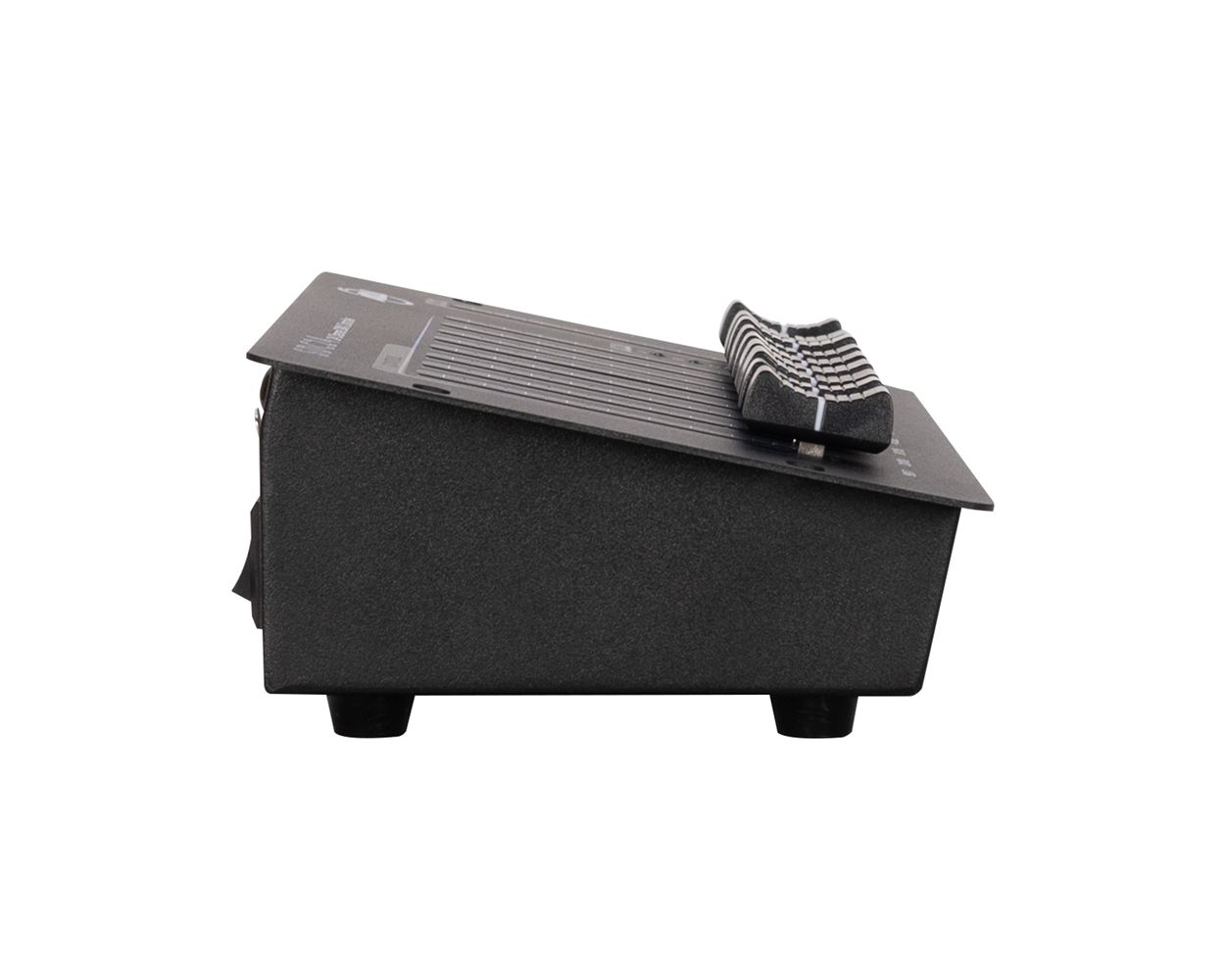

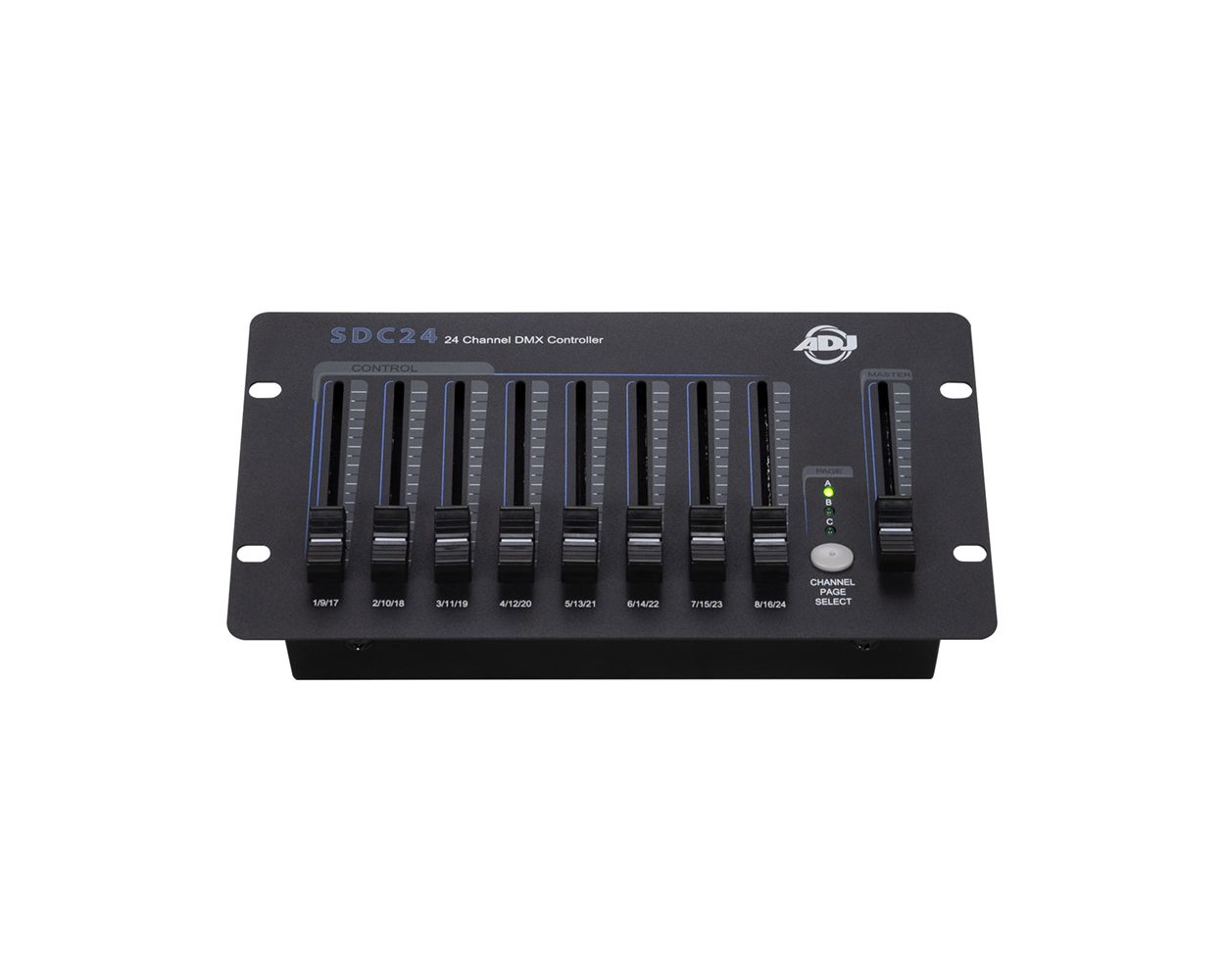

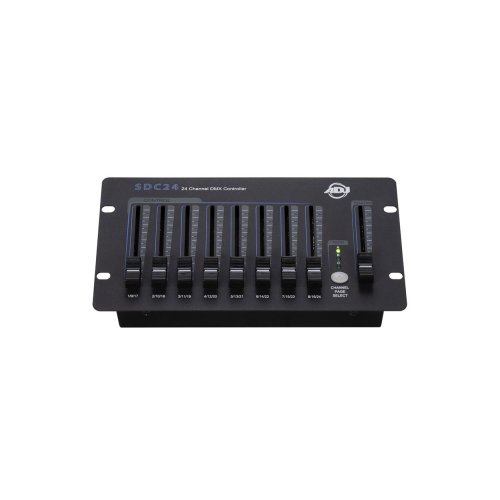

ADJ SDC24 24-Channel DMX Controller
Model: SDC24
About: ADJ SDC24 24-Channel DMX Controller
The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets, DIP switches to set a starting DMX channel, a master dimmer fader, an on/off switch and Channel Page button with Indicator LEDs. This a great compact controller for product demos or manual control of LED or conventional fixtures.
Features
- 8 individual channel faders and 1 master fader
- 24 DMX channels
- Compact, portable design
- 3-Pin and 5-Pin XLR output
- Battery Type: PP3 9V (not included)
Specifications

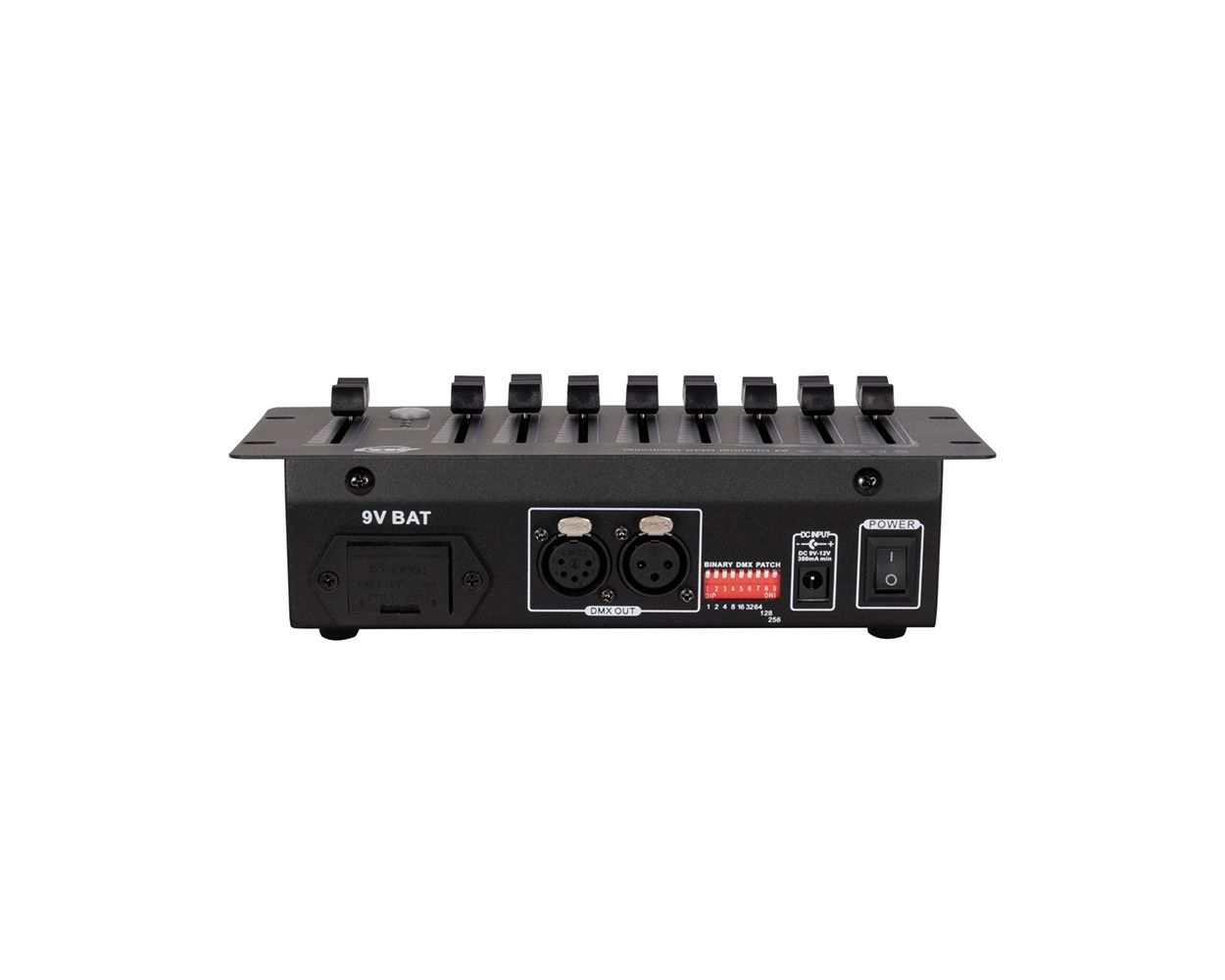

- Control / Connection
- DIP Switches To Set Starting DMX Channel
- 3pin & 5pin DMX Outputs
- On/Off Switch
- Channel Page button with Indicator LED's
- DC9V-12V Power Supply Input
- 9V Battery slot
- Electrical
- DC9V-12V 300mA min or 9V Battery (Not Included)
- Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W
- Approvals / Ratings
- CE Approved
- RoHs Compliant
- IP20
- Size / Weight
- Length: 4.73” (120mm)
- Width: 9.06” (230mm)
- Height: 2.23” (56.66mm)
- Weight: 1.86 lbs. (0.84kg)
- Included Accessories
- • 9V 1A Power Supply
UPC: 810087372675
Reviews: ADJ SDC24 24-Channel DMX Controller
Warranty: ADJ SDC24 24-Channel DMX Controller
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
- Non-LED Lighting Products: 1-year limited
- Laser (excluding laser diodes): 1-year limited
- Laser Diodes: 6 month limited
- LED Products: 2-year limited (Canada only)
- Batteries: 180 days limited
- StarTec Series: 1-year limited
- DMX Controllers: 2-year limited
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
