ADJ Saber Spot RGBL 20W Pinspot

About: ADJ Saber Spot RGBL 20W Pinspot

Building on the success of its predecessor, the ADJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red, blue, green and lime) LEDs source, advanced ACL lens and a tight 5.7-degree beam angle, the Saber Spot RGBL is designed for spotting tables, objects or mirror balls, and creating mid-air beam effects for lightshows.

Features

• DMX and RDM Compliant
• Color Temperature Presets
• 63 Built-in Color Macros
• 13 Built-in Color Changing Programs
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Includes a scissor yoke to be hung, or set on the ground

This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has white color temperature presets ranging from 2000K to 9900K.

A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

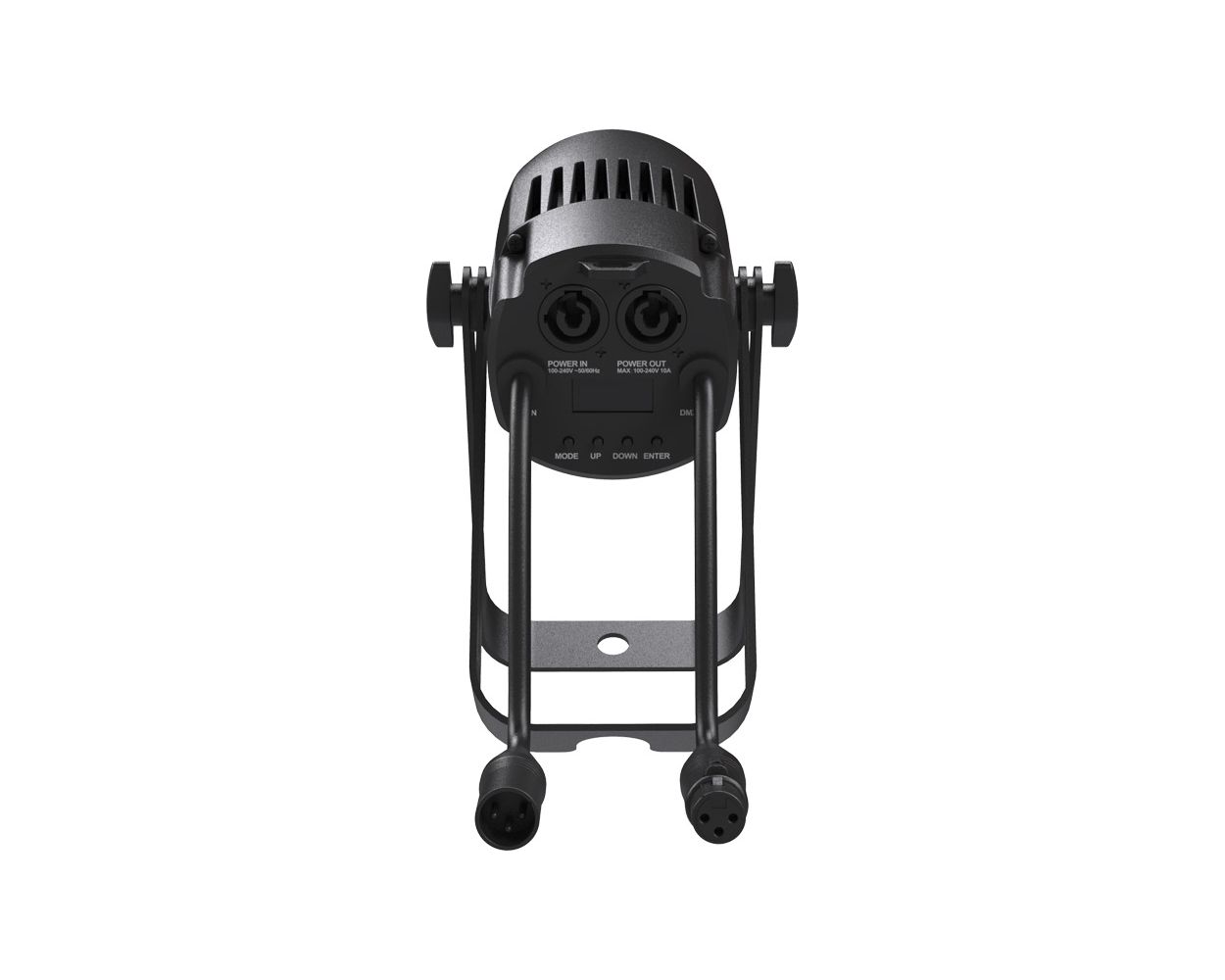

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.

Specifications

• Optical
  • Light Source: 20 Watt, RGBL LED
  • LED Life Expectancy: 30,000 Hrs
  • Beam Angle: 5.7°
  • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
  • LED Refresh Rate: 3.6KHz
• ​Connections
  • Power Input: Indoor power locking
  • Power Pass through: Indoor power locking
  • Control: 5-pin DMX In/Out pigtails
  • With Wired Digital Communication Network
• Control
  • 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
  • RDM Compliant
• Electrical
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 16.7W, 0.243 Amps
  • Power draw 230V 50Hz: 16.7W, 0.147 Amps
  • Power Output Current: 1.2A (14W)
  • Power Linking: 57pcs @120V, 95pcs @230V
• Certifications & Ratings
  • CE
  • ETL (Pending)
  • IP20
• Physical
  • Dimensions (LxWxH): 6.69” x 5.31” x 8.46" (170 x 135 x 215mm)
  • Weight: 3.2 lbs / 1.45 kg.
  • Black Housing
• Optional Accessories
  • PLC 3, PLC 6, PLC 10 (Indoor locking power link cables)

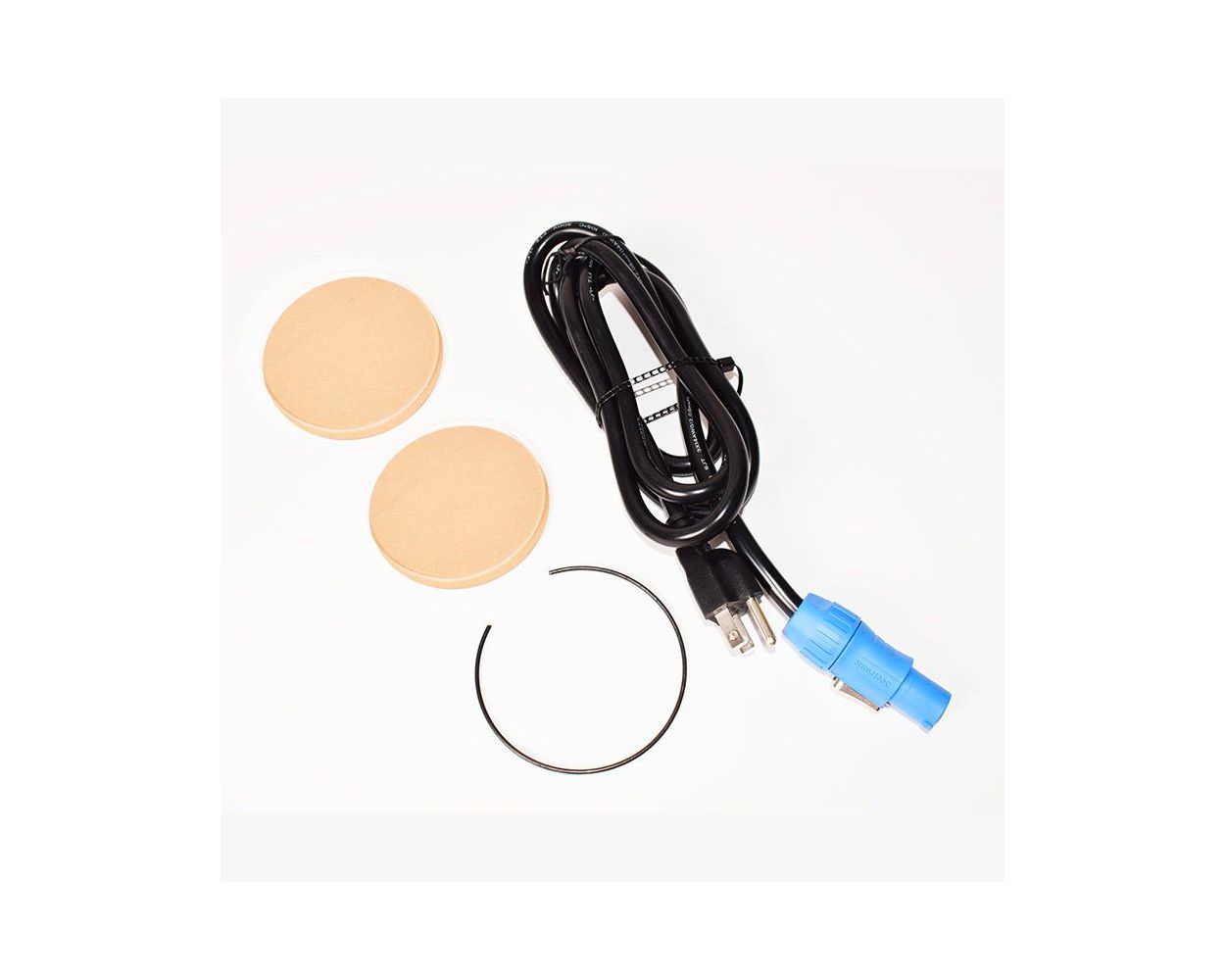

What’s Included

• 1.83m Indoor locking power cord
• 2 frost filter lens (10-degree & 45-degree)
• Metal clip ring for frost filter lens
