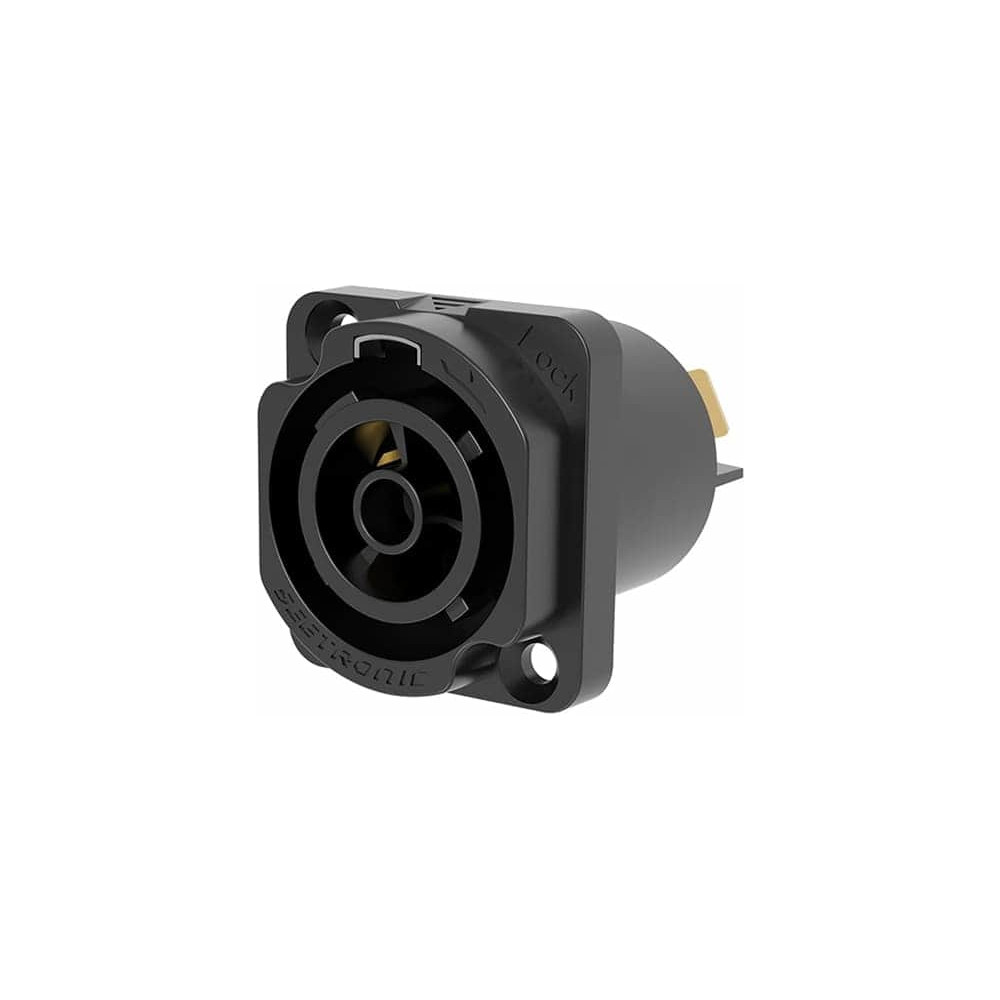

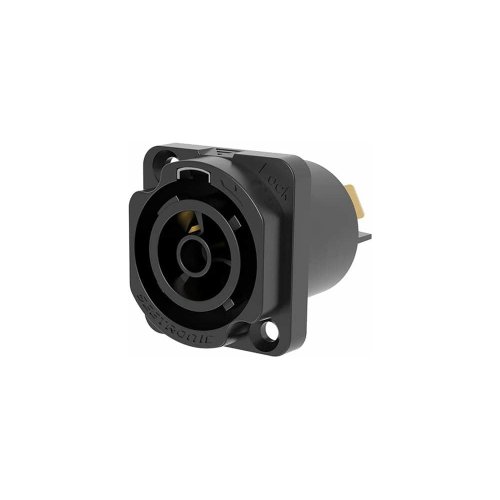

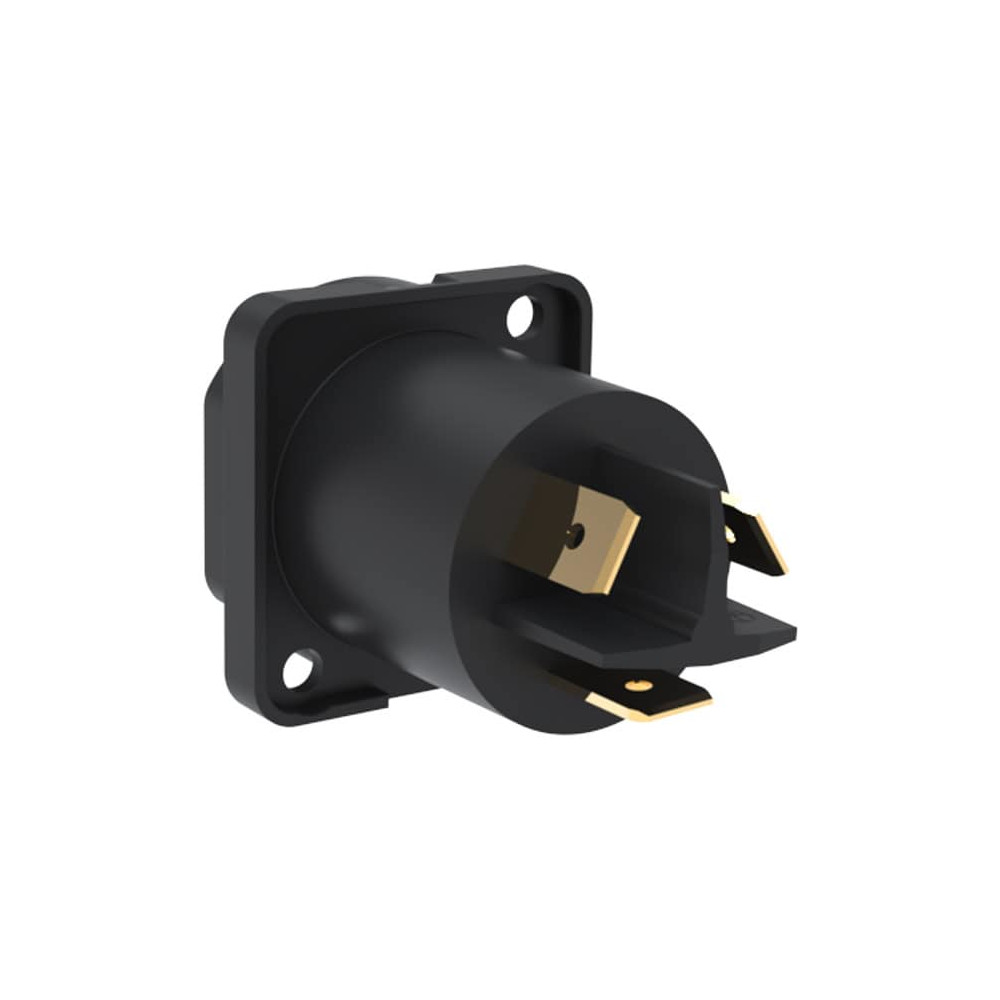

Seetronic SAC3FPX20 IP65 D-Size Power Connector - Female
Model: SAC3FPX20
About: Seetronic SAC3FPX20 IP65 D-Size Power Connector - Female
Seetronic’s SAC3FPX20 is an upgraded, compact D-size female power-out socket, designed for rugged outdoor conditions. It offers high durability and adheres to the latest trends in equipment miniaturization and lightweight construction.
- Upgraded Design: Compact D-size female power-out socket, optimized for modern applications.
- Durable Construction: Ruggedly sealed power connector ideal for outdoor use, boasting IP65 waterproof grade and IP67 protection class for terminal equipment.
- Versatility: Compatible with the SAC3MX plug, enabling seamless integration into various systems.
- Advanced Protection: Provides waterproof and airproof capabilities with a rubber cover (model CNAC-FPX20; sold separately).
- Miniaturization: Supports the same opening size for both input and output panels, catering to equipment miniaturization trends.
Specifications
- Electrical
- Number of Contacts: 2 + PE
- Rated Current: 16A (TUV RH), 20A (UL)
- Rated Voltage: 250V AC (TUV RH), 300V AC (UL)
- Contact Resistance: ≤ 5 mΩ
- Dielectric Strength: 4000V DC (1600V/min AC UL)
- Insulation Resistance: > 1000 MΩ
- Mechanical
- Service Life: > 1000 mating cycles
- Cable Size: 2.5 mm² (12 AWG)
- Material and Environmental
- Housing Material: PA (Polyamide)
- Contacts: Cu alloy with Au plating
- Flame Retardant Grade: UL 94-V0
- Temperature Range: -30°C to +80°C
- Protection Degree: IP65 waterproof grade, IP67 protection class for terminal equipment
- Standards and Certifications
- Standards: UL498, UL50E, IEC61984, GB/T 34989
- Certifications: UL (E356932), TUV RH Certificate (TUV RH NO.R 50660463 0001), CQC (CQC23003410681)
