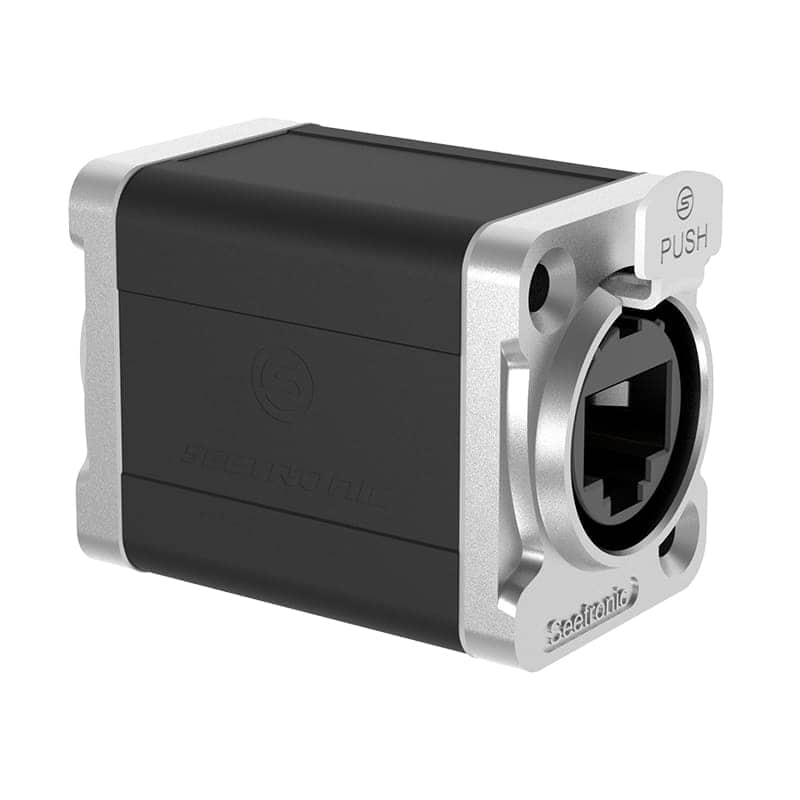

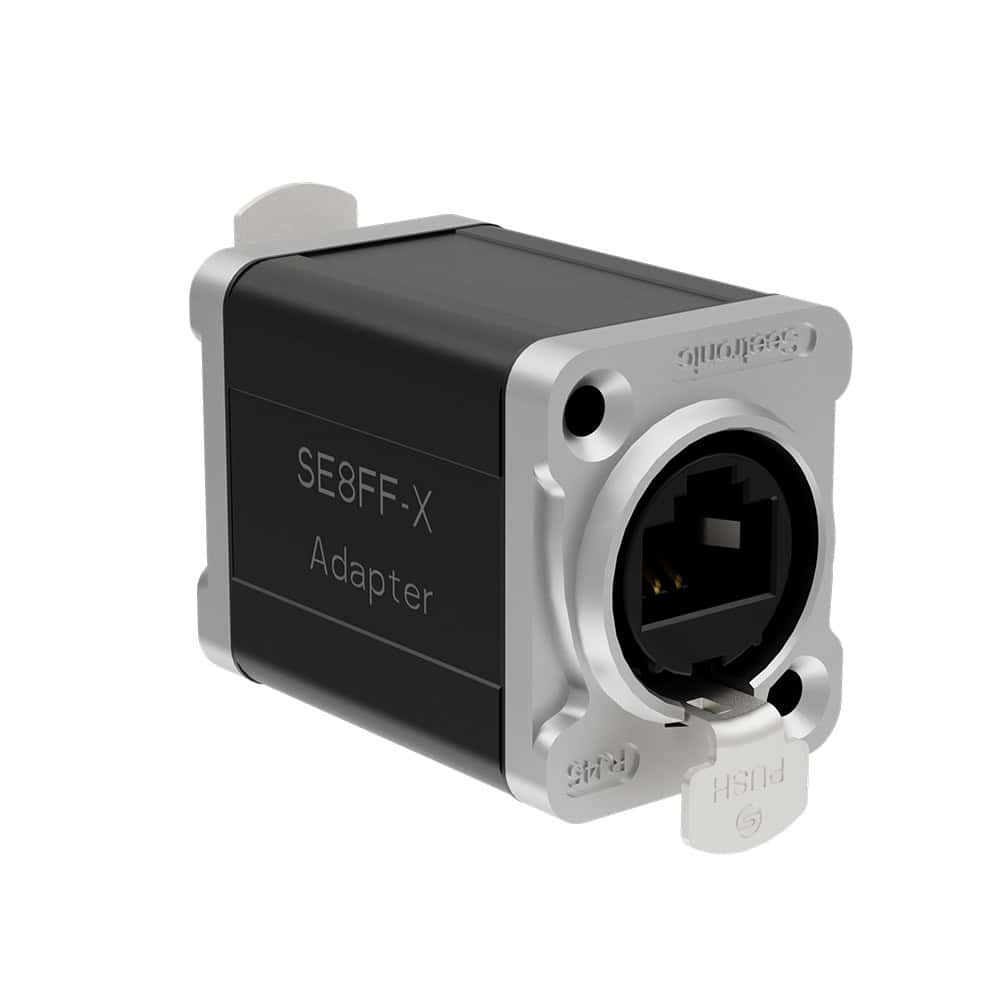

Seetronic SE8FF-X RJ45 Feedthrough Coupler for CAT5e
Model: SE8FF-X
About: Seetronic SE8FF-X RJ45 Feedthrough Coupler for CAT5e
The SE8FF-X RJ45 Adapter is a high-performance feedthrough coupler designed for seamless linking of cables, specifically accommodating the SE8MC-1 and SE8MC-02 model. With its compact and lightweight design, the SE8FF-X ensures fast and stable signal transmission, making it an excellent choice for networking applications.
- Feedthrough Coupler: Facilitates the connection of RJ45 cables for efficient data transmission.
- Compliance: Meets the CAT 5e standards as per TIA/EIA 568B and ISO/IEC 11801, ensuring reliable performance.
- Durable Design: Engineered for a longer service life with more than 1000 mating cycles and a robust latch locking system for stability.
- Compact Size: A shorter length enhances portability and fits neatly into various environments.
Specifications
- Technical
- Connection type: Adapter
- Contact resistance: < 10 mΩ
- Rated current: 1.5 A
- Rated voltage: 50 V
- Insulation resistance: ≥ 0.5GΩ
- Dielectric strength: 1 KV DC
- Frequency range: 1~100 MHz
- Transmission performance: CAT5e
- Mechanical
- Insertion force: ≤ 20 N
- Service life: > 1000 mating cycles
- Locking device: Latch lock
- Material and Environmental Parameters
- Contacts: Copper alloy
- Insert: PBT material
- Contact surface: Gold-plated
- Panel: Zinc alloy
- Temperature range: -30°C ~ +80°C
- Standards and Certifications
- Complies with TIA/EIA 586B and IEC11801 standards.
