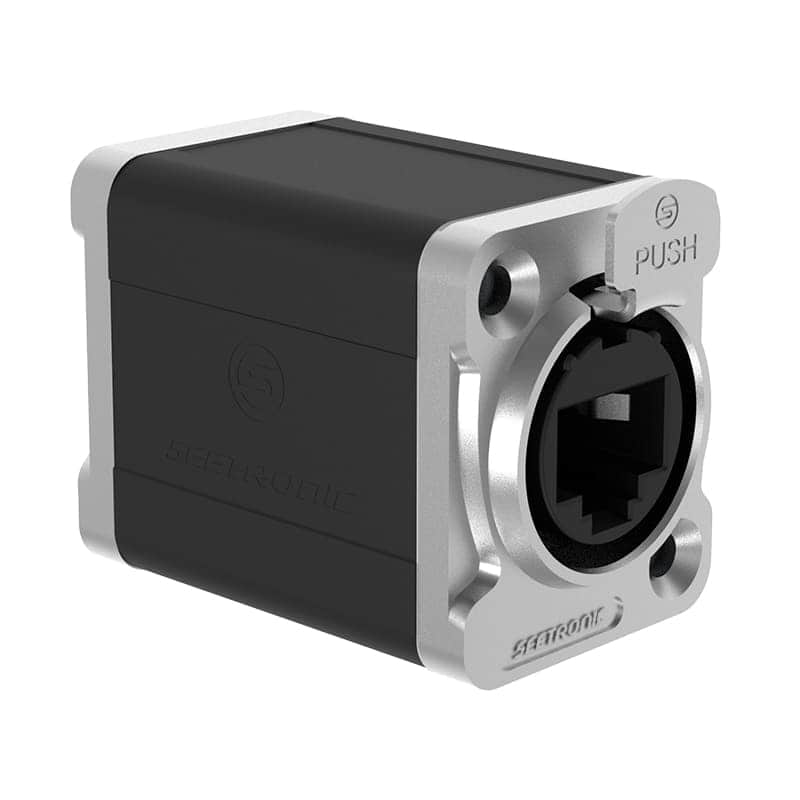

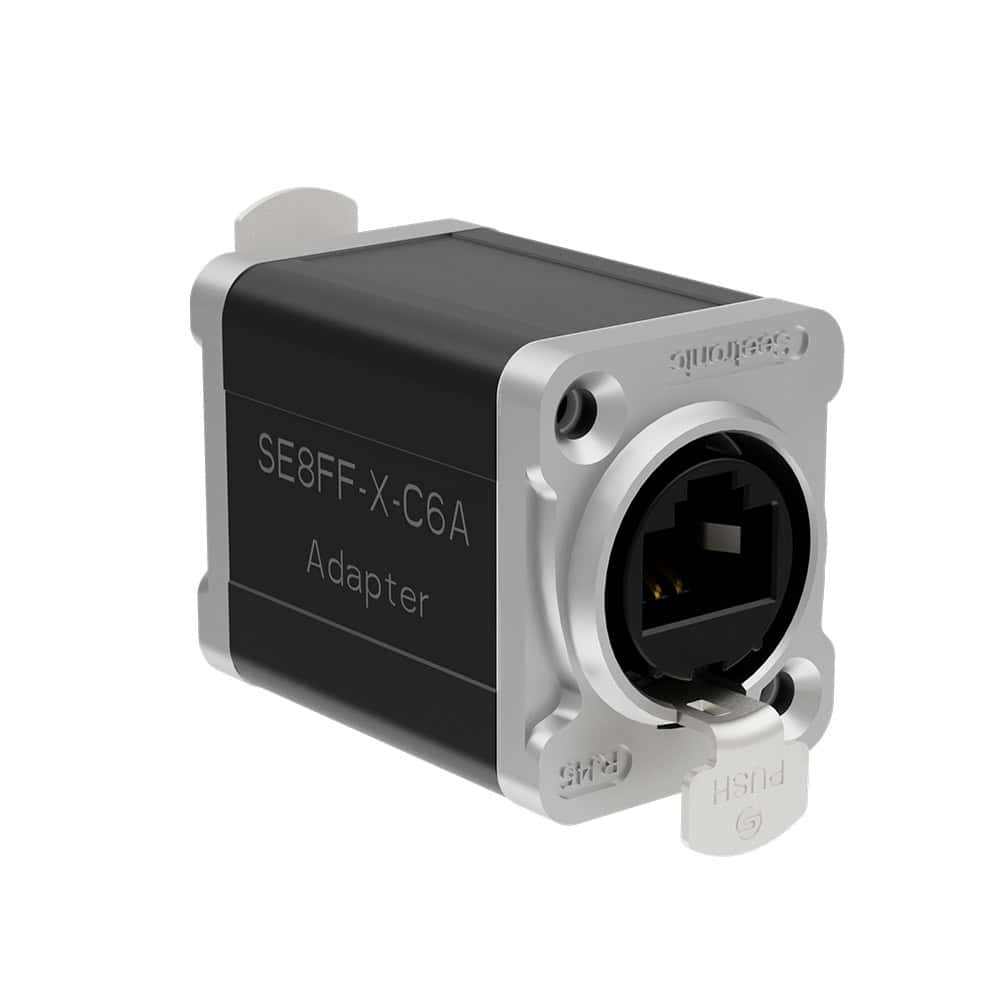

Seetronic SE8FF-X-C6A Feedthrough Coupler for CAT6a, PoE++
Model: SE8FF-X-C6A
About: Seetronic SE8FF-X-C6A Feedthrough Coupler for CAT6a, PoE++
The SE8FF-X-C6A RJ45 Adapter is a high-performance feedthrough coupler designed to seamlessly link cables while meeting the rigorous standards of CAT6a networking. This adapter is particularly well-suited for applications requiring Power over Ethernet (PoE++) support, thereby ensuring efficient and stable signal transmission.
- Compatibility: Specifically accommodates SE8MC-1 and SE8MC-02, ensuring optimal connectivity for various applications.
- Compact Design: Its shorter length and exquisite compact design make it an ideal choice for space-constrained installations.
- Standards Compliant: Fully compliant with CAT6a standards, TIA/EIA 568B, and ISO/IEC 11801, guaranteeing reliable performance in telecommunications networks.
- Lightweight and Efficient: The SE8FF-X-C6A is designed to be lightweight without compromising on performance, ensuring fast and stable signal transmission.
Specifications
- Technical
- Connection Type: Adapter
- Contact Resistance: < 10 mΩ
- Rated Current: 2 A
- Rated Voltage: 60 V
- Insulation Resistance: ≥ 0.5 GΩ
- Dielectric Strength: 1 KV DC
- Frequency Range: 1–500 MHz
- Transmission Performance: CAT6a
- Ethernet Power Supply: PoE++ (according to IEEE 802.3bt)
- Mechanical
- Insertion Force: ≤ 20 N
- Service Life: > 1000 mating cycles
- Locking Device: Latch lock
- Materials and Environmental
- Contacts: Copper alloy
- Insert: PBT material
- Contact Surface: Gold-plated
- Panel Material: Zinc alloy
- Temperature Range: -30°C to +80°C.
- Standards and Certifications
- Adheres to industry standards including TIA/EIA 586B and IEC11801
