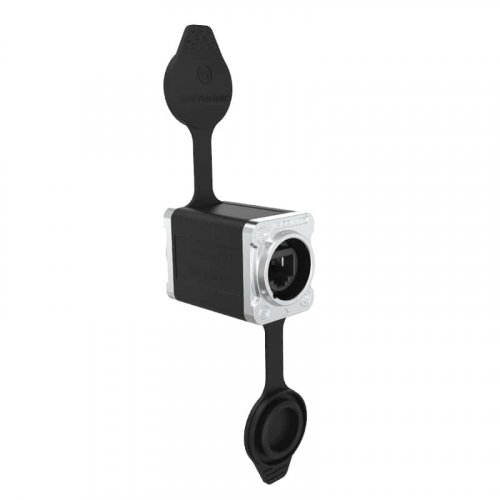

Seetronic SE8FF-05 IP65-Rated RJ45 Feedthrough Coupler for CAT5e
Model: SE8FF-05
About: Seetronic SE8FF-05 IP65-Rated RJ45 Feedthrough Coupler for CAT5e
Introducing the SE8FF-05 RJ45 Adapter – a highly efficient and compact solution designed for seamless cable linking. This innovative feedthrough coupler is engineered to accommodate various cables with precision and stability.
- Compact Design: The shorter length and exquisite structure ensure a lightweight and user-friendly experience.
- Standard Compliance: Fully compliant with CAT 5e standards according to TIA/EIA 568B and ISO/IEC 11801, ensuring reliable and high-performance signal transmission.
- Efficient Performance: Facilitates fast and stable signal integrity, making it a perfect choice for both commercial and personal networking needs.
Specifications
- Technical
- Connection Type: Adapter
- Contact Resistance: < 10 mΩ
- Rated Current: 1.5 A
- Rated Voltage: 50 V
- Insulation Resistance: ≥ 0.5 GΩ
- Dielectric Strength: 1 KV DC
- Frequency Range: 1 to 100 MHz
- Mechanical
- Insertion Force: ≤ 20 N
- Service Life: > 1000 mating cycles
- Locking Device: Latch lock
- Material
- Contacts: Copper alloy
- Insert: PBT material
- Contact Surface: Gold-plated
- Panel: Zinc alloy
- Temperature Range: -30°C to +80°C
- Protection Degree: IP65
- Standards and Certifications
- Adheres to TIA/EIA 586B and IEC 11801 standards, ensuring exceptional quality and reliability
