AJA FiDO-4T-ST 4-Channel Single Mode ST Fiber to 3G-SDI Transmitter
Model: FiDO-4T-ST
About: AJA FiDO-4T-ST 4-Channel Single Mode ST Fiber to 3G-SDI Transmitter

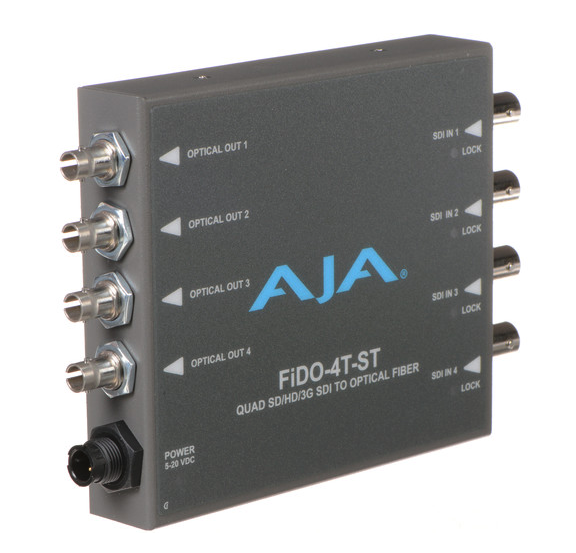

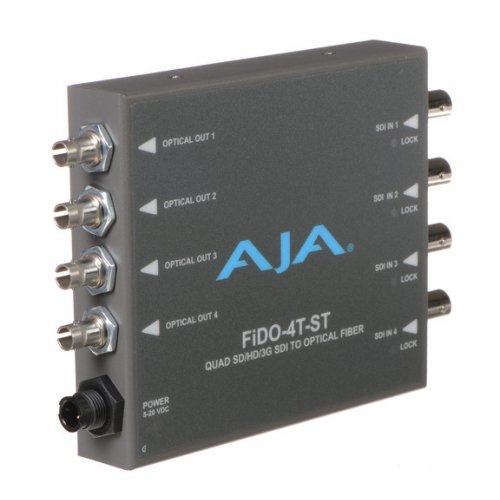

AJA FiDO-4T-ST is a versatile 4-channel 3G-SDI to single-mode ST fiber transmitter designed to facilitate long-distance transmission of high-resolution video signals. This compact device offers flexibility and cost efficiency for SDI-to-fiber conversion, enabling cable runs up to 10 km (32,808 ft) with electrical isolation, which is beneficial for eliminating ground loop issues. The FiDO-4T-ST is ideal for broadcast, production, and professional AV environments where secure and reliable connectivity is essential.
Features
- Converts four independent 3G-SDI channels to single-mode ST fiber outputs
- Supports 3G-SDI, HD-SDI, and SD-SDI formats
- Enables long-distance signal transmission up to 10 km (32,808 ft) over standard single-mode fiber optic cable
- Compact and rugged design suitable for tight spaces around equipment racks, trucks, and cameras
- Universal power supply with international plug adapters included
- Five-year warranty
Specifications
| Video Formats | 270 Mbps to 3 Gbps, format agnostic |
|---|---|
| Video Inputs | 4 x 3G-SDI BNC connectors |
| Video Outputs | 4 x single-mode ST fiber connectors |
| Nominal Wavelength | 1310 nm |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps – Auto Select; all other rates are passed through and not reclocked |
| Dimensions (W x D x H) | 4.6 x 4.1 x 0.9 inches (117 x 104 x 23 mm) |
| Weight | 0.7 lb (0.3 kg) |
| Power | 4 watts max; uses 5-20 VDC power (universal power supply included) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 10-90% non-condensing |
| Operating Altitude | <3,000 meters (<10,000 feet) |
