Lumantek ez-Distributor 14-Channel Distribution Amplifier

About: Lumantek ez-Distributor 14-Channel Distribution Amplifier

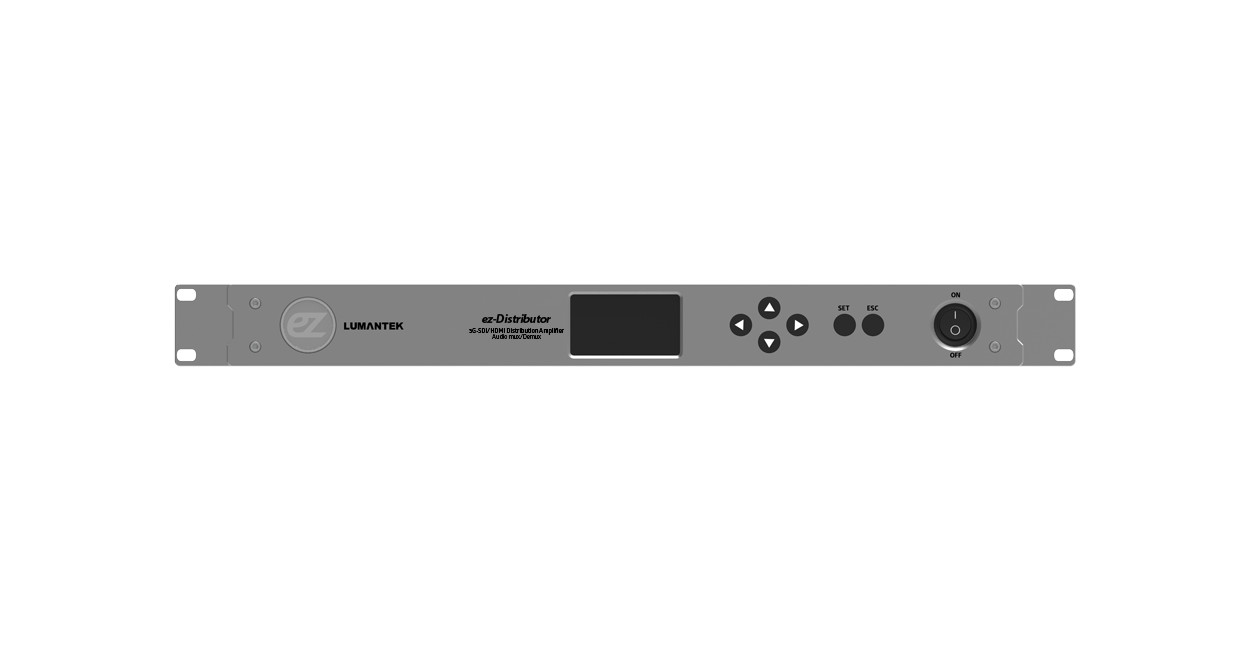

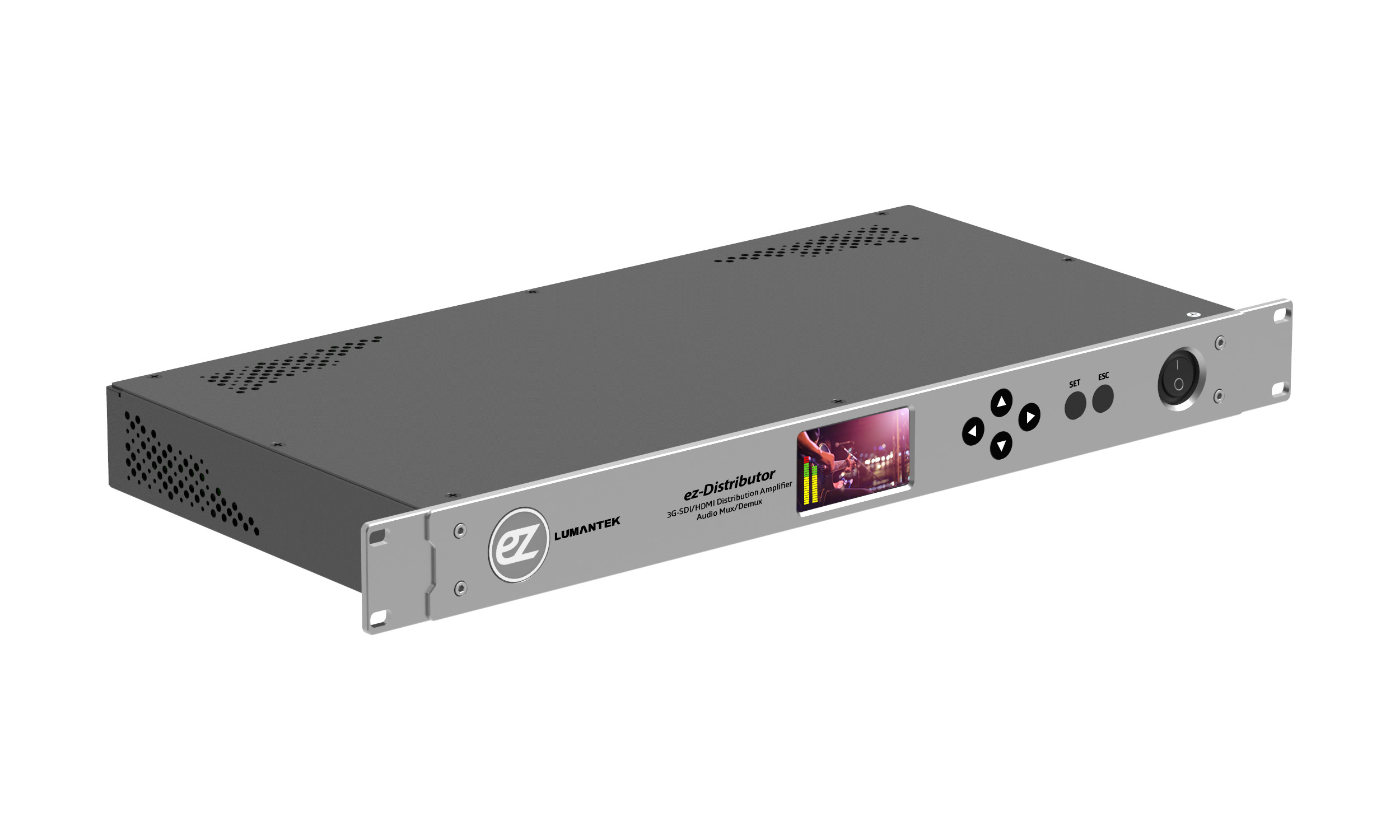

LUMANTEK's ez-Distributor is a 14 channels distributor in 1RU size. It has 1 x HDMI and 1 x 3G-SDI input, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio and de-embed incoming video audio. With the LCD screen, it is very easy to monitor what is being played through the distributor.

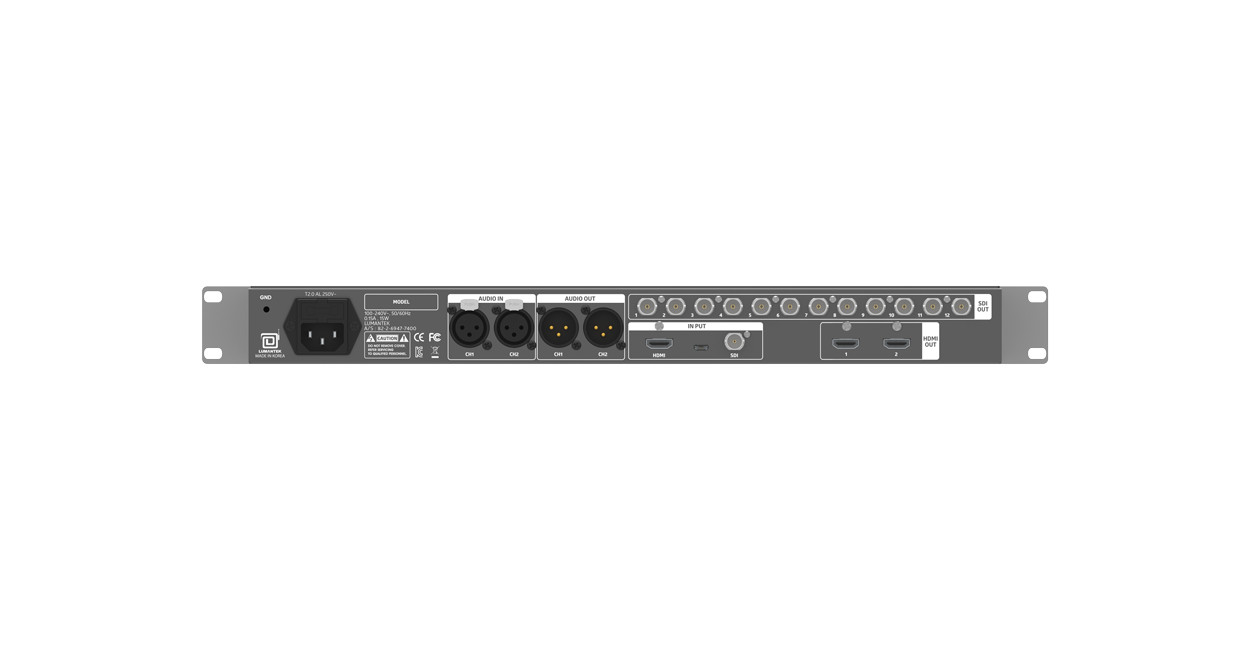

Multiple SDI and HDMI ports

You have plenty of distribution ports with ez-Distributor. From 1 x 3G-SDI or 1 x HDMI, you can produce 12 x 3G-SDI and 2 x HDMI signals!

Audio Embed & De-embed

If you wish to add an external audio to the video which is being distributed, don't worry. ez-Distributor, has a pair of XLR port for you to input a different audio. You can also take the sound out of the video.

LCD Monitoring and Audio Level

It is easy to check what is being played on the LCD screen. You can also check the audio bar on the screen to find out if the sound is played.

Input Setting option

Through the LCD screen, you can easy to select SDI or HDMI input.

Control over Distribution

Distributor's main function is to send out the incoming video to multiple channels. LUMANTEK's ez-Distributor can do just that. The LCD screen and the audio bar are extra features to facilitate monitoring of the video in 1 RU.

Specifications

• Data Input
  • SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x1
  • HDMI Video Input: SD/HD/3G x1
• Video Formats
  • [email protected]/60
  • 720x576i@50
  • 1280x720p@50/59.94/60
  • 1920x1080i@50/59.94/60
  • [email protected]/24/25/29.97/30
  • 1920x1080p@50/59.94/60
•  Audio Input: XLR (Female) x2
•  Data Output
  • SDI Video Output: SD/HD/3G-SDI (BNC 75Ω) x12
  • HDMI Video Output: SD/HD/3G x2
• Video Formats
  • [email protected]/60
  • 720x576i@50
  • 1280x720p@50/59.94/60
  • 1920x1080i@50/59.94/60
  • [email protected]/24/25/29.97/30
  • 1920x1080p@50/59.94/60
• Audio Output: XLR (Male) x2
• Connections: USB 2.0 : Firmware Update
• Display: 2.7 inch TFT LCD : Input Video Display(SDI or HDMI), Audio Level Meter Display, Input Video Resolution Display
• Electrical
  • Power Input: 100~240VAC @ 50/60Hz
  • Power Consumption: 15W (max.)
  • Operation Temperature: 32 to 113 ˚F / 0 to 45 ℃
• Physical
  • Dimension (HxWxD): 1.73 x 18.82 x 8.9 inch (44 x 478 x 226mm)
  • Weight: 6.61lb
