AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver
Model: FiDO-R-12G-ST
About: AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver

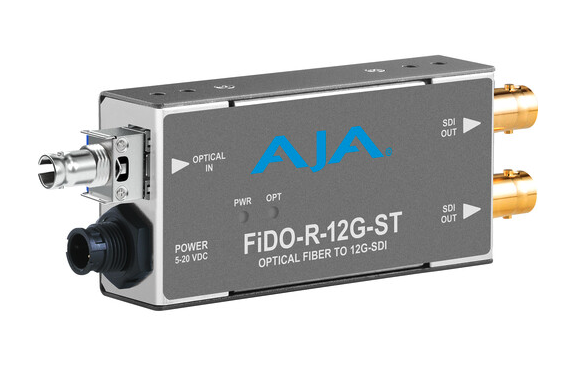

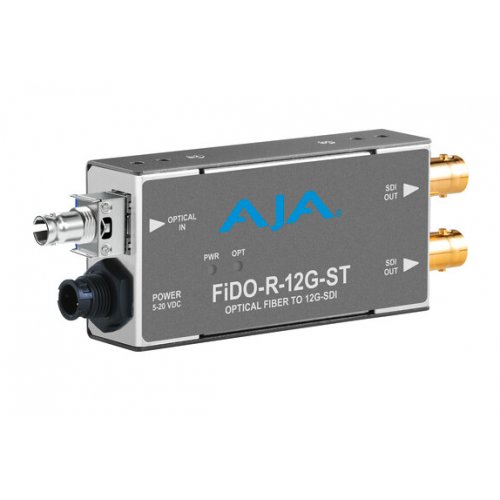

AJA FiDO-R-12G-ST is a compact 1-channel single-mode ST fiber to 12G-SDI receiver designed to facilitate long-distance transmission of high-resolution video signals. This device offers flexibility and cost efficiency for 12G/6G/3G/HD/SD-SDI fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable. The FiDO-R-12G-ST is ideal for broadcast, production, and professional AV environments where secure and reliable connectivity is essential.
Features
- Converts single-mode ST fiber to 12G-SDI, supporting 12G/6G/3G/HD/SD-SDI formats
- Enables long-distance signal transmission up to 10 km (32,808 ft) over standard single-mode fiber optic cable
- Locking ST barrel connector ensures secure connectivity, advantageous in live event, production, and mobile environments
- Dual matching 12G-SDI outputs for signal distribution
- Supports pass-through of SDI metadata, including HDR
- Compact and rugged design suitable for tight spaces around equipment racks, trucks, and cameras
- Universal power supply with international plug adapters included
- Five-year warranty
Specifications
| Video Formats | 270 Mbps to 12 Gbps, format agnostic |
|---|---|
| Video Input | 1 x 12G-SDI single-mode ST fiber connector, SMPTE 297/259/292/424/2081/2082 |
| Video Output | 2 x 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082 |
| Nominal Wavelength | 1260 nm (Min) to 1620 nm (Max) |
| Optical Sensitivity | -10 dBm (Max) for 6 Gbps & 12 Gbps; -14 dBm (Max) for 270 Mbps, 1.5 Gbps & 3 Gbps |
| Overload Power | -2 dBm (Min) |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select; all other rates are passed through and not reclocked |
| Dimensions (W x D x H) | 4.6 x 1.71 x 0.85 inches (117 x 43.5 x 21.6 mm) |
| Weight | 0.4 lb (0.2 kg) |
| Power | 2 watts max; uses 5-20 VDC power (universal power supply included) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 10-90% non-condensing |
| Operating Altitude | <3,000 meters (<10,000 feet) |
UPC: 812321032307
Reviews: AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver
Warranty: AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
