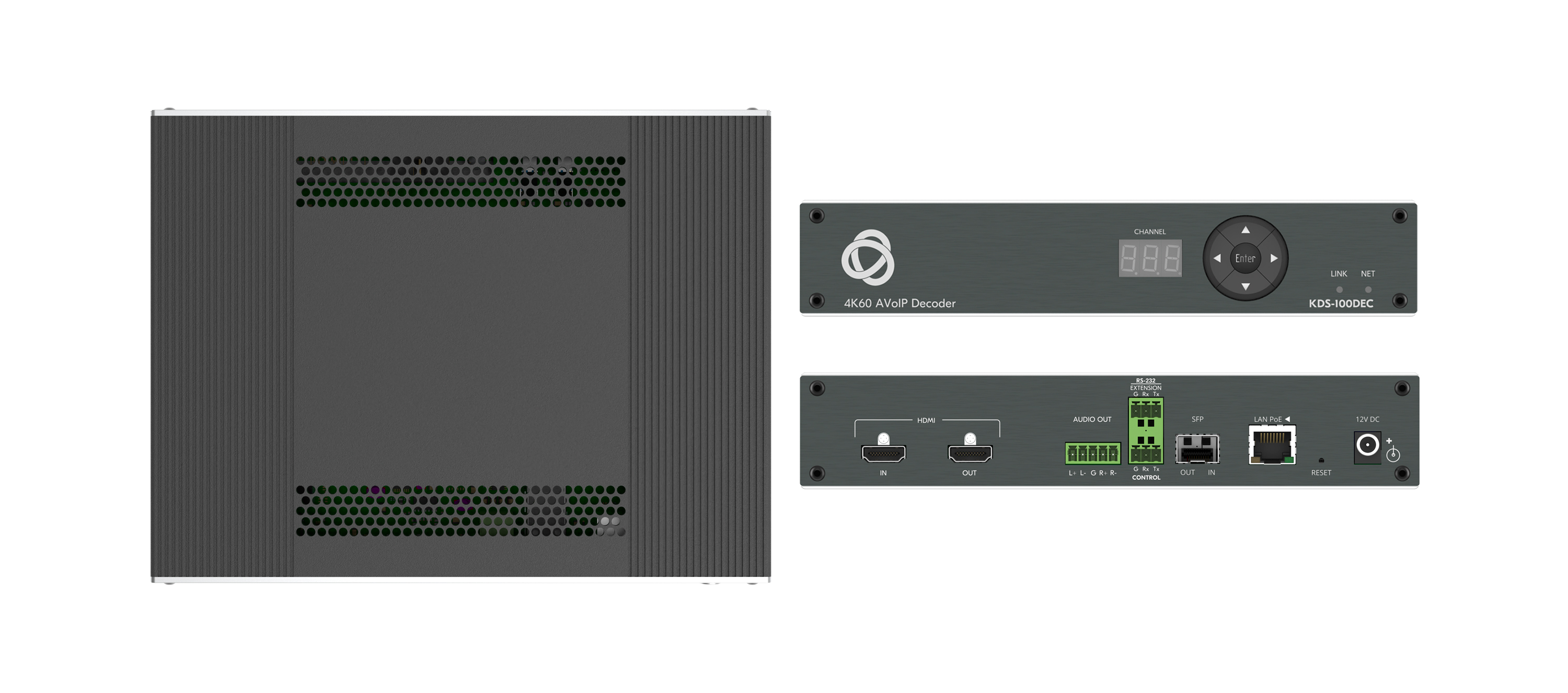

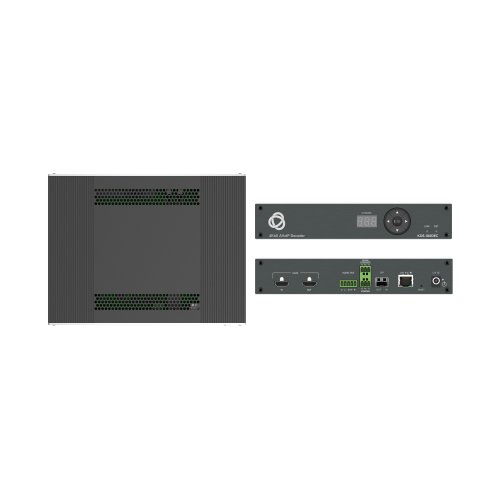

Kramer AVoIP 4K@60Hz Streaming Decoder

Model: KDS-100DEC

Kramer AVoIP 4K@60Hz Streaming Decoder
Kramer AVoIP 4K@60Hz Streaming Decoder
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

Decoder$2,030.00
Encoder$2,030.00


About: Kramer AVoIP 4K@60Hz Streaming Decoder

KDS−100DEC decoder is an advanced receiver for streamed 4K@60Hz video signals via Ethernet over copper or fiber cables. It also decodes the RS−232 or CEC signals transmitted over IP network from the encoder.

  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Low latency
  • Open standard streaming to connect 3rd party

Robust Solution for Large–Scale Installations

Provides an optimized solution for large Education and Enterprise campuses, as well as Defense and Homeland Security Facilities, with support for numerous simultaneous video flows and built–in advanced management capabilities.

Highly Scalable

The KDS–100 line supports up to 1000 video sources, suited for large–scale installations.

Built–in Resilient Security Features

Preserves the integrity, availability and confidentiality of the IT network via a highly secured and resilient AVoIP solution. KDS–100 devices comply with IT security requirements, including 802.1x and HTTPS/TLS.

Simple Planning and Rollout

KDS–100 is highly bandwidth–efficient, thus enabling cost–efficient hybrid use of the existing 1GE IT network. There is no need to deal with complex IP packets prioritization or switching settings. Offering easy management, high reliability, and adjustable bandwidth control, KDS–100 is extremely cost–effective to maintain over the long term.

Alternative Sources/Destinations

An HDMI loop–through port on the encoder side and an HDMI input port on the decoder, as well as embedding and de–embedding analog audio to the IP stream.

Specifications

  • INPUTS
    • 1 HDMI: On a female HDMI connector
  • OUTPUTS
    • 1 HDMI: On a female HDMI connector
    • 1 Balanced Audio: On a 5–pin terminal block connector
  • PORTS
    • 1 Ethernet: On an RJ–45 Connection
    • 1 RS-232: On a 3–pin terminal block connector for control
    • 1 RS-232: On a 3–pin terminal block connector for data
    • 1 Fiber on an LC Connector: Standard: 1000BASE–SX, 1000BASE–LX
  • NETWORK
    • 1GE
    • IPv4
    • Multicast: IGMPv2
    • RTP/RTCP: Over UDP
    • MPEG–TS
  • VIDEO
    • Maximum Input/Output Resolution: 3840x2160@60Hz 4:4:4
    • HDCP: High–Bandwidth Digital Content Protection 1.4 and 2.2
  • VIDEO STREAMING
    • Open Standard: H.264 and H.265
    • Maximum Streaming Resolution: 3840x2160@60Hz 4:2:2
    • Bit Rate Range: 1–60 Mbps
    • Latency: Low latency, about 40 msec
    • Scaler: Yes
  • RESOLUTION
    • 3840x2160@60Hz
    • 3840x2160@30Hz
    • 1920x1080@60Hz
  • SECURITY
    • HTTPS, 802.1x, OWASP–10
  • USER INTERFACE
    • Indicators: LINK, NET and ON LEDs, front panel channel number display
    • Rear Panel: Factory reset button
    • Controls: Embedded web pages, P3K API commands via Ethernet, front panel channel selection buttons
  • POWER
    • PoE+: IEEE 802.3at on LAN (PoE) port
    • Optional Power Adapter: 12V DC, 5A
    • Consumption: 13.6W
  • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
    • Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
    • Humidity: 10% to 90%, non–condensing
  • PRODUCT DIMENSIONS
    • 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
  • PRODUCT WEIGHT
    • 0.9kg (1.9lbs) approx.

UPC: 7291063098711

Reviews: Kramer AVoIP 4K@60Hz Streaming Decoder

There are currently no product reviews.


Warranty: Kramer AVoIP 4K@60Hz Streaming Decoder

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Limited warranty for seven (7) years from date of original purchase.
Fiber Optic cables have a one (1) year warranty, and Cobra products have a three (3) year warranty.

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
