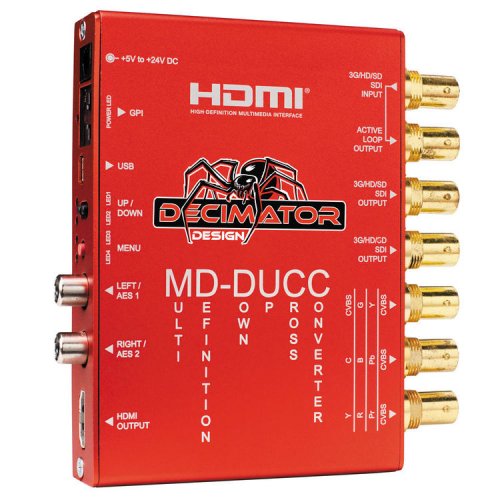

Decimator MD-DUCC Multi-Definition Down Up Cross Converter
Model: MD-DUCC
About: Decimator MD-DUCC Multi-Definition Down Up Cross Converter
The MD-DUCC from Decimator Design is a must have for any broadcast professional; the variety of functions it performs eliminate the need for several products. Input any format of SDI and select whatever output format you require - whether in SDI, HDMI, or analogue. Features include:
- Auto detection of 3G, HD or SD (26 formats total)
- True Down Up Cross conversion (select the required output format, no matter what the input format is)
- Complete 16:9, 14:9 and 4:3 aspect ratio conversion
- Selectable analogue video output
- 2x 10-bit outputs with audio automatically delayed or passed
- 2x RCA connectors to output de-embedded audio
- Professional motion-adaptive de-interlacing
- Full 16 Channel audio metering
- Graticule Generator/Text Overlays
- Active Loop Through Output
- GPI on RJ-45 for Tallies
The MD-DUCC is controlled either via USB on a Mac/Windows app or on-unit using the dip switch. The unit comes with a Locking DC Power Supply, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.
VIDEO FORMATS
3G:
- SMPTE [email protected] and 2.967Gb/s
- 1080p@60/59.94/50Hz
HD:
- SMPTE 292M/274M/[email protected] and 1.435Gb/s
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:
- SMPTE 259M@270Mb/s
- 625i50
- 525i59.94
CONTROLS
- HDMI format type
- Analogue Video format type
- Output format
- Aspect conversion type for HD to HD, HD to SD, SD to HD
- and SD to SD conversions.
- On-Screen Overlays Enables
- Basic Audio Meter control
- Basic Graticule Enables
INPUTS
- (3G/HD/SD)-SDI 10-bit
- Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
OUTPUTS
- HDMI
- 1 x (3G/HD/SD)-SDI Active Loop-Through
- 2 x (3G/HD/SD)-SDI 10-bit Outputs
- (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C)
- AES 1 / Unbalanced Analogue Audio - Left
- AES 2 / Unbalanced Analogue Audio - Right
LED STATUS
- Power
- Signal Lock
DIMENSIONS
90mm x 123mm x 23mm (3.5” x 4.8” x 0.9”)
POWER
- +5V to +24V DC, ~5 Watts
- Positive Centre Pin
UPC: 5060417390045
