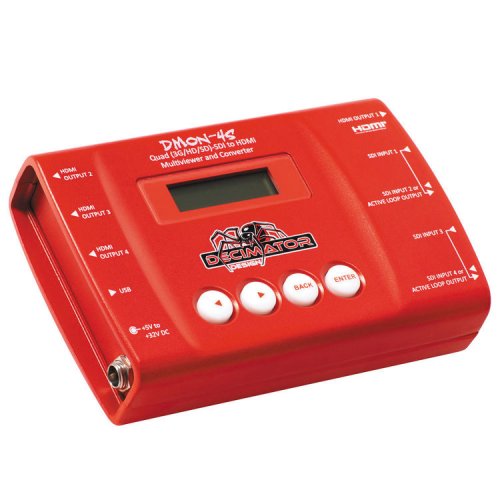

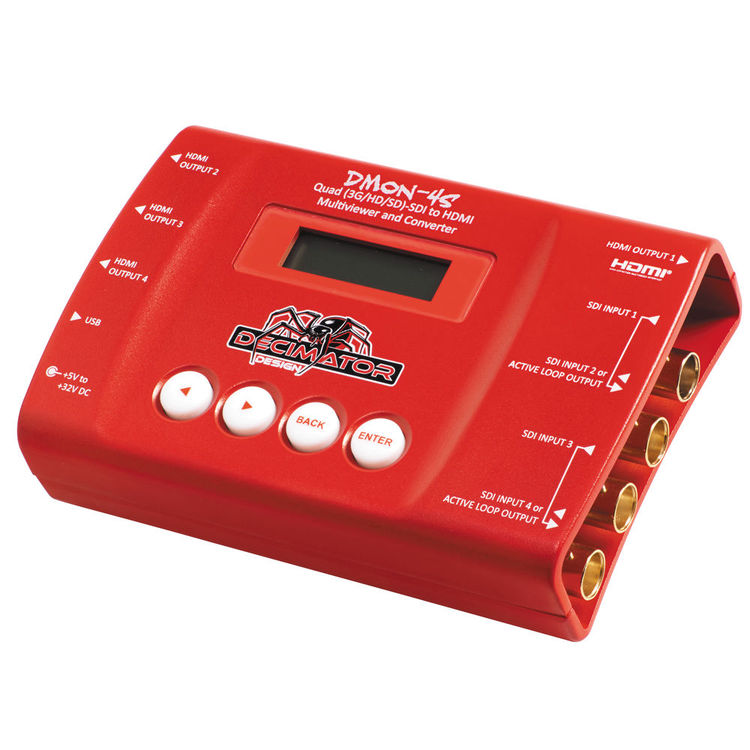

Decimator DMON-4S Quad SDI to HDMI Multiviewer and Converter
Model: DMON-4S
About: Decimator DMON-4S Quad SDI to HDMI Multiviewer and Converter
Quad SDI to HDMI Multiviewer and Converter for 3G/HD/SD
The DMON-4S from Decimator Design includes 4 independent SDI inputs and 4 independent HDMI outputs. This means you have the flexibility to either use it as an SDI to HDMI Quad Split, as an SDI to HDMI converter, or as a 1 to 4 distribution amplifier - all in one low-cost, miniature box. The independent I/Os allow for a versatile combination of uses:
- 4 independent SDI inputs to an HDMI Quad-Split output
- 4 independent SDI to HDMI converters
- 3 independent SDI to HDMI converters w/ a Quad-Split output
- 2 independent SDI to HDMI converters with loop through
- 1 SDI or Quad-Split to 4 HDMI outputs

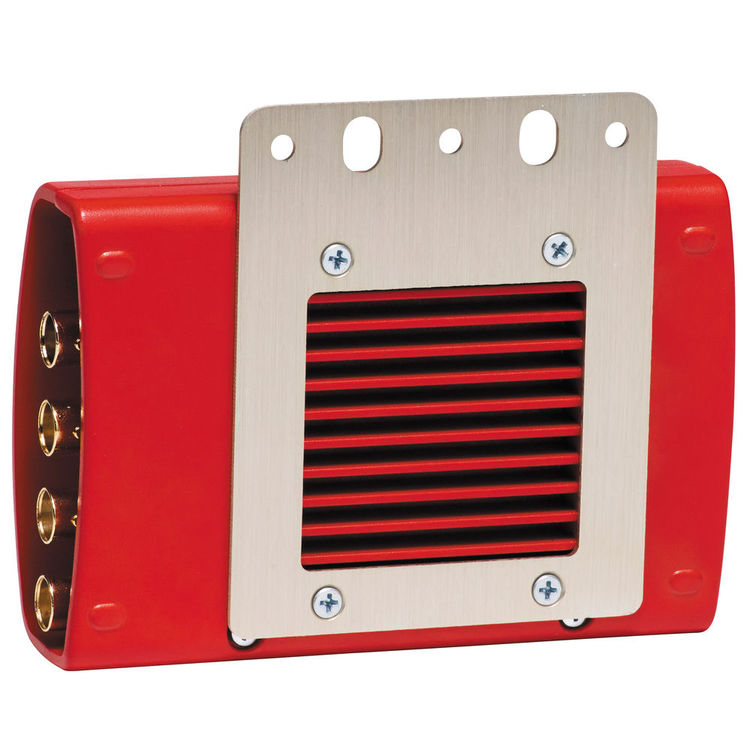

The DMON-4S is controlled either via USB on a Mac/PC app, or on-unit using the LCD screen and button controls. The unit comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.
SDI INPUT FORMATS
- 3G:
- SMPTE [email protected] and 2.967Gb/s
- 1080p@60/59.94/50Hz
- HD:
- SMPTE 292M/274M/[email protected] and 1.435Gb/s
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
- SD:
- SMPTE 259M@270Mb/s
- 625i50 525i59.94
LCD/BUTTON MENU OPTIONS
- Status for all 4 inputs
- HDMI output type and source selection from SDI inputs 1 to 4Quad-Split output format selection
- Quad-Split output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
- Quad-split individual aspect format for each input of Same as output, Letter-box or Pillar-box
- Quad-split Border Enable
- Quad-split mode reference of either Free-run or inputs 1 to 4
HDMI OUTPUT FORMATS
- 1080p@60/59.94/50Hz
- 1080i@60/59.94/50Hz
- 1080p@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25
- 625i50
- 525i59.94
INPUTS
- Up to 4 x (3G/HD/SD)-SDI Inputs
- Input Equalization > 100M using Belden 1694A
- USB for control and updates
OUTPUTS
- 4 x mini HDMI Type C
- Optional SDI Active Loop Out of inputs 1 and/or input 3
DIMENSIONS
- 79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)
POWER
- +5V to +32V DC, 6 Watts
- Positive Centre Pin
UPC: 5060417390052
Reviews: Decimator DMON-4S Quad SDI to HDMI Multiviewer and Converter
Warranty: Decimator DMON-4S Quad SDI to HDMI Multiviewer and Converter
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Decimator Design warrants that this product will be free from defects in materials and workmanship for a period of 36 months from the date of purchase. If this product proves to be defective within this warranty period, Decimator Design, at its discretion, will either repair the defective product without charge for parts and labour, or will provide a replacement product in exchange for the defective product.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
