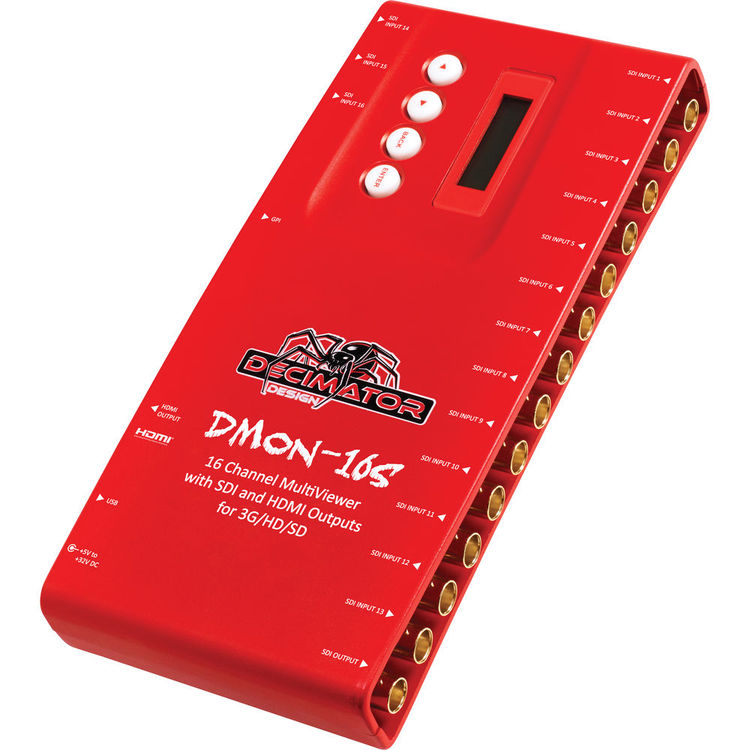

Decimator DMON-16S 1 to 16 Channel Multiviewer with SDI and HDMI
Model: DMON-16S
About: Decimator DMON-16S 1 to 16 Channel Multiviewer with SDI and HDMI
1 to 16 channel multiviewer with SDI and HDMI outputs for 3G/HD/SD. Custom layouts, UMDs, Audio Meters, Graticules and Tallies
The DMON-16S from Decimator Design is a low cost, miniature 16 to 1 Multiviewer. The 16 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds. Select from preset layouts or customise your own, depending on the number of feeds you wish to monitor. The Decimator DMON-16S multiviewer allows you to:
- Monitor between 1 and 16 independent 3G/HD/SD-SDI feeds
- Select your output format over SDI and/or HDMI
- Fully customisable layouts with ability to save & load
- 16 character customisable UMD overlay per window
- 8 channel customisable Audio Metering overlay per window
- Customisable Safe Action, Safe Title and Centre Cross overlays
- Each window is independent of the others with variable aspect ratios
- Auto Detect & display any format of any frame rate simultaneously
- Select any of the 16 inputs for pass-through on the SDI and HDMI outputs
- 32 GPI on 37-pin D-SUB for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB for Dynamic UMDs and Tallies using TSL protocol
- USB for PC/MAC control
- Control on-unit using the buttons and LCD screen
- Toggle one feed to fullscreen
For a "Lite" version of the DMON-16S, see the DMON-16SL.
DMON-16S comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.
UPC: 5060417390144
