Aputure STORM CS32 Point Source Fixture Cine Kit

About: Aputure STORM CS32 Point Source Fixture Cine Kit

The STORM CS32 Cine Kit is a point-source fixture kit designed for professional gaffers, lighting technicians, and rental houses that serves as a standard way to deploy the STORM CS32. This kit is based on the STORM CS32, a 3200W tunable color point source fixture that delivers the brightness of a 4K HMI or 10K tungsten fresnel, built around Aputure's advanced BLAIR-CG light engine. With all the components of the STORM CS32 Cine Kit built together, the result is a fully integrated fixture unit that is easy to handle, quick to deploy, and efficient to store and transport.

• STORM CS32 with Motorized CF16 Fresnel, CF16 Fresnel Barn Doors, and STORM CS32 Skid
• Designed to minimize fixture footprint, allowing users to efficiently store fully built fixture unit on truck shelving, head carts, and equipment racks
• Fully integrated design; individual components engineered to work together perfectly
• Included 16-inch Motorized Aputure Mount Fresnel & Barn Doors optimized for the STORM CS32 with an 18º to 50º spot-flood range
• Motorized focus controllable remotely via Sidus Link, traveling full spot-to-flood range in 12 seconds
• Included stainless steel Skid allows entire kit to sit flat on surfaces even with head cable attached to lamp head
• 3200W Aputure Mount tunable color point source fixture
• 4K HMI / 10K tungsten fresnel white light output in a compact form factor
• 133,000 lux @3m (5600K) when using CF16 at 18º spot
• BLAIR-CG with Extended Red chipset provides excellent white and color light rendition
• CCT range of 1,800K-20,000K
• Advanced white point control with green/magenta color correction (±G 100% Full ASC MITC Range)
• Ultra-high color accuracy: CRI≥97, TLCI≥98, SSI [P3200]: 93, SSI [CIE D5600]: 91, TM-30 Rf (avg) 96, TM-30 Rg (avg) 100
• Head cable can be daisy-chained up to 45m for rigging lamp head in cranes, lifts, and elevated positions with control box at accessible heights
• Flicker-free output at 5% brightness and above at any recording frame rate
• IP65 weather resistance
• Multiple control methods: Sidus Link and Sidus Link Pro App, Sidus NFC, CRMX, Art-Net & sACN, 16-bit 5-Pin DMX512 in & out

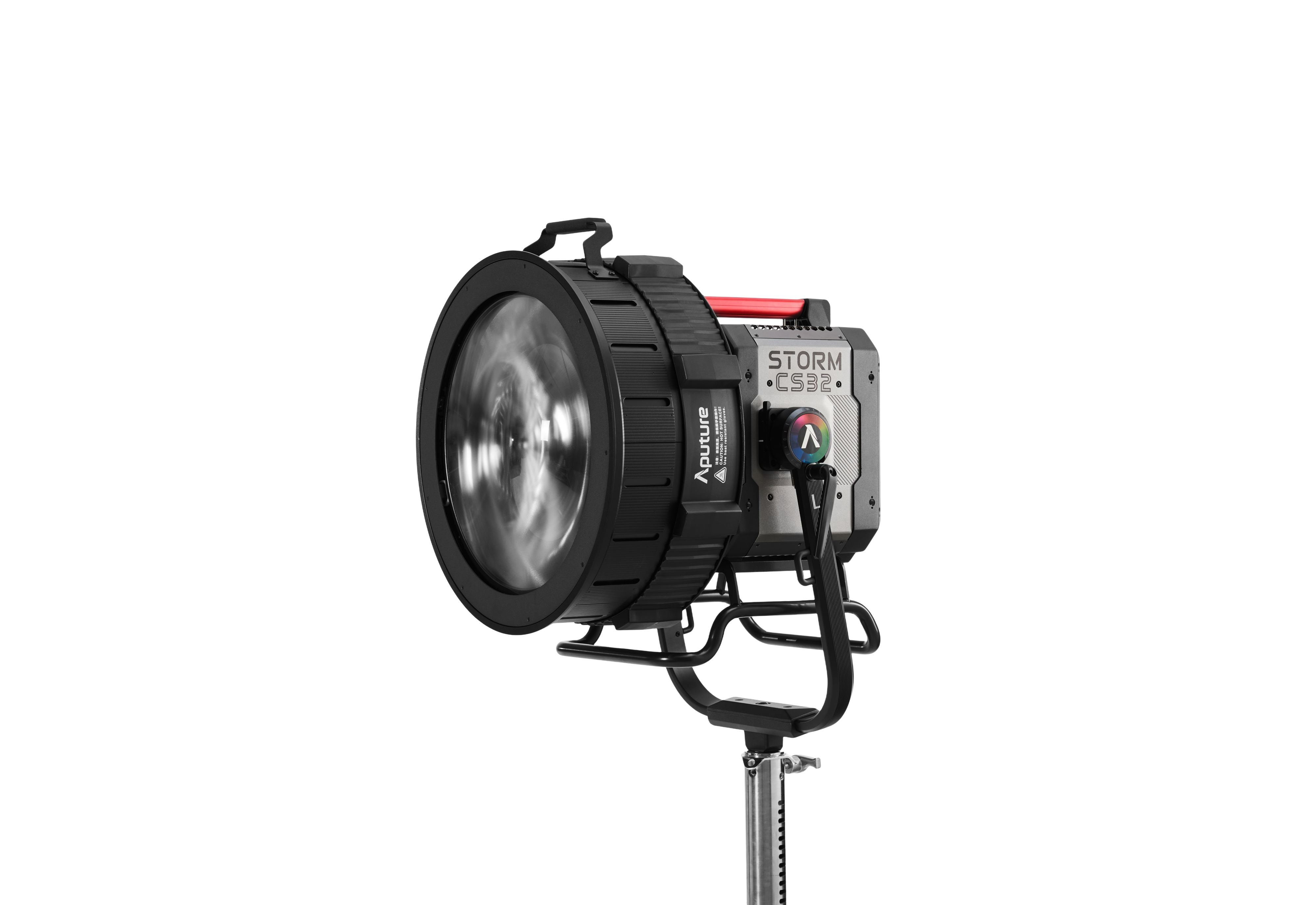

This Cine Kit includes the Motorized CF16 Fresnel, an Aputure Mount compact fresnel with a 16-inch diameter lens and a spot-flood range of 18º–50º. Designed with the STORM CS32 and XT52's light engines in mind, the CF16 intensifies the light output of the CS32 by 9 times its native output, delivering up to 133,000 lux at 3m (5600K) at 18º spot. Its motorized focusing system travels the full spot-to-flood range in just 12 seconds and can be controlled remotely via Sidus Link, allowing users to adjust beam angle without ever touching the fixture—even when rigged in cranes, lifts, and other elevated positions.

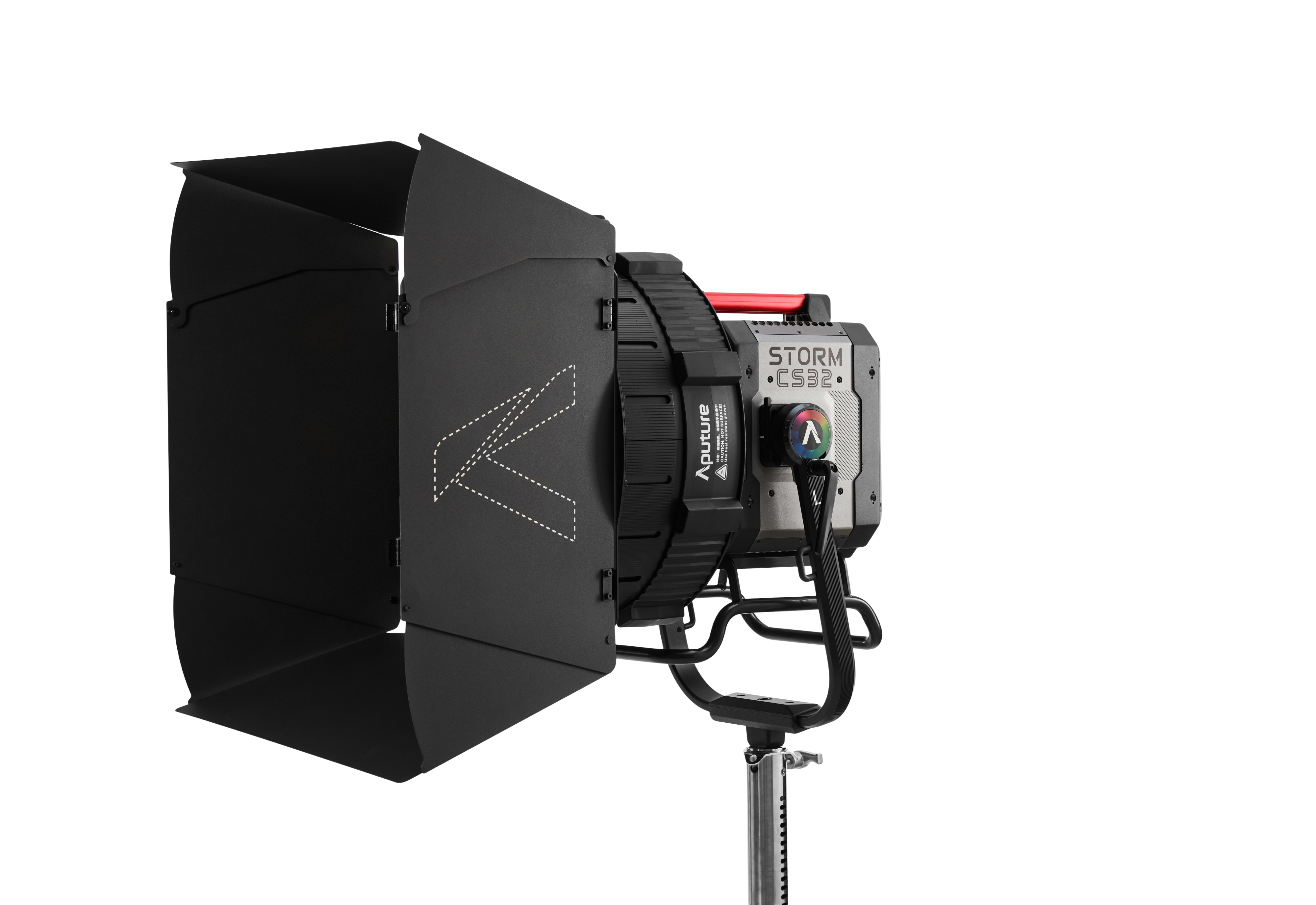

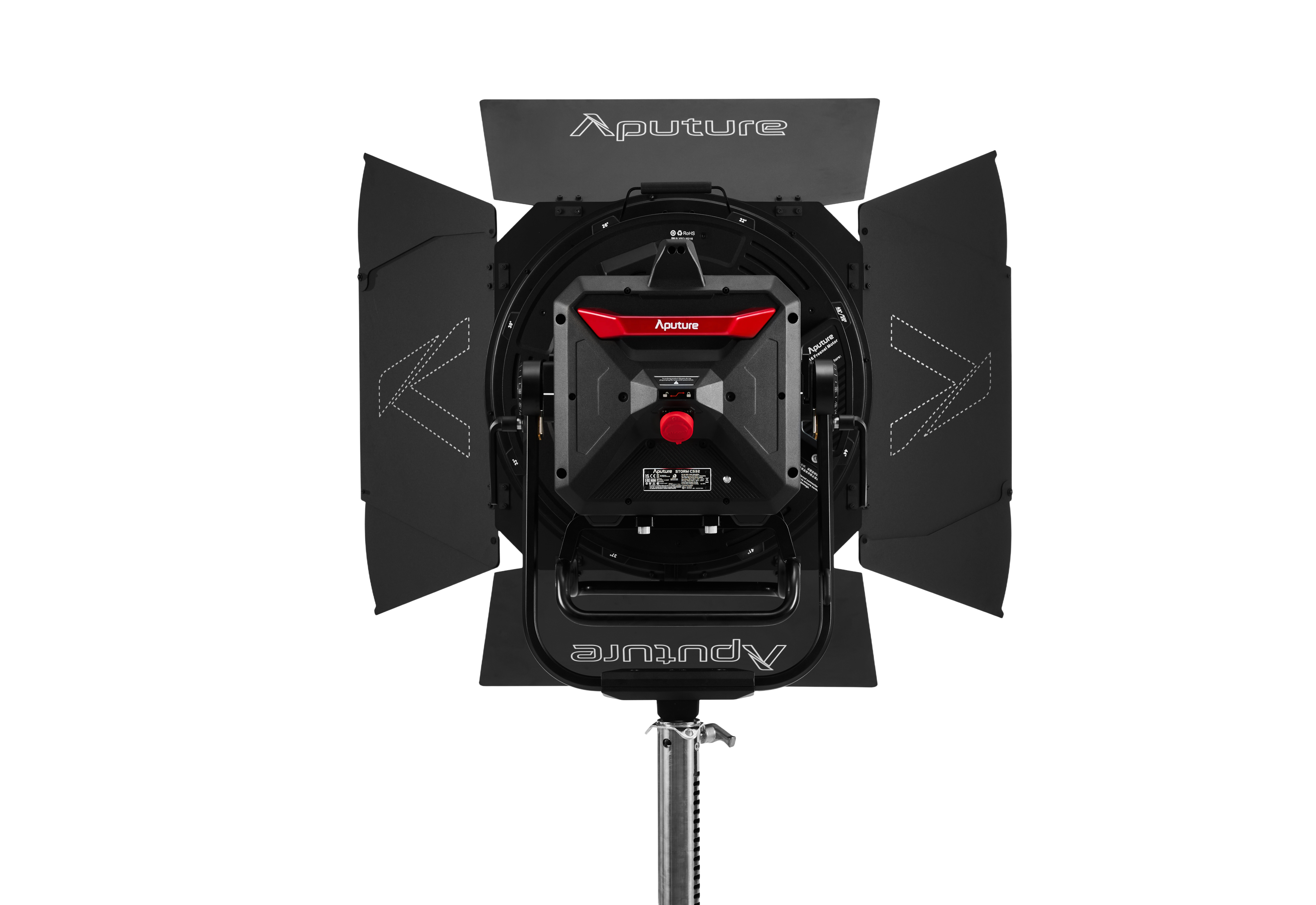

This Cine Kit also includes the CF16 Fresnel Barn Doors, granting users the ability to shape and cut the output of the entire fixture unit right out of the box, along with a holder for a 19.5-inch metal scrim to control light output. A safety cable is included for secure overhead rigging.

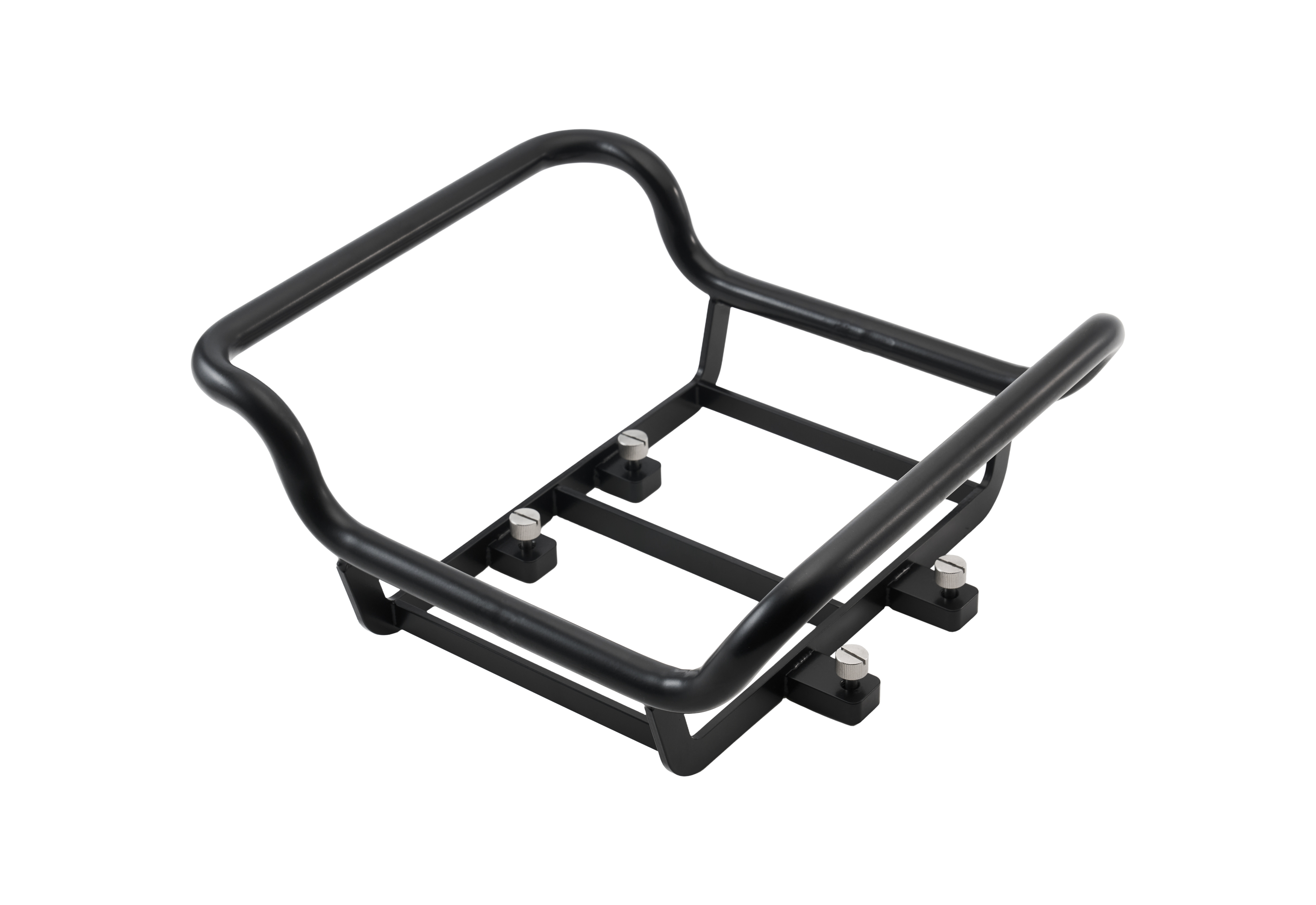

In addition to the CF16 Fresnel and Barn Doors, the STORM CS32 Cine Kit includes the STORM CS32 Skid, a stainless-steel skid attachment that secures to the bottom of the CS32. It enables users to safely place the fixture flat on the ground, a head cart, or truck shelving, even with the CF16 Fresnel and Barn Doors attached, keeping the entire unit in an always-deployable state. Dedicated flight cases for both the CS32 and the Motorized CF16 Fresnel ensure the complete kit travels protected from truck to set.

When output, crew and transportation efficiency, and color accuracy are of paramount importance, look no further than the Aputure STORM CS32 Cine Kit. Whether lighting large-scale action work on stage or demanding scenes on location, the STORM CS32 Cine Kit ensures exceptional results and efficiency

Specifications

• STORM CS32
  • Colour
    • LED Chipset: BLAIR-CG with Extended Red
    • CCT Range: 1,800K - 20,000K
    • CRI: 97
    • TLCI: 98
    • SSI (Tungsten): 93
    • SSI (D56): 91
    • TM-30 RF: 96
    • TM-30 RG: 100
  • Power
    • Operating Voltage (Full Output): 100V ~ 240V / 50-60 Hz
    • Max Power Consumption (100V~240V): 3200W
    • Max Power Consumption – Lamp Head: 3000W
    • Max Power Output: 2600W
    • AC Power Max Current High Voltage (240V): 16A
    • AC Power Max Current Low Voltage (100V): 32A
    • Max Head Cable Length (Daisy Chain): 45m
  • Optical
    • Beam Angle (Native): 78°
    • Beam Angle (with Included Reflector): 30°
    • Compatible Reflectors: 20°, 25°, 35°, 50° XT52 & 30° CS32 Reflectors
  • Control and Firmware
    • Control Methods: On-board, Sidus Bluetooth, DMX, CRMX, Art-Net/sACN
    • Firmware Upgrade Methods: USB-A, Sidus Link, Sidus Link Pro
    • Wireless Range - Bluetooth: 100m
    • Wireless Range - CRMX: 100m
  • Mounting
    • Modifier Mount Type: Aputure Mount
    • Included Rigging Hardware: 1-1/8” / 28mm Junior Pin
  • Environmental and Compliance
    • IP Rating: IP65
    • Operating Temperature: -20°C ~ 45°C / -4°F ~ 113°F
    • Storage Temperature: -40°C ~ 80°C / -40°F ~ 176°F
    • Cooling Method (Lamp Head & Control Box): Air Cooled
  • Lamp Head Fan Noise Levels (at 1m)
    • Max Mode: 52.6 dBA
    • High Mode: 52.4 dBA
    • Medium Mode: 40.2 dBA
    • Low Mode: 31.3 dBA
    • Silent Mode: 24.3 dBA
• CF16 Fresnel
  • Beam Angle
    • Full Spot: 18º
    • Full Flood: 50º
  • IP Rating: IP65
  • Focus Motor Throw Duration: 12 seconds
  • Dimensions
    • CF16 Fresnel: 22.2 x 20.4 x 9.2in (56.4 x 51.9 x 23.4cm)
    • Flight Case: 29.1 x 14.8 x 32.9in (74.0 x 37.5 x 83.5cm)
  • Weight
    • CF16 Fresnel: 26.01lbs (11.80kg)
    • Flight Case: 63.93lbs (29.00kg)
• Dimensions
  • Kit Component 1: CS32 Flight Case Kit
    • Lamp Head
      • With Yoke: 20.8 x 30.4 x 14.1 in (52.9 x 77.2 x 35.8 cm)
      • Without Yoke: 14.6 x 15.1 x 14.1 in (37.2 x 38.3 x 35.8 cm)
    • Removable Yoke: 20.8 x 24.0 x 5.9 in (52.9 x 60.9 x 15.0 cm)
    • Control Box: 13.6 x 6.3 x 14.8 in (34.5 x 16.0 x 37.6 cm)
    • 30° Reflector: Ø 13.6 x 14.4 in (Ø 34.5 x 36.5 cm)
    • Flight Case: 33.3 x 25.6 x 26.2 in (84.6 x 65.0 x 66.5 cm)
    • Head Cable Length: 7.5 m
    • AC Power Cable (Bare Leads) Length: 3 m
    • AC Power Cable (NEMA 5-20P) Length: 6 m
  • Kit Component 2: Motorized CF16 Flight Case Kit
    • ​CF16 Fresnel: 22.2 x 20.4 x 9.2in (56.4 x 51.9 x 23.4cm)
    • Barn Doors: 26 x 24 x 22.8 in (66 x 60.9 x 58 cm)
    • Flight Case: 29.1 x 14.8 x 32.9in (74.0 x 37.5 x 83.5cm)
  • CS32 Skid: 14.88 x 12.95 x 6.26 inch (37.8 x 32.9 x 15.9 cm)
• Weight
  • ​Kit Component 1: CS32 Flight Case Kit
    • Lamp Head
      • With Yoke: 43.65 lbs (19.80 kg)
      • Without Yoke: 37.04 lbs (16.80 kg)
    • Removable Yoke: 6.61 lbs (3.00 kg)
    • Control Box: 23.81 lbs (10.80 kg)
    • 30º Reflector: 3.42 lbs (1.55 kg)
    • Head Cable: 6.94 lbs (3.15 kg)
    • Aputure Ultra Clamp: 2.03 lbs (0.92 kg)
    • Fully Loaded Flight Case: 165.35 lbs (75.00 kg)
  • Kit Component 2: Motorized CF16 Flight Case Kit
    • ​CF16 Fresnel: 26.01lbs (11.80kg)
    • Barn Doors: 12.79lbs (5.8kg)
    • Flight Case: 63.93lbs (29.00kg)
  • CS32 Skid: 5.38 lbs (2.44 kg)
  • Complete Cine Kit (Total): 268.72 lbs (121.89 kg)

What’s in the Box

• STORM CS32 Flight Case Kit
  • 1x STORM CS32 Lamp Head
  • 1x STORM CS32 Removable Yoke
  • 1x STORM Series Aputure Mount Protection Cover

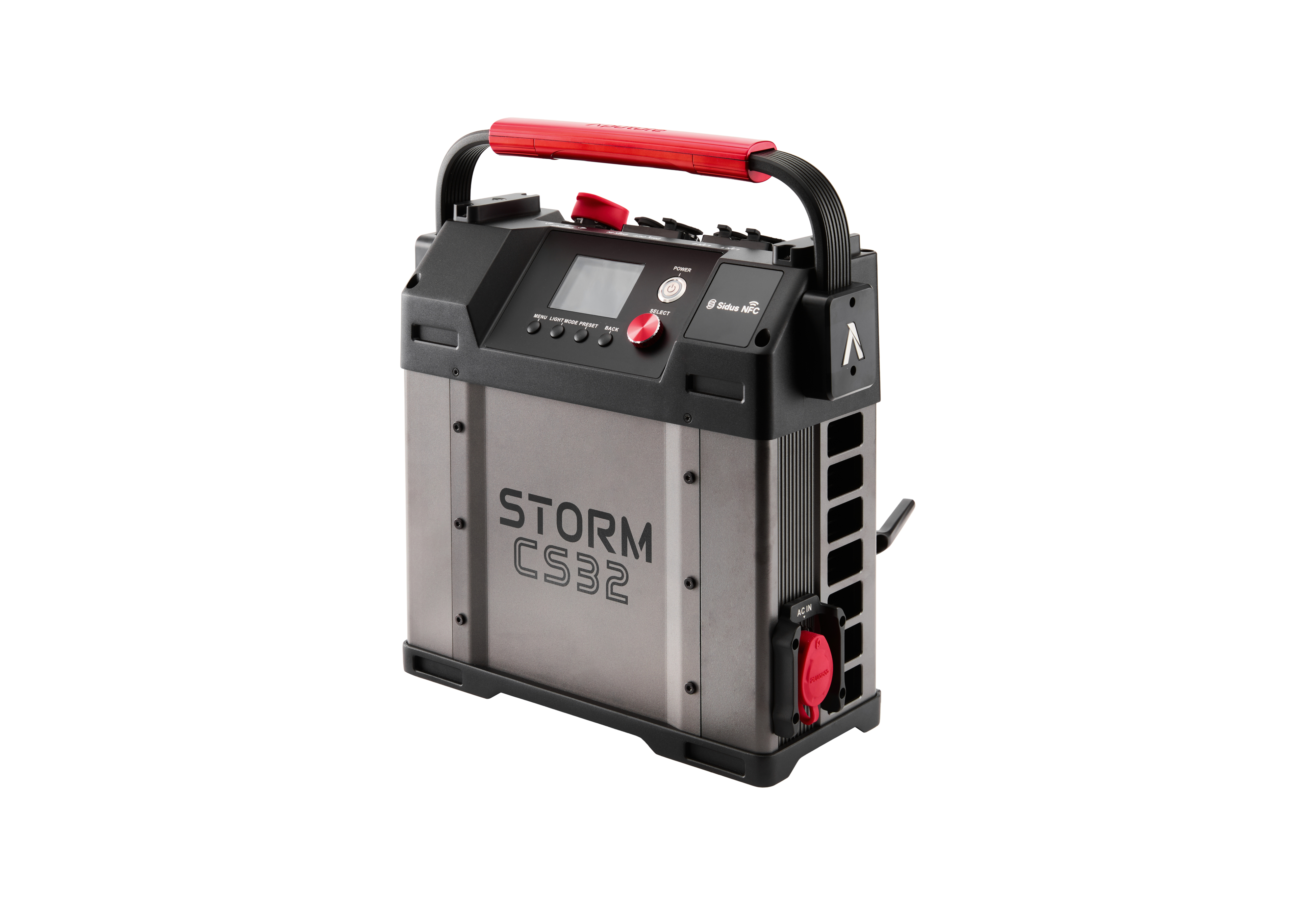

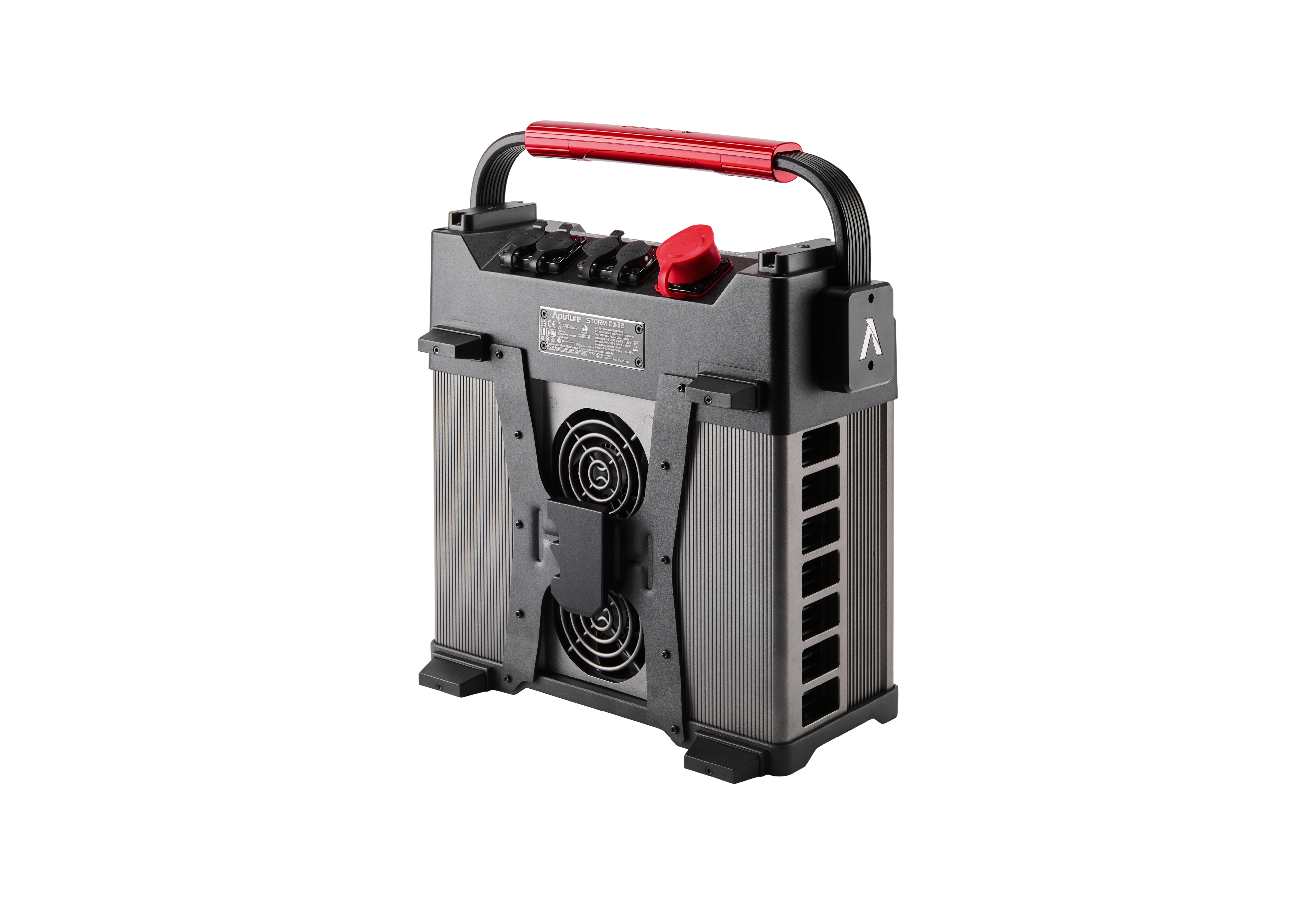

  • 1x STORM CS32 Control Box
  • 1x AM11030 Medium Reflector
  • 1x PLG28 4-Pin to Bare Leads AC Power Cable (3m)
  • 1x PLG28 4-Pin to NEMA 5-20P AC Power Cable (6m, 20A Max)
  • 1x PLK28 10-Pin Male to Female Lamp Head Cable (7.5m)
  • 1x Aputure Ultra Clamp

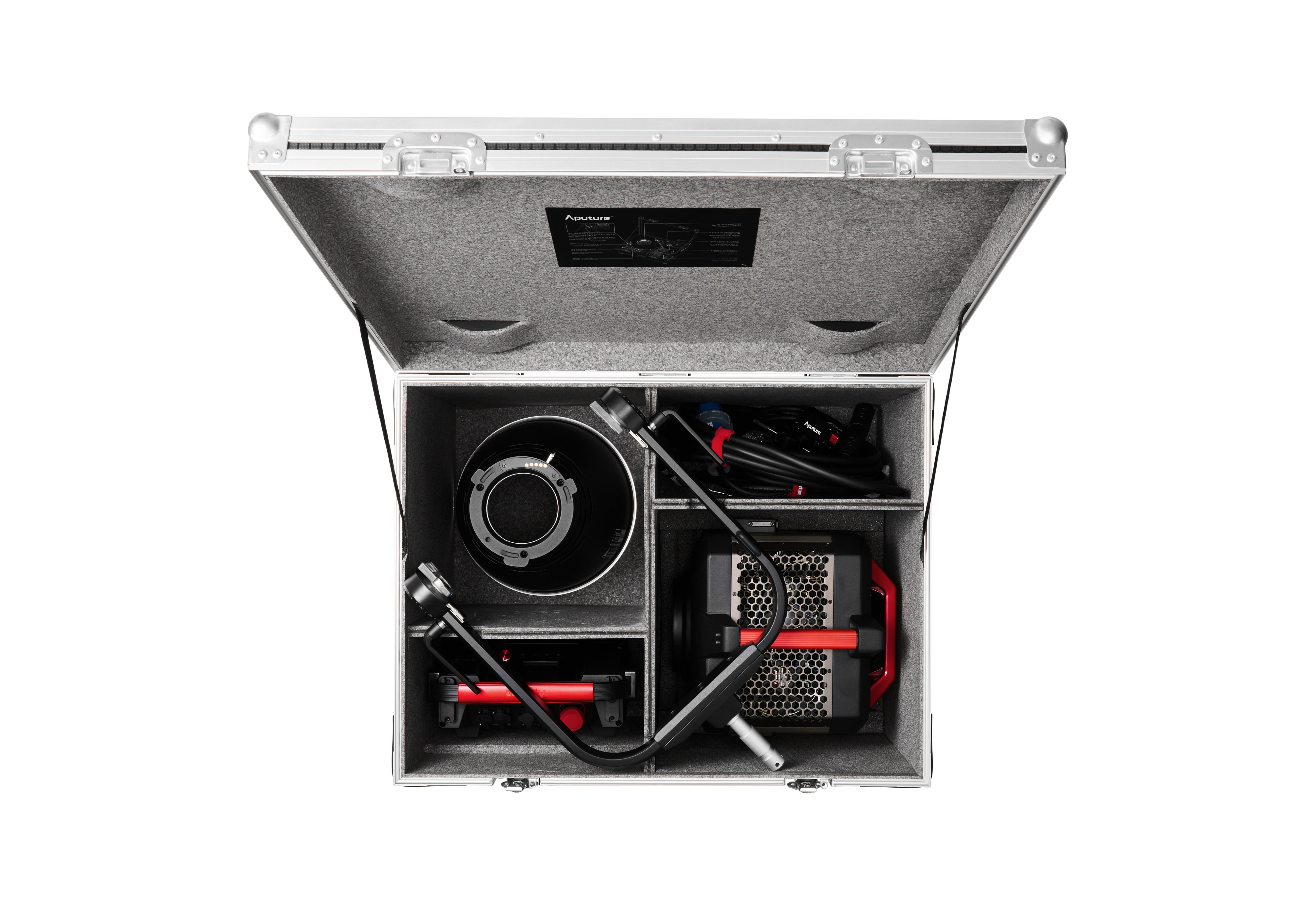

  • 1x STORM CS32 Flight Case
• CF16 Fresnel Flight Case Kit
  • 1x Motorized CF16 Fresnel
  • 1x CF16 Fresnel Barn Doors
  • 1x Safety Cable

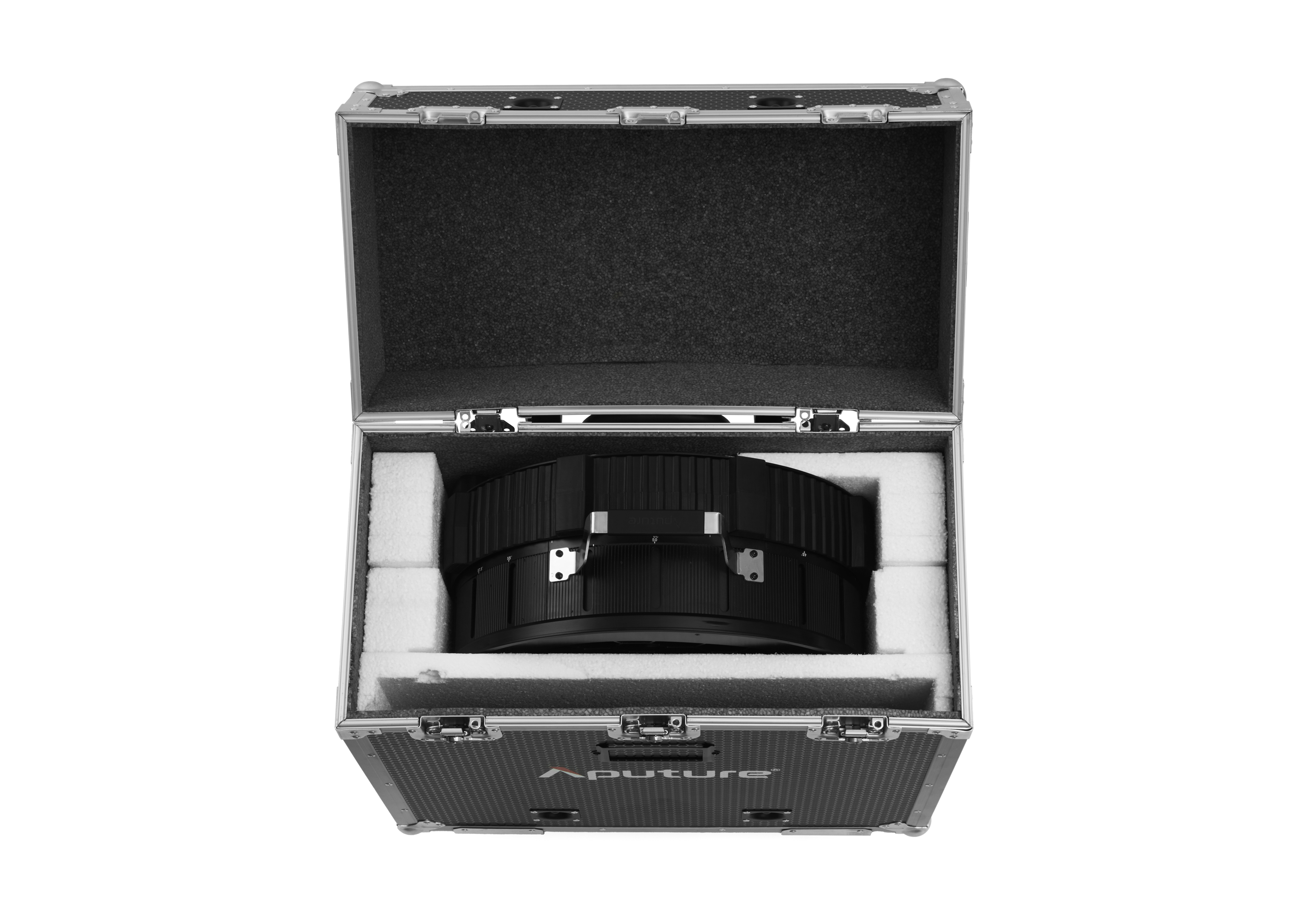

  • 1x CF16 Fresnel Flight Case
• 1x STORM CS32 Skid
