Aputure STORM 80c Full-Color Compact Point Source Fixture

Model: AP00336A20

Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
Aputure STORM 80c Full-Color Compact Point Source Fixture
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: Aputure STORM 80c Full-Color Compact Point Source Fixture

Introducing the Aputure STORM 80c, Aputure’s second light in our new STORM family and first to feature our new BLAIR-CG LED chipset. As an 80W color-tunable point source fixture with a color engine based on our breakthrough BLAIR chipset, a Mini ProLock locking Bowens mount, and compact profile, the STORM 80c is a feature-packed versatile fixture suitable for a tremendous range of professional imaging applications from high-end film productions to small-crew video or photo shoots.

  • 80W Full-Color Compact Point Source Fixture
  • New Breakthrough Proprietary LED Chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green (BLAIR-CG)
  • 19,850 Lux @1m (5600K) When Using Included 35º Hyper Reflector
  • CCT Range of 1,800K-20,000K
  • Advanced Diode Color Mixing Allows Fixture to More Effectively Utilize Each Diode’s Light Output
  • Advanced White Point Control with Green/Magenta Color Correction (±G 100% Full ASC MITC Range)
  • Ultra-High Color Accuracy: CRI≥97, TLCI≥98, CQS [CIE D5600]≥96, SSI [P3200]: 88, SSI [CIE D5600]: 84, TM-30 Rf (avg) 96, TM-30 Rg (avg) 103
  • 90%+ Coverage of Rec.2020 color gamut
  • Compact Design (Lamp Head Weight with Yoke: 1.35kg / 2.98lbs)
  • Removable Yoke Offers 360º Rotation of Lamp Head
  • Versatile Rigging Potential with Four 3/8-16in Threads
  • All-New Robust Mini ProLock Locking Accessory Mount Design Allows For More Secure and Optically Aligned Modifier Accessory Connection
  • IP65 Weather Resistance
  • Multiple Control Methods: Sidus Link and Sidus Link Pro App, LumenRadio CRMX, 16-bit 5-Pin DMX512 In & Out
  • Smooth 0.1-100% Stepless Dimming
  • Minimum Output: <19.8 lux @ 1m, 5,600K
  • Dual Output Modes: Max and Constant
  • High-Speed Photography, Lead-Follow, and Studio Modes
  • 4 Fan Modes: Smart, High, Medium, Silent
  • 74 DMX Control Profiles with Multiple DMX Dimming Modes and Customizable DMX Signal Loss Behaviors
  • 4 Dimming Curves: Linear, Exponential, Logarithmic, S-shaped
  • 15 Built-In Light Effects: Lightning II; Paparazzi; Color Chase; Candle; Explosion II; Strobe II; Cop Car II; Fireworks; Welding II; Pulsing II; Faulty Bulb II; Fire II; Club lights; TV II; Party Lights
  • 10 Savable Presets

With the new BLAIR-CG chipset, the STORM 80c delivers exceptional brightness and color accuracy. The added Cyan and Green diodes allows the STORM 80c to cover 90%+ of the Rec.2020 color gamut, giving users access to a far greater range of saturated colors compared to the BLAIR chipset. The STORM 80c offers 19,850 lux @1m at 5,600K with its included hyper reflector while maintaining an SSI [P3200] of 88 and SSI [CIE D5600] of 84 at 3,200K and 5,600K respectively. The inclusion of an indigo diode in this chipset enhances the colors of fluorescing materials, resulting in an image that is lit more accurately to match natural daylight and tungsten sources.

Featuring a wide CCT range of 1,800K-20,000K and advanced white-point control with green-magenta color correction (±G 100% ASC MITC range), this fixture offers the versatility and critical color accuracy that professionals call for on set.

Equipped with advanced dimming technology, the STORM 80c ensures flicker-free, color-accurate operation during shooting even at its lowest output level of <19.8lux @1m (5,600K). In addition, this dimming technology provides users with an unprecedented 0.1-100% stepless brightness control.

Armed with a newly designed Mini ProLock locking accessory mount, the STORM 80c can support compact modifiers designed specifically for the 80c or be adapted to a full-size Bowens mount while maintaining an easy coupling procedure that reduces the need to make rotational adjustments with accessories to achieve a secure, optically aligned lock.

Featuring comprehensive lighting control protocol options, including 16-bit DMX512, LumenRadio CRMX, and Sidus Link/Sidus Link Pro® App control, the STORM 80c ensures seamless integration into professional lighting workflows at the lamp head and behind the console.

The STORM 80c ships with the new OSII operating system installed, which gives users a more seamless, quick, and intuitive user experience when operating the fixture.

With a rugged IP65 dust and weather resistant rating, the STORM 80c is capable of withstanding even the most demanding filming environments in inclement weather without any impact to performance or reliability.

Specifications

  • LED Chipset: BLAIR-CG
  • CCT: 1,800K – 20,000K
  • Color Gamut Coverage: 90%+ Rec.2020
  • CRI: 97
  • TLCI: 99
  • CQS (5600K): 96
  • CQS (3200K): 97
  • SSI (Tungsten): 88
  • SSI (D56): 84
  • TM-30 RF (Average): 96
  • TM-30 RG (Average): 103
  • Max Power Consumption: 100W
  • Max Power Output: 80W
  • Weather Resistance Rating: IP65
  • Native COB Beam Angle: 60º
  • Included Reflector Beam Angle: 35º
  • Operating Voltage: 100V ~ 240V / 50-60 Hz
  • DC Adapter Output: 19V/5.3A
  • V-Mount Battery Operating Voltage: 14.4V
  • USB-C Power Specifications: In 20V/5A; Out 5V/0.5A
  • Operating Temperature: -20°C ~ 45°C / -4°F ~ 113°F
  • Storage Temperature: -40°C ~ 80°C / -40°F ~ 176°F
  • Control Methods: On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, CRMX
  • Data Ports: USB-C, Locking 3-Pin DMX Terminal
  • Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-C
  • Screen Type: TFT
  • Wireless Range
    • Sidus Bluetooth: ≤100m / ≤262.5ft
    • CRMX (TimoTwo): ≤100m / ≤262.5ft
  • Lamp Head Fan Noise Levels (at 1m)
    • Smart Mode 26.1 dBA
    • High Mode 26.7 dBA
    • Medium Mode 24.4 dBA
    • Silent Mode 22.3 dBA
  • Dimensions
    • Lamp Head (Without Yoke): 4.0 x 4.1 x 5.8in (10.1 x 10.4 x 14.7cm)
    • Lamp Head (With Yoke): 6.6 x 8.9 x 5.8in (16.7 x 22.5 x 14.7cm)
  • Weight
    • Lamp Head (Without Yoke): 1.01kg / 2.23lbs
    • Lamp Head (With Yoke): 1.35kg / 2.98lbs
    • AC Power Adapter: 405g / 0.89lb

What's in the Box

  • 1x STORM 80c Lamp Head with Yoke

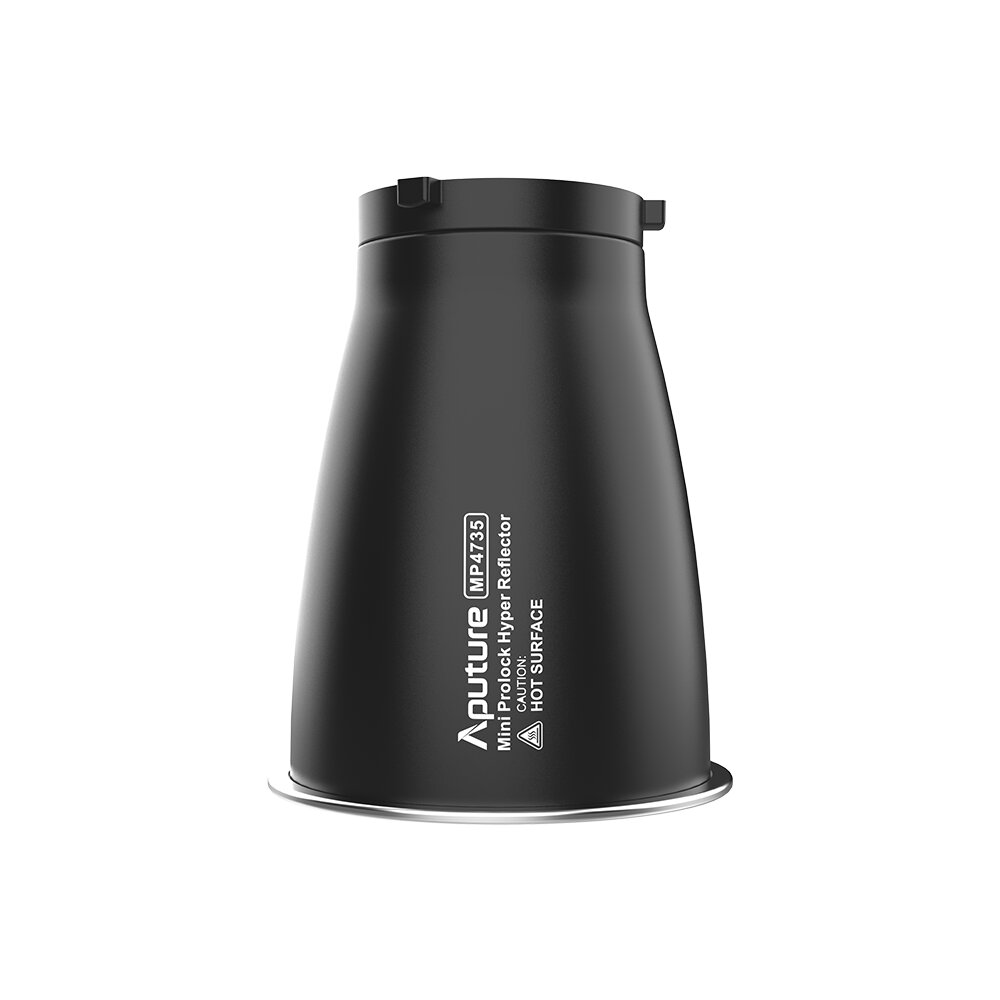

  • 1x Mini ProLock Hyper Reflector
  • 1x Mini Lantern Diffuser
  • 1x Mini ProLock Mount Protection Cover
  • 1x AC Power Adapter
  • 1x AC Power Cable (4m)
  • 1x Soft Carrying Case
