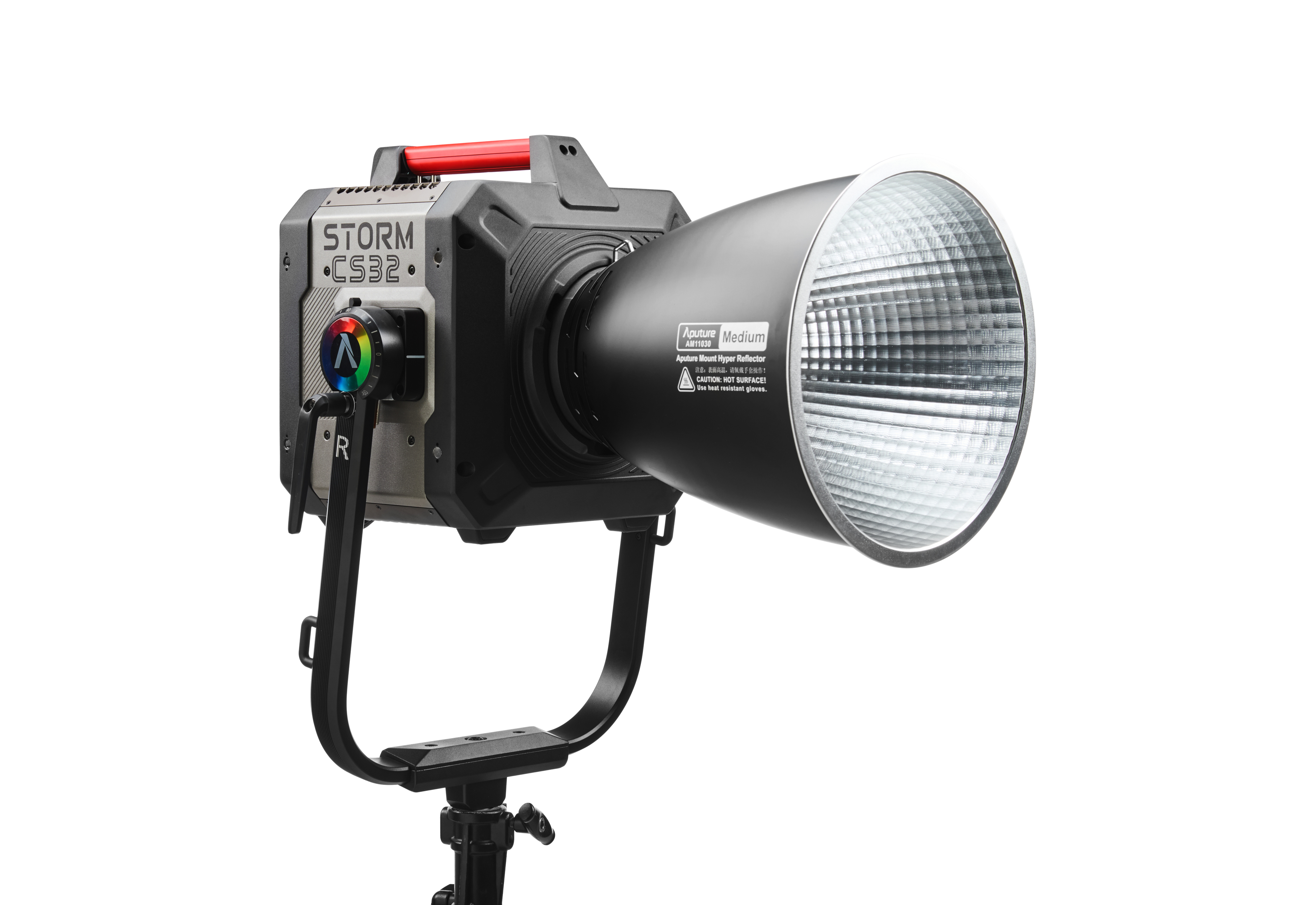

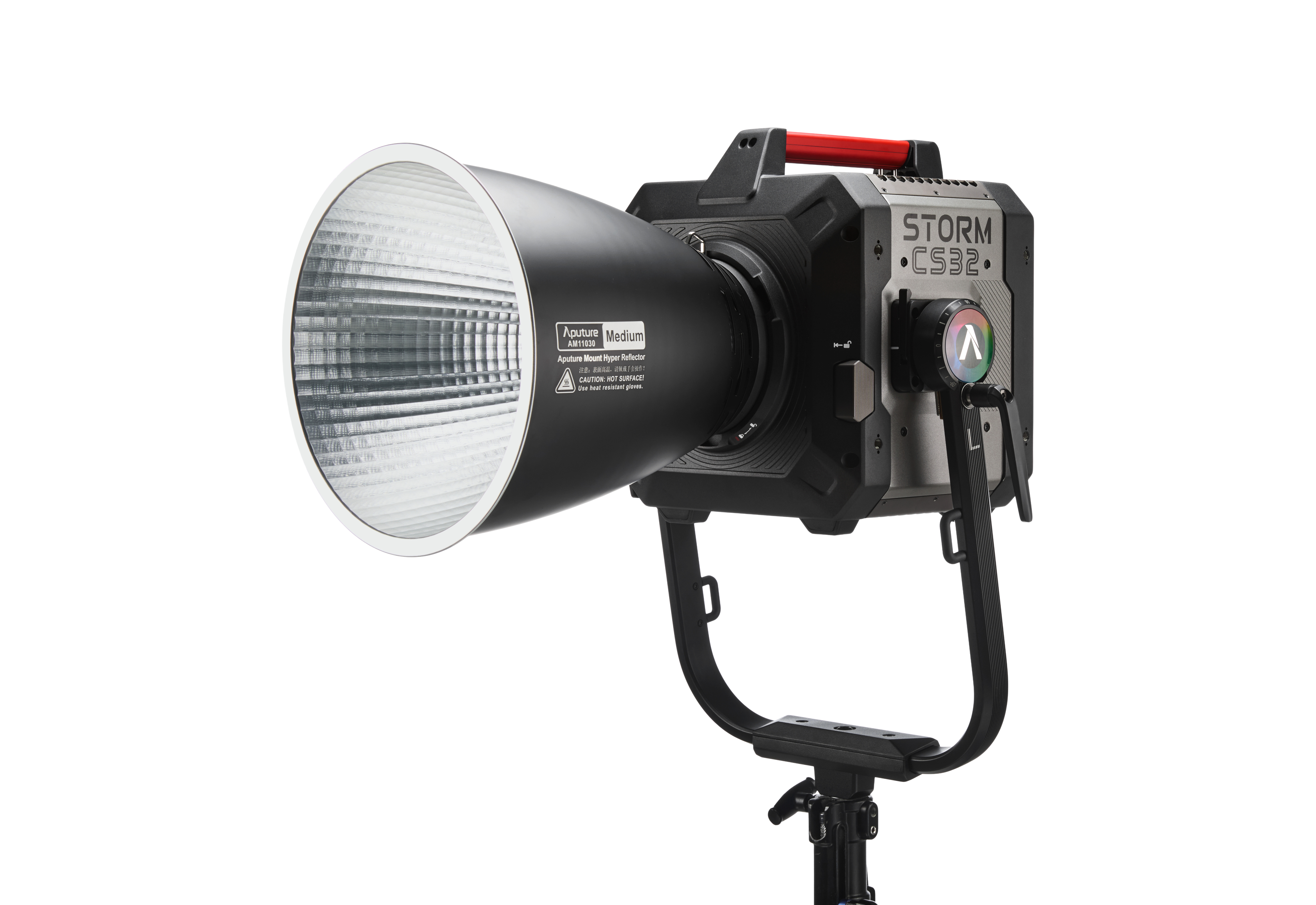

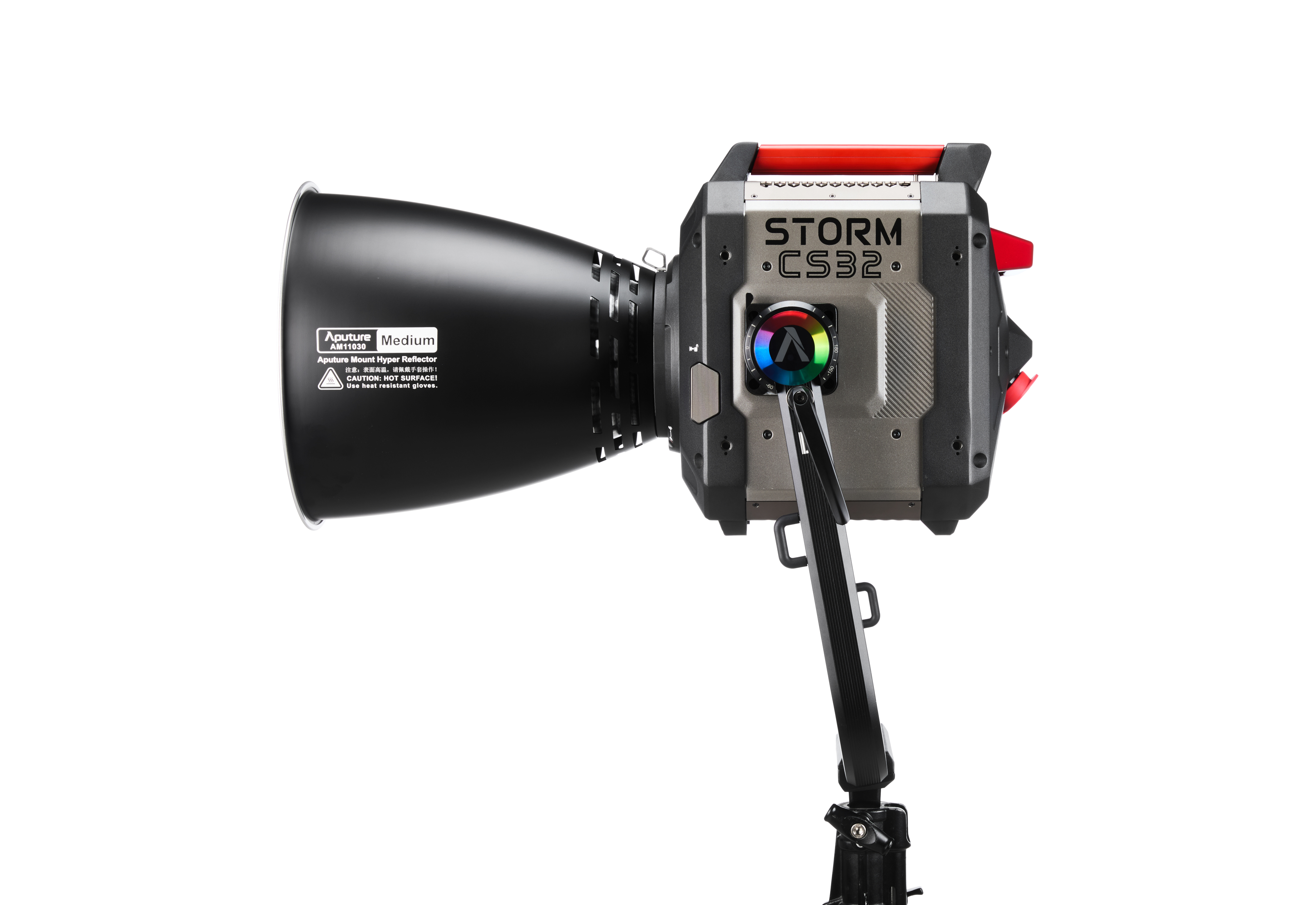

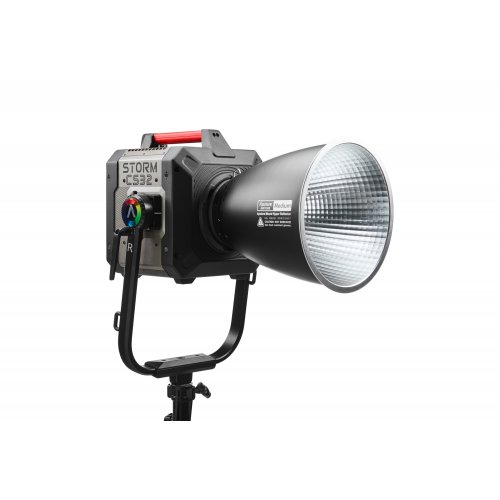

Aputure STORM CS32 Point Source Fixture

About: Aputure STORM CS32 Point Source Fixture

The Aputure STORM CS32 is a high-output tunable color point source fixture engineered to deliver the brightness of a 4K HMI or 10K tungsten fresnel in a significantly smaller, lighter, and more flexible form factor. Built around Aputure’s enhanced BLAIR-CG with Extended Red light engine, the STORM CS32 combines exceptional output, high-fidelity white light, and an expansive color range in a professional fixture designed for demanding film, television, photography, and broadcast applications.

• 3200W Aputure Mount tunable color point source LED light fixture
• 4K HMI / 10K tungsten fresnel white light output in a compact form factor
• BLAIR-CG with Extended Red chipset provides excellent white light and color rendition
• Advanced white point control with green/magenta color correction (±G 100% Full ASC MITC Range)
• CCT range of 1,800K-20,000K
• Bare bulb output: 14,800 lux @3m 3200K, 15,000 lux @3m 5600K
• Ultra-high color accuracy: CRI≥97, TLCI≥98, SSI [P3200]: 93, SSI [CIE D5600]: 91, TM-30 Rf (avg) 96, TM-30 Rg (avg) 100
• x,y and HSIC+ color control for precise color matching
• Selectable NA household power operation at 1700W (15A) or 2200W (20A)
• Head cable can be daisy-chained up to 45m for rigging lamp head in cranes, lifts, and overhead positions with control box at accessible heights
• Sidus NFC enables rapid patching and remote configuration while fixture is unplugged
• Flicker-free output down to 5% output at any recording frame rate
• Compatible with Parallel Beam 70, CF16 Fresnel, STORM XT52 Reflector Kit, and Aputure Mount softboxes

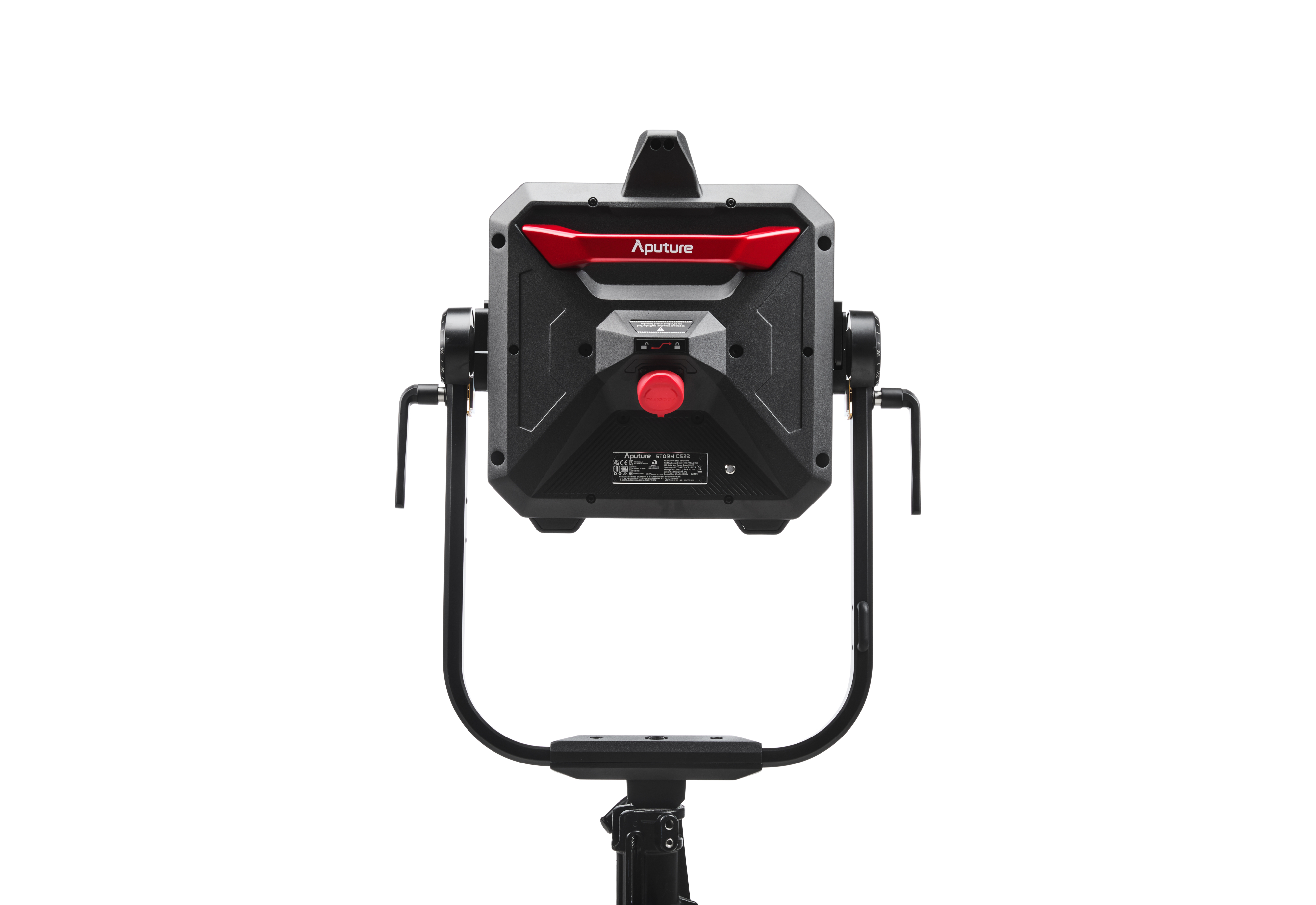

• Compact cubic chassis design with removable yoke for rigging flexibility
• High output to weight ratio: lamp head weight with yoke: 19.80 kg / 43.65 lbs
• IP65 weather resistance
• Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
• 16-bit 5-Pin DMX512 in & out ports and 2x locking Ethernet ports
• Serviceable sub-assembly design for both lamp head and control box
• Smooth 0.1-100% stepless dimming with 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
• 7 fan modes: Smart, Max, High, Medium, Low, Delayed, Silent
• 15 built-in light effects
• Supports firmware updates via USB-A drive

At its core, the STORM CS32 features a full white CCT range from 1,800K to 20,000K with full 100% ASC MITC +/- Green adjustment, Indigo for activating natural fluorescence, and Extended Red for improved skin tone reproduction. With high SSI performance across both tungsten and daylight standards, the CS32 delivers white light that cameras can reproduce with confidence, while its color engine covers more than 91% of the Rec.2020 color space for richly saturated colors and precise color matching using x,y and HSIC+ control modes.

Designed to meet the needs of modern productions, the STORM CS32 offers flicker-free performance at 5% brightness and above at any recording frame rate, making it ideal for high-speed cinematography ranging from large-scale action work to tabletop product photography. Its compact square lamp head, removable yoke, and lightweight construction also make it uniquely suited for building powerful arrays in limited spaces, while the fixture’s 7.5m head cable can be daisy￾chained up to 45m to support rigging in cranes, lifts, and other elevated positions with the control box remaining on the ground or at accessible heights.

The STORM CS32 also expands on-set efficiency with Sidus NFC for instant fixture pairing and rapid fleet configuration, even while unplugged, as well as compatibility with the XT52 ecosystem of optical modifiers, including the Parallel Beam 70, CF16 Fresnel, Aputure Mount softboxes, and the STORM XT52 Reflector Kit. With serviceable sub-assembly designs for both the lamp head and control box, the STORM CS32 is built to provide long-lasting performance, reduced downtime, and versatile creative control for productions that demand power, color precision, and adaptability in one compact system.

Specifications

• Colour
  • LED Chipset: BLAIR-CG with Extended Red
  • CCT Range: 1,800K - 20,000K
  • CRI: 97
  • TLCI: 98
  • SSI (Tungsten): 93
  • SSI (D56): 91
  • TM-30 RF: 96
  • TM-30 RG: 100
• Power
  • Operating Voltage (Full Output): 100V ~ 240V / 50-60 Hz
  • Max Power Consumption (100V~240V): 3200W
  • Max Power Consumption – Lamp Head: 3000W
  • Max Power Output: 2600W
  • AC Power Max Current High Voltage (240V): 16A
  • AC Power Max Current Low Voltage (100V): 32A
  • Max Head Cable Length (Daisy Chain): 45m
• Optical
  • Beam Angle (Native): 78°
  • Beam Angle (with Included Reflector): 30°
  • Compatible Reflectors: 20°, 25°, 35°, 50° XT52 & 30° CS32 Reflectors
• Control and Firmware
  • Control Methods: On-board, Sidus Bluetooth, DMX, CRMX, Art-Net/sACN
  • Firmware Upgrade Methods: USB-A, Sidus Link, Sidus Link Pro
  • Wireless Range - Bluetooth: 100m
  • Wireless Range - CRMX: 100m
• Mounting
  • Modifier Mount Type: Aputure Mount
  • Included Rigging Hardware: 1-1/8” / 28mm Junior Pin
• Environmental and Compliance
  • IP Rating: IP65
  • Operating Temperature: -20°C ~ 45°C / -4°F ~ 113°F
  • Storage Temperature: -40°C ~ 80°C / -40°F ~ 176°F
  • Cooling Method (Lamp Head & Control Box): Air Cooled
• Lamp Head Fan Noise Levels (at 1m)
  • Max Mode: 52.6 dBA
  • High Mode: 52.4 dBA
  • Medium Mode: 40.2 dBA
  • Low Mode: 31.3 dBA
  • Silent Mode: 24.3 dBA
• Dimensions
  • Lamp Head
    • With Yoke: 20.8 x 30.4 x 14.1 in (52.9 x 77.2 x 35.8 cm)
    • Without Yoke: 14.6 x 15.1 x 14.1 in (37.2 x 38.3 x 35.8 cm)
  • Removable Yoke: 20.8 x 24.0 x 5.9 in (52.9 x 60.9 x 15.0 cm)

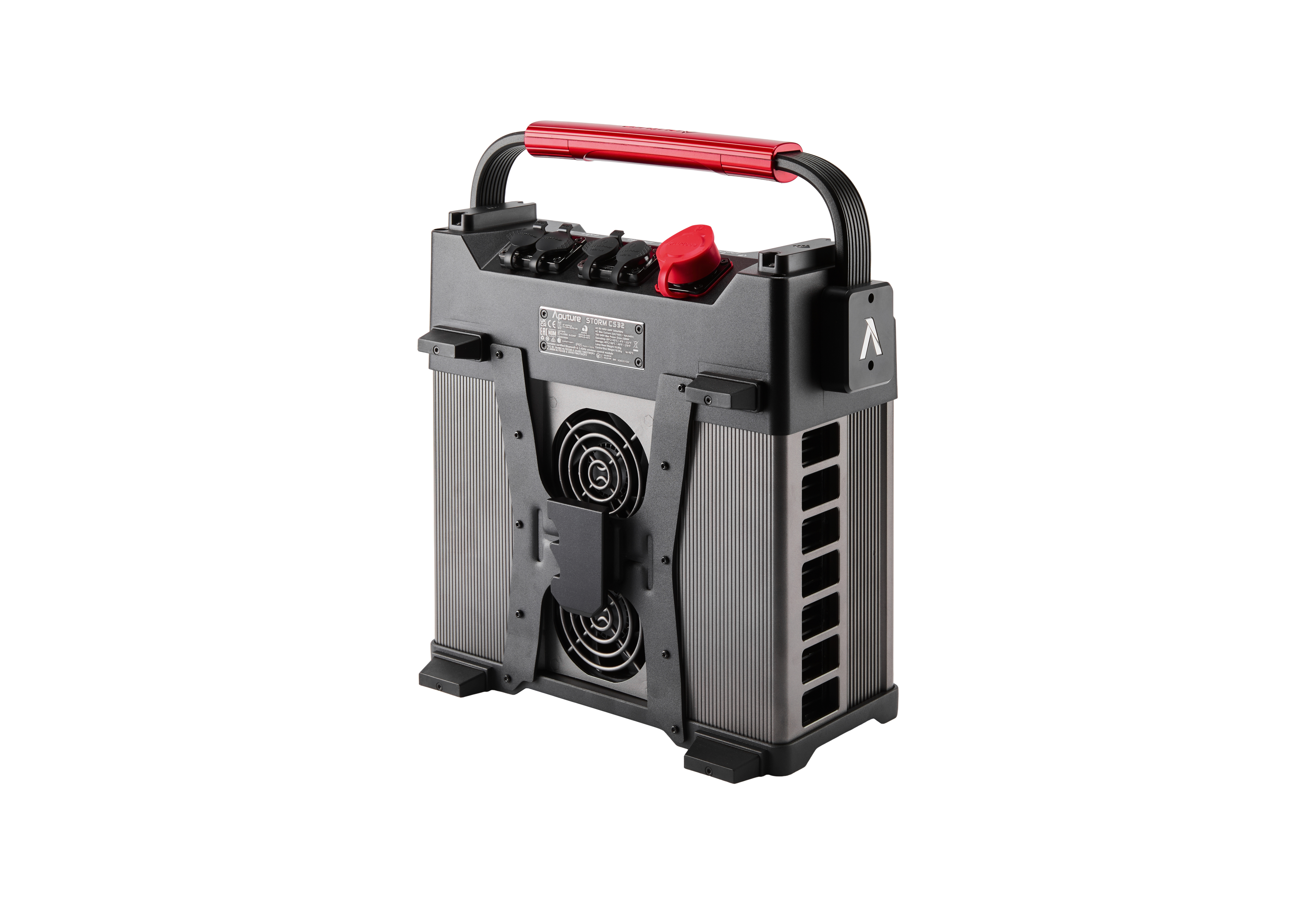

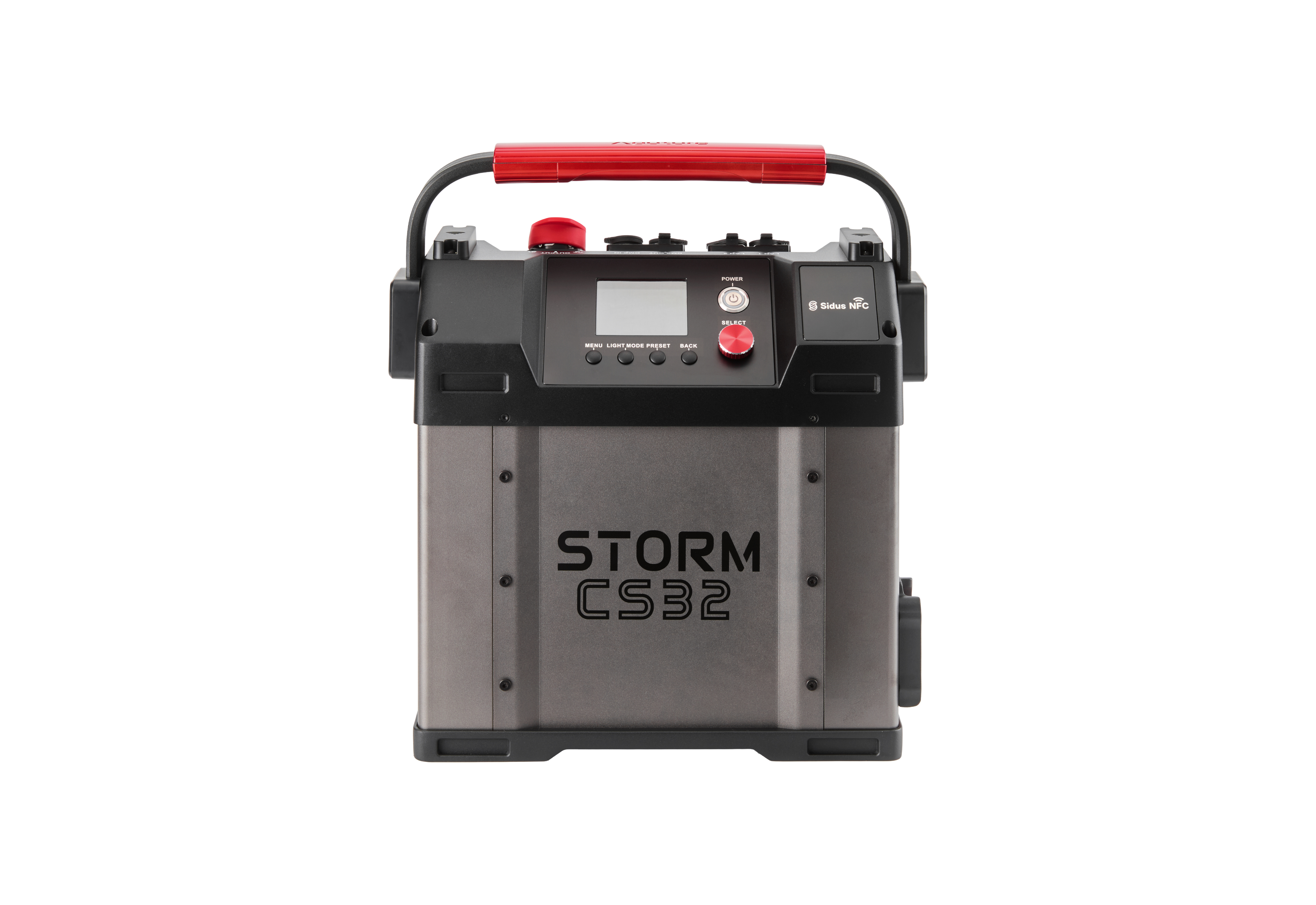

  • Control Box: 13.6 x 6.3 x 14.8 in (34.5 x 16.0 x 37.6 cm)
  • 30° Reflector: Ø 13.6 x 14.4 in (Ø 34.5 x 36.5 cm)
  • Flight Case: 33.3 x 25.6 x 26.2 in (84.6 x 65.0 x 66.5 cm)
  • Head Cable Length: 7.5 m
  • AC Power Cable (Bare Leads) Length: 3 m
  • AC Power Cable (NEMA 5-20P) Length: 6 m
• Weight
  • Lamp Head
    • With Yoke: 43.65 lbs (19.80 kg)
    • Without Yoke: 37.04 lbs (16.80 kg)
  • Removable Yoke: 6.61 lbs (3.00 kg)
  • Control Box: 23.81 lbs (10.80 kg)
  • 30º Reflector: 3.42 lbs (1.55 kg)
  • Head Cable: 6.94 lbs (3.15 kg)
  • Aputure Ultra Clamp: 2.03 lbs (0.92 kg)

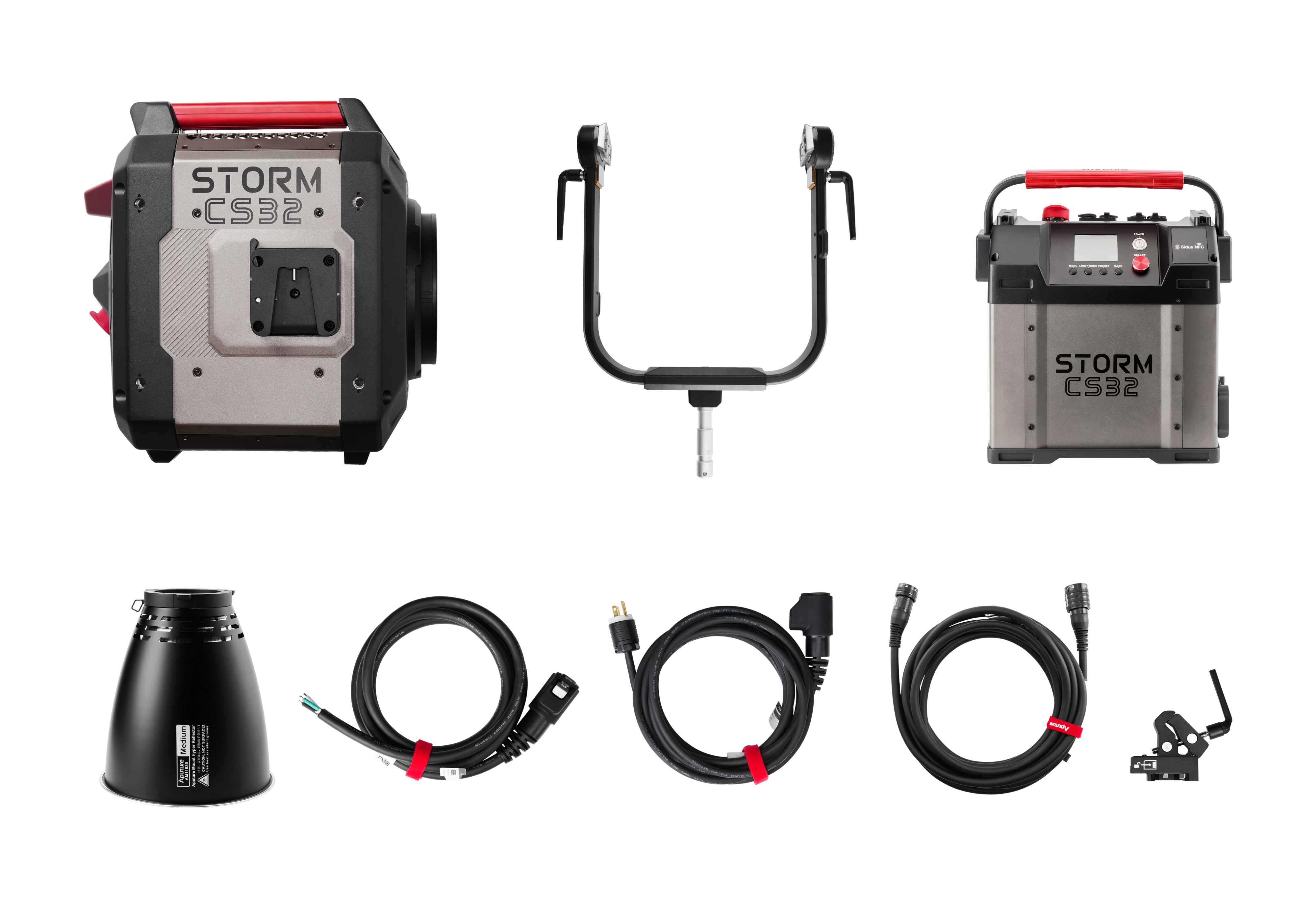

What’s in the Box

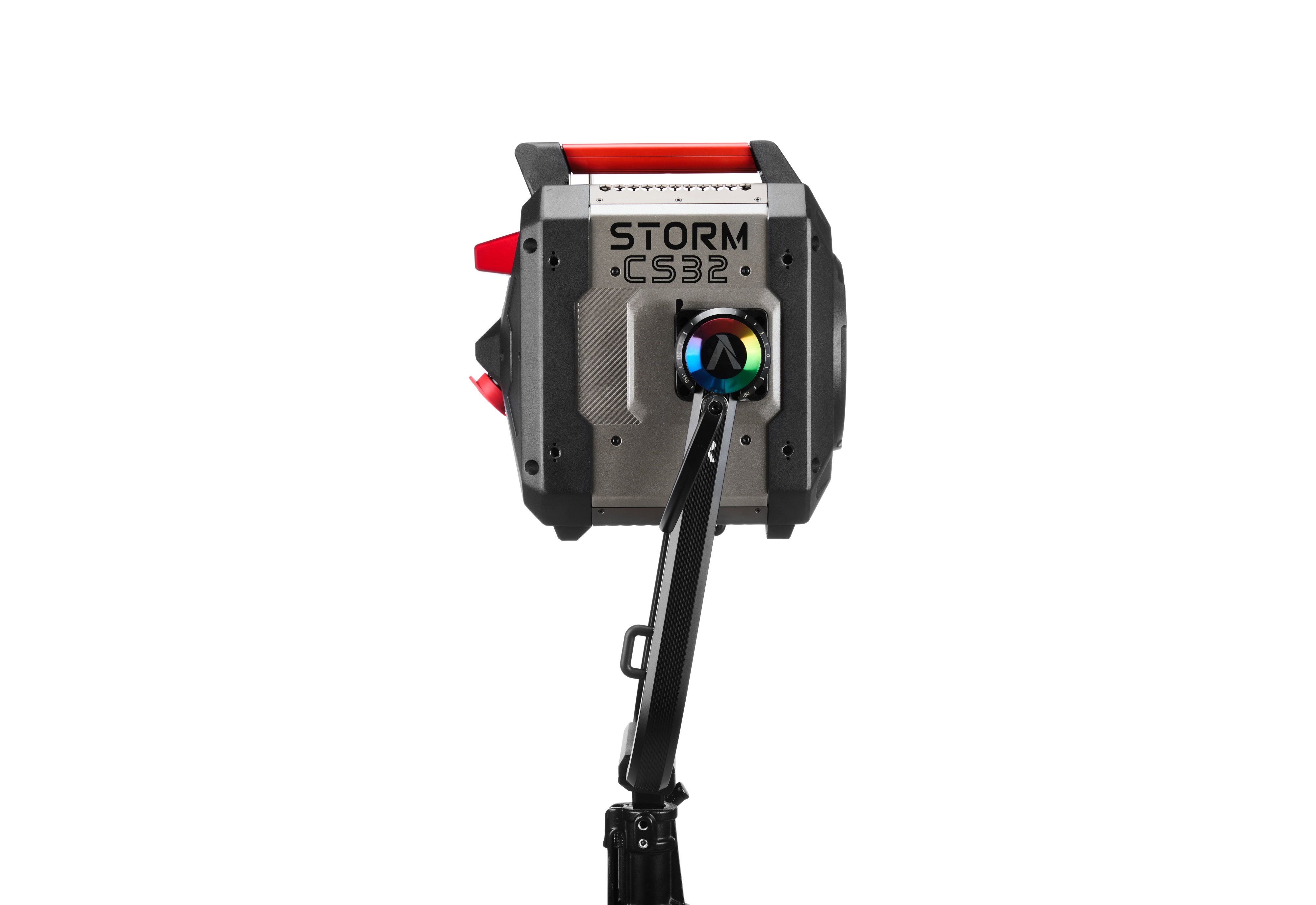

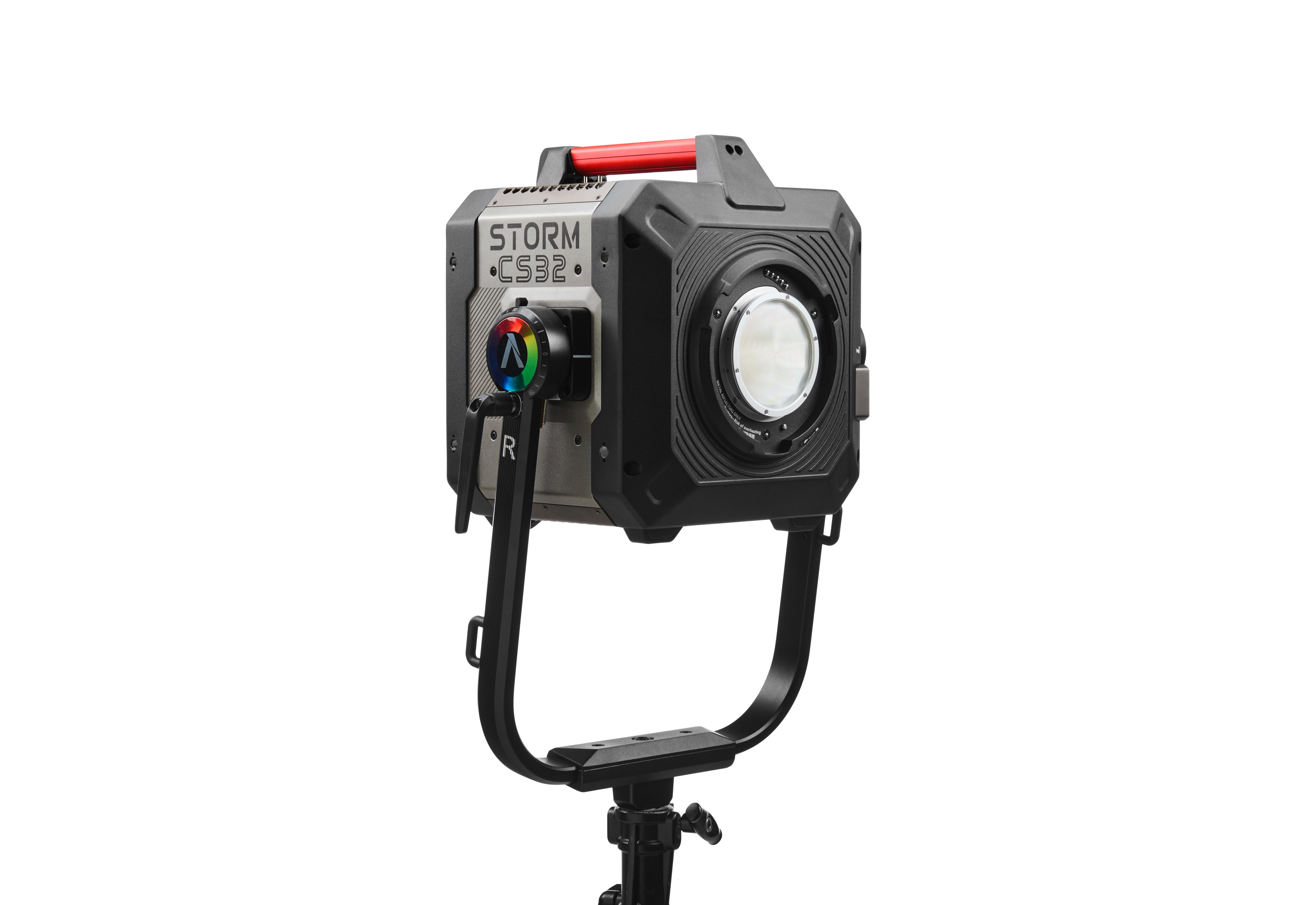

• 1x STORM CS32 Lamp Head
• 1x STORM CS32 Removable Yoke
• 1x STORM Series Aputure Mount Protection Cover

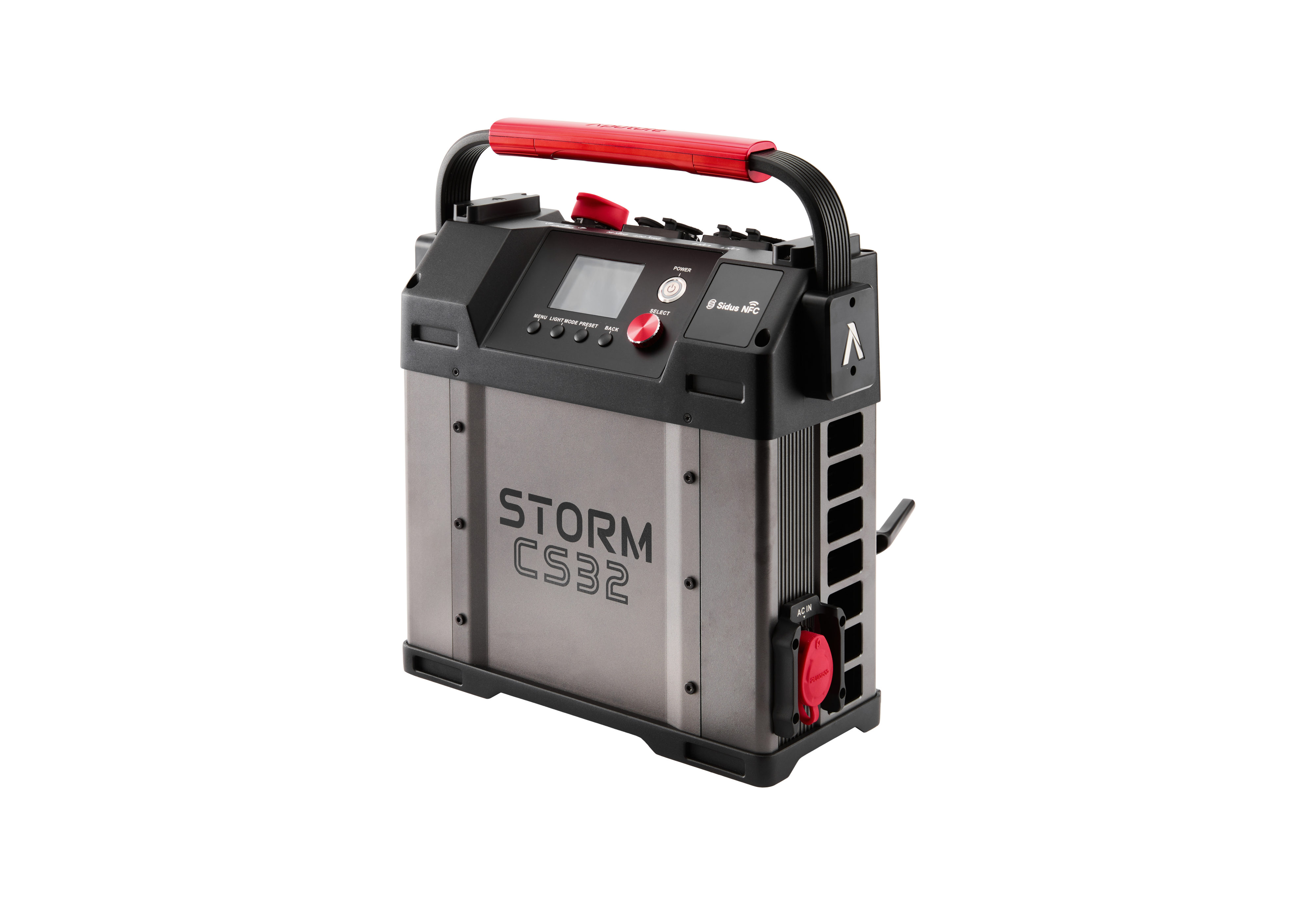

• 1x STORM CS32 Control Box
• 1x AM11030 Medium Reflector
• 1x PLG28 4-Pin to Bare Leads AC Power Cable (3m)
• 1x PLG28 4-Pin to NEMA 5-20P AC Power Cable (6m, 20A Max)
• 1x PLK28 10-Pin Male to Female Lamp Head Cable (7.5m)
• 1x Aputure Ultra Clamp
