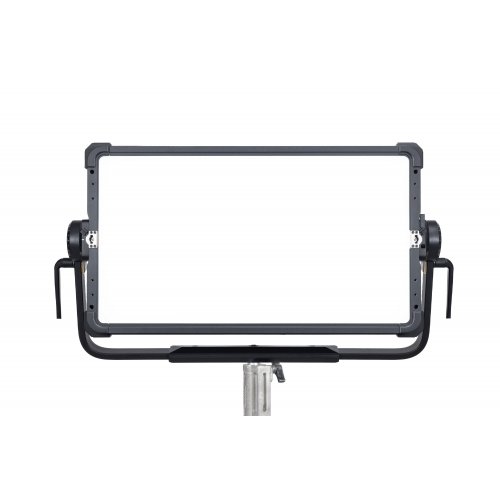

Aputure NOVA II 2x1 Tunable Color High Fidelity Panel Light

About: Aputure NOVA II 2x1 Tunable Color High Fidelity Panel Light

The Aputure NOVA II 2x1 is a next-generation full-color LED panel designed to set a new benchmark for professional film, television, and broadcast lighting. Building on the legacy of the Nova P600c, the NOVA II 2x1 delivers twice the output and an even greater degree of creative control, all within a rugged, IP65-rated body engineered for the most demanding production environments.

• 1000W output LED panel light fixture
• BLAIR-CG chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green diodes
• Advanced white point control with green/magenta color correction (±G 100% Full ASC MITC Range)
• CCT range of 1,800K-20,000K
• Bare bulb output: 24,700lux @3m 5600K
• Included flat diffusion panel: 5,480lux @3m 5600K
• Ultra-high color accuracy: CRI≥95, TLCI≥95, CQS [CIE D5600]≥96, SSI [P3200]: 89, SSI [CIE D5600]: 86, TM-30 Rf (avg) 95, TM-30 Rg (avg) 100
• New direct front-mounting accessory ecosystem
• Features removable yoke for rigging flexibility
• High output to weight ratio: lamp head weight with yoke: 18.6kg / 41lbs
• IP65 weather resistance
• Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
• 16-bit 5-Pin DMX512 in & out ports
• 2x Locking Ethernet Ports
• Smooth 0.1-100% stepless dimming
• Dual output modes: Max and Constant
• Lead-follow and studio mode
• 4 fan modes: Smart, High, Medium, Silent (DMX controllable)
• 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
• 15 built-in light effects
• 10 savable presets
• Supports batch firmware upgrades of lamps through Sidus Link Pro/Sidus Link, USB drive, and DMX

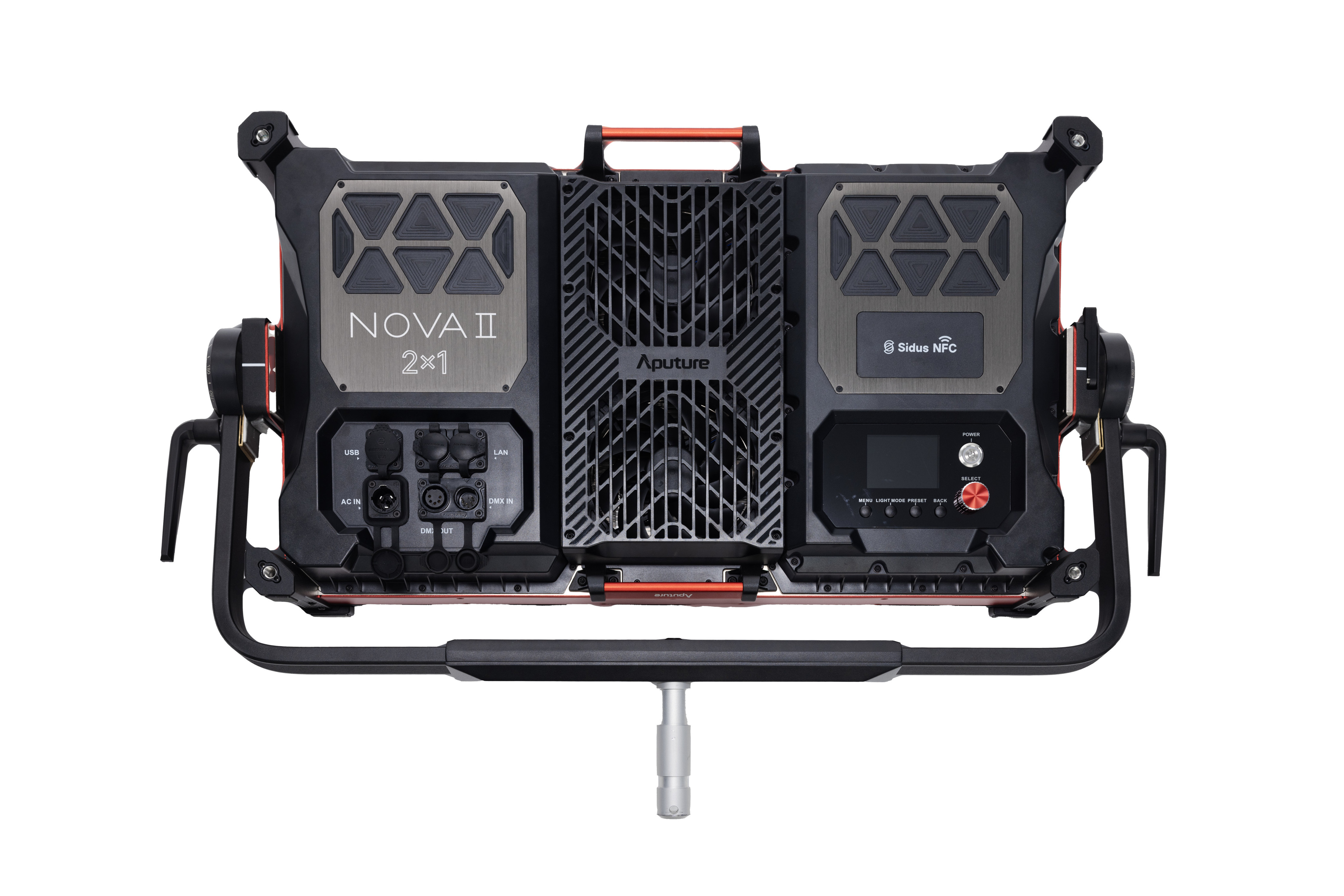

• High-resolution rear color display panel clearly communicates fixture status and settings

At its core lies Aputure’s advanced BLAIR-CG chipset, a seven-diode architecture that combines Blue, Lime, Amber, Indigo, Red, Cyan, and Green emitters. This design unlocks precise spectral reproduction across an extended CCT range of 1,800K–20,000K, with full ±G green-magenta adjustment that conforms to the complete ASC MITC standard. For cinematographers and gaffers, this means unparalleled ability to match ambient light sources, fine-tune white point consistency, or push bold creative contrasts with absolute confidence.

With an immense 1000W of power, the NOVA II 2x1 produces 24,700 lux at 3 meters (5600K, bare bulb), outpacing nearly every LED panel in its class. Even with diffusion applied, it maintains exceptional punch and softness, supported by industry-leading fidelity metrics: CRI/TLCI ≥95, TM-30 Rf 95/Rg 100, and SSI scores of 89 (3200K) and 86 (5600K). Its newly developed direct front-mounting accessory system broadens creative possibilities while reducing the complexity of mounting slide-in modifiers on traditional panel lights , while a removable yoke ensures maximum flexibility when rigging on stages, trusses, or location builds.

Recognizing the practical realities of production, the NOVA II 2x1 introduces a host of refinements for reliability and ease of use. Multiple dimming curves, four fan modes, and dual output modes (Max and Constant) allow the fixture to adapt seamlessly to both silent sound stages and high-intensity exteriors. For long-term durability and fleet deployment, studios and rental houses can pair the fixture with an optional custom rolling hard case, providing professional-grade protection and transport security between jobs.

Control is equally robust, with compatibility across Sidus Link® and Sidus Link Pro®, 16-bit DMX512 in/out, CRMX, and USB or DMX batch firmware upgrades. Whether operating as a single key source or integrated into complex console-controlled networks, the NOVA II 2x1 ensures fast, reliable communication in line with modern production standards.

Specifications

• LED Chipset: BLAIR-CG
• CCT: 1,800K – 20,000K
• CRI: ≥95
• TLCI: ≥95
• SSI (Tungsten): 90
• SSI (D56): 86
• TM-30 RF (Average): 95
• TM-30 RG (Average): 100
• Max Power Consumption: 1,250W
• Max Power Output: 1,000W
• Weather Resistance Rating: IP65
• Native Beam Angle: 35º
• Included Flat Diffuser Beam Angle: 95º
• Pixel Count: 2 pixels
• AC Operating Voltage: 100V ~ 240V / 50-60 Hz
• Operating Temperature: -20ºC ~ 45ºC / -4ºF ~ 113ºF
• Storage Temperature: -40ºC ~ 85ºC / -40ºF ~ 176ºF
• Control Methods: On-board, Sidus Link, Sidus Link Pro, DMX512-A, LumenRadio CRMX, Art-Net/sACN, RDM
• Control Ports
  • 1x 5-pin DMX in
  • 1x 5-pin DMX out
  • 2x locking Ethernet ports
• Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-A
• Wireless Range (Bluetooth & CRMX): ≤100m / ≤328.1ft
• Cooling Method: Active (onboard fans)
• Lamp Head Fan Noise Levels
  • Smart Mode: Variable
  • High Speed Mode: 40 dBa
  • Medium Speed Mode: 35 dBa
  • Silent Mode: 0 dBa
• Weight
  • Lamp Head (Without Yoke): 35.83lbs (16.25kg)
  • Removable Yoke with Junior Pin: 5.29lbs (2.40kg)
  • Flat Diffuser: 4.45lbs (2.00kg)
  • AC Power Cable (6m): 1.76lbs (0.80kg)
• Dimensions
  • Lamp Head (Without Yoke): 27.2 x 15.3 x 5.4in (69.1 x 38.8 x 13.6cm)
  • Lamp Head (With Yoke): 32.7 x 22.3 x 6.1in (82.9 x 56.6 x 15.4cm)
  • Flat Diffuser: 26.9 x 14.8 x 1.6in (68.4 x 37.5 x 4.0cm)

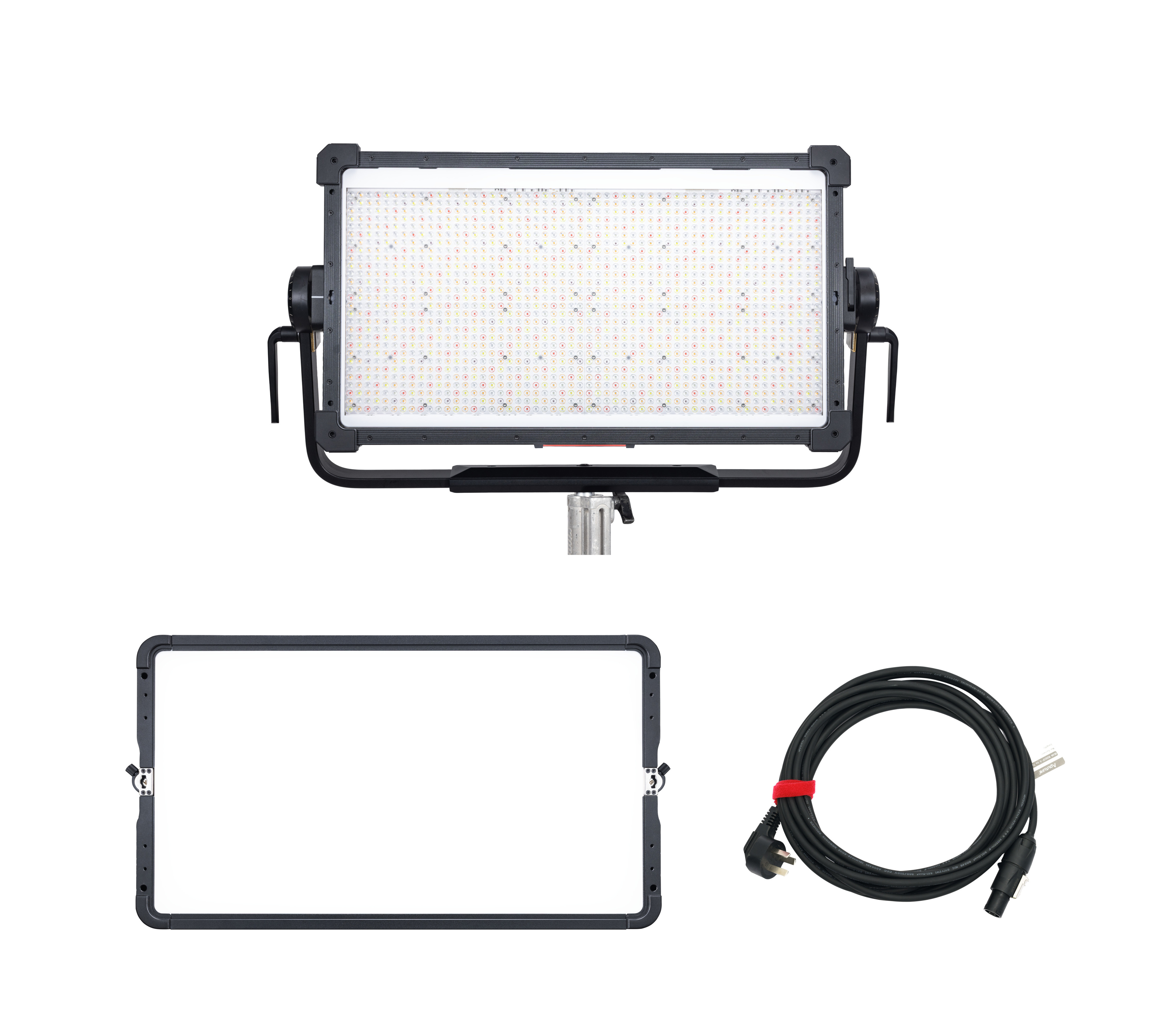

What's in the Box

• 1x NOVA II 2x1 Lamp Head
• 1x Removable Yoke with Junior Pin
• 1x NOVA II 2x1 Flat Diffuser
• 1x AC Power Cable (6m)
