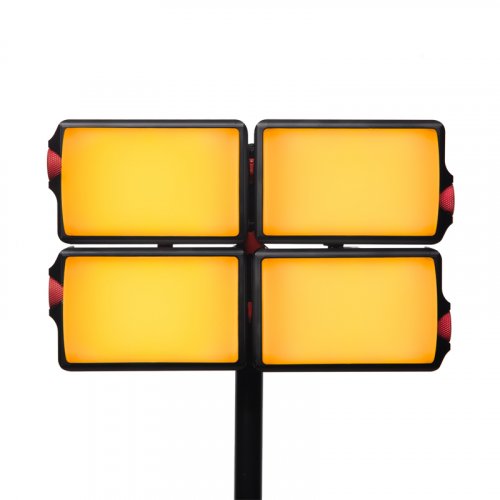

Rosco DMG DASH Quad Pocket LED Kit w/ CRMX

About: Rosco DMG DASH Quad Pocket LED Kit w/ CRMX

DMG DASH is the smallest member of Rosco’s MIX Family of LED lights. Its compact design provides filmmakers with high quality light output and precise color control from a durable, handheld light fixture.

The DMG DASH Quad Kit contains four complete DMG DASH Pocket LED Kits inside a durable carrying case. Because each individual Pocket LED Kit is loaded with accessories, every Quad Kit comes with four full sets of beam-shaping and mounting accessories - plus a DMG DASH LINK4 that connects the four lights together.

In order to control DMG DASH Quad Kit, you must use the myMIX app, which is available for iOS and Android devices.

LINK TOGETHER - OR DEPLOY INDEPENDENTLY

The DMG DASH Quad Kit includes a DMG DASH LINK4 accessory that connects the four lights together. This enables the user to deploy the four DMG DASH units independently or link them together and control them as a group via the myMIX app to create a single, larger light source.

SUPERIOR COLOR-MIXING

DMG DASH features Rosco’s patented, six-chip MIX Technology – enabling it to produce the same color-quality and True Rosco Color gel matches that other MIX lights do!

FULLY ACCESSORIZED

Each DMG DASH Pocket LED Kit ships with a set of magnetic beam-shaping accessories, including a flat diffuser panel, dome diffuser, eggcrate, and a gel holder for adding any Rosco gel or diffusion material desired. The kit also includes a light stand mount, a powerful magnetic mount, and a USB-C charging cable.

MULTIPLE CONTROL OPTIONS

DMG DASH is controlled by its onboard user interface, or via the free myMIX app. A wireless DMX model featuring LumenRadio for control via W-DMX & CRMX is also available.

POCKET-SIZED BUT POWERFUL

Don’t let its small size fool you, the battery-operated DMG DASH can produce up to 500 lumens of output – all from a fixture that fits in the palm of your hand.

WEATHERPROOF & DURABLE

It takes a thrashin’ and keeps on DASHIN’. DMG DASH is constructed from a lightweight aluminum alloy to provide a shock-resistant and IP65 weatherproof housing.

Specifications

• Lux @ 1m (3.3 Feet): 250 Lux @ 6500K
• Lux @ 1m (3.3 Feet) Boost Mode: 320 Lux @ 6500K
• Max. Output: 500 lumens
• Max. Power: 14W
• Battery Runtime: Three Hours At 100% Intensity (Less In Boost Mode)
• LED Colors: Red/Green/Blue/Lime/Amber/White (4000K)
• Light Modes (With MIX Technology): WHITE/GEL (With True Rosco Color Gel Matches)/COLOR - HSI & XY (With Rec. 709 & Rec. 2020 overlays)/EFFECTS/SOURCE MATCH
• Color Temperature: 1700K - 10,000K
• Color Rendering: CRI Average: >95 and TLCI Average: >90
• Flicker Free: Up To 1,000 FPS
• On-Board Control: Local UI: 1.3"OLED Graphical Display-128px x 64px
• Wireless Control: Bluetooth BLE Via The myMIX App-Available for iOS & Android
• DMX Control (CRMX version only): Wireless CRMX and W-DMX via LumenRadio with RDM
• Size: 5”x 3.1”x 1.1” / 12.8cm x 8cm x 2.8cm
• Weight: 12.8 oz. / 367g
• Body Material: Aluminum Alloy
• Outdoor Rating: Weather Resistant - IP65
• Circuit Board Material: Aluminum
• Number of LEDs: 99 Emitters
• Battery Specifications: 6000mAh/3.7v
• Charging Connector: USB Type-C (Cable Included In Kit)
• Charging Voltage: 5 VDC
• Recommended Charger: Fast Charge 3-Amp (Minimum 2-Amp)
• Charging Time: 3 hours at 2-Amp
• Operating Temperature: 32º-104ºF/0º-40ºC
• Charging Temperature: 50º-113ºF/10º-45ºC
• Cooling Mode: Passive - Free Air Convection
• Mounting Accessories (Included In Kit): Light Stand Mount/Magnetic Mount
• Beam Shaping Accessories (Included In Kit): Flat Diffuser/Dome Diffuser/Eggcrate/Gel Holder

What's in the Box

• (4) DMG DASH LED Fixtures
• (4) Cases
• (4) USB-C Charging Cable
• (4) Flat Diffusers
• (4) Domes
• (4) Eggcrates
• (4) Gel Holders
• (4) Light Stand Mounts
• (4) Magnetic Mounts
• DMG DASH LINK
• Quad Kit Carrying Case
