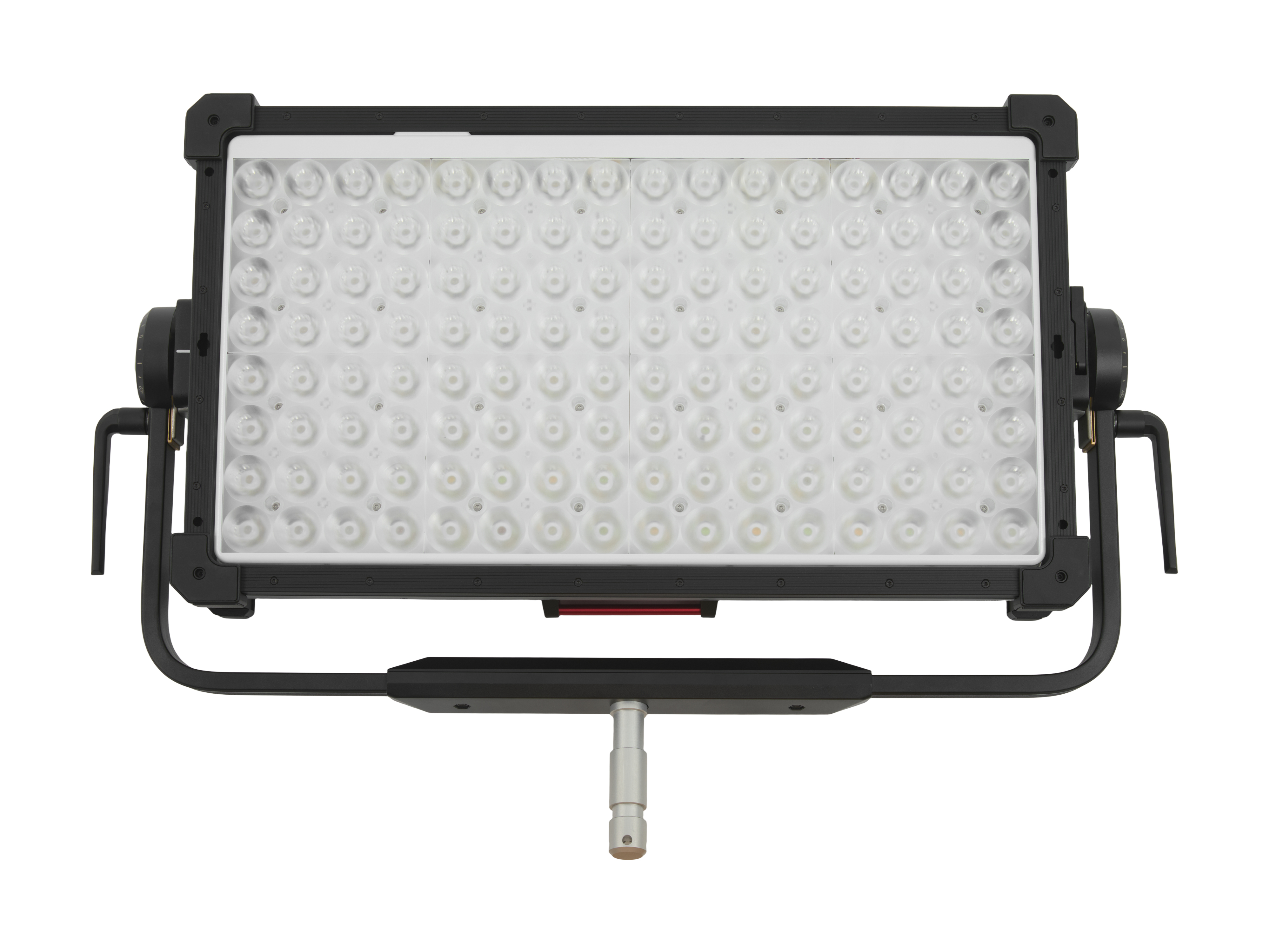

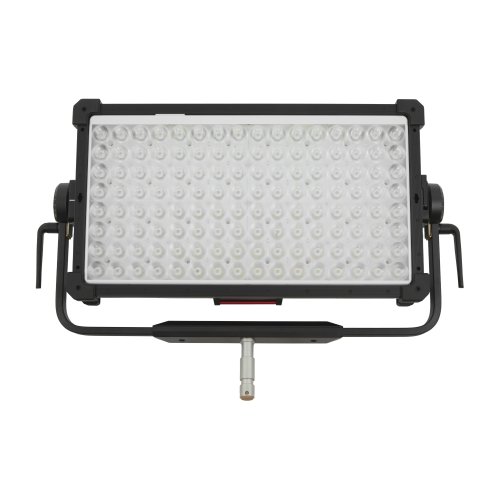

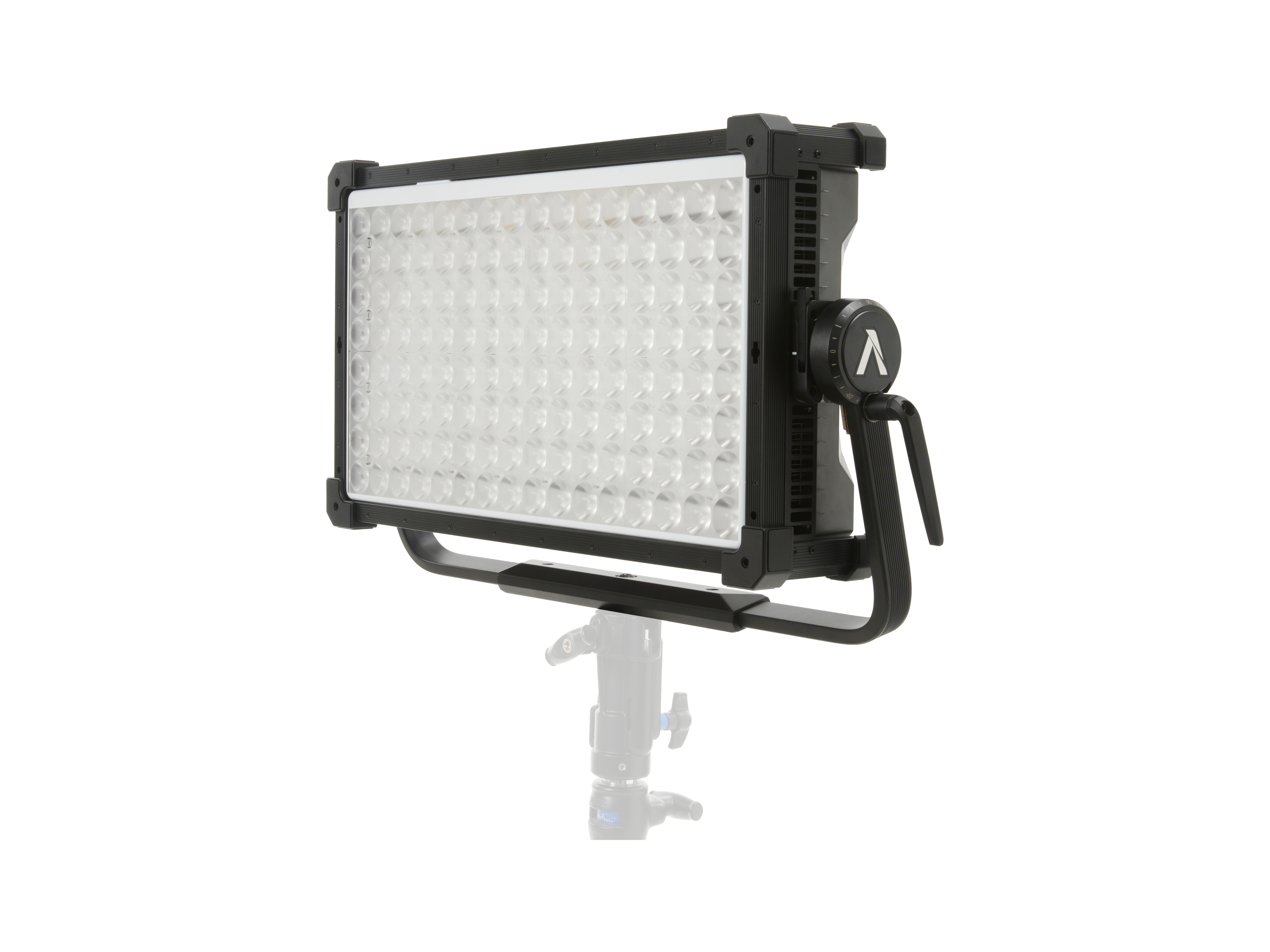

Aputure NOVA 9º 2x1 Tunable White LED Panel

About: Aputure NOVA 9º 2x1 Tunable White LED Panel

The Aputure NOVA 9º 2x1 is a high-output, lensed LED panel designed to replicate the power and precision of natural sunlight in a compact, portable form factor. Featuring an ultra-tight 9º native beam angle and a BLAIR chipset, the NOVA 9º 2x1 delivers exceptional long-throw performance, enabling filmmakers to project crisp, directional beams and hard shadows across great distances with remarkable intensity and control.

• 650W output lensed LED panel light fixture
• Tight 9º native beam angle throws light across great distances effortlessly
• BLAIR chipset: Blue, Lime, Amber, Indigo, Red diodes
• Advanced white point control with green/magenta color correction (±G 100% Full ASC MITC Range)
• Stackable into a powerful 3-light yoke configuration that can contend with natural daylight
• 4 horizontal pixel zones for ultra smooth, versatile pixel effect transitions
• CCT range of 1,800K-20,000K
• Bare bulb output: 66,200 lux @3m 5600K
• Included flat diffusion panel: 2,423 lux @3m 5600K
• Ultra-high color accuracy: CRI≥95, TLCI≥95, CQS [CIE D5600]≥96, SSI [P3200]: 89, SSI [CIE D5600]: 86, TM-30 Rf (avg) 95, TM-30 Rg (avg) 100
• New QuickClip direct front-mounting accessory ecosystem

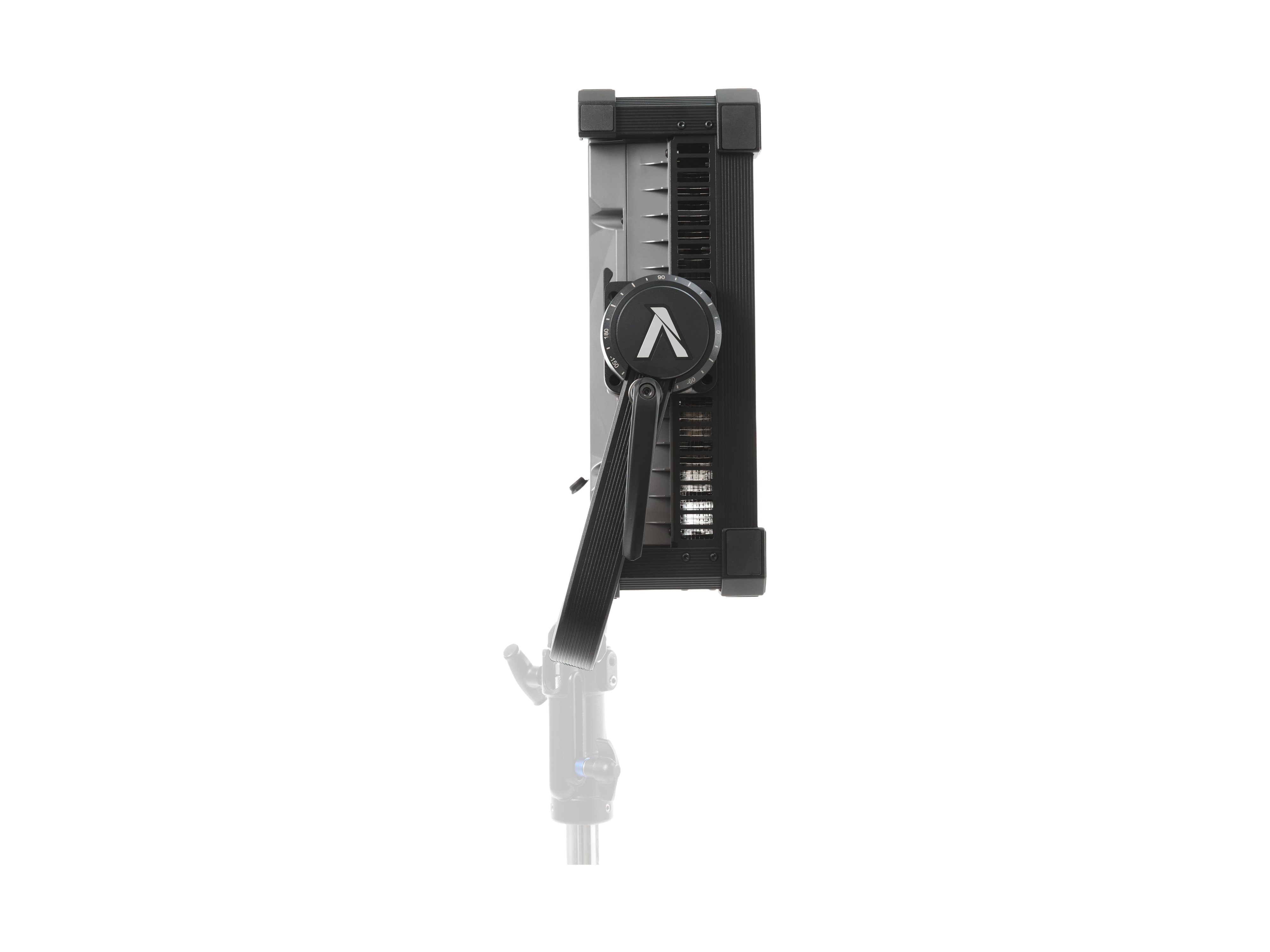

• Features removable yoke for rigging flexibility
• High output to weight ratio: lamp head weight with yoke: 19.65 kg / 43.32 lbs
• IP65 weather resistance
• Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
• 16-bit 5-Pin DMX512 in & out ports
• 2x locking Ethernet ports
• Smooth 0.1-100% stepless dimming
• Dual output modes: Max and Constant
• Lead-follow and studio mode
• 4 fan modes: Smart, High, Medium, Silent (DMX controllable)
• 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
• 15 built-in light effects
• 10 savable presets
• Supports batch firmware upgrades of lamps through Sidus Link Pro/Sidus Link, USB drive, and DMX

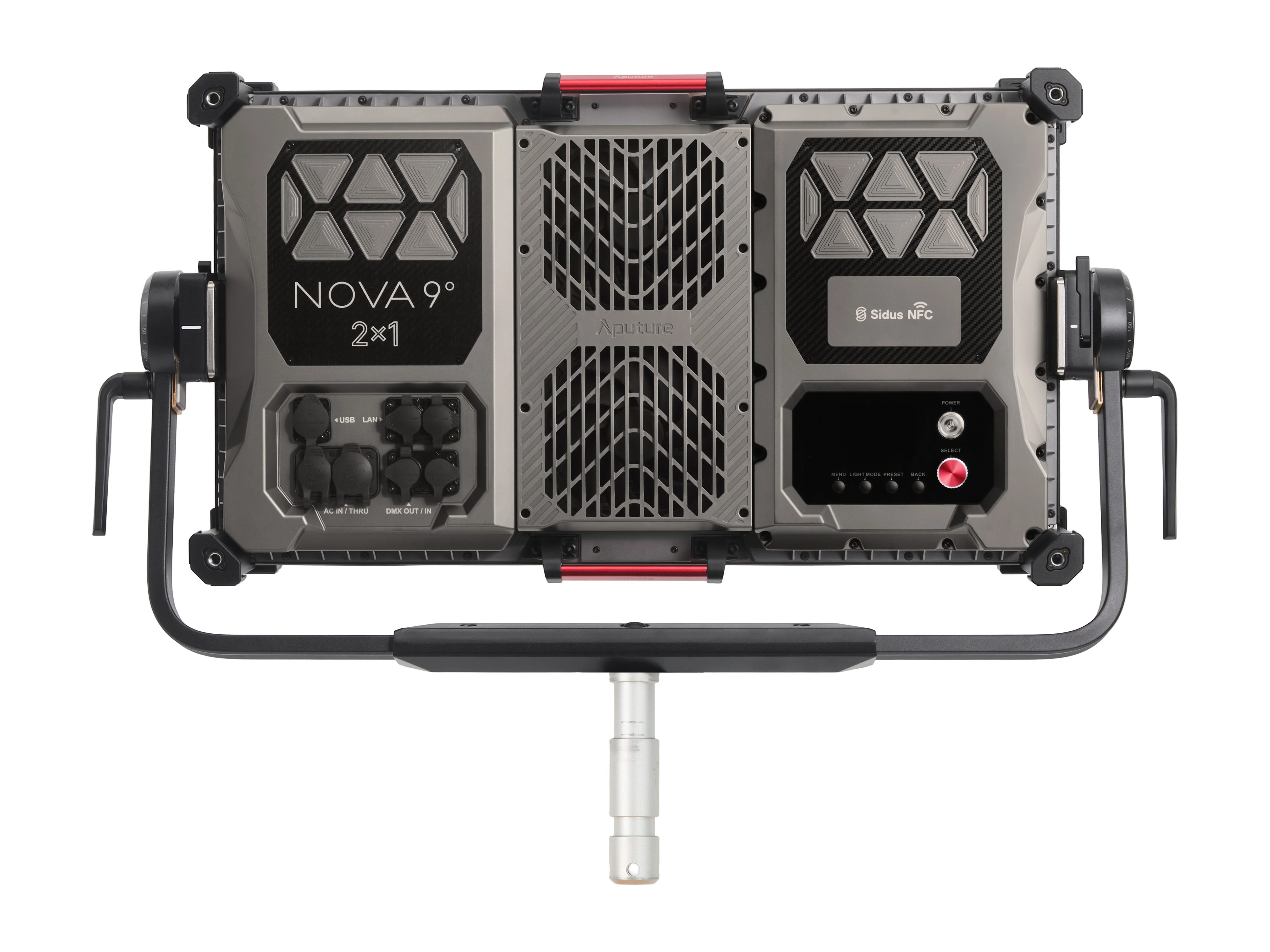

• High-resolution rear color display panel clearly communicates fixture status and settings

At its core lies Aputure’s advanced BLAIR color engine, a five-diode architecture that blends Blue, Lime, Amber, Indigo, and Red emitters for extraordinary spectral reproduction. This chipset achieves ultra-high color accuracy (CRI/TLCI ≥95, SSI 89/86) and precise white point control across an expansive 1,800K–20,000K CCT range, with full ASC MITC ±G green-magenta adjustment. The result is unparalleled flexibility for matching ambient sources, enhancing skin tones, or creating sun-like color rendition with extended red response.

With a native beam angle of just 9º, the NOVA 9º 2x1 focuses its output into a powerful, concentrated shaft of light that maintains intensity over long distances, ideal for simulating sunlight through windows, using with reflectors, or achieving defined shadow edges and specular highlights. Even when paired with its included flat diffusion panel, it retains exceptional punch and smooth luminance distribution for controlled softness.

Engineered for scalability, the NOVA 9º 2x1 can be stacked in multi-light yoke configurations to form large, directional arrays capable of recreating hard daylight effects at 10 meters or more. Sharing the same dimensions and QuickClip front-mounting ecosystem as the NOVA II 2x1, it offers full accessory compatibility and a removable yoke for flexible rigging in studios, truss grids, or on-location builds. Built for professional reliability, the NOVA 9º 2x1 features IP65 weather resistance, dual output modes (Max and Constant), four DMX-controllable fan modes, and a smooth 0.1–100% dimming range for precise exposure control. Its interface and connectivity options meet modern production standards with Sidus Link, Sidus Link Pro, DMX512 16-bit in/out, CRMX, and Art-Net/sACN.

With a high output-to-weight ratio (19.65 kg / 43.32 lbs), durable weather-sealed housing, and seamless integration into the Sidus ecosystem, the NOVA 9º 2x1 is purpose-built for cinematographers and gaffers seeking the narrowest, most color-accurate beam in a portable LED panel form factor. Whether used as a single source or as part of a massive light wall array, the NOVA 9º 2x1 delivers the clarity, throw, and spectral precision needed to replicate the sun itself.

Specifications

• LED Chipset: BLAIR
• CCT Range: 1,800K – 20,000K
• CRI: ≥95
• TLCI: ≥95
• SSI (Tungsten): 89
• SSI (D56): 86
• TM-30 RF (Average): 95
• TM-30 RG (Average): 100
• Max Power Consumption: 800W
• Max Power Output: 650W
• Weather Resistance Rating: IP65
• Native Beam Angle: 9º
• Included Flat Diffuser Beam Angle: 80º
• Pixel Count: 4 pixel
• AC Operating Voltage: 100V ~ 240V / 50-60 Hz
• Operating Temperature: -20ºC ~ 50ºC / -4ºF ~ 122ºF
• Storage Temperature: -40ºC ~ 80ºC / -40ºF ~ 176ºF
• Control Methods: Onboard, Sidus Link, Sidus Link Pro, DMX512, CRMX, Art-Net/sACN, RDM
• Control Ports
  • 1x 5-pin DMX in
  • 1x 5-pin DMX out
  • 2x locking RJ45
• Firmware Upgrade Methods: Sidus Link, Sidus Link Pro, USB-A
• Wireless Range (Bluetooth & CRMX): ≤100m / ≤328.1ft
• Cooling Method: Active (onboard fans)
• Lamp Head Fan Noise Levels @ 1m
  • Smart Mode: Variable
  • High Speed Mode: 40 dBa
  • Medium Speed Mode: 35 dBa
  • Silent Mode: 0 dBa
• Weight

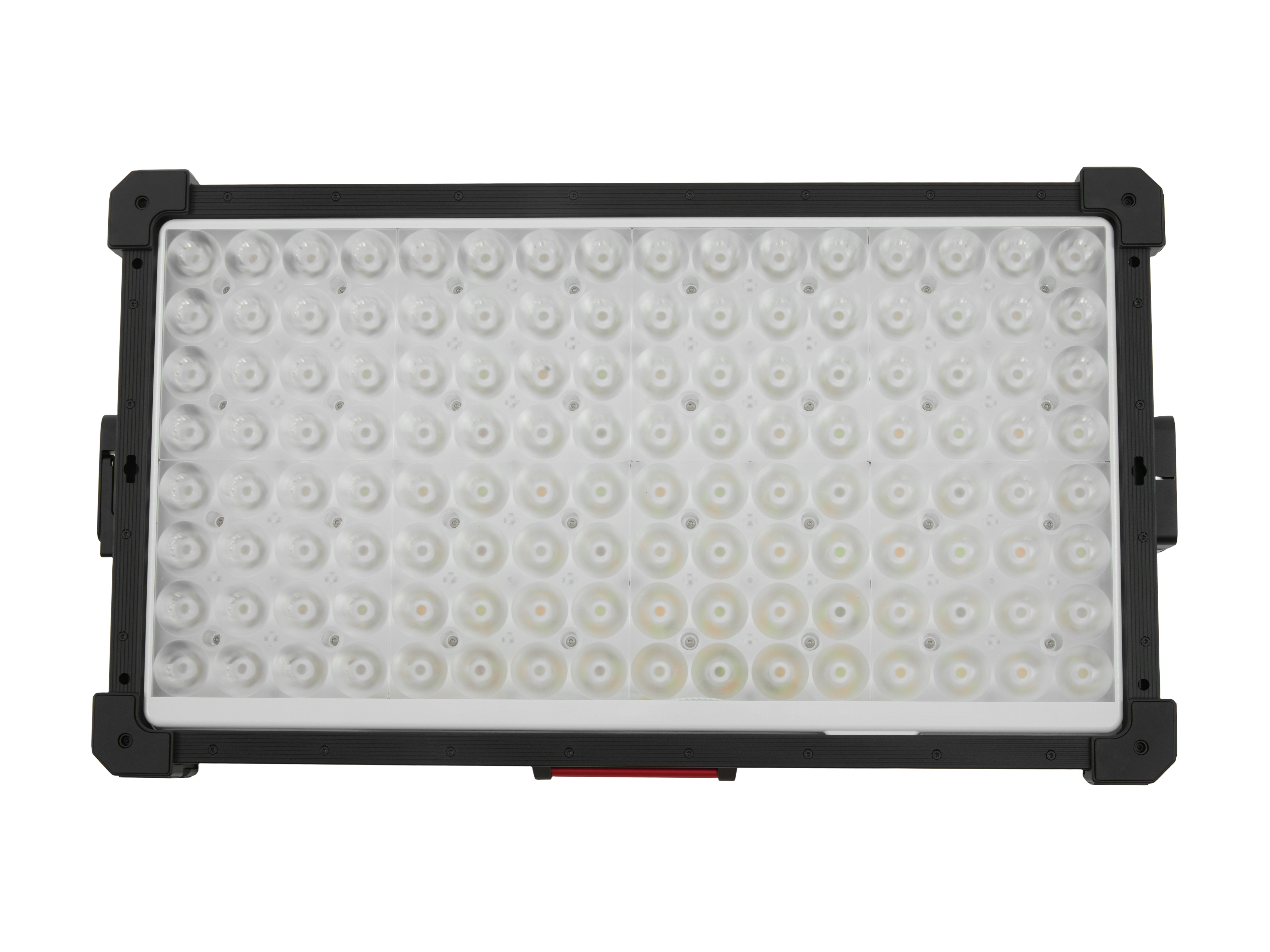

  • Lamp Head (Without Yoke): 38.03 lbs (17.25kg)

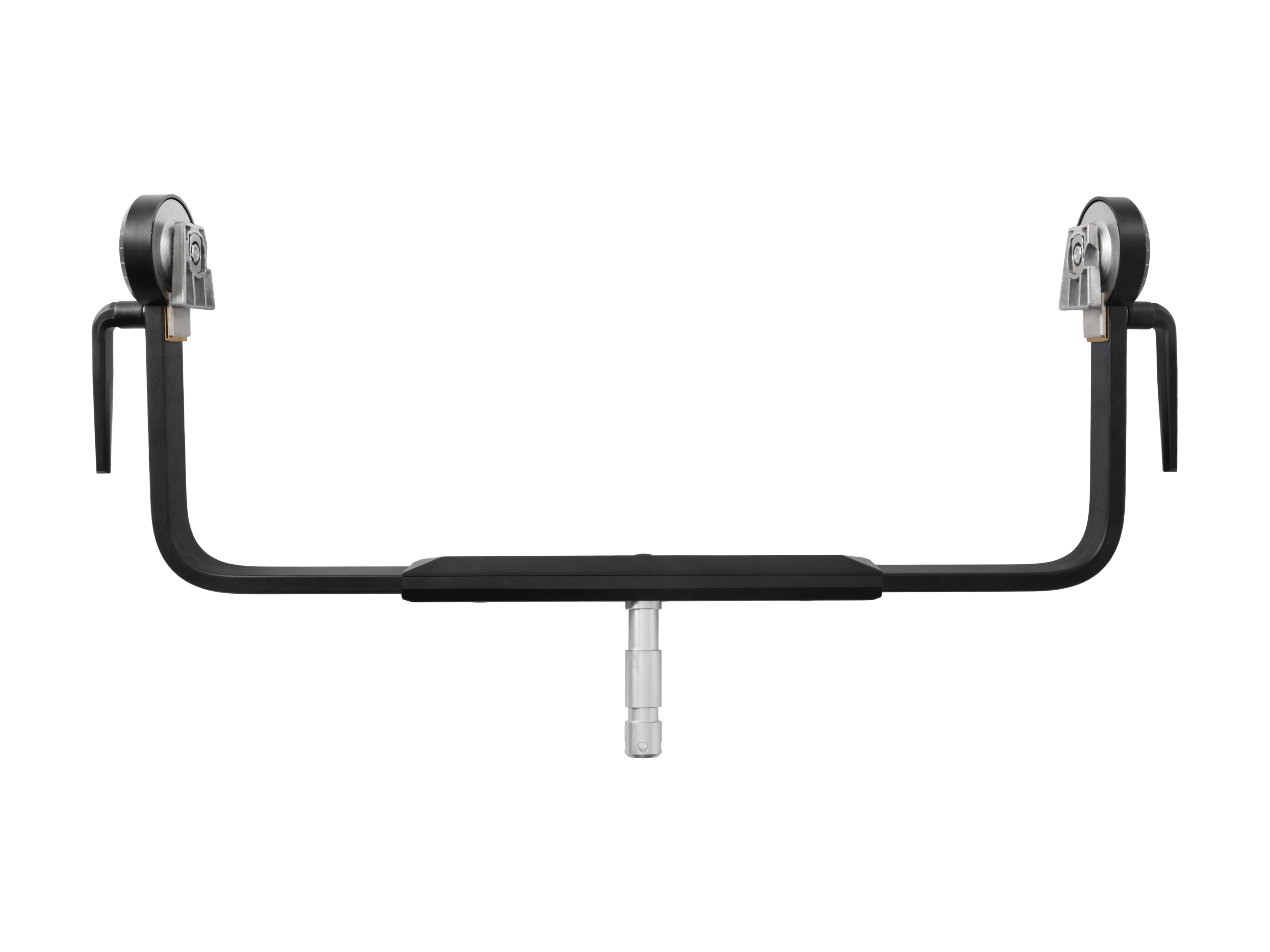

  • Removable Yoke with Junior Pin: 5.29lbs (2.4kg)
  • Flat Diffuser: 4.45lbs (2kg)
  • AC Power Cable (6m): 1.76 lbs (0.8kg)
• Dimensions
  • Lamp Head (Without Yoke): 27.2 x 15.3 x 5.4 in (69.1 x 38.8 x13.6 cm)
  • Lamp Head (With Yoke): 32.7 x 22.3 x 6.1 in (82.9 x 56.6 x 15.4 cm)

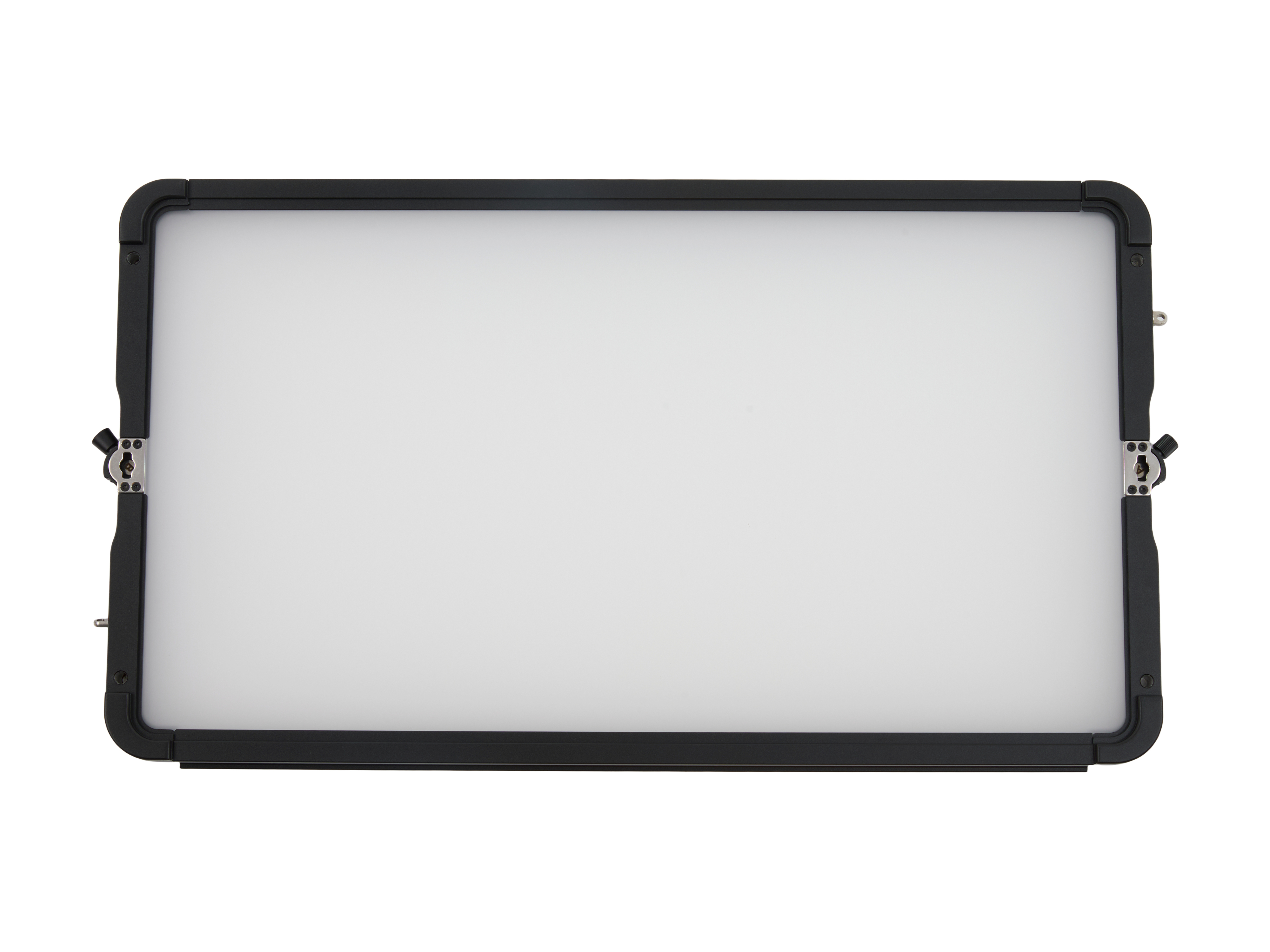

  • Flat Diffuser: 26.9 x 14.8 x 1.6 in (68.4 x 37.5 x 4.0 cm)

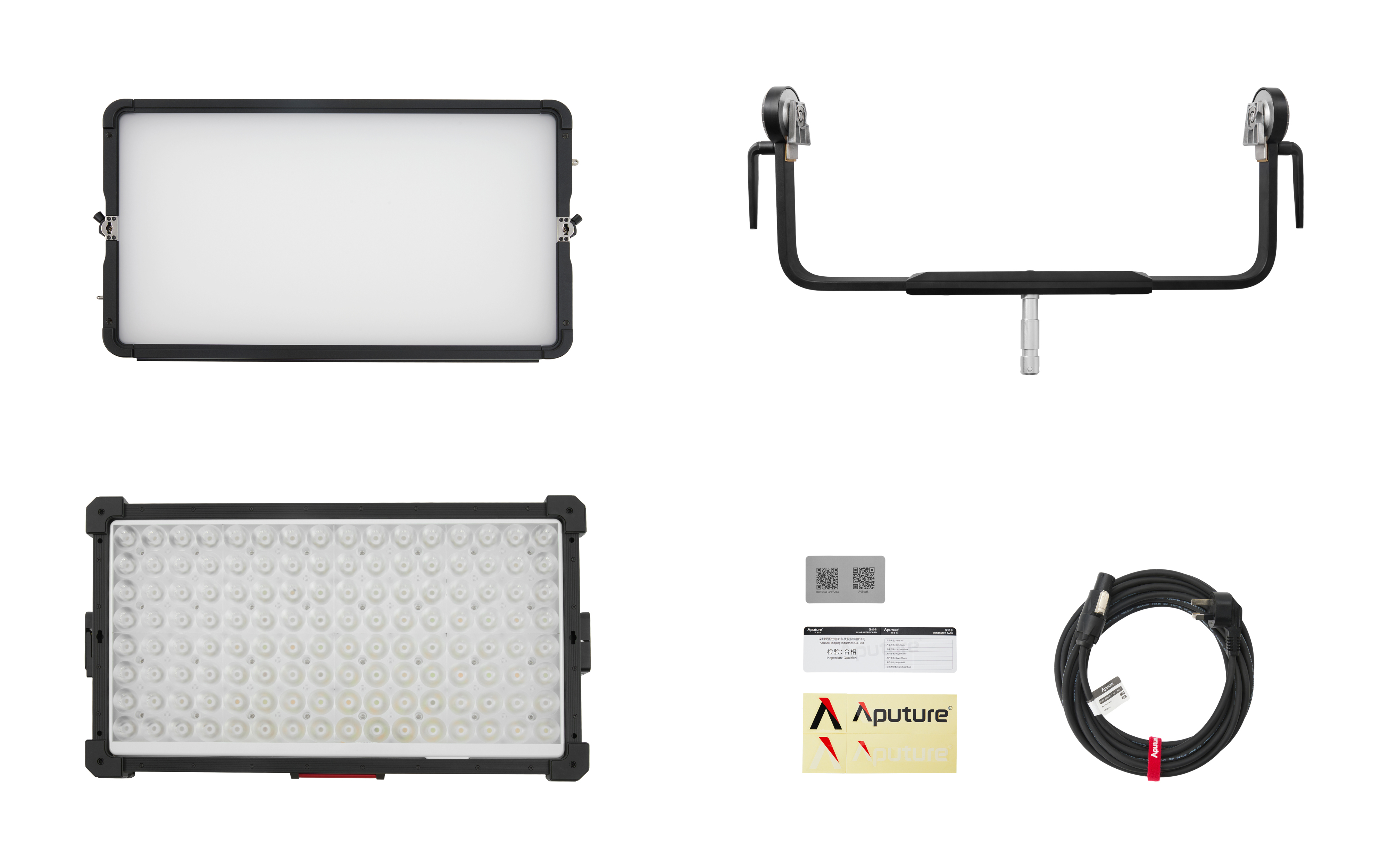

What’s in the Box

• 1x NOVA 9º 2x1 Lamp Head
• 1x NOVA 2x1 Removable Yoke with Junior Pin
• 1x NOVA 2x1 Flat Diffuser
• 1x AC Power Cable (6m)
• 1x Safety Chain (50cm)
