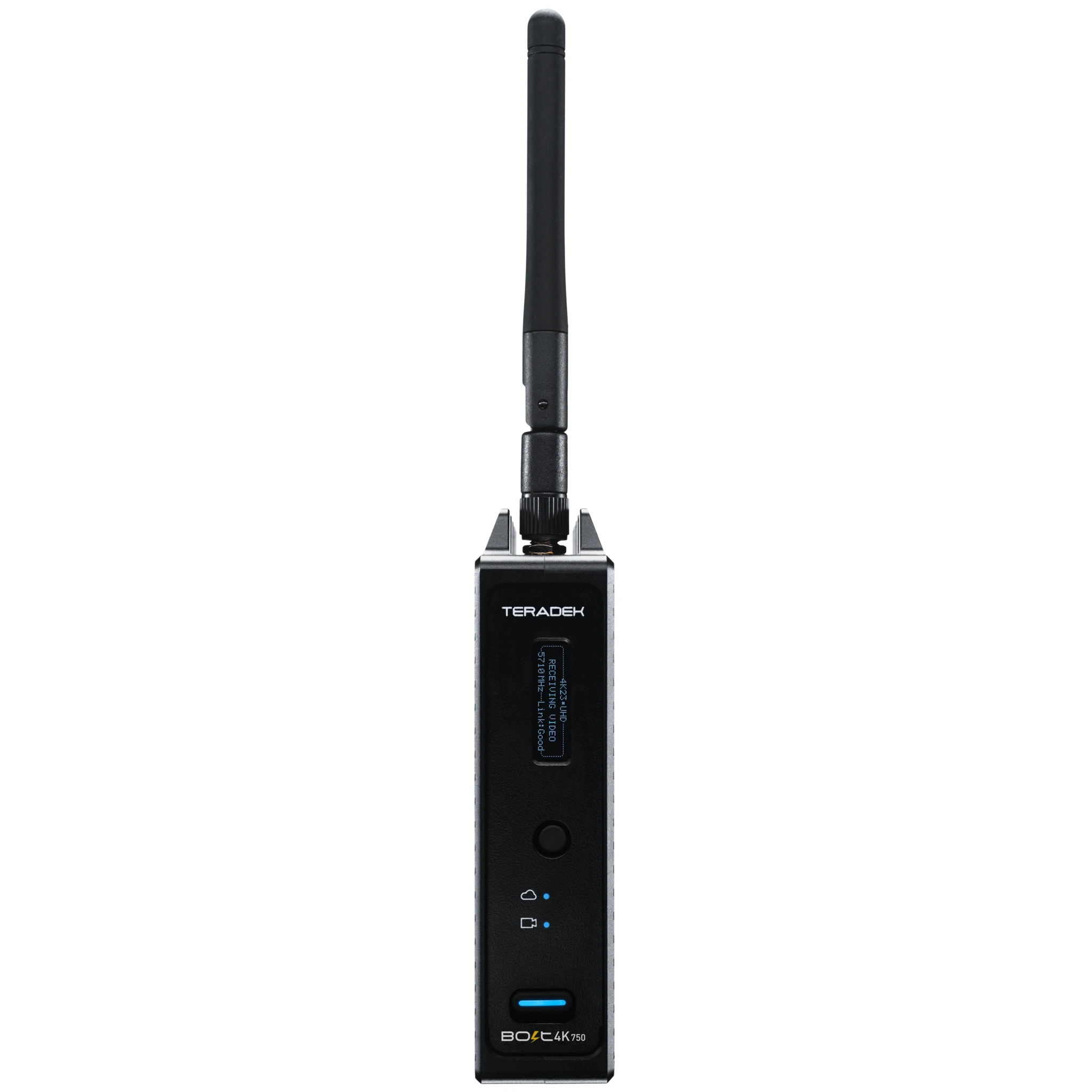

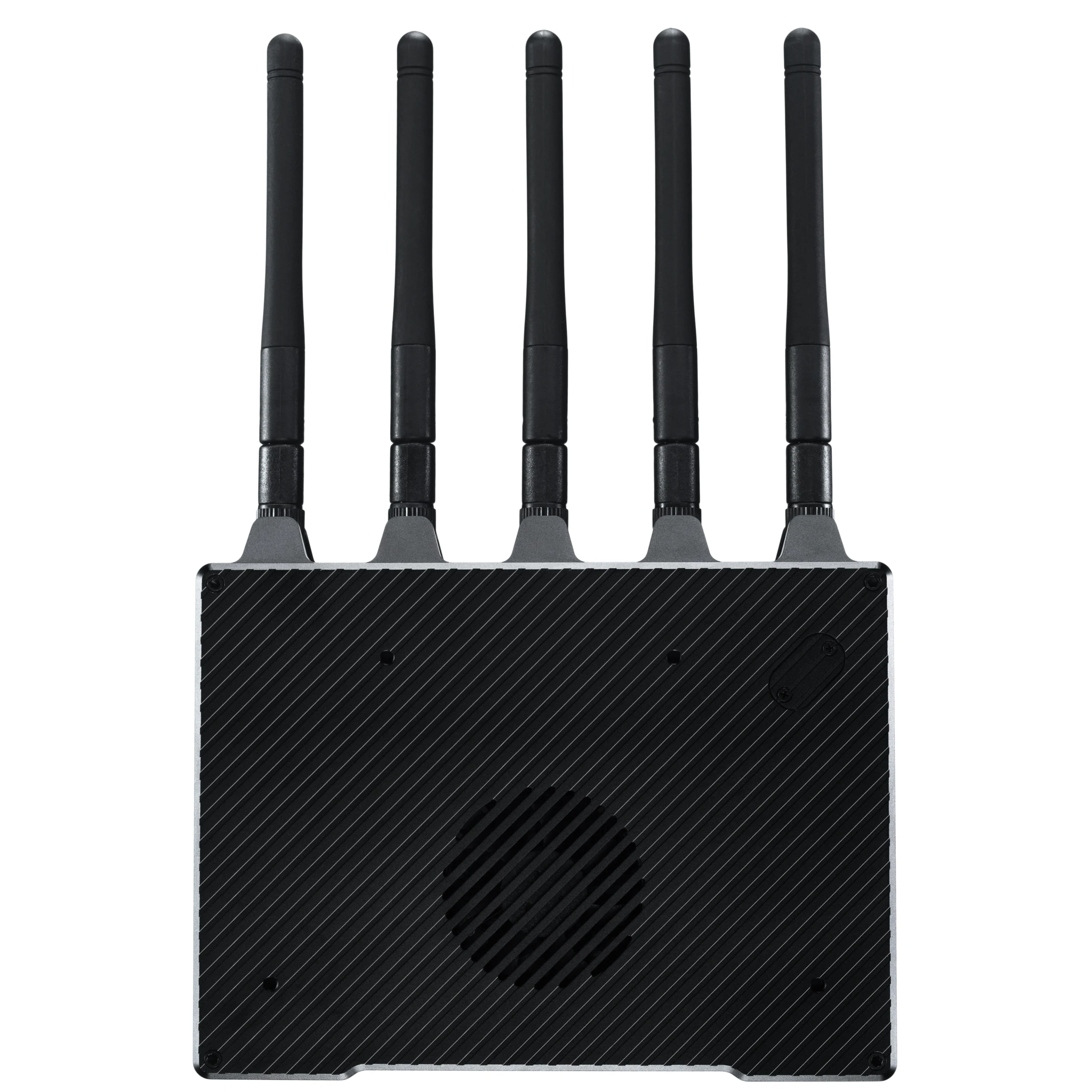

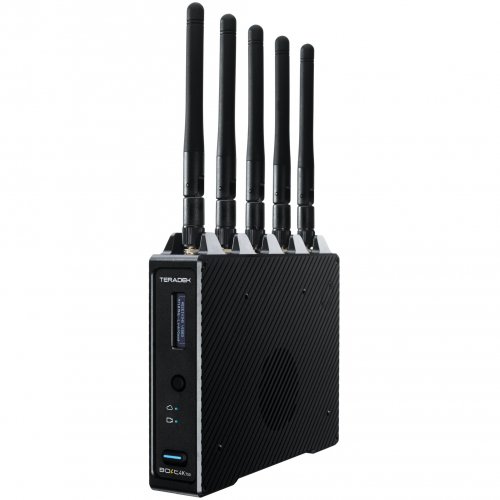

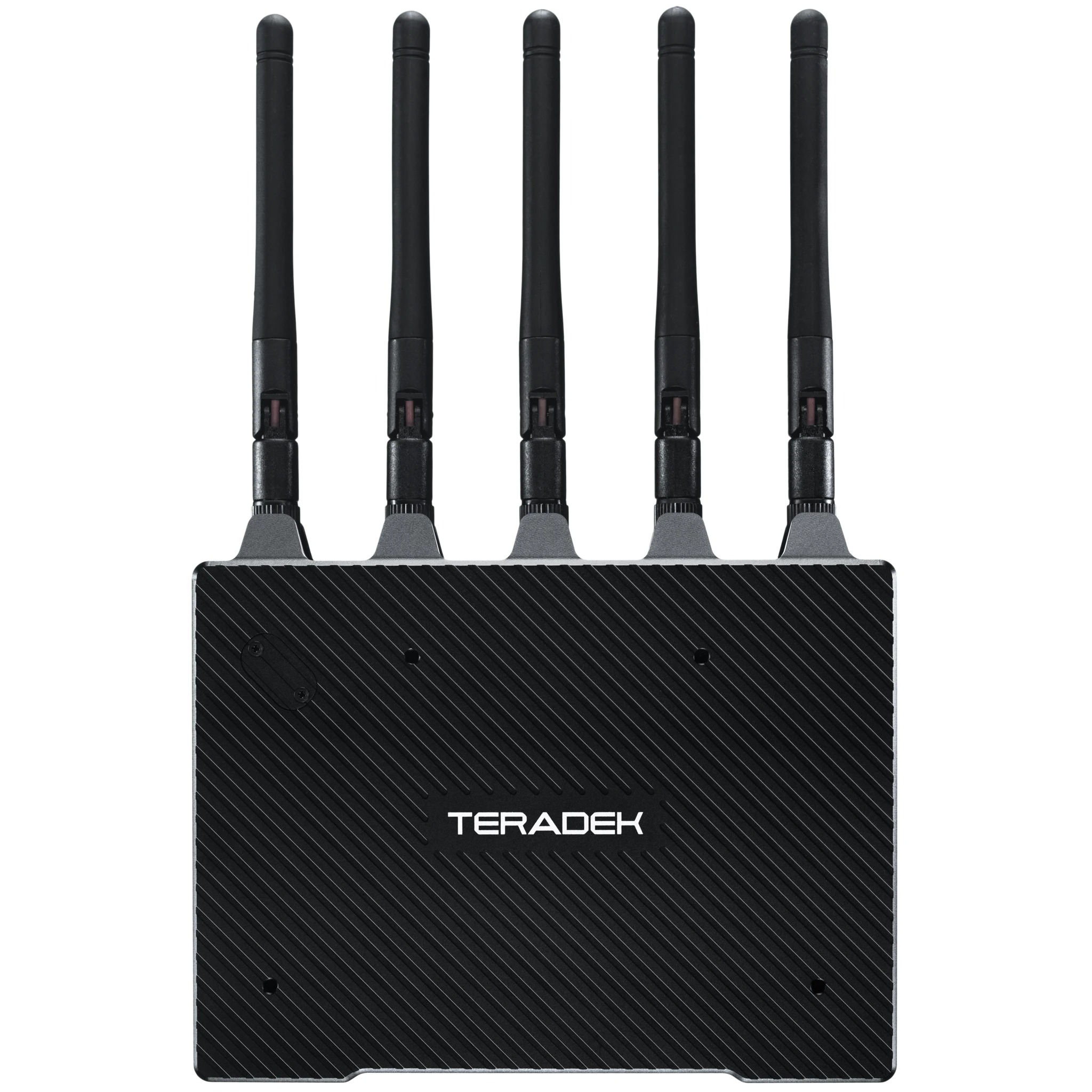

Teradek Bolt 4K 750 RX Receiver

About: Teradek Bolt 4K 750 RX Receiver

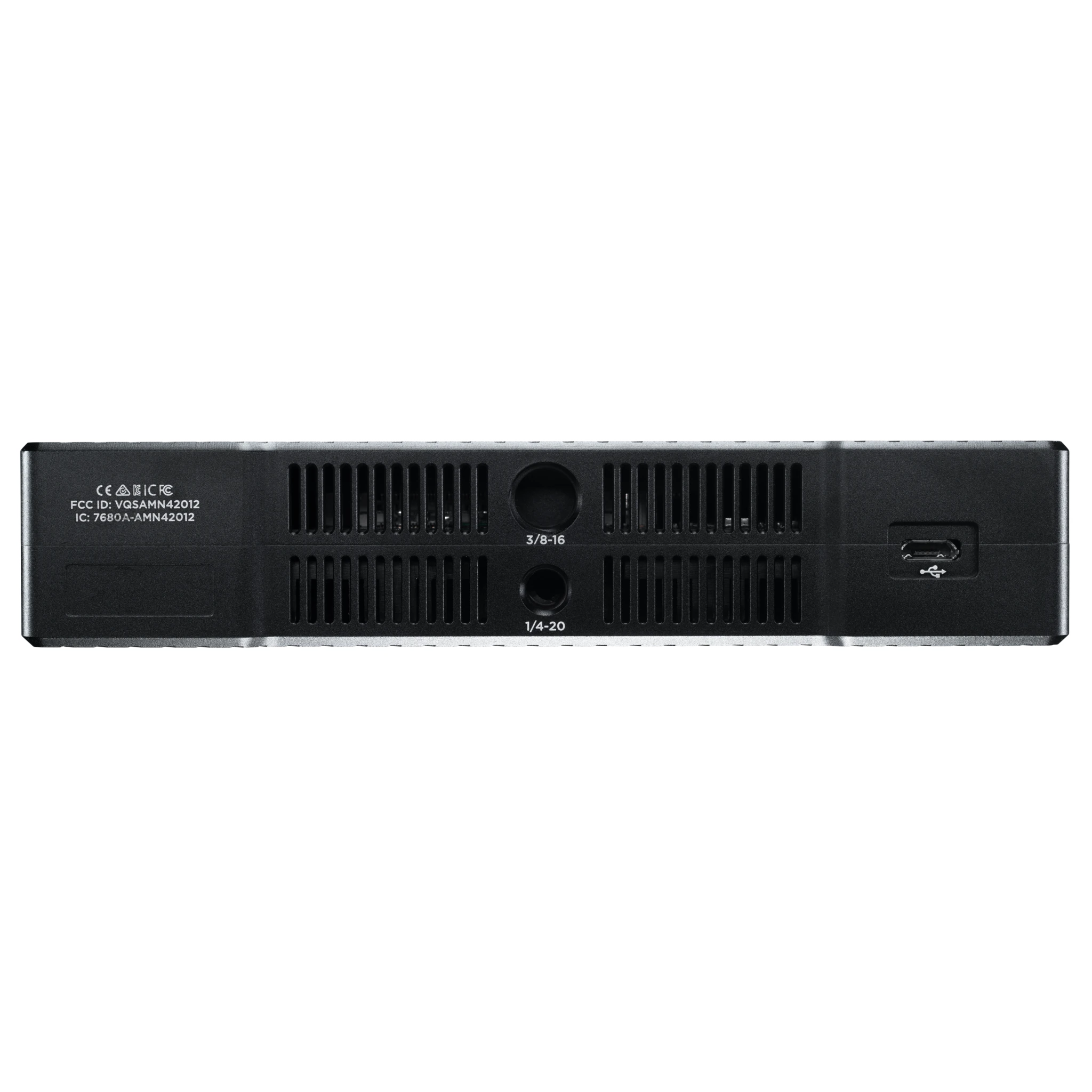

The Bolt 4K RX is a real time wireless video receiver that supports 1080p and 2160p video signals at 60FPS with less than 1ms of delay up to 750 feet. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. Includes integrated 1/4"x20 and M3 mounting points. Optional Battery Plates are sold separately.

Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.

Real-Time 4K Wireless Video
Receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 feet of range.

True HDR Color
Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Inputs/Outputs

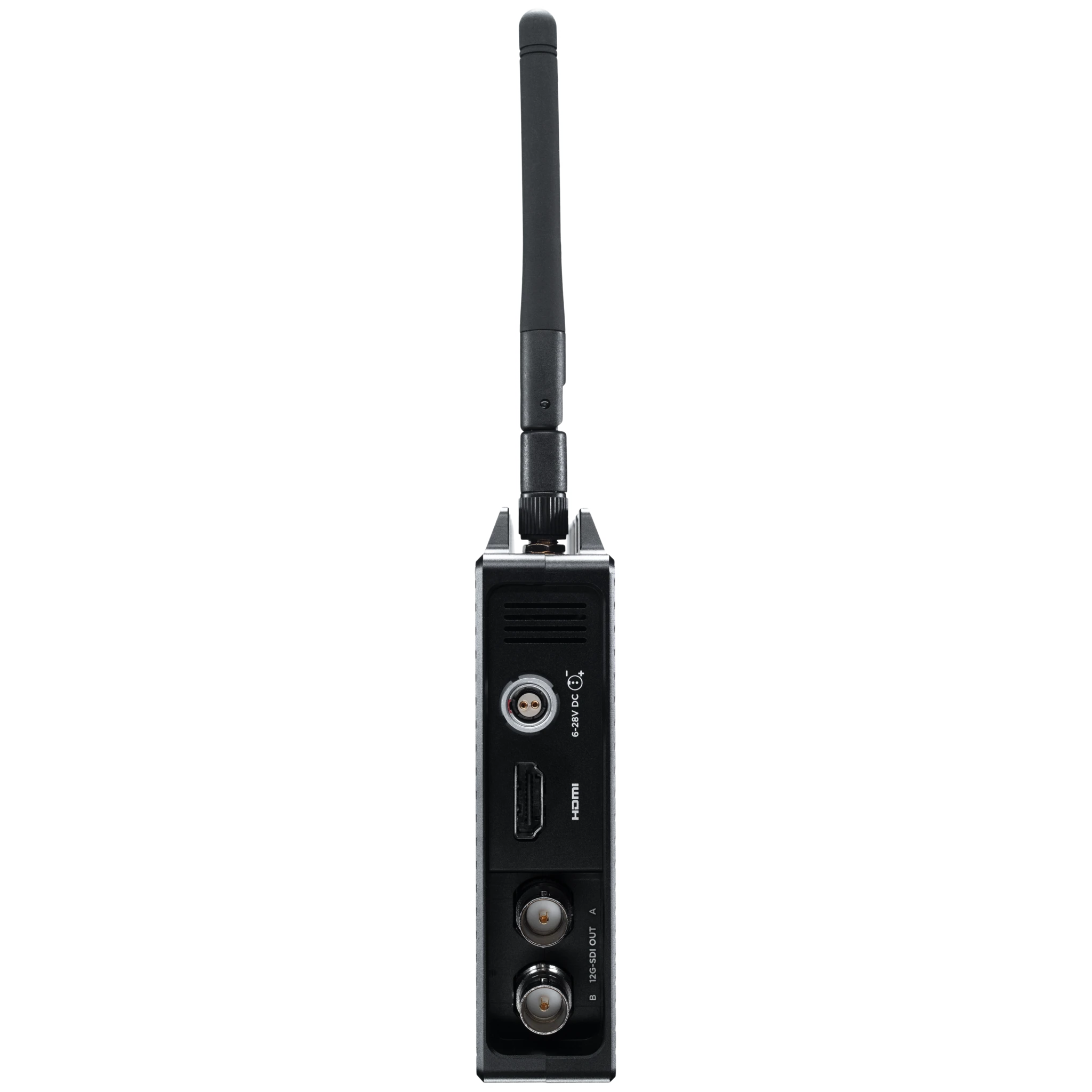

2x 12G-SDI, 1x HDMI 2.0

Battery Plates
Optional Gold Mount or V-Mount battery plate with pass-through power available.

Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.

Bolt App for iOS
Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand.

What's In The Box?

• 1 x Bolt 750 12G-SDI/HDMI Wireless RX
• 1 x (Bit 118) 2pin Conn. to PowerTap - 18in Cable
• 1 x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
• 1 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
• 1 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
• 1 x Large Universal Box
• 1 x Foam Bolt 4K RX
• 1 x Small Insert for Large Universal Box Bolt 4K
• 1 x Sticker for Universal Box - Bolt
• 1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
• 5 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
• 1 x Teradek Standard Terms and Conditions
• 1 x Insert - Product Register
• 1 x Quickstart Guide - Bolt 4K 750/1500
• 1 x Insert - Bolt 4K A/C Adapter Requirements
