Teradek Ace 750 TX

About: Teradek Ace 750 TX

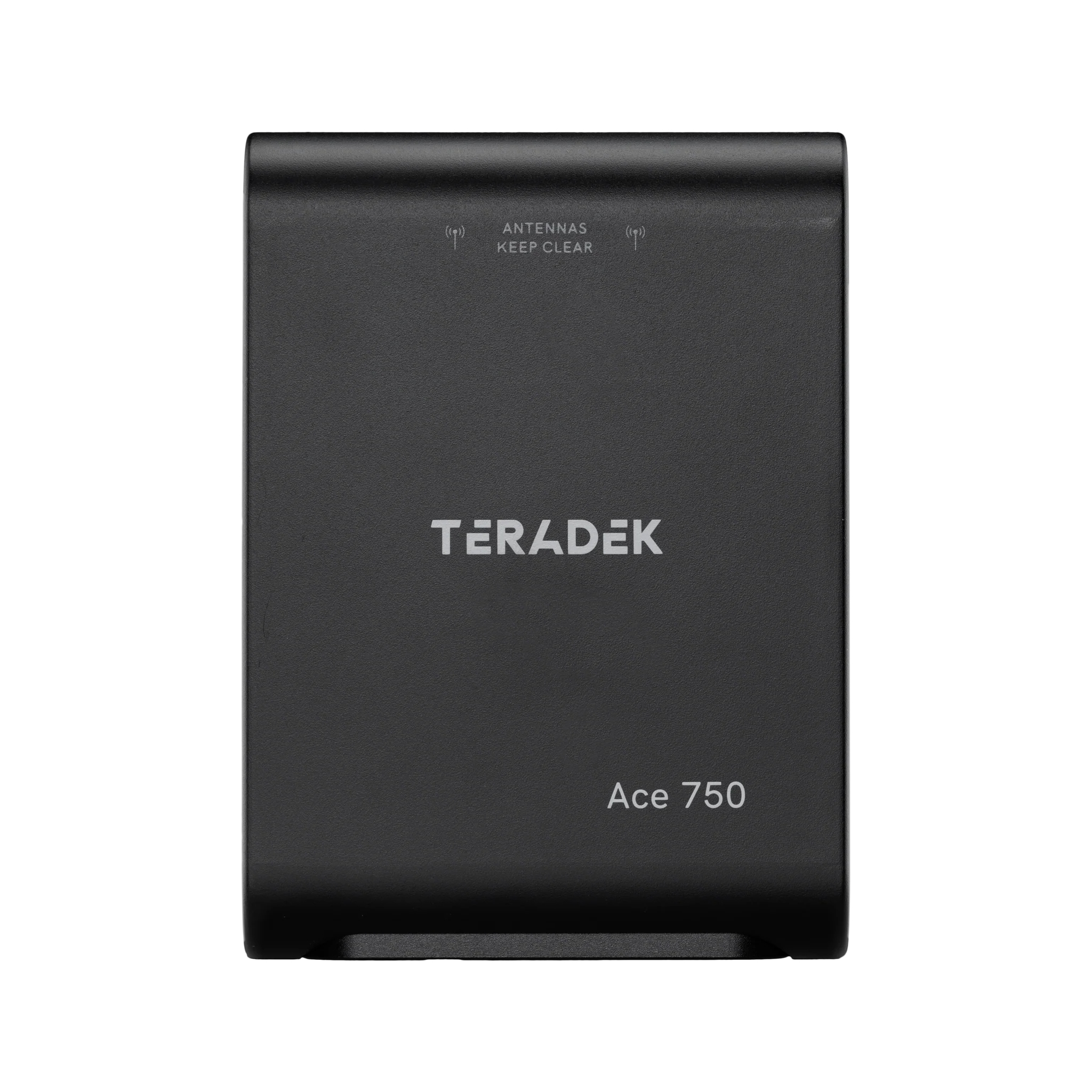

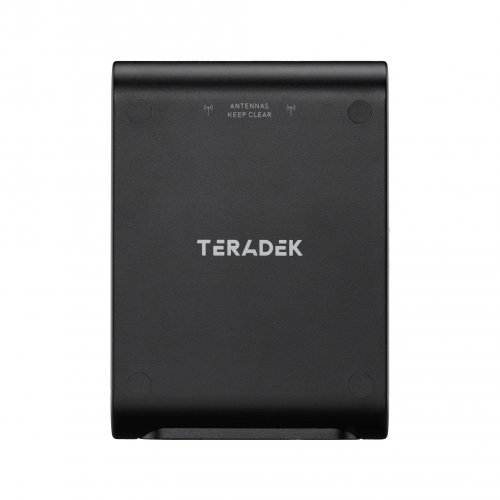

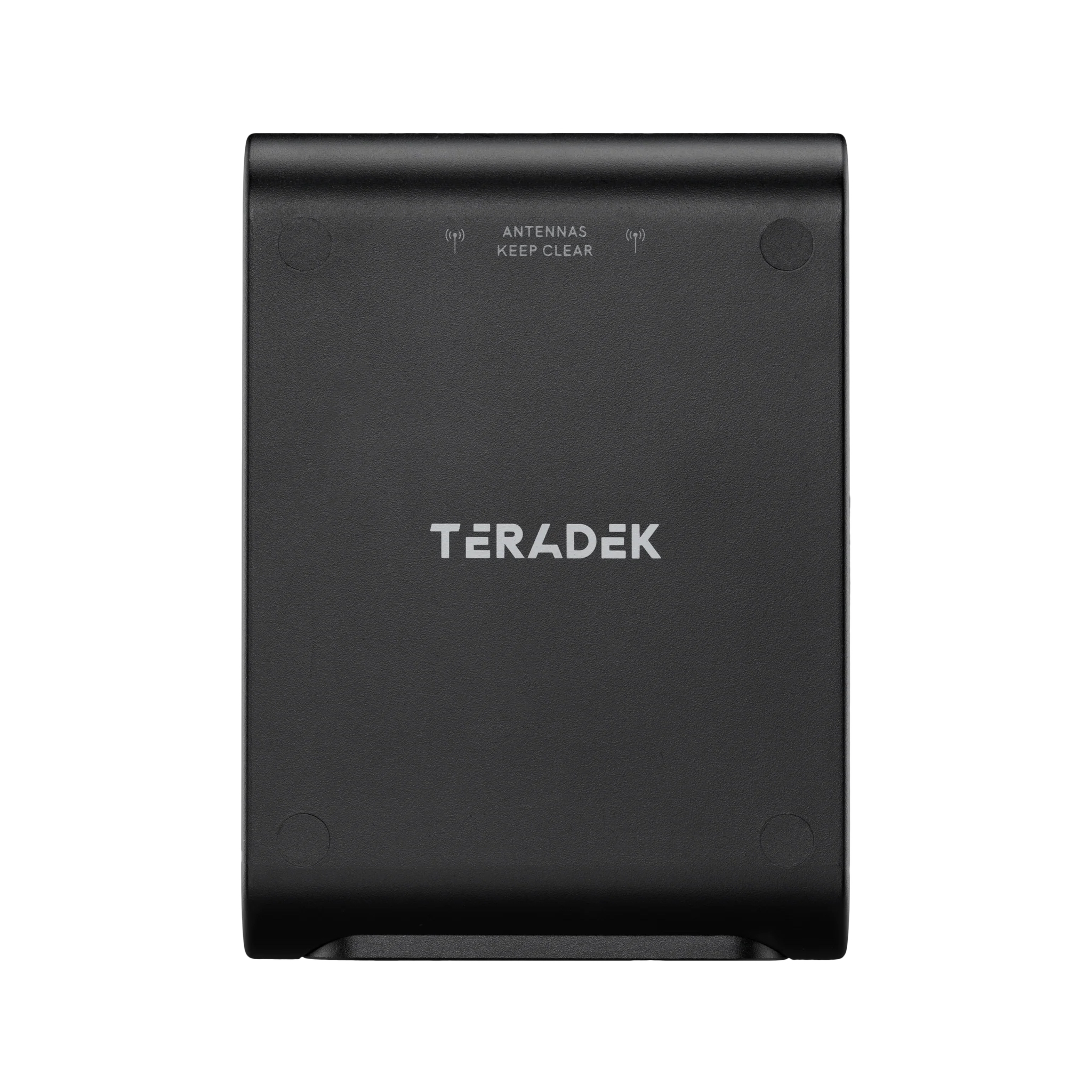

Ace 750 TX is a lightweight, compact, HDMI wireless video transmitter with built-in antennas that is designed to be used with mirrorless cameras, camcorders, action cameras, and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 TX is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 TX features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate.

• 4Kp30 10-bit HDR
• True zero-delay - less than 0.01 seconds of latency
• 6GHz auto frequency-switching
• Range up to 750 feet / 230m
• Multi-receiver capable - up to 6 Receivers per Transmitter

The transmitter (TX) and receiver (RX) units automatically detect and select the 5Ghz or 6GHz RF channel with the least interference and employ Auto-Frequency Switching to maintain optimal signal quality. The TX can send video to up to six RX devices at the same time using the Bolt Manager app for iOS or Android.

Ace 750 is built with the same reliable wireless technology found in our acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.

Specifications

• Ace 750 TX
  • Video
    • Video Inputs - 1x HDMI 1.4b Type-A receptacle
    • Color Sampling
      • YCbCr 4:2:2 10-Bit
      • RGB 4:4:4 8-bit
    • Delay Tx To Rx - <0.001sec (without format conversions)
  • Supported Resolutions
    • 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60
    • 1080i50/59.94/60
    • 720p50/59.94/60
  • Video Processing
    • Video Compression - Visually Lossless
  • Audio Processing
    • Audio Compression - 48kHz 24-bit PCM
  • Inputs
    • Audio Input - Embedded HDMI Audio Input (2 channel)
  • Physical
    • Dimensions - 4.39" x 3.19" x 1"
    • Weight - 6.6oz (187g)
    • Construction - ABS Plastic / Milled Aluminium

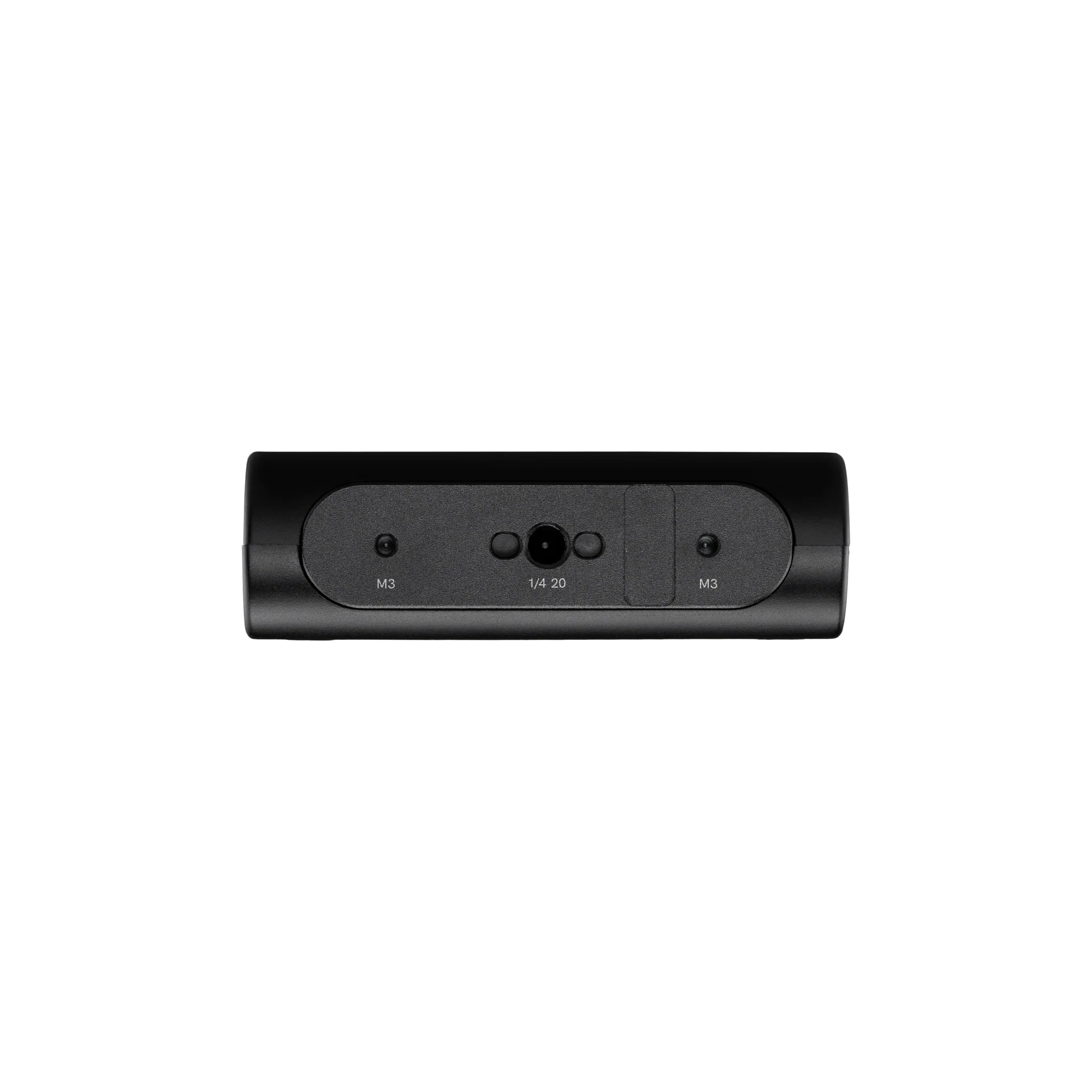

    • Mountability - Multiple mounting options with M3 and 1/4-20” holes

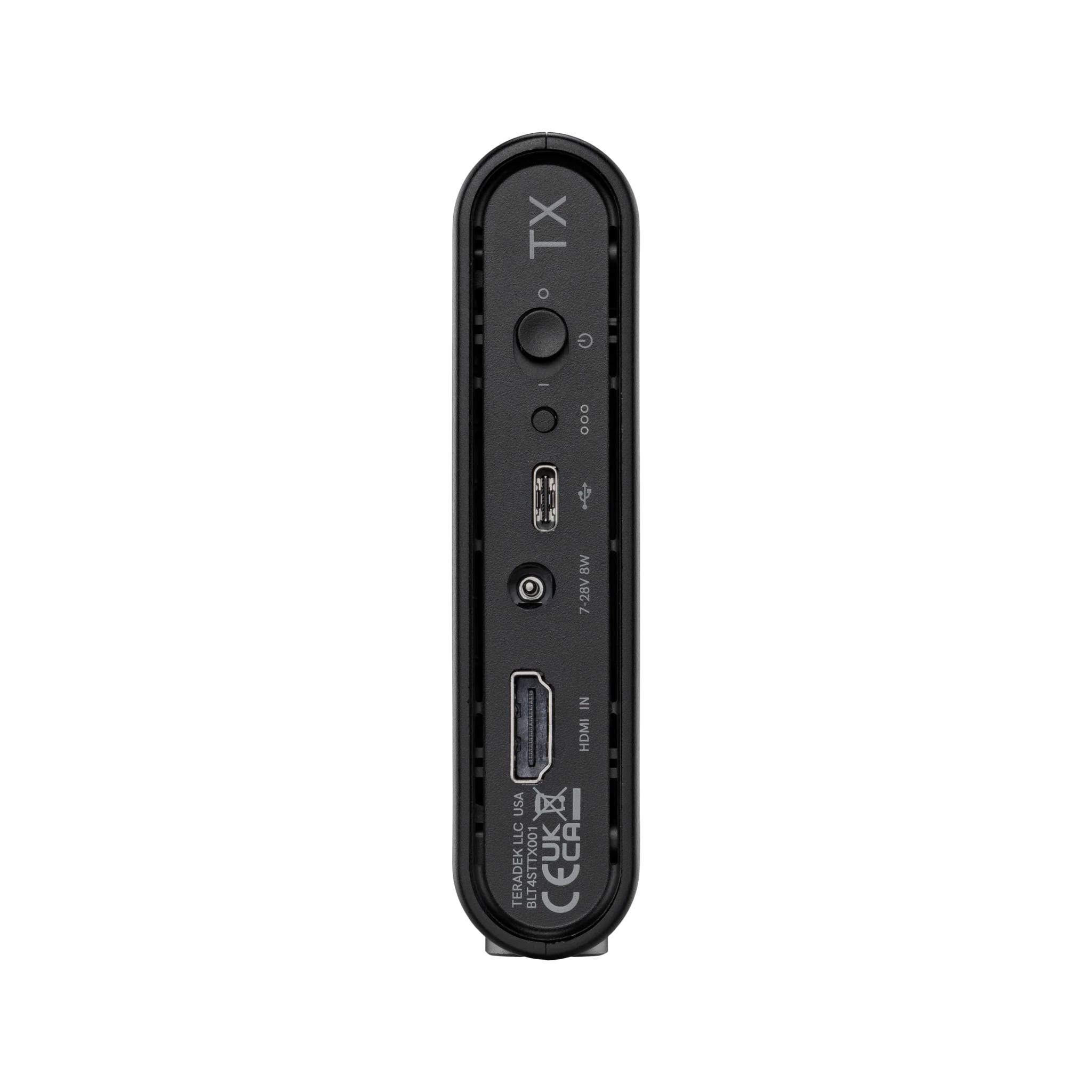

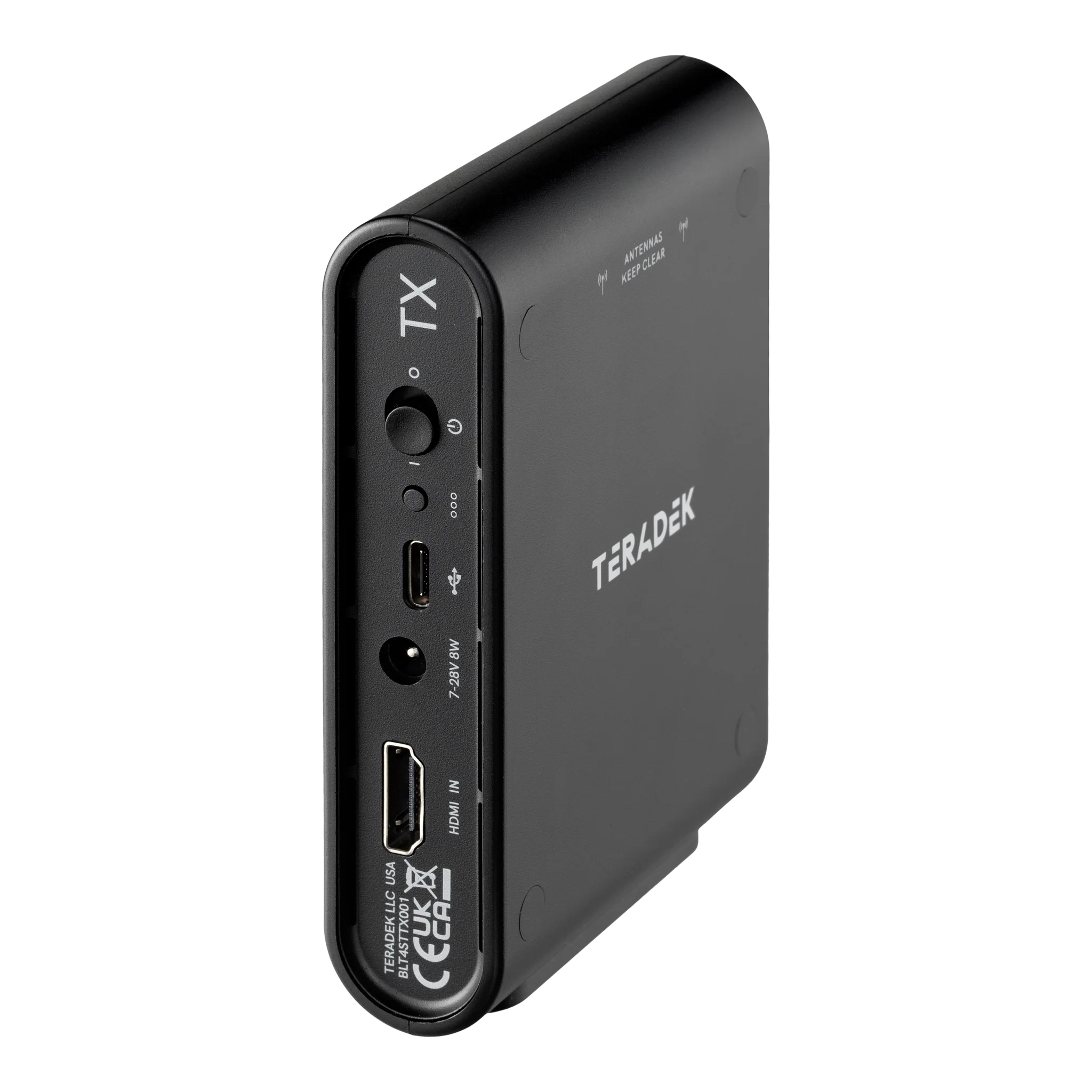

  • Interfaces
    • Configuration Interfaces

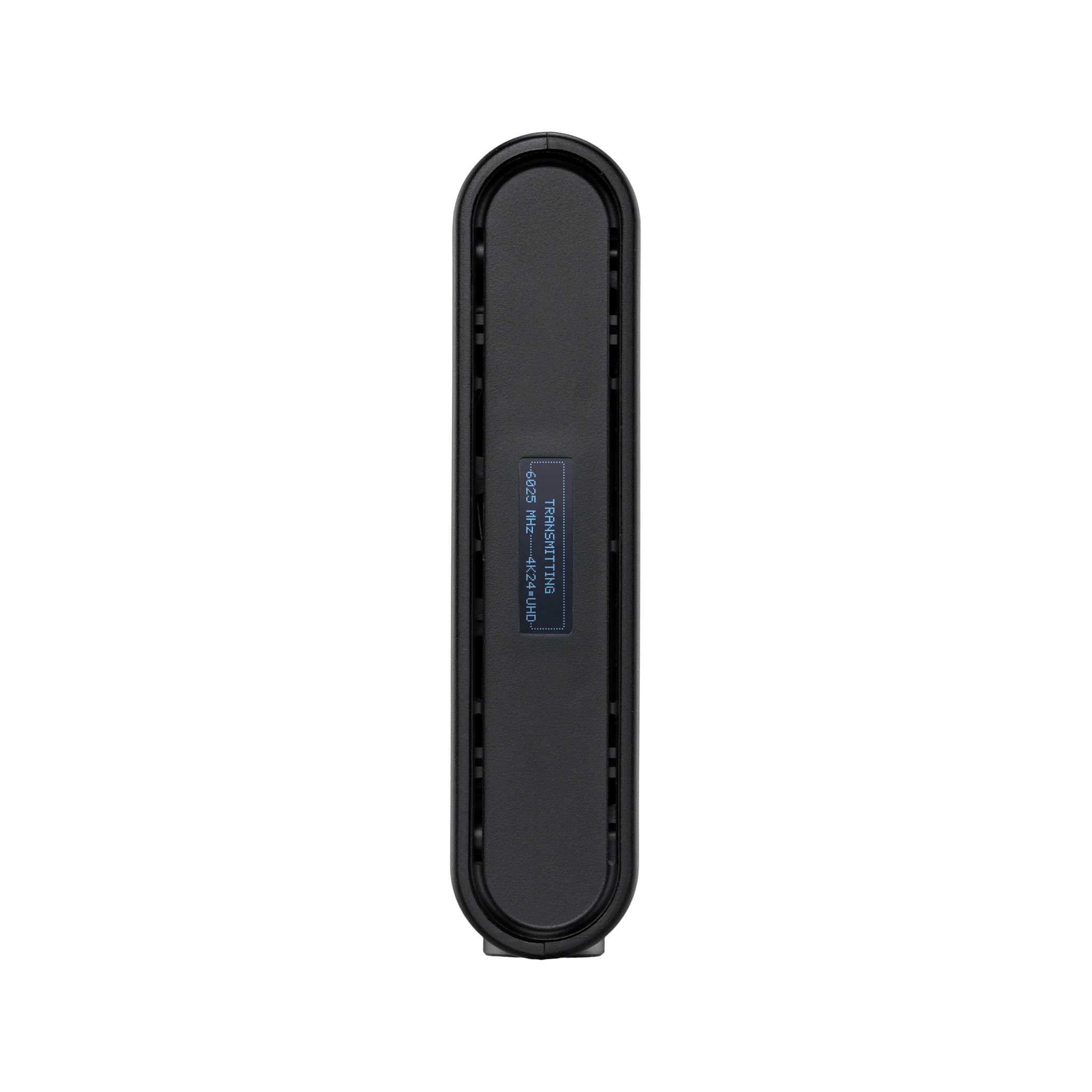

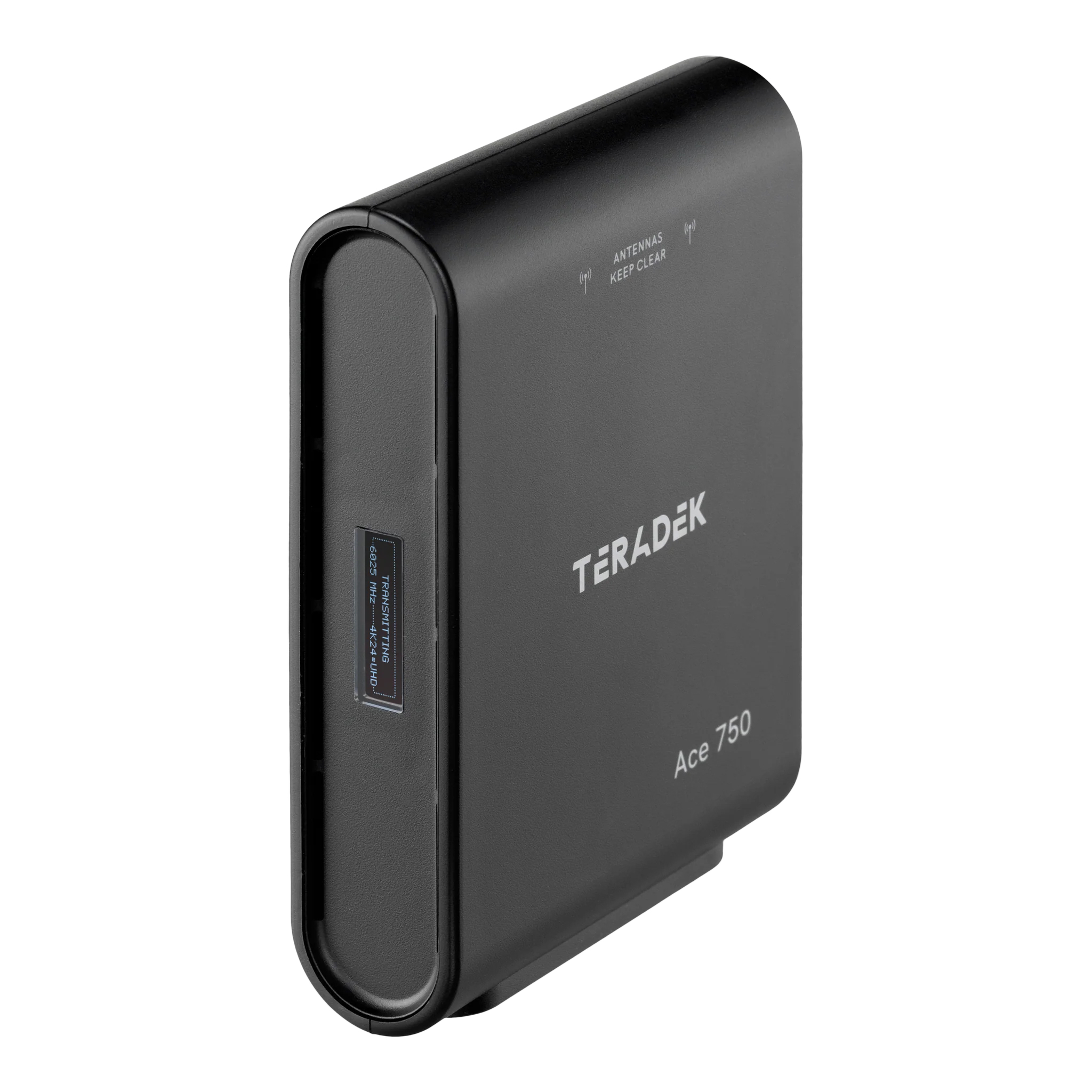

      • OLED display
      • Input video format
      • Selected frequency
      • Video Quality %
      • Link status
    • Switches - On/Off Switch
    • Mobile App - Bolt App
    • Desktop App - Bolt Manager application for OSX & Windows
    • Usb Interface Functionality - Upgrade via USB C
    • Bluetooth - Yes
  • Network
    • Antennas - 2x 2dBi internal antennas (AMC mode always on)
    • Wireless - DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
    • Rf Channel Selection - Auto only, 40 MHz only, no blocked frequencies
    • Encryption - AES-128, RSA-1024 key exchange
    • Rf Power - 19 dbm EIRP (<80mW transmit power)
    • Range - Up to 750 ft, line of sight
    • Unicast Multicast - Yes 1 TX to 6 RX
    • Noise Rejection - Can coexist with WiFi and 5GHz cordless phones, can operate up to 4 sets in same location,
    • Interoperability Compatibility - Compatible with Bolt 4k and Bolt 6 products
  • Power
    • Power Input - Barrel connector 7-18V
    • Battery - None, optional Sony/Canon dual battery plate
    • Nominal Power Consumption - 6 Watts
  • Environmental
    • Operating Temperature - 0-40℃

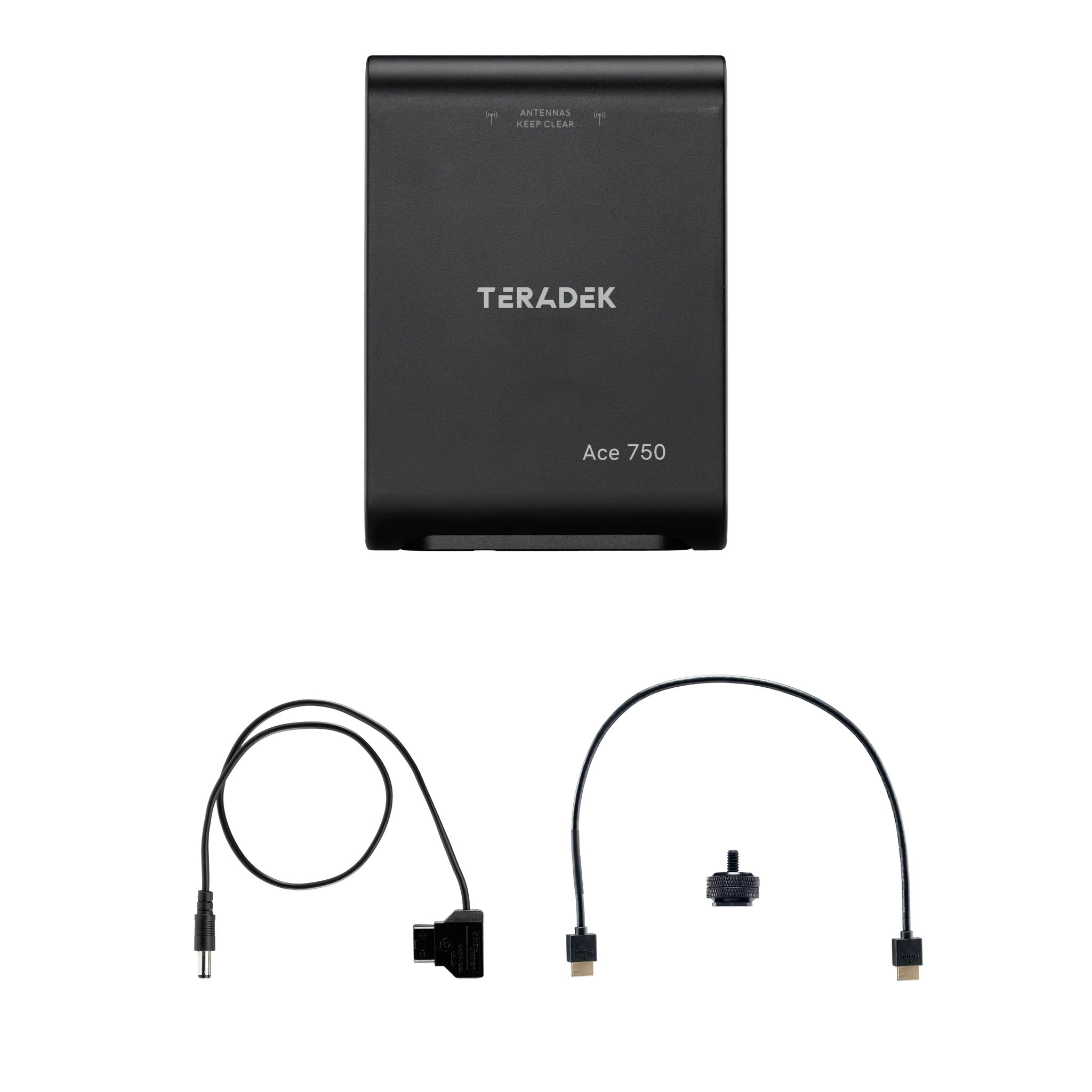

What's In The Box

• 1 x Ace 750 Transmitter
• 1 x Hot Shoe Adaptor
• 1 x Ultra Thin HDMI Male Type A - HDMI Male Type A - 18in Cable
• 1 x PTap to r/a barrel - 18in Cable
