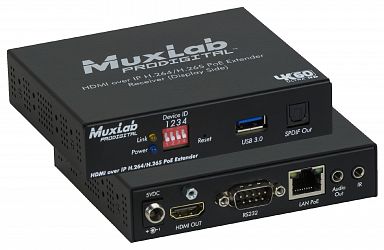

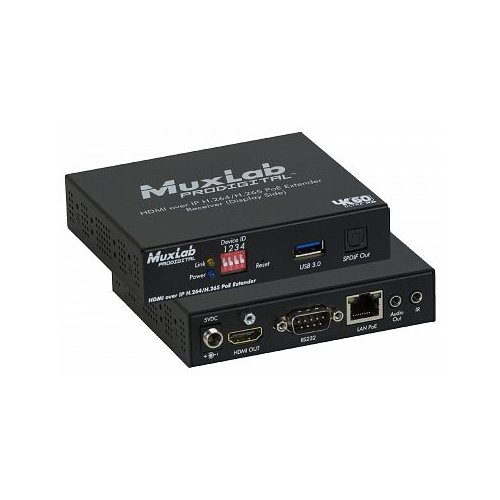

Muxlab HDMI over IP H.264/H.265 PoE Extender Receiver

About: Muxlab HDMI over IP H.264/H.265 PoE Extender Receiver

The HDMI over IP H.264/H.265 PoE Extender allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, and supports Video Wall and Multiview capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe. The transmitter accepts a 1080p @ 60Hz video and streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed on a 4K monitor. The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz. These devices support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

• Receiver supports up to 4K @ 60Hz (4:4:4) video streams
• Receiver up-scales 1080p @ 60Hz video streams from Transmitter and other devices up to 4K @ 60Hz
• Transmitter supports up to 1080p @ 60Hz video
• Supports Video Wall and Multiview capabilities
• Extends local audio/video transmission up to 330ft (100m) over Cat5e/6
• H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
• High image quality and <200ms latency in low latency mode with H.265
• Supports 100’s of TX & RX devices depending on network bandwidth
• Supports Multicast, RTSP, RTMP, HLS, FLV and TS
• Supports SPDIF (TosLink) Audio Out (RX)
• 2CH audio insert (TX), and 2CH audio extract (RX)
• RS232 and Directional IR for remote control of end-devices
• PoE powered, via PoE (PSE) Ethernet Switch
• Managed via Pro Digital Network Controller (500811), and MuxLab Control Smartphone & Tablet App
