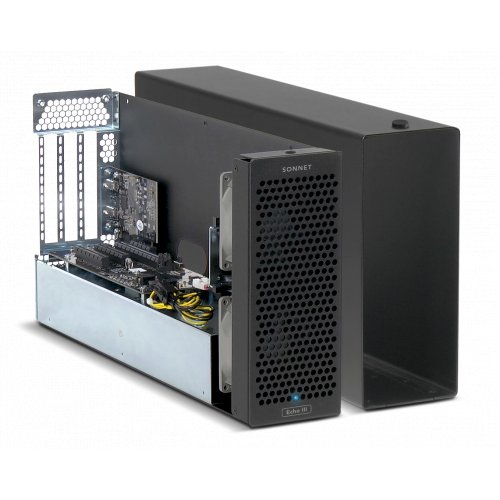

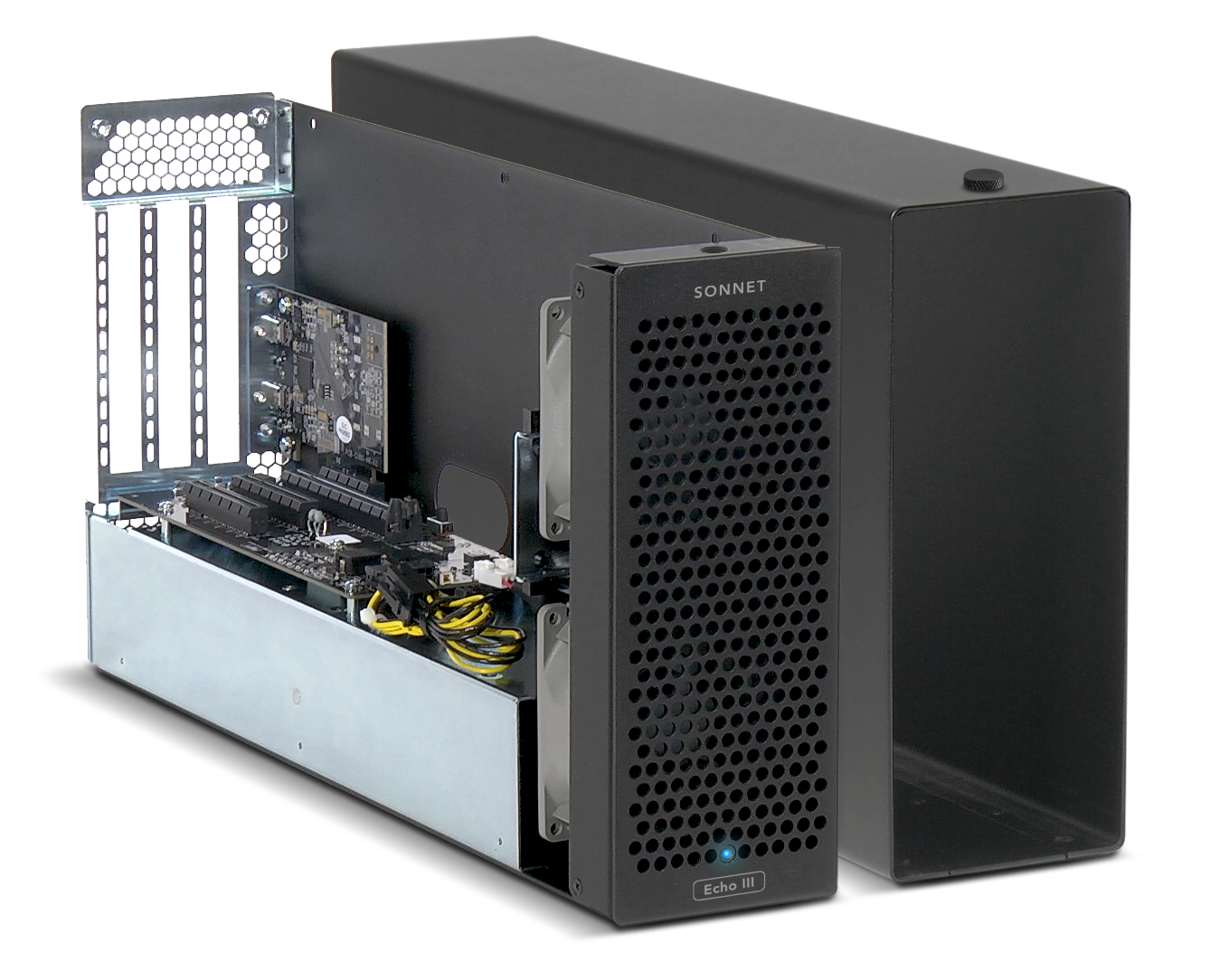

Sonnet Echo III Desktop 3-Slot TB 3 to PCIe Card Expansion System

Model: ECHO-3D-TB3

Sonnet Echo III Desktop 3-Slot TB 3 to PCIe Card Expansion System
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: Sonnet Echo III Desktop 3-Slot TB 3 to PCIe Card Expansion System

For creative pros using the latest portable, mini desktop and all-in-one computers in their workflows, onboard processing power alone is not enough to get the job done. While these computers include high-performance Thunderbolt™ 3 ports to support peripherals, what they lack is PCIe expansion slots to install specialty cards that add needed video and audio inputs, transcode data, and connect to high-speed shared storage and networks. Sonnet has a solution—the Echo™ III Desktop—a professional Thunderbolt™ 3 to PCIe card expansion system that enables you to connect three (up to) full-length (12.28 inches long) PCIe cards at the same time, via a single cable.

Echo III Desktop

Echo III Desktop supports every Thunderbolt 3 compatible, non-GPU PCIe 1.1/2.0/3.0 card available including video capture and transcoding; audio DSP; 6Gb or 12Gb SAS or SATA host bus adapter; 10Gb, 25Gb or Ethernet; SSD storage; and other specialty types to your system.

Key Features:

  • Connects up to Three High-performance non-GPU PCIe Cards
  • Pro Tools | HDX Compatible
  • Three PCIe Slots (One x16 plus two x8 Slots)
  • Support Three full-Height, Single-width Cards, or One Double-width Card plus one Single-width Card
  • Pro Power (Integrated 400W power supply with 75W auxiliary power)
  • Energy Savings (Powers On/Off Automatically with the Computer)
  • Remarkably Quiet (Noctua Fans Rated at 17dBA)
  • 40Gbps Thunderbolt 3 Interface
  • Two Thunderbolt 3 Ports (One Port for Computer, Second Port Supports Thunderbolt Peripheral Daisy-chaining)
  • Rugged Aluminum Enclosure
  • Includes 0.7-meter Thunderbolt 3 Cable
  • Includes Sonnet Designed ThunderLok 3 (Prevents Accidental Cable Disconnections)
  • Mac®, Windows®, and Linux® Compatible
  • Avid® Qualified
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support
  • Designed and Made in the USA

Mac Compatibility

  • Mac (Intel®) with Thunderbolt 3 ports
  • Mac (M1) with PCIe cards that have M1 compatible drivers
  • Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately).
  • macOS® 10.12.6+
  • macOS Big Sur compatible

Windows Compatibility

  • PC with Thunderbolt 3 ports
  • Windows 10 (64-bit Edition Version 1809 or greater, see note)
  • Important Note: Windows computers require the latest BIOS and Thunderbolt drivers to support this product. Check with your computer manufacturer for update information.

Linux Compatibility

  • Linux® computer with Thunderbolt 3 ports
  • Linux Kernel 5.0+

Hardware

  • Warranty: 2-year
  • Form Factor: Desktop expansion system
  • External Connectors
    • Two Thunderbolt 3 ports
    • 12V power port
  • Internal Connector: 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)
  • Expansion Slots (Facing Rear, Left to Right)
    • One x8 mechanical (x4 electrical) PCIe 3.0
    • One x16 mechanical (x8 electrical) PCIe 3.0
    • One x8 mechanical (x4 electrical) PCIe 3.0
  • PCIe Cards Supported
    • One full-length, full-height, double-width PCIe card, plus one single-width card or
    • Three full-length, full-height, single-width PCIe cards
  • Power Supply: Universal 300W, 115-230V AC, 50-60 Hz(7)
  • Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)
  • Dimensions (WxDxH): 3.8 x 16 x 10.2 in. (9.7 x 40.5 x 25.9 cm)
  • Weight: 7.5 lbs (3.4 kg)

Package Contents

  • Echo Express III-D (Thunderbolt 3 Edition)
  • Power cord
  • 0.7-meter Thunderbolt 3 (40Gbps) cable
  • ThunderLok 3 Thunderbolt Connector Retainer Clip(1)
  • Documentation

UPC: 732311013195

Videos: Sonnet Echo III Desktop 3-Slot TB 3 to PCIe Card Expansion System

Reviews: Sonnet Echo III Desktop 3-Slot TB 3 to PCIe Card Expansion System

There are currently no product reviews.


Warranty: Sonnet Echo III Desktop 3-Slot TB 3 to PCIe Card Expansion System

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

5 Year Warranty

  • Sonnet Fusion Fibre Storage Products and managed Ethernet switches
  • Sonnet Fusion D, DX, R, and RX Series Storage Products: (except R400S RAID purchased outside of xMac mini RAID Server bundle) with removable 3.5" drives
  • Sonnet Pro Controller Cards: PCIe (Tempo SATA E4P, E4i, 6Gb Pro PCIe 2.0, 6Gb Pro 4-Port, SSD Pro, and Allegro FW800); ExpressCard/34 (Tempo SATA Pro, 6Gb Pro, edge 6Gb Pro, SAS Pro, FireWire 800 Pro, SDXC UHS-I Reader, and Pro Dual Compact Flash Adapter); and PCI-X (Tempo SATA X4P)
  • Sonnet Pro Thunderbolt Products: Echo ExpressCard Pro Thunderbolt Adapter; Echo Express II, Echo Express III-D, Echo Express III-R and Echo Express Pro Thunderbolt Expansion chassis; Echo Express SE 10GbE, Echo Express SE eSATA Pro 4-Port and Echo Express SEL 10GbE Thunderbolt adapters; xMac mini Server, xMac mini Server 2H and xMac mini Server (Third Generation); xMac Pro Server; Fusion DX800RAID Thunderbolt Edition and Fusion DX800 RAID (Thunderbolt 2 Edition)

2 Year Warranty:

  • Sonnet Fusion D, DX, R, and RX Series Storage Products: (except Fibre) with removable 3.5" drives
  • Sonnet Pro Controller Cards: PCIe (Tempo SATA E4P, E4i, and Allegro FW800); ExpressCard/34 (Tempo SATA Pro, FireWire 800 Pro, and Pro Dual Compact Flash Adapter); and PCI-X (Tempo SATA X4P)
  • Sonnet Mobile Storage and Qio Media Readers: Fusion F2, Fusion F2QR, Fusion F3, Qio, Qio E3, Qio CF4, Qio MR

1 Year Warranty:

  • Sonnet Fusion QR
  • Sonnet Fusion R400S RAID (except when purchased as part of xMac mini RAID Server bundle)
  • Sonnet Thunderbolt Products: Echo Express, Echo Express SE, Echo Express SEL
  • Sonnet Enclosures and Brackets: RackMac mini and RackMac Pro; MacCuff mini and MacCuff Pro
  • All other new Sonnet products
